Lian Li V100RMIX PC Case Black Micro-ATX 415mm GPU 360mm Radiator

Compact mATX Chassis

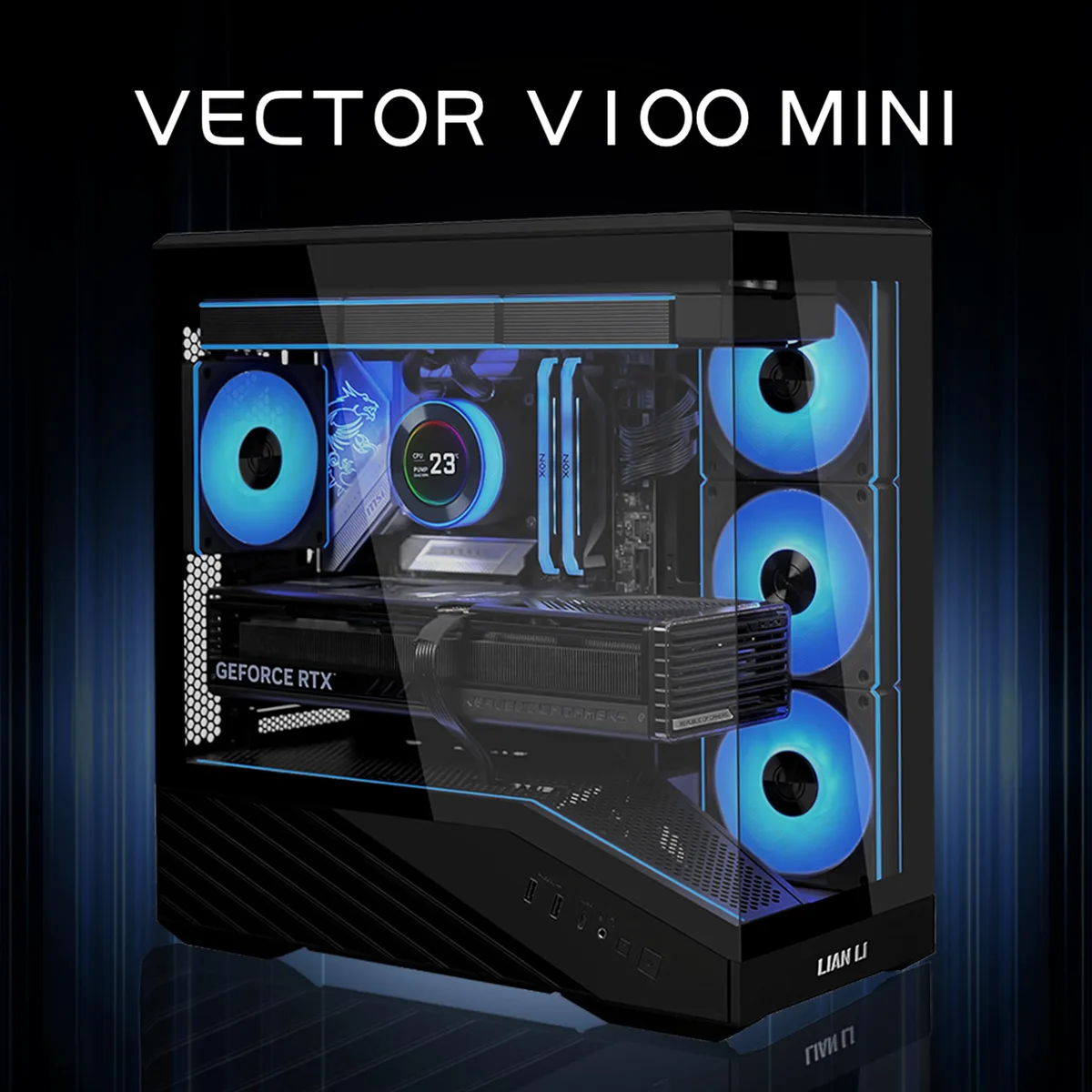

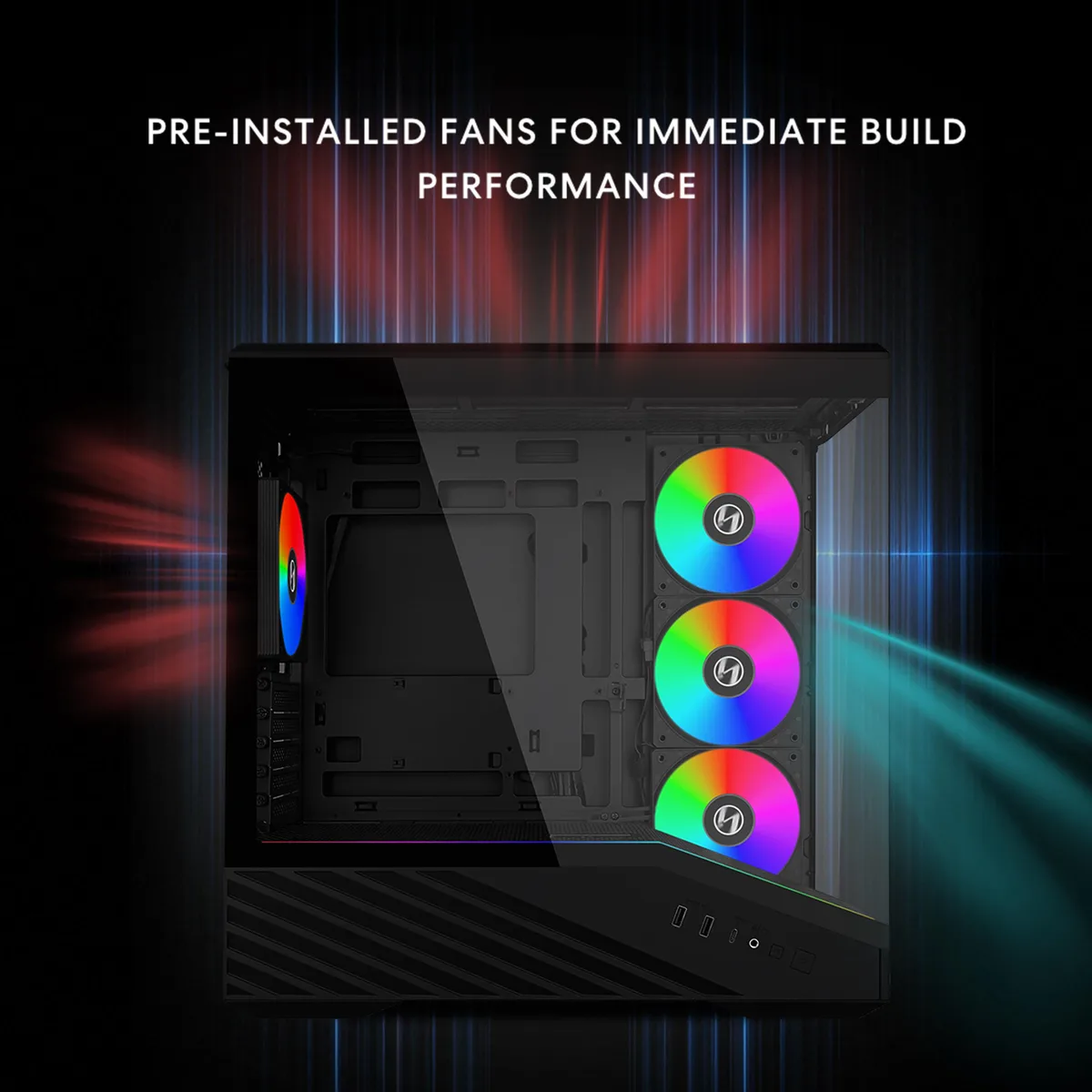

The Lian Li V100RMIX is a micro-ATX case built for compact gaming systems that still want full-length graphics cards and a 360 mm radiator. It accepts back-connect and standard mATX or Mini-ITX boards, so builders can choose modern or conventional layouts. Four pre-installed ARGB PWM fans provide immediate airflow and lighting. The 270-degree tempered glass wraps the front and side for a wide component view.

Thermals and Noise

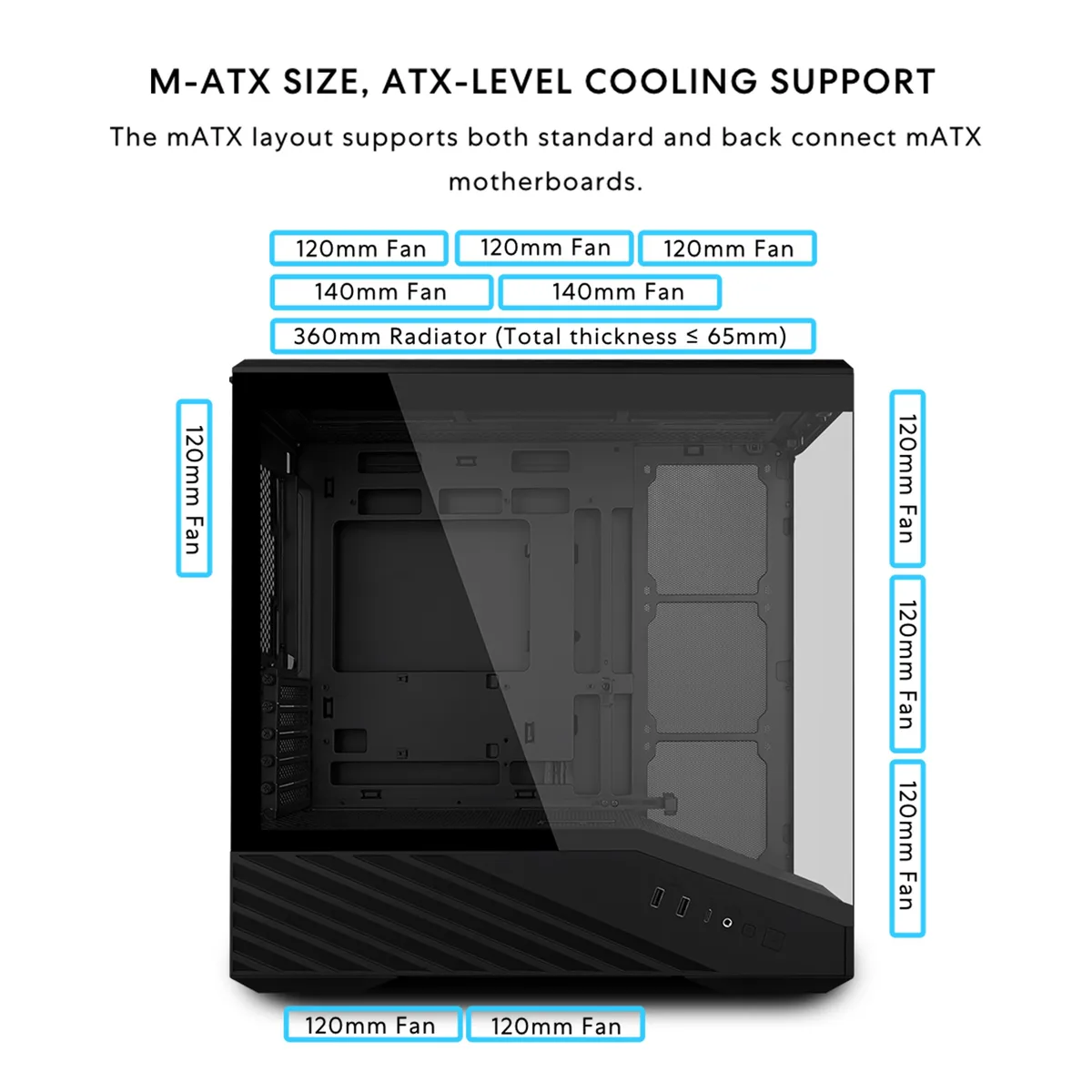

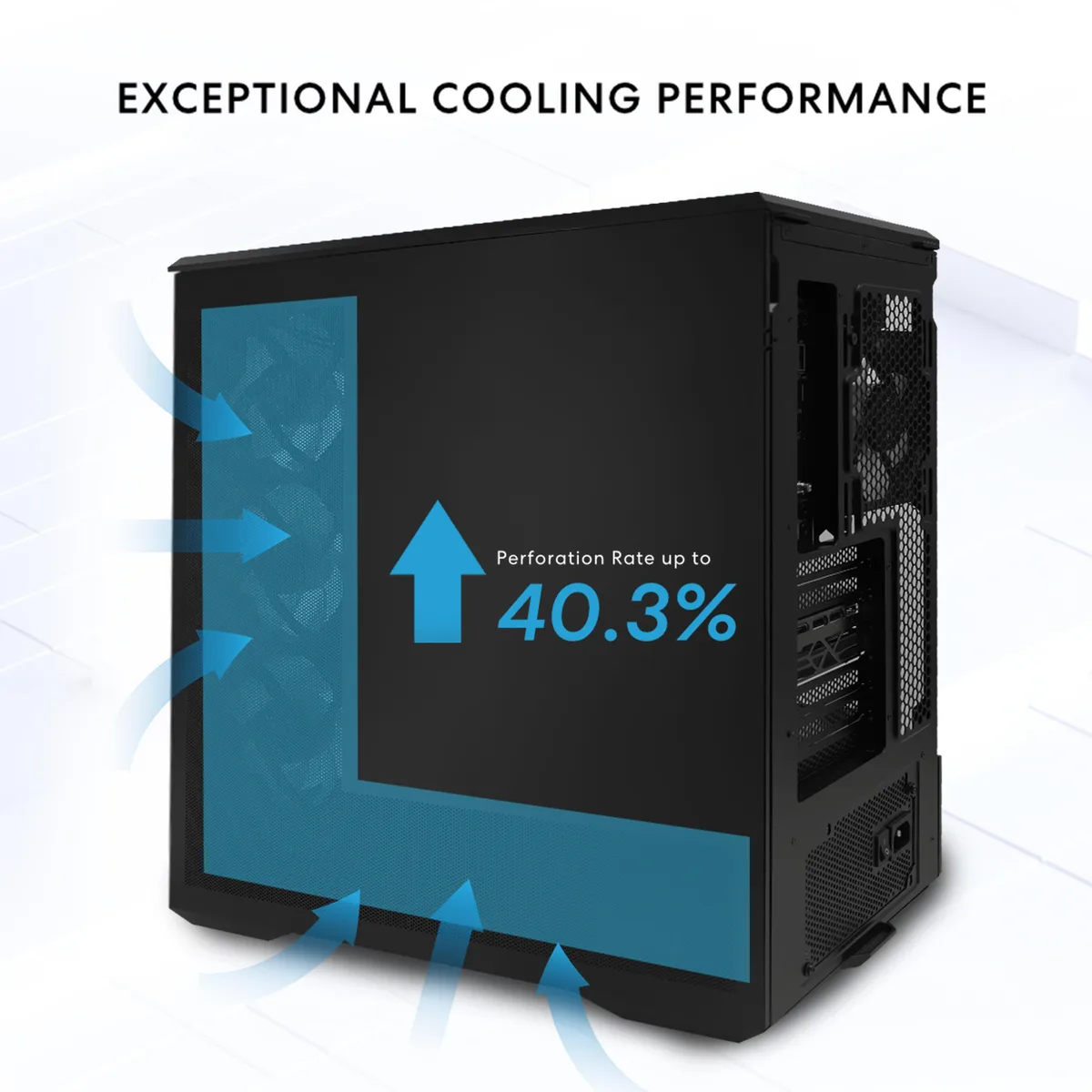

Three top-mounted 120 mm fans or two 140 mm fans feed a 360 mm or 240 mm radiator, while three side and two bottom 120 mm positions supply fresh air to the GPU zone. A single rear 120 mm fan exhausts heat, creating a balanced push-pull path that keeps internal temperatures low at typical gaming loads. The included ARGB PWM fans adjust speed automatically, so noise stays modest during everyday use. No power supply is bundled, letting the builder match wattage to the chosen hardware.

Sustained Load Behaviour

Under prolonged stress the case can field up to nine 120 mm fans, maintaining steady airflow across the CPU radiator and the 415 mm graphics card limit. The height-adjustable anti-sag bracket prevents PCB flex during long sessions. Storage capacity shifts with PSU length: units under 150 mm allow two 2.5 inch SSDs or one 3.5 inch HDD plus one 2.5 inch SSD, while longer PSUs reduce the bay to a single drive. An extra 2.5 inch SSD mounts behind the motherboard tray. The five expansion slots rule out dual-GPU configurations.
