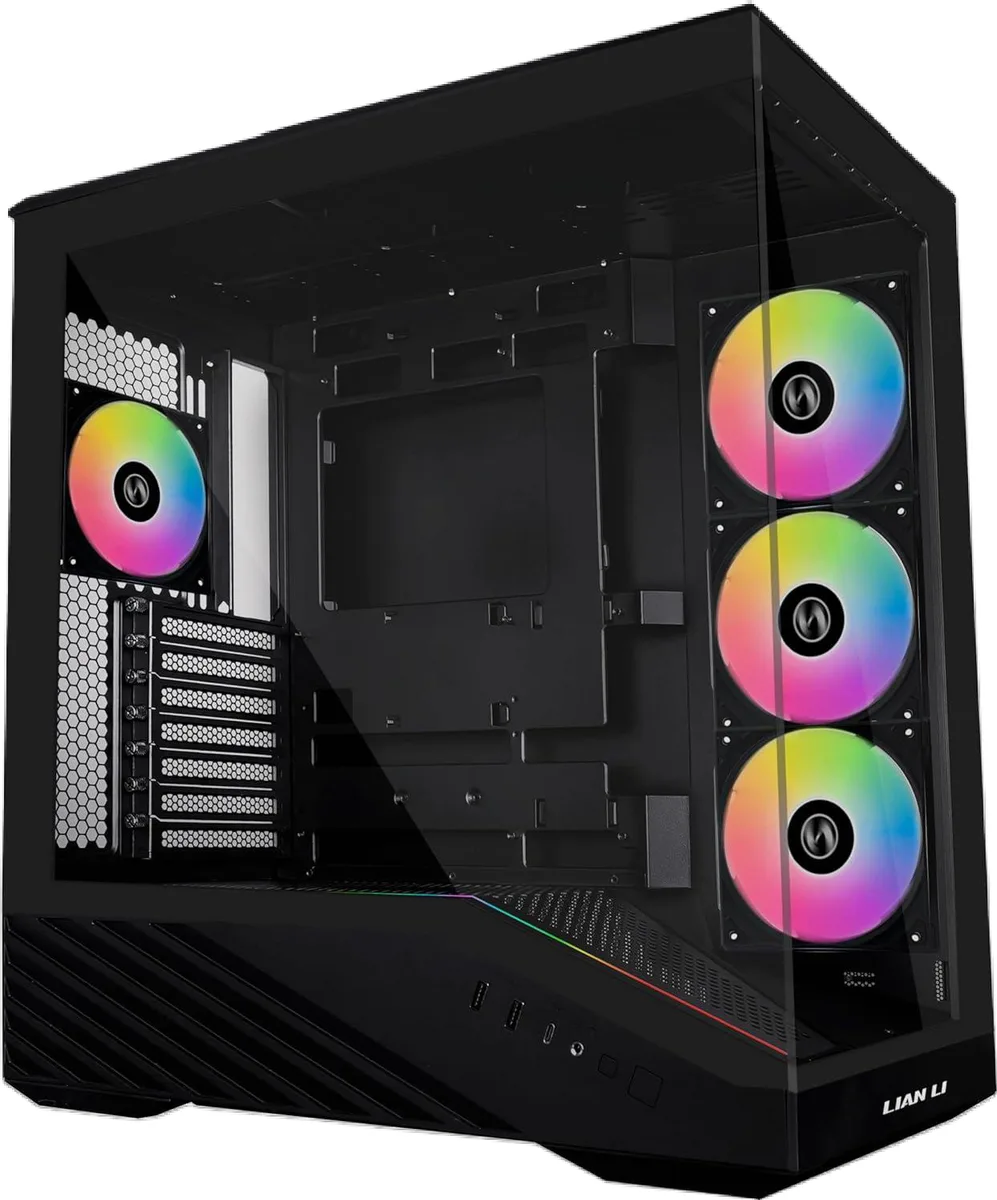

Lian Li V100RX ATX Mid Tower PC Case Black
ATX mid-tower case with four pre-installed 120 mm ARGB PWM fans, a side tempered-glass panel and integrated 26-LED ARGB strip, supporting E-ATX boards up to 246 mm wide.
- TypeATX Mid Tower
- ColorBlack
- Case MaterialSteel / Tempered Glass
- With Power SupplyNo
- Power Supply MountedBottom
- Motherboard CompatibilityE-ATX (Width < 246mm) / ATX / M-ATX / Mini-ITX
Options Black / 4 Fans
- Black

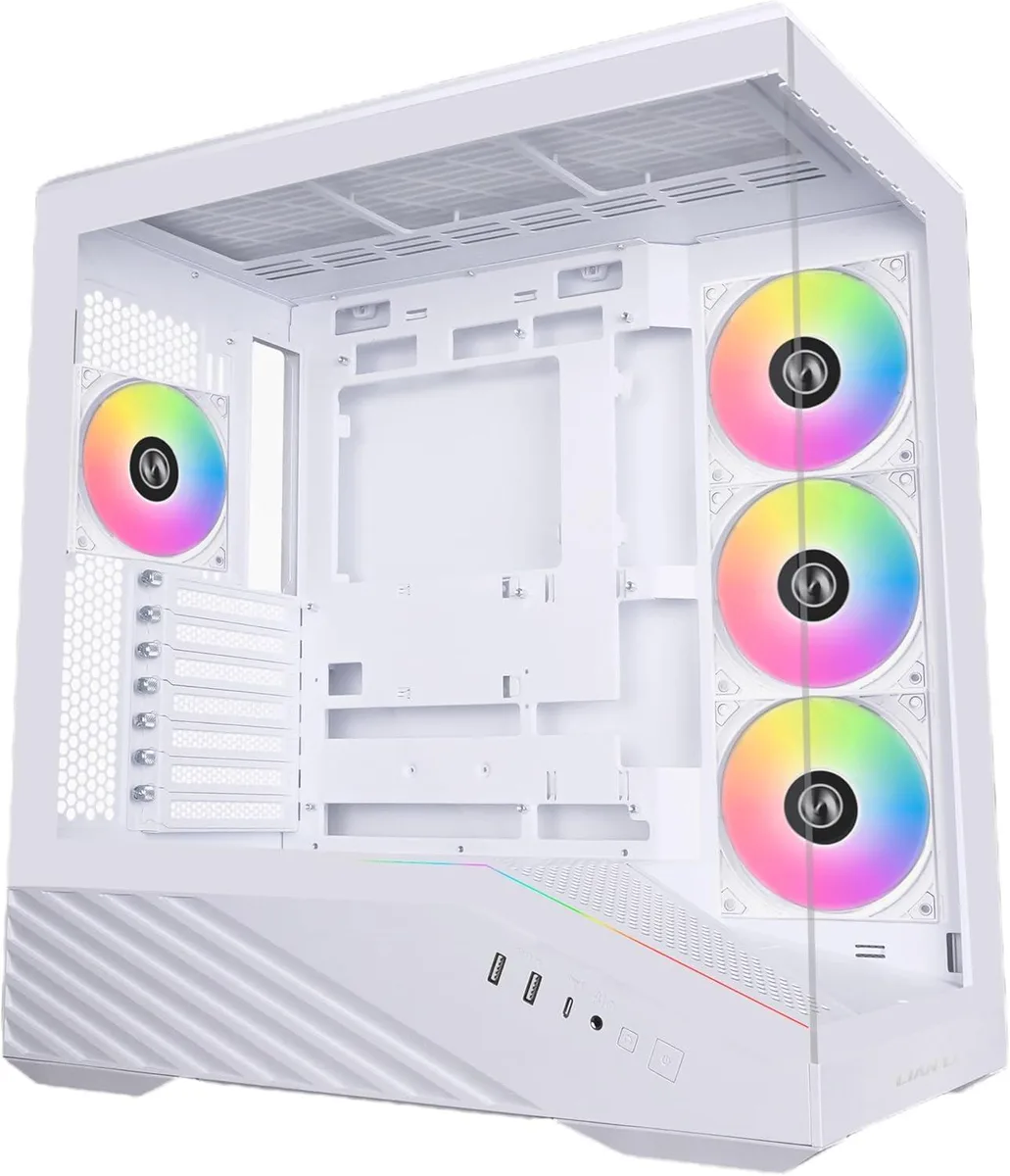

- White
- Black / 4 Fans
- White / 4 Fans
- Pre-installed ARGB fans deliver 61.47 CFM airflow at 30.8 dBA
- Side display platform showcases components behind 270 degree tempered glass visibility
- Back-connect motherboard layout supports 420 mm graphics cards with clean cable routing
- Top 360 mm radiator mount enables high-capacity liquid cooling for demanding builds
- Tool-less glass panel removal simplifies upgrades and maintenance access
ATX Mid Tower with ARGB Lighting
The Lian Li V100RX is a black steel chassis with tempered glass panels designed for ATX, Micro-ATX and Mini-ITX builds. It supports E-ATX boards up to 246 mm wide and graphics cards up to 420 mm long. The case targets enthusiasts who want a showcase build with strong airflow and a dedicated display platform for collectibles.
Four Pre-Installed ARGB PWM Fans and Light Strip

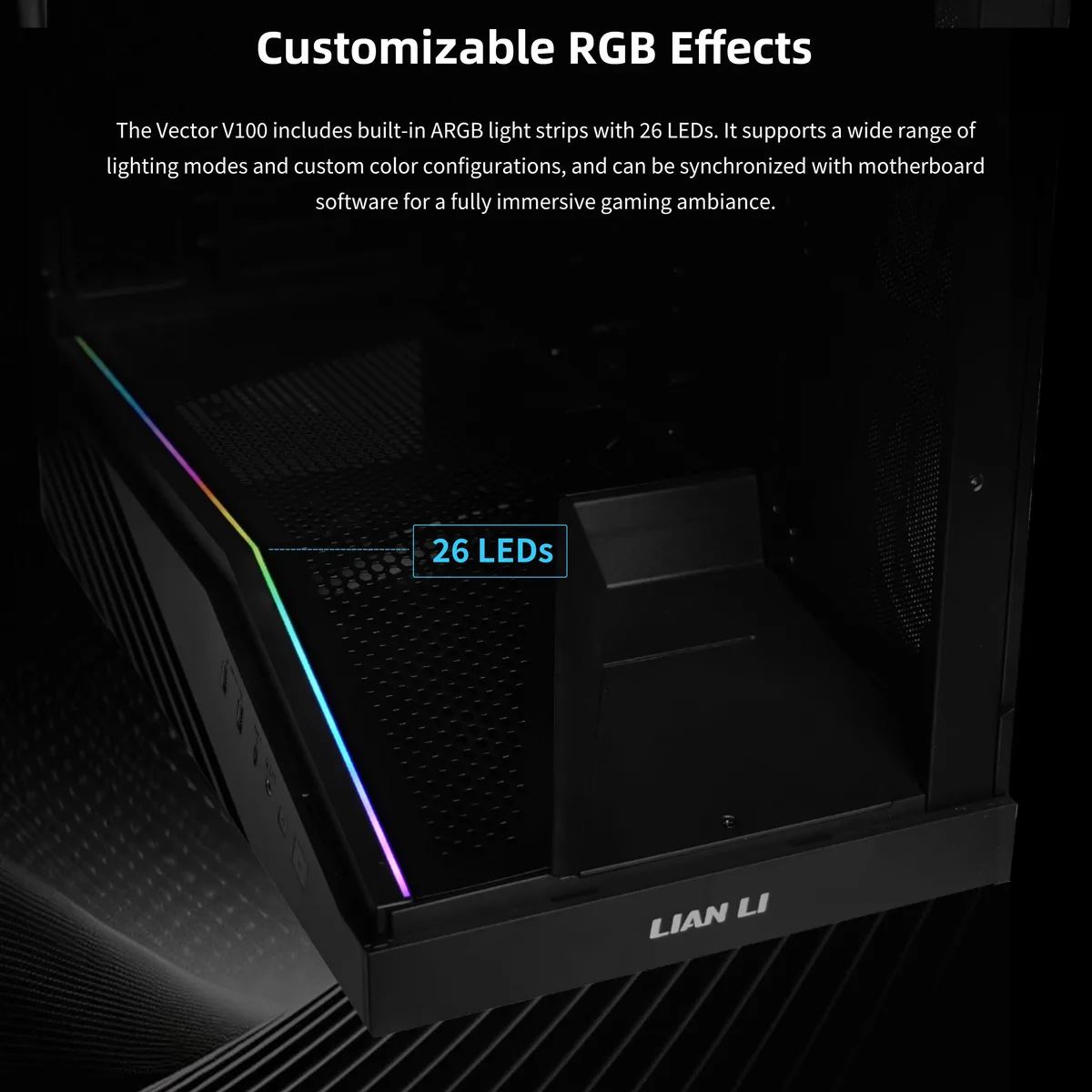

Four 120 mm hydraulic-bearing fans ship mounted at the rear and side, running up to 1800 RPM with airflow between 60.4 and 61.47 CFM and static pressure of 2.17 to 2.54 mm-H2O at 26.5 to 30.8 dBA. A 26-LED ARGB strip runs along the interior and syncs with motherboard software, removing the need to buy separate lighting kits or controllers.
Tool-Less Glass, Bottom PSU Mount and Front I/O
Both glass panels lift off without tools, giving quick access for upgrades or cleaning. The power supply sits at the bottom with room for ATX units under 220 mm. Front I/O provides two USB 3.0 ports, one USB 3.1 Type-C port and audio jacks. Top mounts accept 280 mm or 360 mm radiators, while the CPU cooler clearance reaches 178 mm.
Highlights
- Pre-installed ARGB fans deliver 61.47 CFM airflow at 30.8 dBA
- Side display platform showcases components behind 270 degree tempered glass visibility
- Back-connect motherboard layout supports 420 mm graphics cards with clean cable routing
- Top 360 mm radiator mount enables high-capacity liquid cooling for demanding builds
- Tool-less glass panel removal simplifies upgrades and maintenance access
Specifications
| Brand | LIAN LI |
|---|---|
| Series | V100 |
| Model | V100RX |
| Type | ATX Mid Tower |
| Color | Black |
| Case Material | Steel / Tempered Glass |
| With Power Supply | No |
| Power Supply Mounted | Bottom |
| Motherboard Compatibility | E-ATX (Width < 246mm) / ATX / M-ATX / Mini-ITX |
| Side Panel | 1 x Side Tempered Glass Panel |
| LED | ARGB |
| Front Ports | USB 3.0 x 2 , USB 3.1 Type C x 1 Audio |

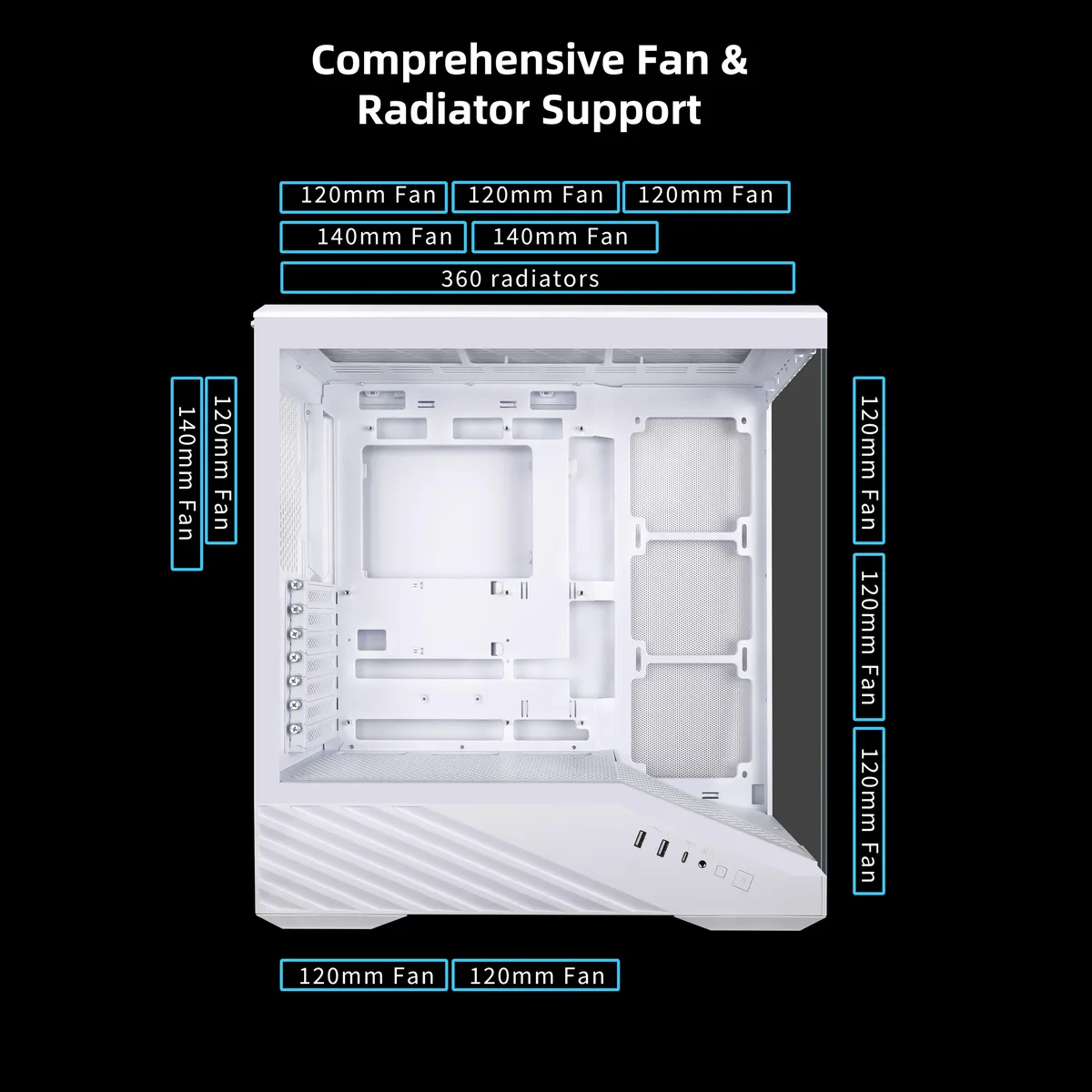

| Fan Options | Bottom - 2 x 120mm / Rear - 1 x 120mm / Rear - 1 x 140mm / Side - 3 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm |
| Pre-installed Fans | Rear - 1 x 120mm / Side - 3 x 120mm |
| Radiator Options | Top: 280mm / 360mm |
| 120mm Fans | 4 |
| Max GPU Length | 420 mm |
| Max CPU Cooler Height | 178 mm |
| Max PSU Length | ATX (under 220mm) |

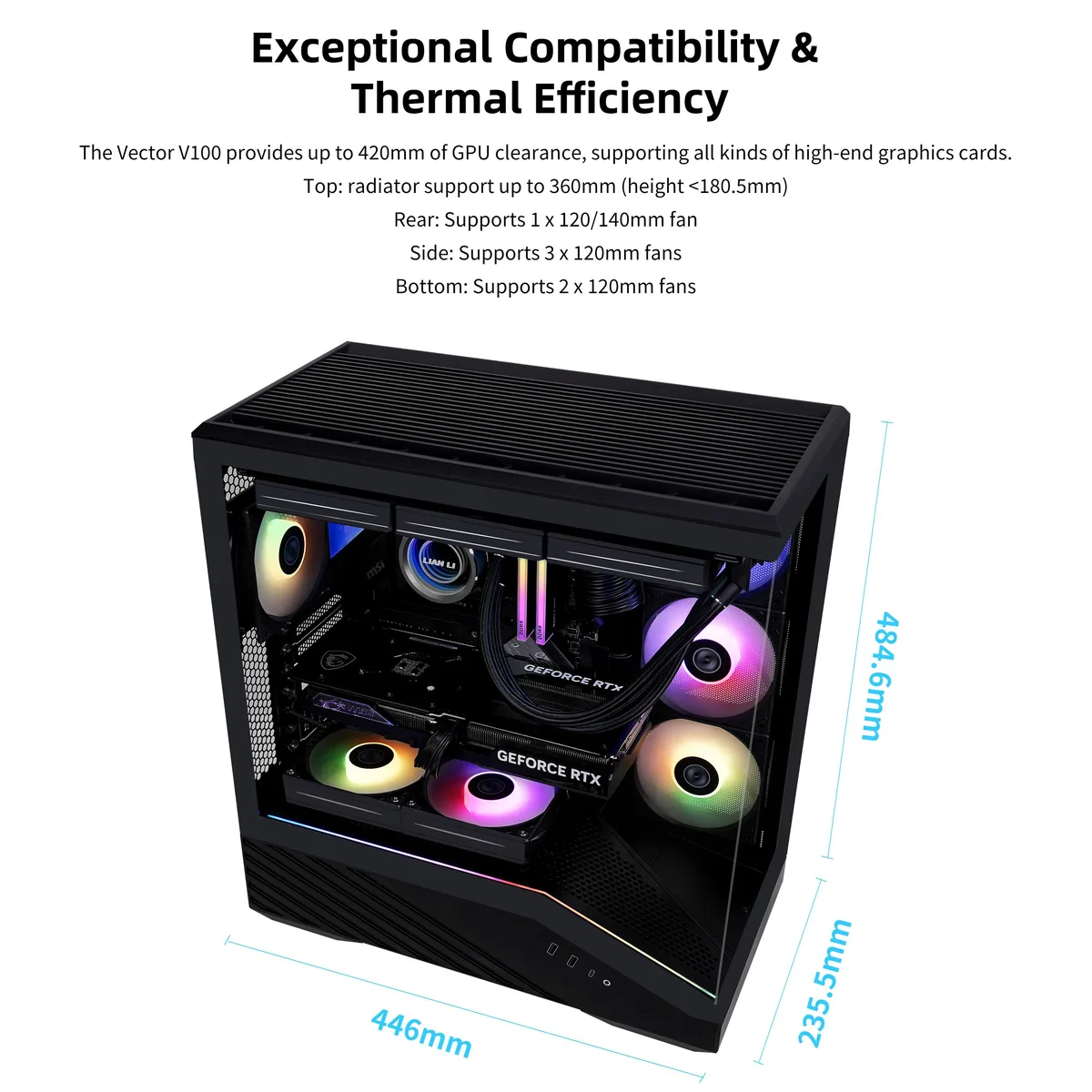

| Dimensions | 446mm x 235.5mm x 484.65mm |
| Weight | 21.6 lb |
| Shipping weight | 9.80 kg |
| Package size | 554 × 523 × 296 mm |
Other versions of this model
3 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
How often do the pre-installed 120 mm ARGB fans with hydraulic bearings need replacement under continuous use?
The four pre-installed 120 mm ARGB fans use hydraulic bearings rated for long life; typical replacement is only needed if noise rises above the 26.5-30.8 dBA spec or airflow drops below 60.4-61.47 CFM after several years of 24/7 operation.
Which thermal limit is reached first when the chassis runs a 360 mm top radiator and a 420 mm GPU at full load all day?
The 178 mm CPU cooler height ceiling and the 420 mm GPU length limit define the component envelope; sustained loads are constrained by the 61.47 CFM maximum airflow of the four 1800 RPM fans before temperatures climb.
What is the noise and heat output when all four 120 mm ARGB fans run at 1800 RPM for 24 hours?
At 1800 RPM the fans produce 26.5-30.8 dBA each and move 60.4-61.47 CFM with 2.17-2.54 mm-H₂O static pressure; total chassis noise stays in that range while exhaust heat matches the CPU and GPU wattage being cooled.
