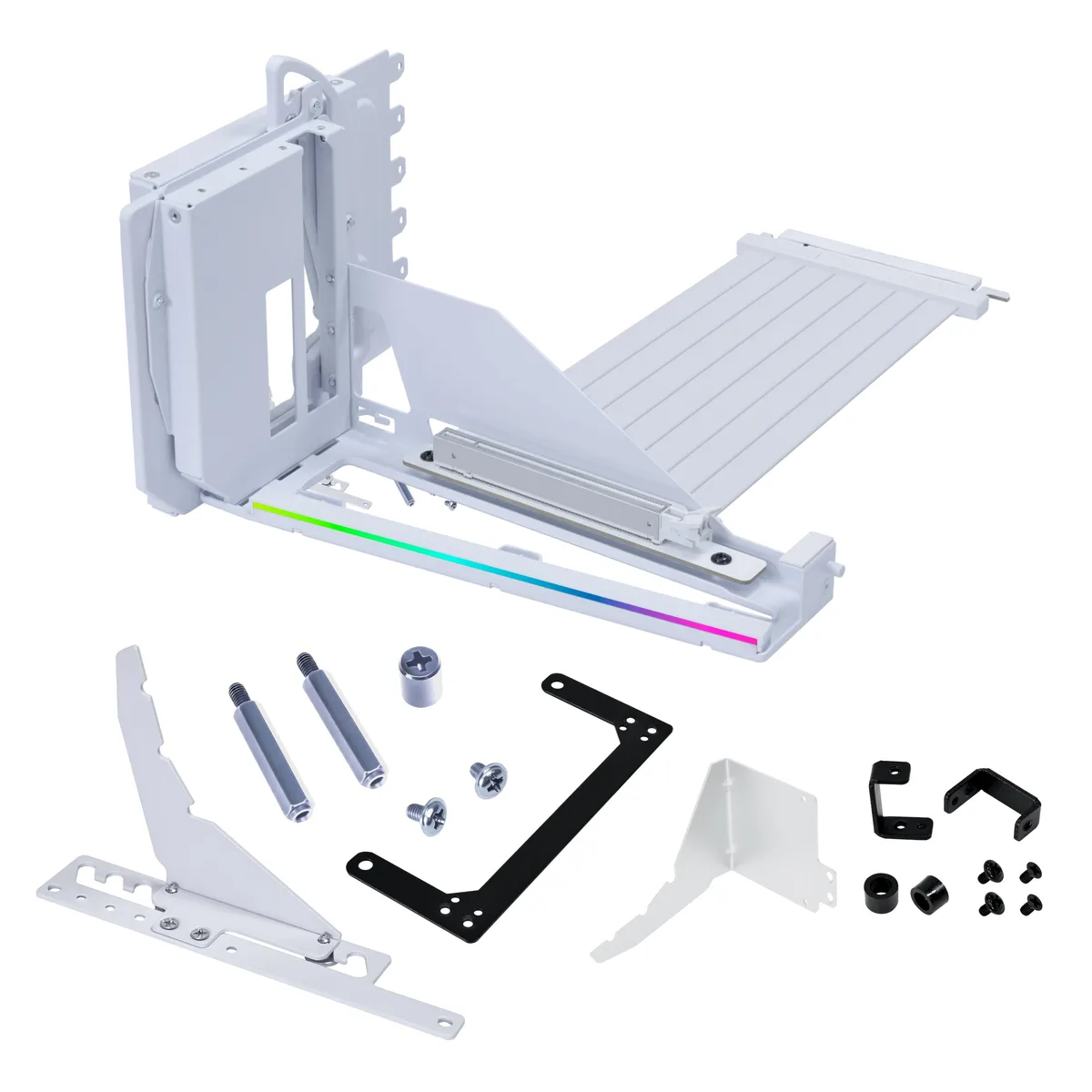

White vertical GPU bracket with adjustable height and tilt, PCIe 5.0 riser cable, integrated RGB lighting

Lian Li

Lian Li VG4-5-V4W Vertical GPU Kit

SKU CH-YZ8H-C32Z5 MPN VG4-5-V4W

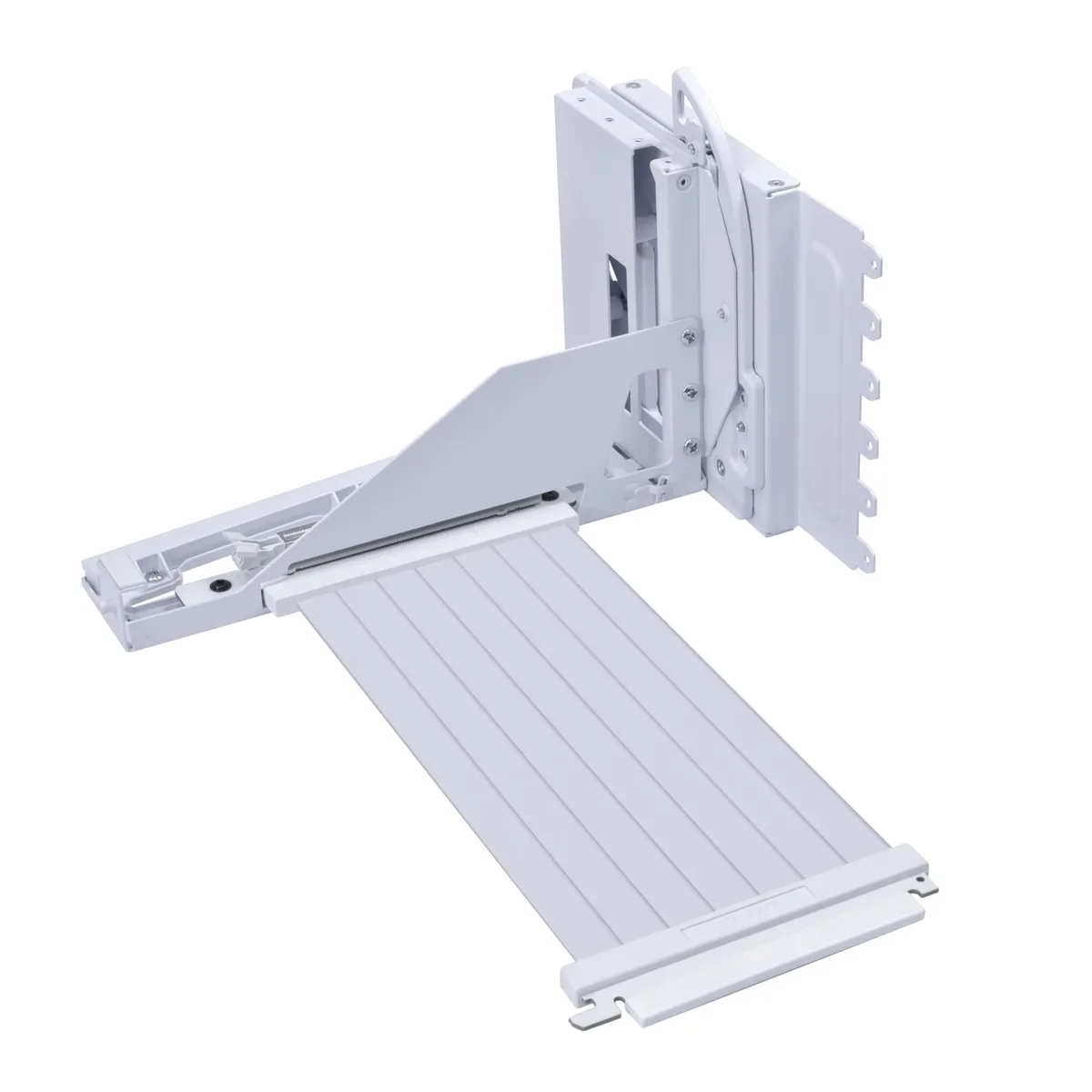

Vertical GPU mounting kit with a 200 mm PCIe 5.0 riser cable, three height settings and dual-angle tilt for ATX cases

  • Motherboard CompatibilityATX
  • Side Panelwith Side Window

Color White

  • White
  • Black

Struck-through versions exist but are not stocked here.

  • Showcase your GPU vertically with a clean, cable-managed look
  • Three height settings clear HDMI and DisplayPort connectors easily
  • Dual-angle tilt improves airflow around the graphics card
  • Included 200 mm PCIe 5.0 riser cable supports 3.0, 4.0 and 5.0 speeds
  • Fits ATX cases with 6 to 7 PCIe slots and GPUs up to four slots thick

Vertical GPU Kit for ATX Builds

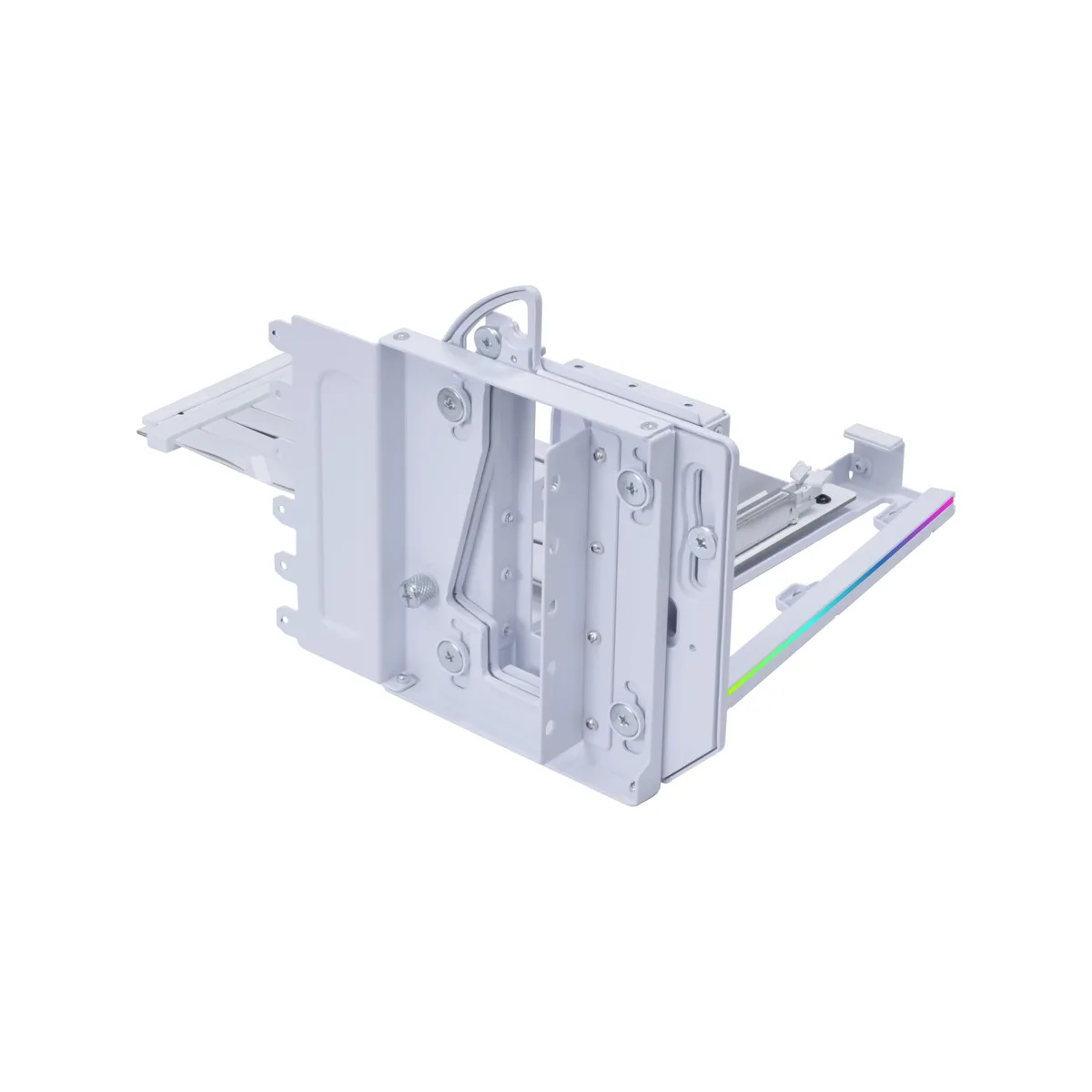

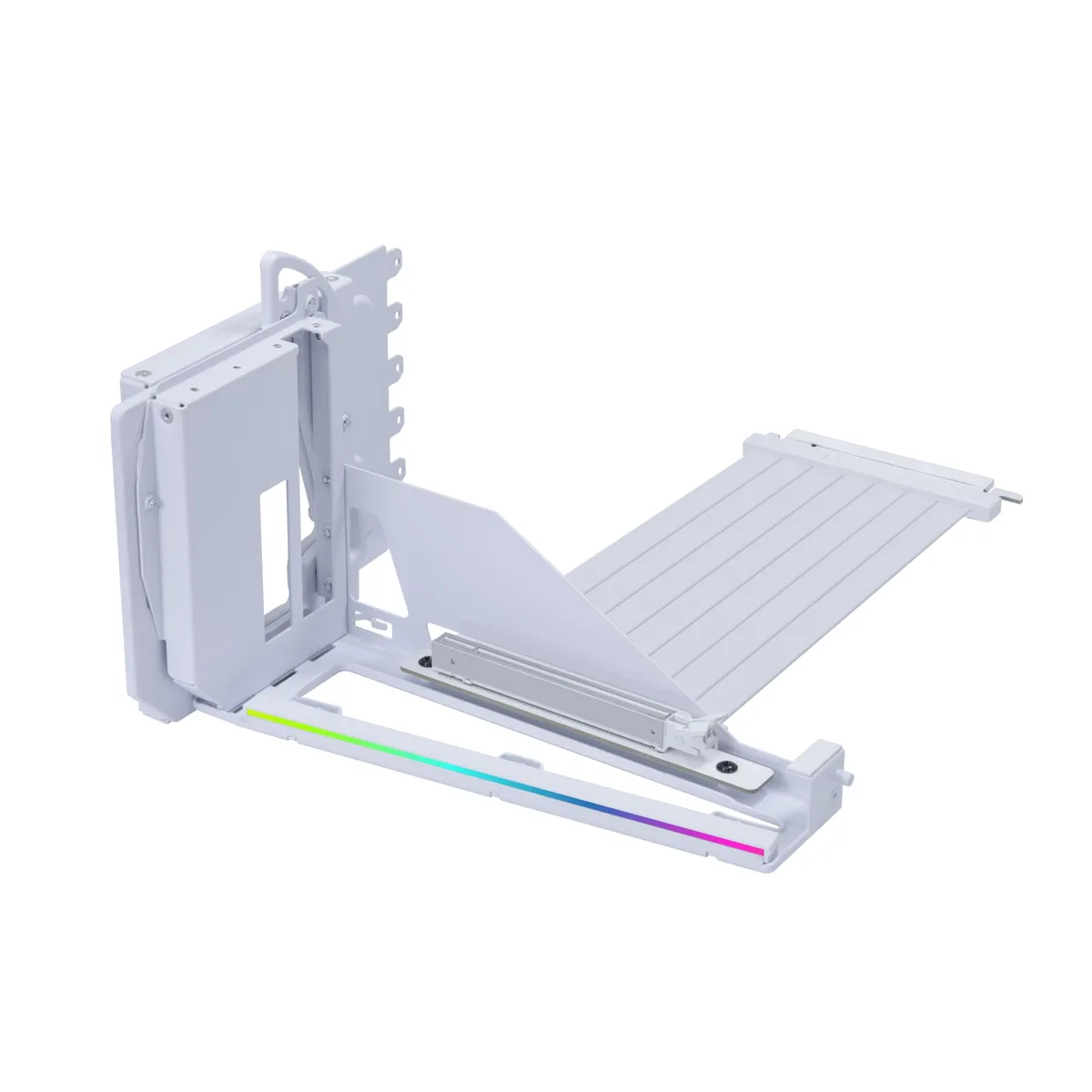

The Lian Li VG4-5-V4W kit mounts a graphics card vertically in cases that support ATX motherboards. It includes a premium PCIe 5.0 riser cable and a bracket with three height adjustments plus a dual-angle tilt function. Integrated RGB lighting adds visual flair while the design accommodates thick GPUs up to four slots wide. This kit suits builders who want to showcase their GPU in a modern chassis.

Check Case Slots and GPU Clearance

Your case must provide at least six PCIe expansion slots for standard vertical mounting or seven slots if you plan to use the tilted configuration. Verify that the graphics card I/O area clears the enlarged bracket cutout to avoid interference with HDMI or DisplayPort cables. Remove any factory overclocking button on the card before installation to prevent contact with the adjustable structure. Cards with three full-size DisplayPorts may touch the slot when tilted.

Sustained Airflow and Secure Mounting

The dual-angle tilt reduces turbulence by moving the GPU away from nearby components, promoting steadier airflow during long sessions. A thinner rubber pad keeps the card seated firmly without upward pressure that could detach the connection. Press the GPU downward during installation so the side latch locks automatically, and always hold the release tab when removing the card to avoid damage. The refined frame also works with many third-party support brackets for added stability.

Highlights

  • Showcase your GPU vertically with a clean, cable-managed look
  • Three height settings clear HDMI and DisplayPort connectors easily
  • Dual-angle tilt improves airflow around the graphics card
  • Included 200 mm PCIe 5.0 riser cable supports 3.0, 4.0 and 5.0 speeds
  • Fits ATX cases with 6 to 7 PCIe slots and GPUs up to four slots thick

Specifications

Motherboard CompatibilityATX
Side Panelwith Side Window
Shipping weight0.91 kg
Package size235 × 168 × 148 mm

Questions about this item

What comes in the VG4-5-V4W kit and do I need to buy a riser cable separately?

The kit includes the vertical mounting bracket and a 200mm PCIe 5.0 riser cable, so no separate cable purchase is required.

Which PCIe version should I choose for the included riser cable — 3.0, 4.0 or 5.0?

The supplied 200mm cable is rated for PCIe 5.0 and remains fully compatible with PCIe 3.0 and 4.0 motherboards and graphics cards.

How does the 200mm PCIe 5.0 riser cable perform once installed in a real system?

It delivers full PCIe 5.0 bandwidth over the 200mm length while staying backward compatible with PCIe 3.0 and 4.0 hardware, ensuring no throughput loss for modern GPUs.
