Black rectangular router with glossy top panel and front status LEDs

Linksys

Linksys EA6500 V2 AC1750 wireless router

SKU CH-YTKC-G966C MPN EA6500

Dual-band Wi-Fi 5 router delivering up to 1.75 Gbps with four gigabit LAN ports and USB 2.0

  • StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
  • WiFi GenerationWi-Fi 5
  • Wireless StandardIEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g /
  • Security64/128-Bit WEP, WPA, WPA2
  • WPAWPA2
  • WAN Ports1 x 10/100/1000M
  • Dual-band AC1750 Wi-Fi 5 delivers up to 1.75 Gbps combined wireless throughput

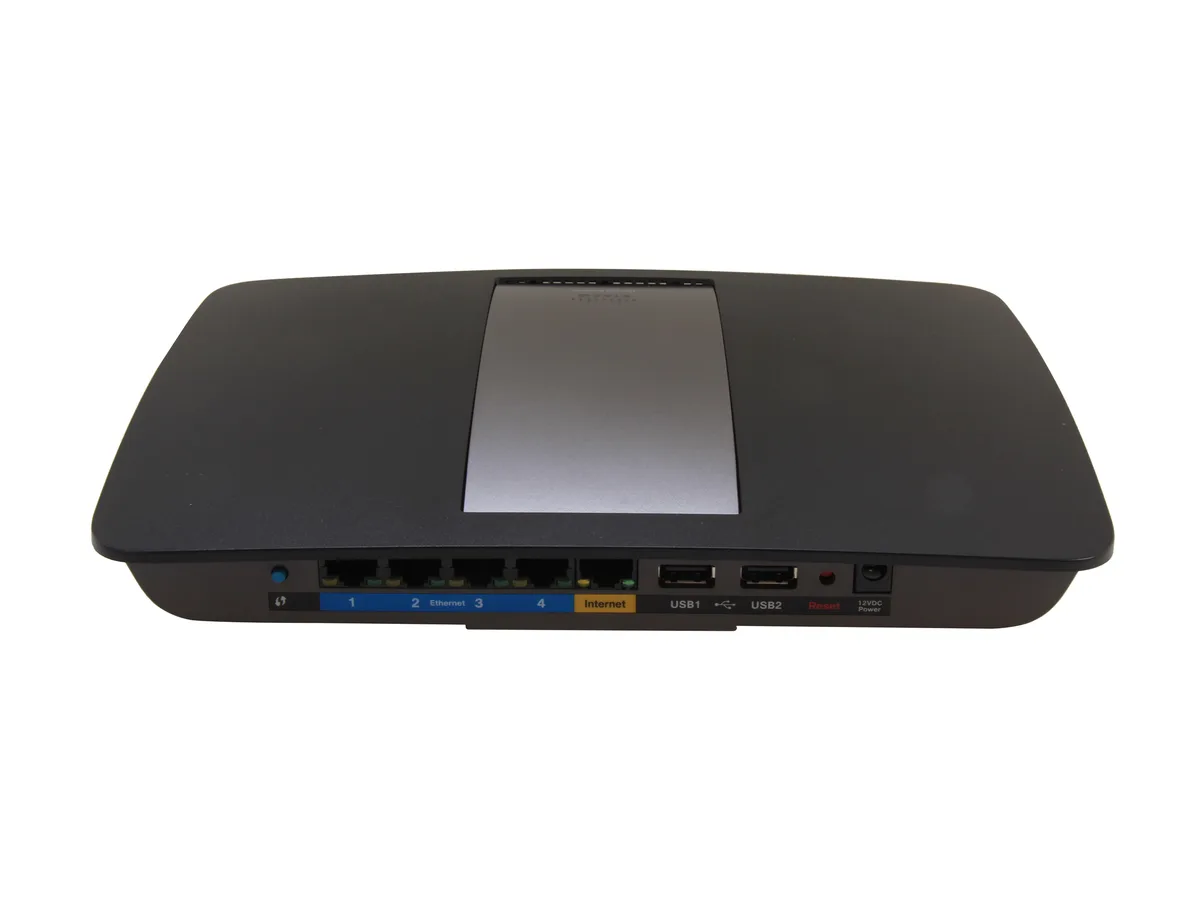

  • Four Gigabit LAN ports plus one Gigabit WAN port provide wired backbone speeds of 1000 Mbps
  • Smart Wi-Fi app enables remote network management from a mobile device
  • Six internal antennas with beamforming focus signal strength toward connected clients
  • USB 2.0 interface allows basic printer or storage sharing across the network

Dual-band AC1750 router for home networks

The Linksys EA6500 V2 is a Wi-Fi 5 router delivering up to 1.75 Gbps combined throughput across 2.4 GHz and 5 GHz bands. It provides four Gigabit LAN ports and one Gigabit WAN port for wired connections. The Smart Wi-Fi app enables remote network management from a mobile device.

Upgrade from single-band or N-class routers

Households still using 2.4 GHz only hardware or older 802.11n gear will gain the 5 GHz AC1300 stream plus the N450 stream on 2.4 GHz. The jump is worthwhile when multiple devices stream video or game simultaneously and the current router cannot serve both bands at once.

Straightforward setup with app guidance

Configuration runs through the Smart Wi-Fi app or a browser interface and typically completes in minutes. Common issues include forgetting to update firmware after first boot, which can leave security gaps, and placing the unit where internal antennas are blocked by metal furniture or thick walls.

Highlights

  • Dual-band AC1750 Wi-Fi 5 delivers up to 1.75 Gbps combined wireless throughput
  • Four Gigabit LAN ports plus one Gigabit WAN port provide wired backbone speeds of 1000 Mbps
  • Smart Wi-Fi app enables remote network management from a mobile device
  • Six internal antennas with beamforming focus signal strength toward connected clients
  • USB 2.0 interface allows basic printer or storage sharing across the network

Specifications

BrandLinksys
ModelEA6500
StandardsIEEE 802.11ac, IEEE 802.11a/b/g/n
WiFi GenerationWi-Fi 5
Wireless StandardIEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n
Security64/128-Bit WEP, WPA, WPA2
WPAWPA2
WAN Ports1 x 10/100/1000M
LAN Ports4 x 10/100/1000M
Wireless Data RatesAC1750 / Up to 1.75Gbps
Modulation802.11b: CCK, QPSK, BPSK
802.11g: OFDM
802.11a: OFDM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Frequency Band2.4 GHz / 5 GHz
Antenna6 total, 3 internal antennas per each 2.4GHz & 5GHz radio band
Receiver Sensitivity2.4 GHz:
802.11b: -87 dBm maximum @ 11 Mbps
802.11g: -77 dBm maximum @ 54 Mbps
802.11n (20 MHz): -70 dBm maximum @ MCS23
802.11n (40 MHz): -66 dBm maximum @ MCS23
5 GHz:
802.11a: -74 dBm maximum @ 54 Mbps
802.11n 20 MHz: -67 dBm maximum @ MCS23
802.11n 40 MHz: -64 dBm maximum @ MCS23
802.11ac 80MHz: -51 dBm maximum @ MCS9
InterfaceUSB 2.0
Power Supply12V, 3.5A
Wireless Adapter includedNo
System RequirementsPC: Wi-Fi enabled PC with CD or DVD drive, running Windows XP SP3, Windows Vista SP1 or later, or Windows 7
Mac: Wi-Fi enabled Mac with CD or DVD drive, running OS X Leopard 10.5.8 or later, Snow Leopard 10.6.1 or later, or Lion 10.7 or later
Web Browser: Internet Explorer 8, Safari 5, or Firefox 8 or Chrome
HD/3D Video Streaming: Requires a minimum of 100 Mbps transfer speed, actual performance may vary
Dimensions10.08" x 7.25" x 1.58"
Weight17.67 oz.
Temperature0°C - 40°C (32°F - 104°F)
Humidity10% - 80%
FeaturesLatest Draft 802.11ac Wireless Technology
Backward Compatible with a/b/g/n Devices
Simultaneous Dual-Band
Ultimate Speeds - Up to 450 + 1300 Mbps
High Power Amplifiers for Ultimate Range
SpeedBoost Technology for Increased Signal Strength
WPA2 Encryption and SPI Firewall
Four 10/100/1000 Gigabit Ethernet Ports
2 USB Ports to Simultaneously Share Printers and Storage
3D Antenna Array Allows for Wall Mounted or Table Top Display
DLNA Certified Media Server
Quality of Service (QoS) for Smoother HD Video
IPv6 Enabled
SimpleTap Technology-Add Wi-Fi and NFC-Enabled Devices to Your Network.

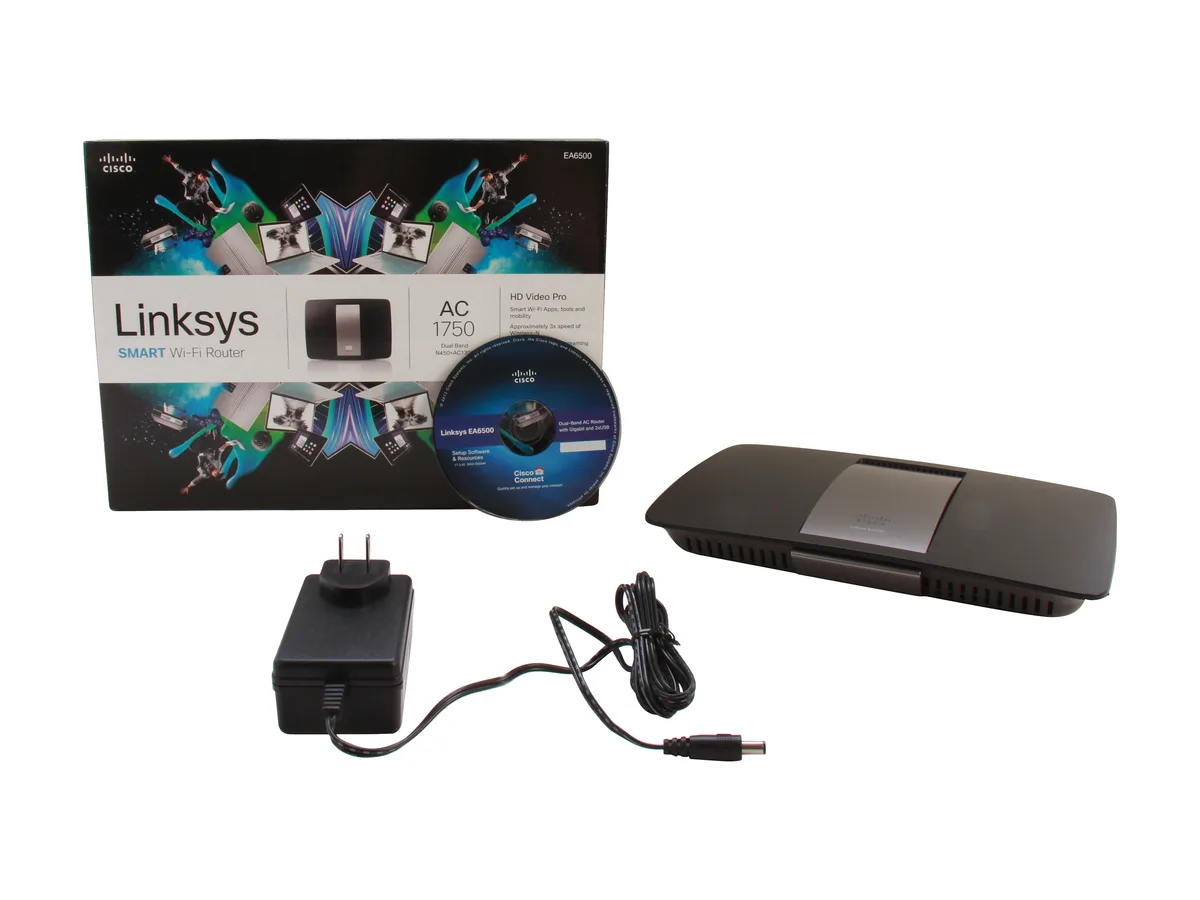

Package ContentsLinksys EA6500 Dual-Band AC Router with Gigabit and 2xUSB
CD-ROM with Setup Software and Resources
Ethernet Cable
Power Adapter
SimpleTap Card
Shipping weight1.36 kg
Package size325 × 241 × 64 mm

Questions about this item

What clearance does the 10.08" x 7.25" x 1.58" chassis need for the six internal antennas?

The six internal antennas are built into the 10.08" x 7.25" x 1.58" body, so no extra antenna clearance is required; allow a few centimetres around the vents for airflow.

Which port do I plug the ISP cable into during the Smart Wi-Fi app setup?

Connect the ISP cable to the single 10/100/1000M WAN port, then run the Smart Wi-Fi app; the step often missed is waiting for the solid blue light before creating the admin password.

When should I replace the external 12V 3.5A power supply?

Replace the 12V 3.5A adapter if the router loses power intermittently, the LED stays amber, or the brick becomes excessively hot during normal operation.
