Logisys Computer

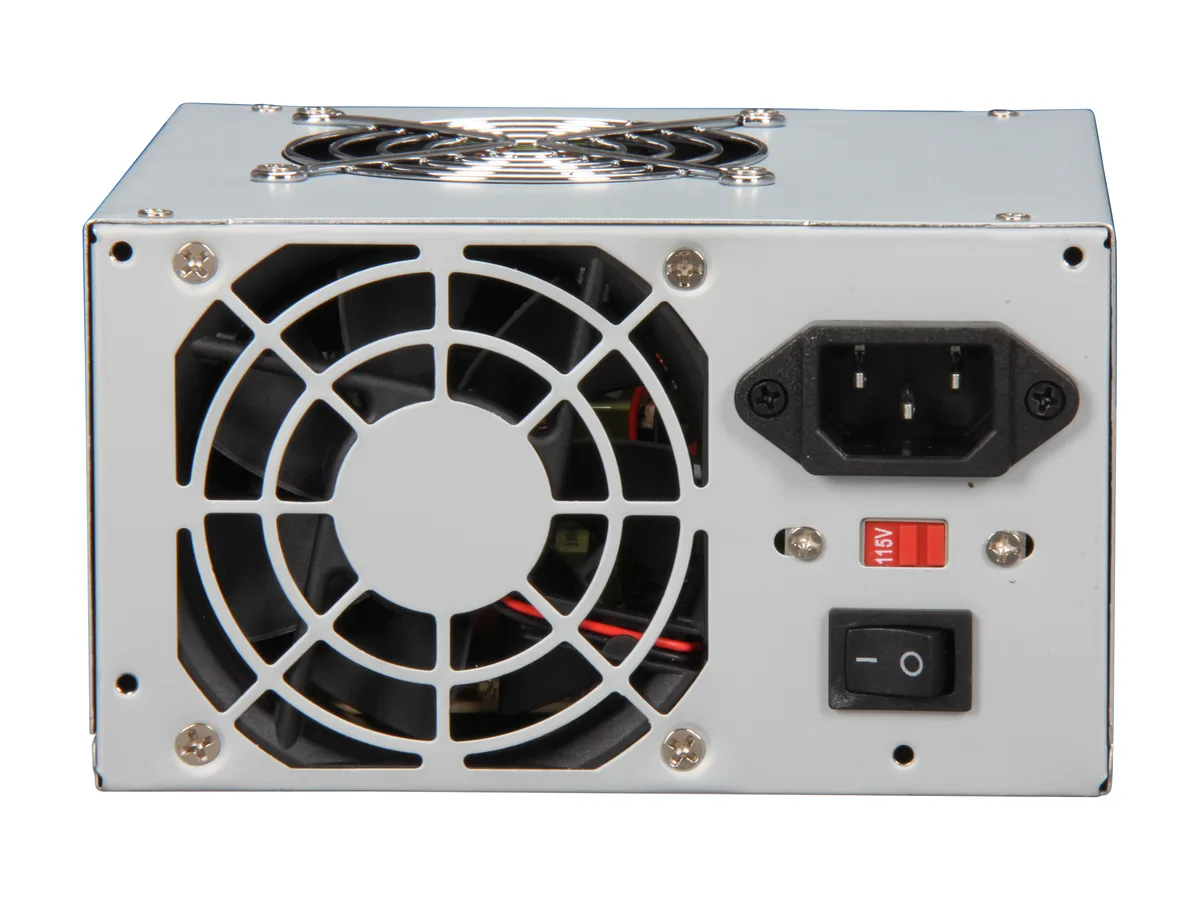

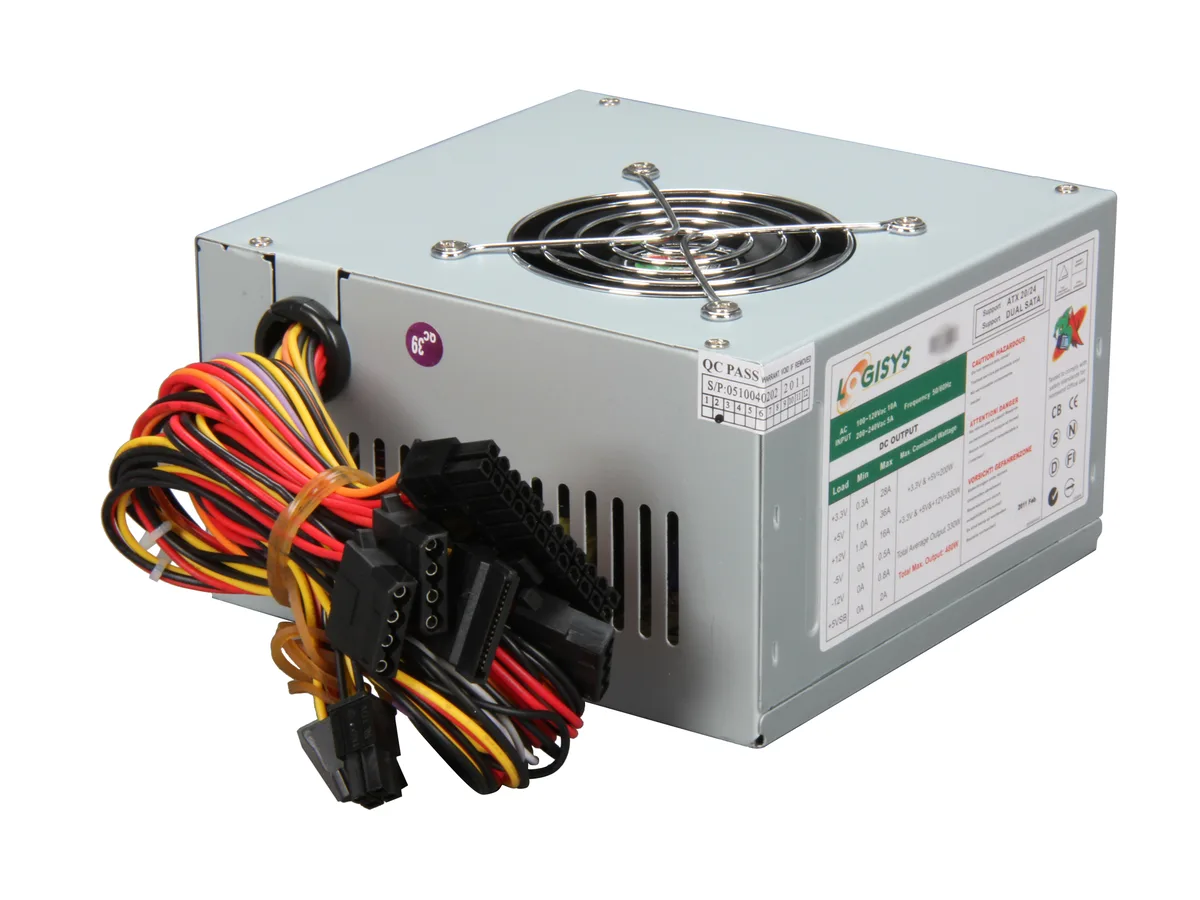

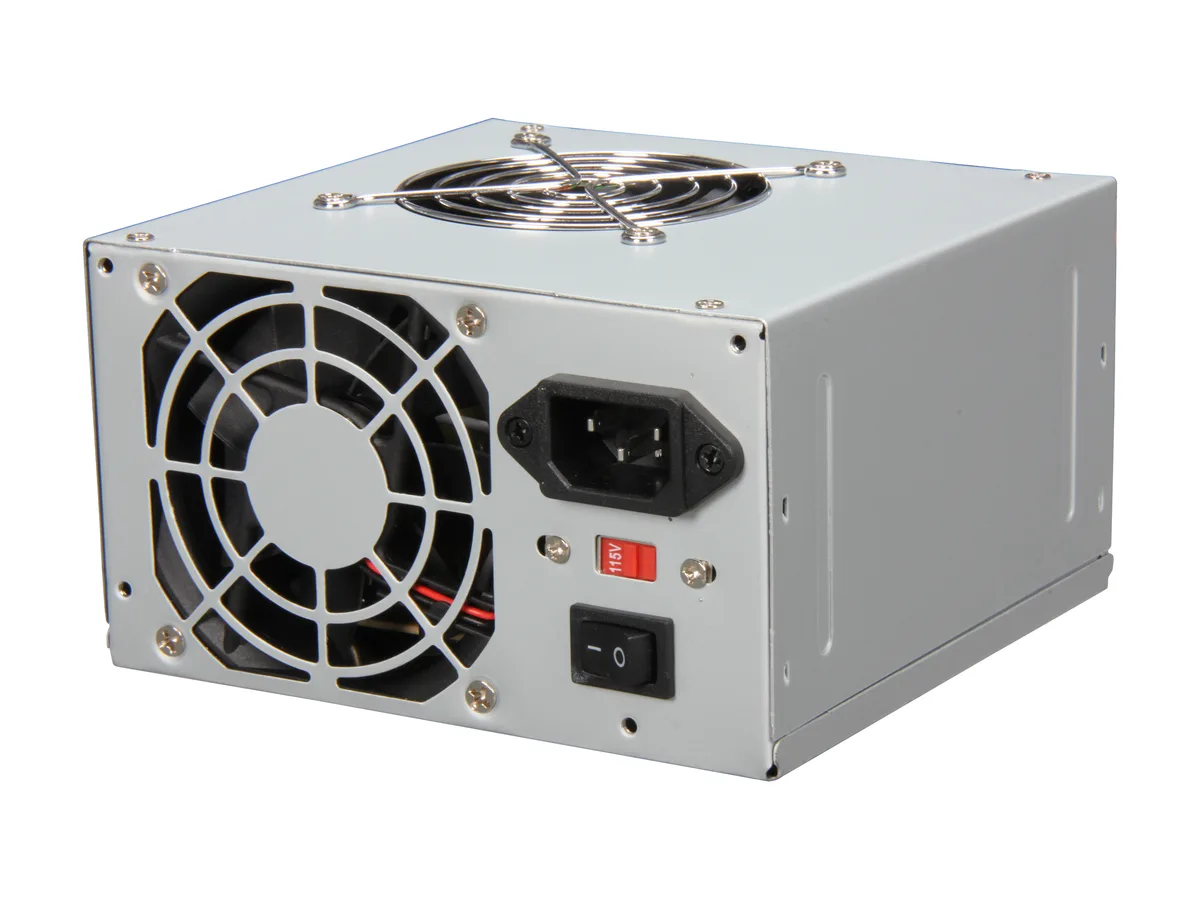

Logisys Computer PS480D2 480 W ATX12V power supply
Delivers 480 W through a single 12 V rail with dual fans and four SATA connectors
- TypeATX12V
- Maximum Power480 W
- Fans2
- PFCNo
- Main Connector20+4Pin
- +12V RailsSingle
- 480 W maximum power for stable system operation

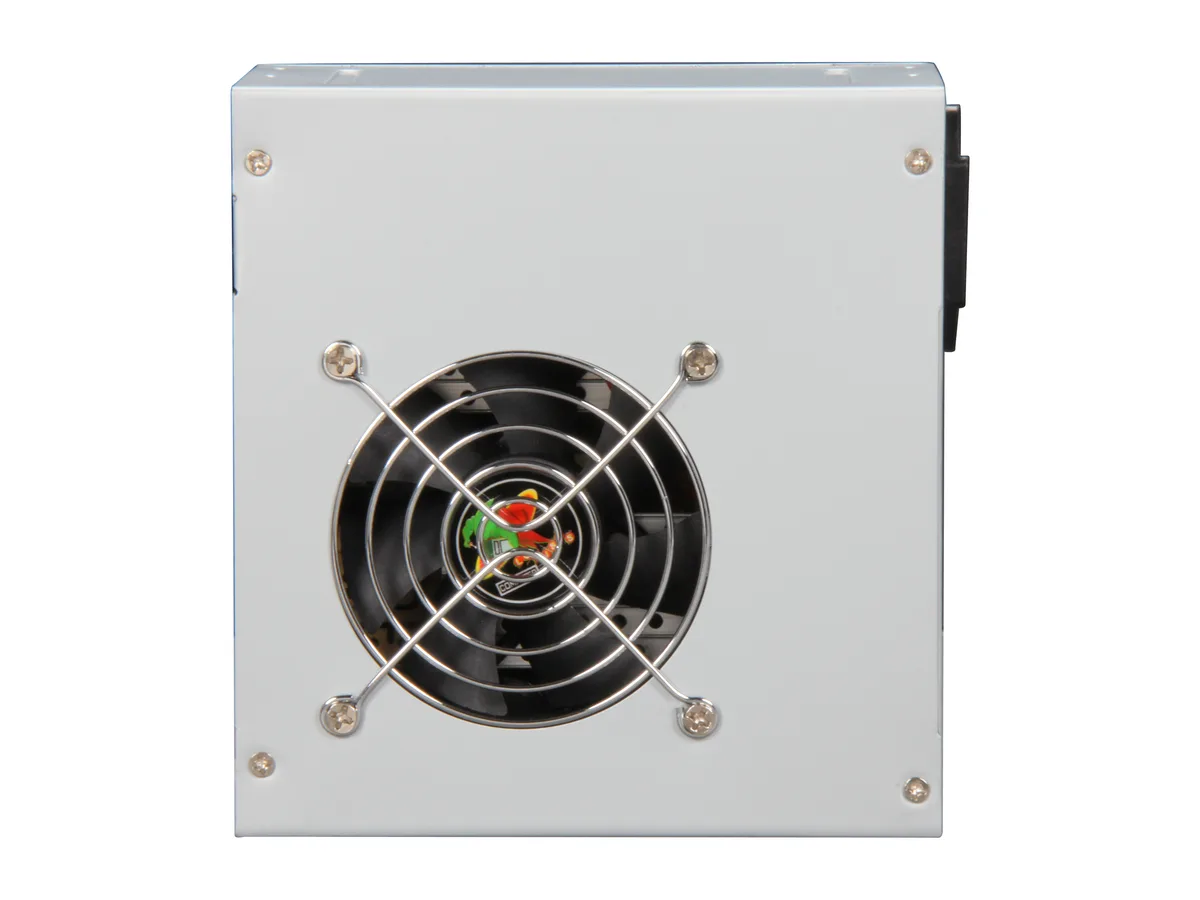

- Dual fans provide efficient and silent cooling
- 100 % hi-pot, burn-in and function tests ensure reliability
- Over-voltage, over-power and short-circuit protection safeguards components
- UL 1950 and CSA 22.2 Level 3 approvals confirm safety standards
Power supply for basic desktop builds
The Logisys PS480D2 is a 480 W ATX12V unit designed for standard desktop systems. It provides a single +12 V rail rated at 16 A and dual fans for airflow. The unit operates on 100 to 120 V or 200 to 240 V input without active PFC.
Suitability for older or low-power systems
This supply suits older platforms or low-power builds that rely on the 20+4 pin main connector and a 12 V P4 connector. It includes four SATA power connectors for drives and two peripheral connectors. Builds requiring PCIe power connectors, Haswell C-state support or modular cables should look elsewhere.
Single +12 V rail at 16 A
The +12 V rail delivers 16 A, which limits the graphics cards and CPUs the unit can support. No PCIe connectors are present, so discrete cards needing external power cannot be used. Check component power draw against this figure before purchasing.
Highlights
- 480 W maximum power for stable system operation
- Dual fans provide efficient and silent cooling
- 100 % hi-pot, burn-in and function tests ensure reliability
- Over-voltage, over-power and short-circuit protection safeguards components
- UL 1950 and CSA 22.2 Level 3 approvals confirm safety standards
Specifications
| Brand | LOGISYS Computer |
|---|---|
| Model | PS480D2 |
| Type | ATX12V |
| Maximum Power | 480 W |
| Fans | 2 |
| PFC | No |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | No |
| SATA Power Connector | 4 |
| SLI | No |
| Haswell Support | No |
| Modular | No |
| Input Voltage | 100 - 120V / 200 - 240V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 / 5A |

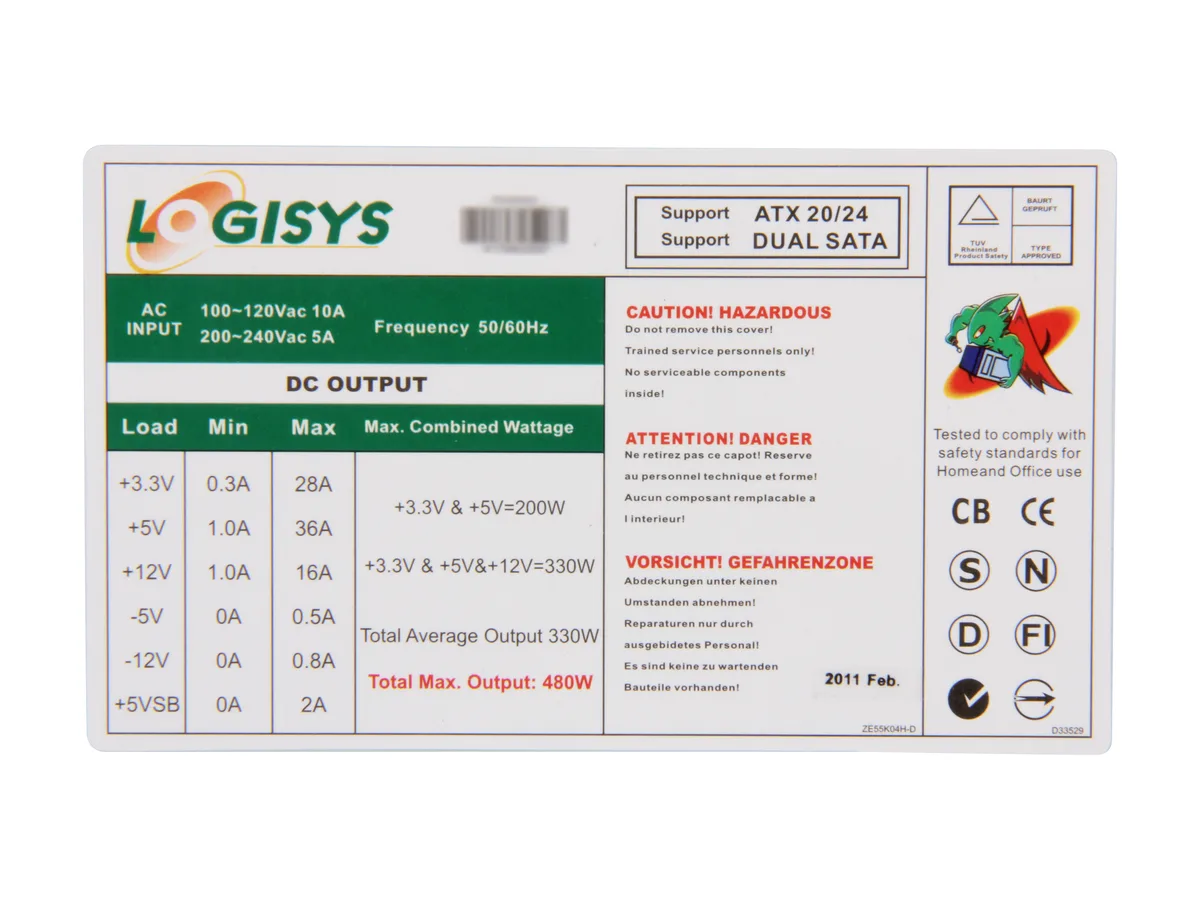

| Output | +3.3V@28A, +5V@36A, +12V@16A, [email protected] , [email protected] , [email protected] |
| MTBF | >100,000 Hours |
| Approvals | UL 1950. CSA 22.2 Level 3 Requirement |

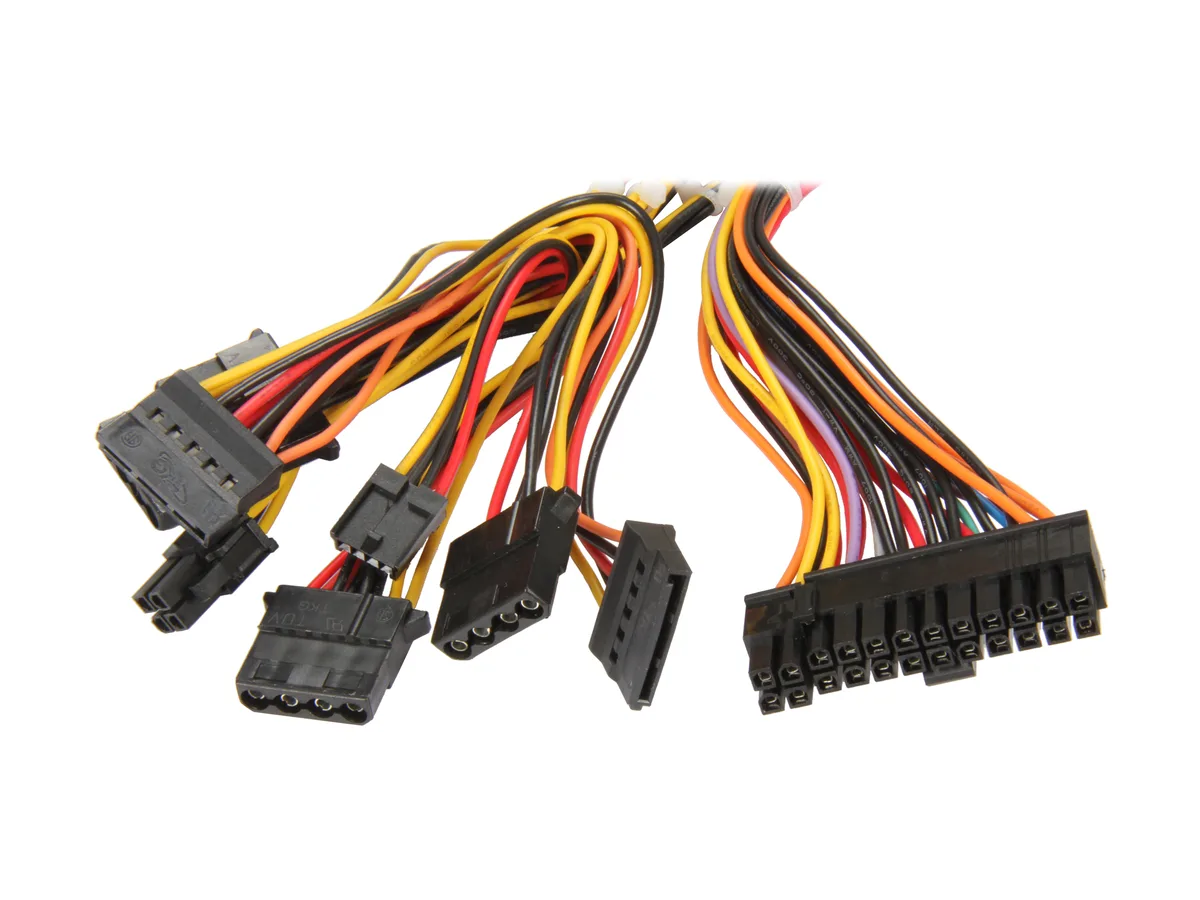

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V (P4) 2 x Peripheral 4 x SATA 1 x Floppy |
| Energy-Efficient | No |
| Features | Complies with FCC part 15J class B 115Vac Operation and CISPR22 230Vac Operation Over Power protection Short Circuit Protection 100% Hi-pot & Function (Chroma)tested 100&Burn-in under high Ambient Temperature(50°C) Low Noise and Ripple Energy Star Efficiency |
| Dimensions | 5.80" x 5.50" x 3.30" |
| Weight | 3.00 lbs. |
| Shipping weight | 1.13 kg |
| Package size | 221 × 160 × 99 mm |
