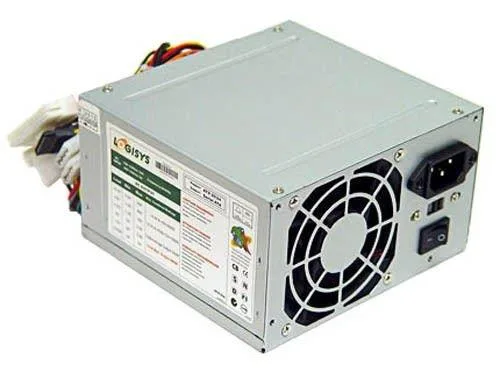

Rectangular metal PSU, matte finish, 20/24 pin ATX connector visible, 480W label, standard mounting holes

Logisys Computer Inc.

Logisys PS480D 20/24 pin 480W power supply

SKU CH-7PYT-90320

Delivers 480 W through a 20/24-pin ATX connector with SATA support and protections against over-voltage and short circuits

  • TypePower Supply
  • Weight4
  • 480W output powers standard desktop builds
  • 20/24-pin main connector fits most ATX motherboards
  • SATA connector supports modern storage drives
  • Low noise and ripple for stable voltage delivery
  • Over-voltage and short-circuit protection safeguards components

Power delivery

The Logisys PS480D is a 480W ATX power supply built for standard desktop systems that require reliable mains conversion. It uses a 20/24-pin mainboard connector with a detachable four-pin section to fit both 20-pin and 24-pin motherboards.

Capacity and headroom

Rated at 480 watts, the unit provides enough headroom for typical office or home-office builds with a single graphics card and several drives. Continuous loads near the maximum rating will reduce efficiency and increase heat, so sustained heavy workloads should stay below the peak figure.

Build integration

The supply includes four standard four-pin drive connectors, one floppy-style connector, a dedicated four-pin +12V CPU plug and one Serial ATA connector for modern storage. Its chassis measures 6 inches long, 5.5 inches wide and 3.25 inches high, fitting most ATX cases without interfering with other components.

Highlights

  • 480W output powers standard desktop builds
  • 20/24-pin main connector fits most ATX motherboards
  • SATA connector supports modern storage drives
  • Low noise and ripple for stable voltage delivery
  • Over-voltage and short-circuit protection safeguards components

Specifications

BrandLogisys
ModelLogisys PS480D
TypePower Supply
Weight4

Questions about this item

Will the 20/24 pin ATX connector on the Logisys PS480D fit my older motherboard that only takes a 20 pin plug?

The unit ships with a 20 pin ATX mainboard connector that includes an extra 4 pin section, so it can be used as either a 20 pin or a 24 pin plug depending on the board.

How can I verify the Logisys PS480D is operating correctly once installed?

The supply includes over voltage protection, short circuit protection and a built in EMI filter; a successful POST and stable voltages under load show it is working as intended.

Which cables come with the Logisys PS480D and what must I source separately?

The box provides one 20/24 pin ATX connector, one 4 pin +12 V connector, four standard 4 pin drive connectors, one floppy style 4 pin connector and one Serial ATA connector; any additional SATA or PCIe leads must be bought separately.
