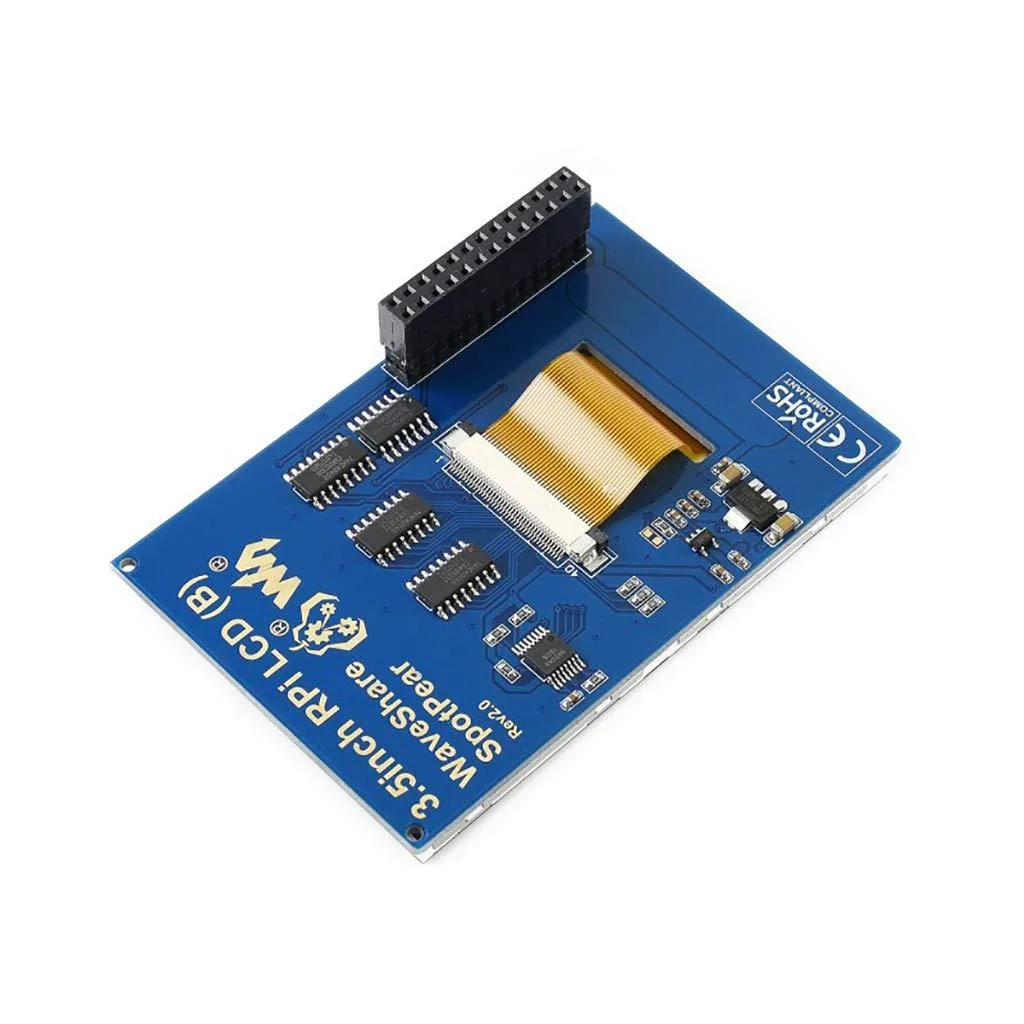

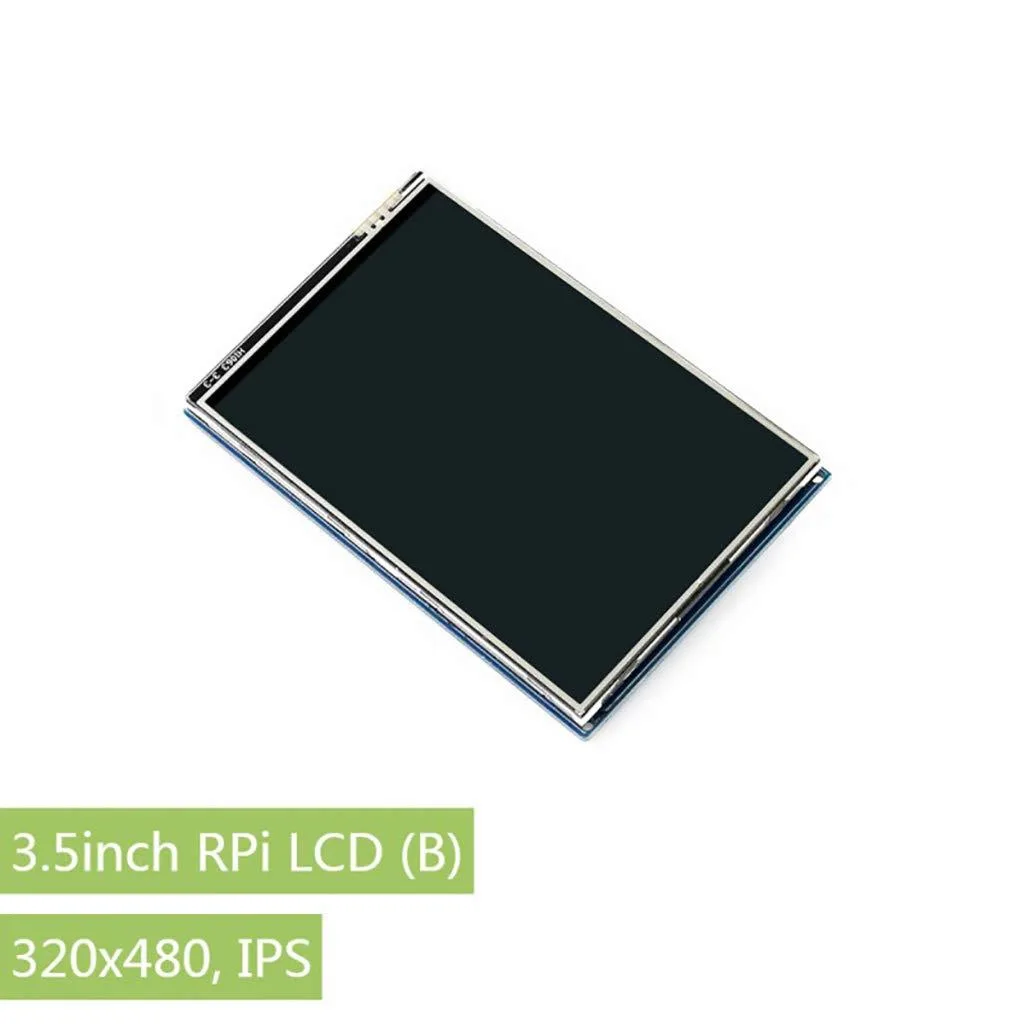

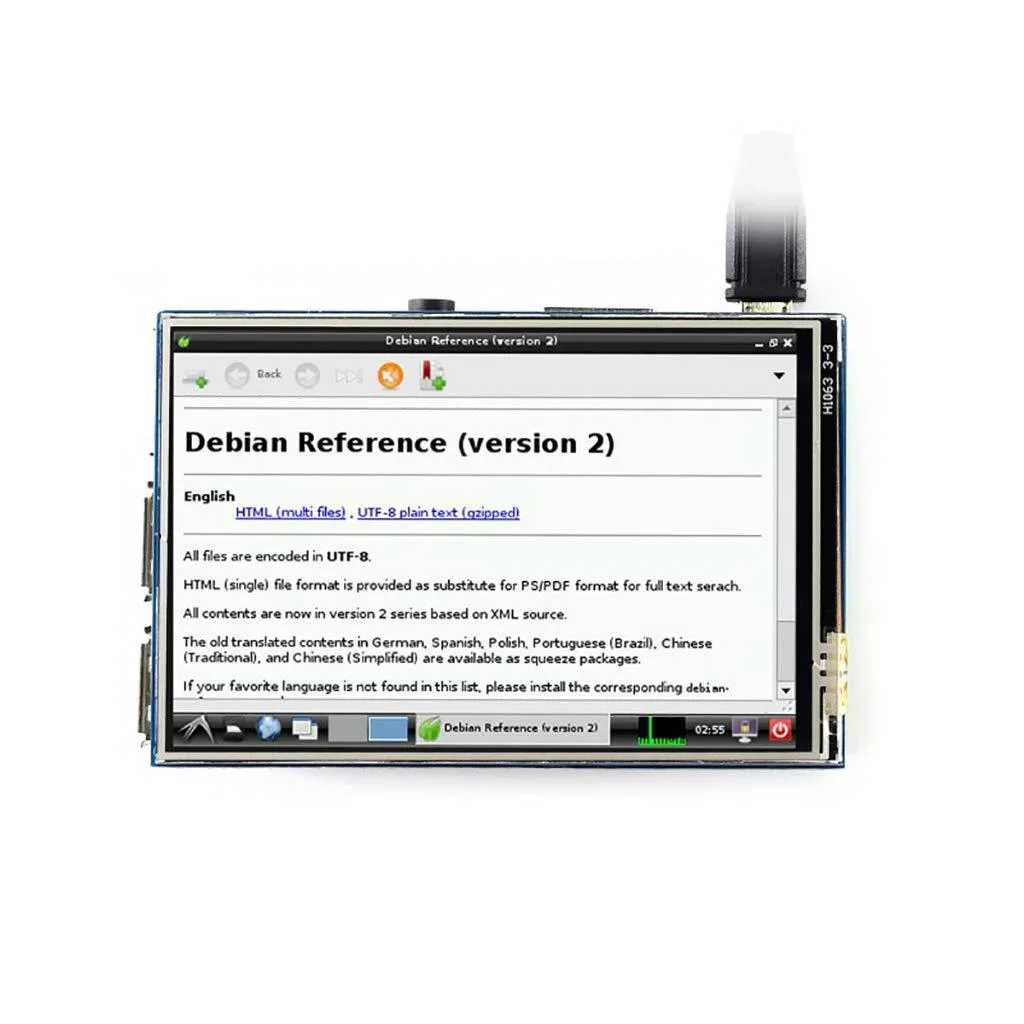

3.5 inch IPS TFT LCD touch screen with gold-plated PCB and resistive overlay

LORDWORLD

LORDWORLD 3.5 inch Touch Screen IPS TFT LCD 320x480 Resistive development board

SKU CH-71FV-4ZR4Y

A 3.5 inch resistive touch display with 480x320 IPS panel plugs directly onto any Raspberry Pi revision and includes drivers for Raspbian, Ubuntu and Kali

  • Sharp 3.5 inch IPS panel with 480x320 resolution
  • Resistive touch enables 17 camera modes by touch
  • Direct plug fits every Raspberry Pi revision
  • Immersion gold surface plating for reliable connections
  • FBCP driver allows dual-display configuration

3.5 inch IPS resistive touch display

This 3.5 inch IPS TFT LCD provides a 480x320 hardware resolution with resistive touch control. It is designed for Raspberry Pi projects that need a compact screen and direct GPIO mounting. The wide viewing angle of the IPS panel keeps the image clear from multiple positions.

Direct GPIO plug-in with provided drivers

Installation is a direct plug onto the Raspberry Pi GPIO header for B+, 2B, 3B and 3B+ revisions. Drivers are supplied for Raspbian, Ubuntu and Kali so the screen and touch input work without kernel recompilation. The FBCP software driver is also supported for software resolution configuration and dual-display setups. The immersion gold surface plating protects the connector pins during repeated mating cycles.

480x320 resolution with 17 camera touch modes

The 480x320 pixel panel handles basic GUI navigation, sensor dashboards and a software keyboard for system interaction without a mouse. It supports up to 17 camera modes for touch-triggered photo capture. The resistive layer requires deliberate pressure, which limits rapid multi-finger gestures and makes it less suited for fast gaming or capacitive-style swiping.

Highlights

  • Sharp 3.5 inch IPS panel with 480x320 resolution
  • Resistive touch enables 17 camera modes by touch
  • Direct plug fits every Raspberry Pi revision
  • Immersion gold surface plating for reliable connections
  • FBCP driver allows dual-display configuration

Specifications

BrandLORDWORLD

Questions about this item

How do I verify the 3.5 inch IPS panel is working correctly after plugging it into my Raspberry Pi?

After booting Raspberry Pi OS, the desktop should appear at the native 480x320 resolution on the 3.5 inch screen. Touch the display to open a menu or launch an app — the resistive layer registers pressure from a fingertip or stylus. If the image is mirrored or rotated, adjust the display orientation in the provided driver configuration.

What comes in the box and what extra items are needed to use the LORDWORLD 3.5 inch touch screen?

The package includes the 3.5 inch IPS TFT LCD module with a 40-pin GPIO header that plugs directly onto any revision of Raspberry Pi (B+/2B/3B/3B+). You must supply your own Raspberry Pi board, a microSD card loaded with Raspbian, Ubuntu or Kali, and a suitable power supply. No separate ribbon cables or driver discs are required.

Which version of this 320x480 resistive touch display should I choose for my Raspberry Pi project?

Only one hardware version is offered: a 3.5 inch IPS panel with 480x320 resolution, resistive touch, and a gold-plated 40-pin connector that fits every Raspberry Pi revision from B+ through 3B+. There are no alternate capacities, interface options or screen sizes in this product line.
