Two small green circuit boards with USB-C connectors and pin headers

LORDWORLD

LORDWORLD FT232 USB-C UART TTL Development Board 2pcs Pack

SKU CH-DP9G-KPBRR

Two USB-C UART boards with original FT232RL chips, jumper-selectable 3.3V or 5V logic levels, TXD/RXD LEDs, and pin headers for RTS/CTS

  • Original FT232RL chip ensures reliable UART conversion
  • USB-C connector simplifies modern host connections
  • Three VCCIO jumper modes match 3.3 V or 5 V targets
  • TXD, RXD and power LEDs give instant link status
  • Pin headers expose TXD, RXD, RTS#, CTS# for quick wiring

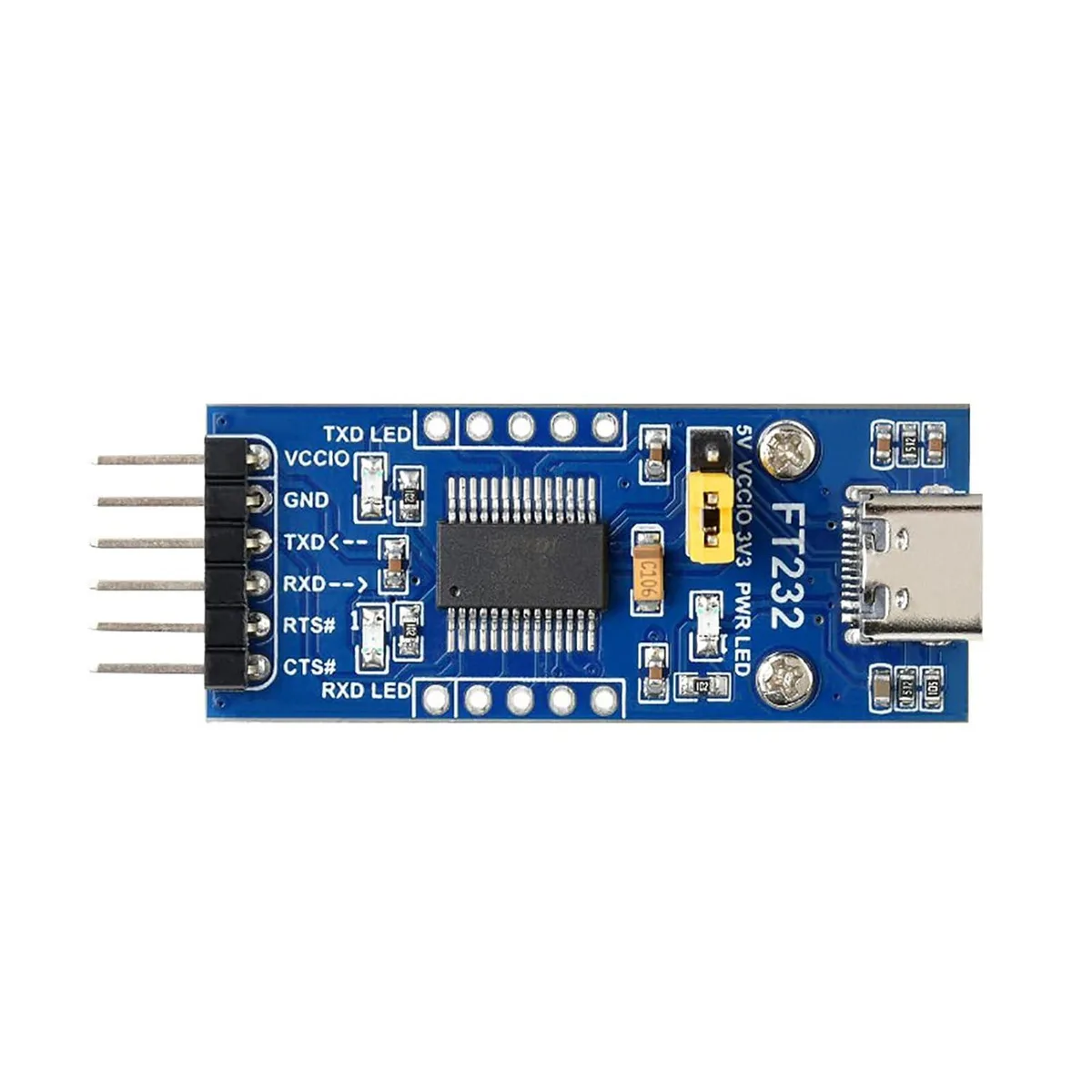

FT232RL USB-C UART Board Pair

This pack contains two development boards built around the original FT232RL chip with a USB-C connector. Each board provides a UART TTL interface for serial communication with microcontrollers, sensors, or other embedded hardware. The modules are ready to use across Mac OS, Linux, Android, WinCE, and Windows versions from 7 through 11. They suit engineers, hobbyists, and students who need reliable USB-to-serial bridges for prototyping or debugging.

Suits serial debugging and firmware loading

The boards fit workflows that require a direct USB-C link to a target device running at 3.3V or 5V logic levels. Three jumper-selectable power modes let you supply 5V, supply 3.3V, or draw power from the target board itself. Builders who need galvanic isolation, multiple simultaneous ports, or a different connector type should look at other solutions.

VCCIO jumper sets 3.3V or 5V logic

A three-position jumper chooses the VCCIO voltage: 5V output, 3.3V output, or open for target-supplied power between 3.3V and 5V. This single setting determines whether the board matches your target's logic level and power requirements. TXD, RXD, RTS#, and CTS# pins are on standard pinheaders, with additional signals on drilled holes spaced for universal prototype boards.

Highlights

  • Original FT232RL chip ensures reliable UART conversion
  • USB-C connector simplifies modern host connections
  • Three VCCIO jumper modes match 3.3 V or 5 V targets
  • TXD, RXD and power LEDs give instant link status
  • Pin headers expose TXD, RXD, RTS#, CTS# for quick wiring

Specifications

BrandLORDWORLD

Questions about this item

What operating system must my computer run for the FT232RL board to be recognised?

The board works with Mac OS, Linux, Android, WinCE and Windows 7, 8, 8.1, 10 and 11.

Can I power a 3.3 V target from the board without an external supply?

Set the jumper to the 3.3 V position and the board will deliver 3.3 V from its USB-C port.

How do I confirm the board is communicating after I connect it?

The TXD and RXD LEDs flash during data transfer and the PWR LED stays lit when the board has power.
