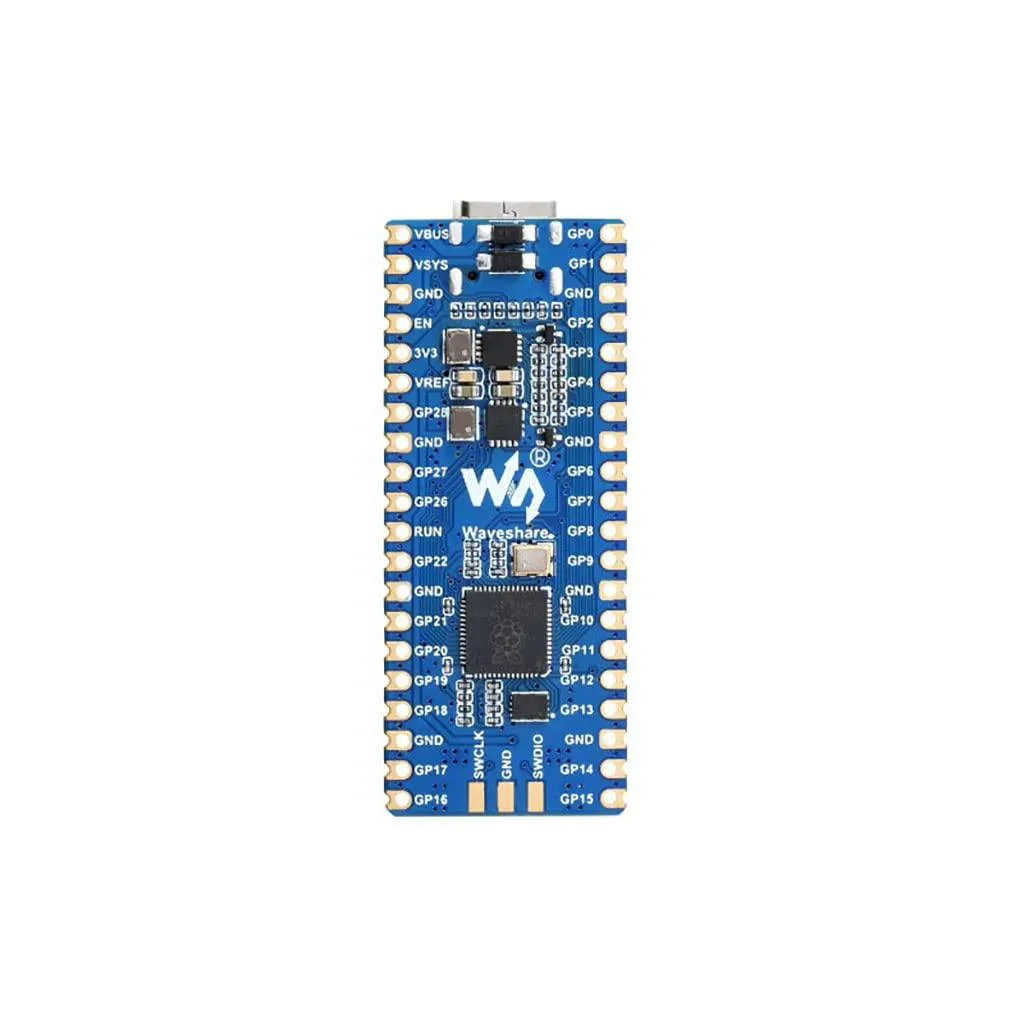

Green rectangular development board with .96 inch colour LCD screen and USB-C port

LORDWORLD

LORDWORLD RP2040-LCD-0.96 development board

SKU CH-T94J-GXC3K

A dual-core RP2040 board with a .96 inch 160×80 IPS LCD, USB-C, lithium-battery header, 264 KB SRAM, 2 MB flash and castellated edges for direct soldering

  • Dual-core Arm Cortex M0+ processor runs up to 133 MHz for responsive embedded tasks
  • 264 KB SRAM and 2 MB flash give ample space for code and data
  • 96 inch 160×80 pixel 65K colour IPS LCD adds instant visual feedback
  • Lithium battery header with onboard TPS63000 buck-boost regulator delivers 1.8 A for portable power
  • Castellated edges let you solder the module directly onto custom carrier boards

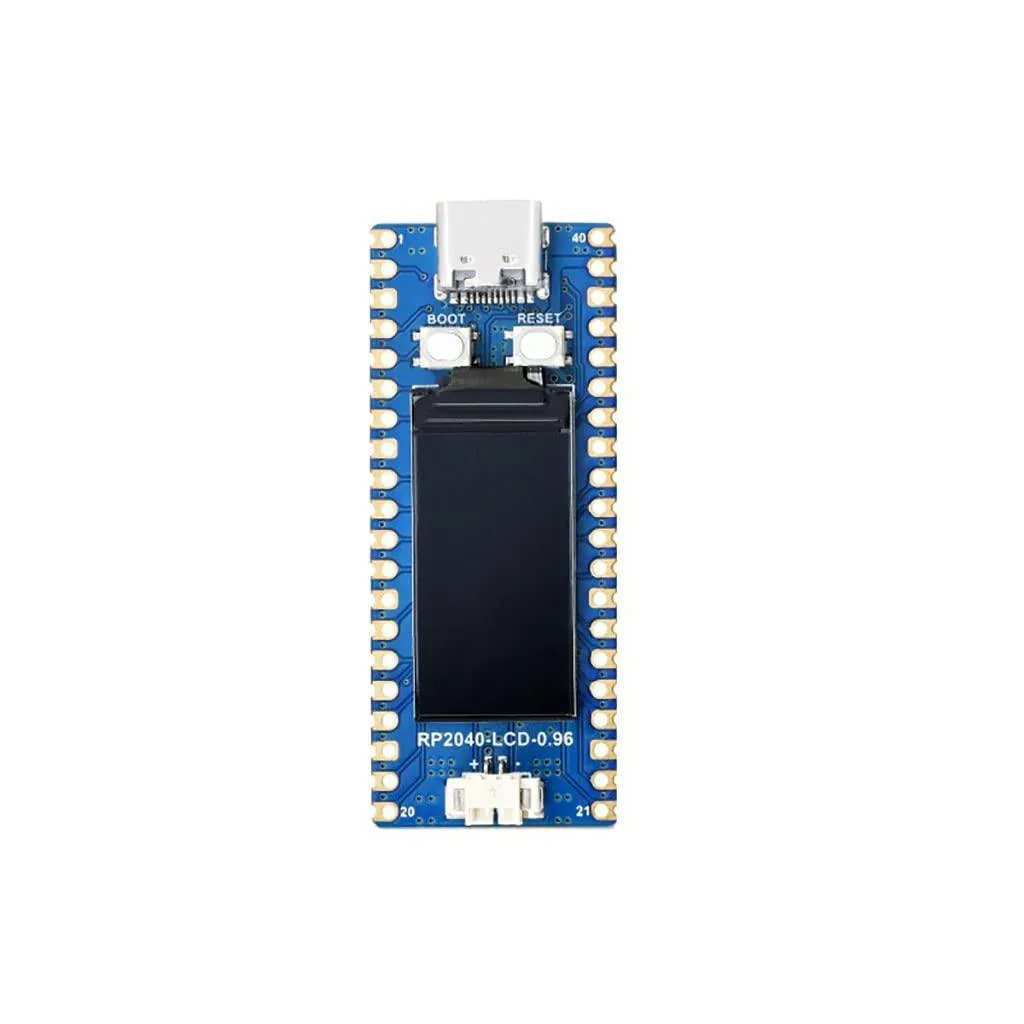

RP2040 microcontroller with 0.96 inch LCD

The LORDWORLD development board centres on the RP2040 chip designed by Raspberry Pi in the United Kingdom. A dual-core Arm Cortex M0+ processor runs at up to 133 MHz with 264KB of SRAM and 2MB of on-board Flash memory. A 0.96 inch 160×80 pixel 65K colour IPS LCD is integrated for immediate visual output.

Check USB-C power and carrier-board cut-outs

The board draws power through a USB-C connector and includes a lithium battery recharge header managed by the onboard TPS63000 DC-DC buck-boost chip rated at 1.8A. Castellated edges allow direct soldering to a carrier board, but the carrier must provide dedicated cut-outs for the underside components to sit flush.

Makers needing a compact display and battery option

This board suits developers who want a ready-made LCD and mobile power support in a Pico-like footprint. Engineers requiring a larger screen, higher resolution, wireless connectivity or a different microcontroller architecture should consider other platforms.

Highlights

  • Dual-core Arm Cortex M0+ processor runs up to 133 MHz for responsive embedded tasks
  • 264 KB SRAM and 2 MB flash give ample space for code and data
  • 96 inch 160×80 pixel 65K colour IPS LCD adds instant visual feedback
  • Lithium battery header with onboard TPS63000 buck-boost regulator delivers 1.8 A for portable power
  • Castellated edges let you solder the module directly onto custom carrier boards

Specifications

BrandLORDWORLD

Questions about this item

Does the LORDWORLD RP2040-LCD-0.96 board come with a lithium battery included?

The board provides a lithium battery recharge/discharge header and an onboard TPS63000 buck-boost chip rated for 1.8A, but a battery itself is not included.

Which flash capacity should I choose for this development board?

This model has 2MB of on-board flash memory as a fixed specification; there are no alternative capacities to select.

What does the 133 MHz dual-core processor mean for real-world performance on this board?

The dual-core Arm Cortex-M0+ running up to 133 MHz with 264KB SRAM handles real-time I/O, sensor polling and the 160×80 IPS LCD smoothly in typical embedded applications.
