Green rectangular development board with .96 inch colour LCD screen and USB-C connector, pre-soldered header pins visible along edges

LORDWORLD

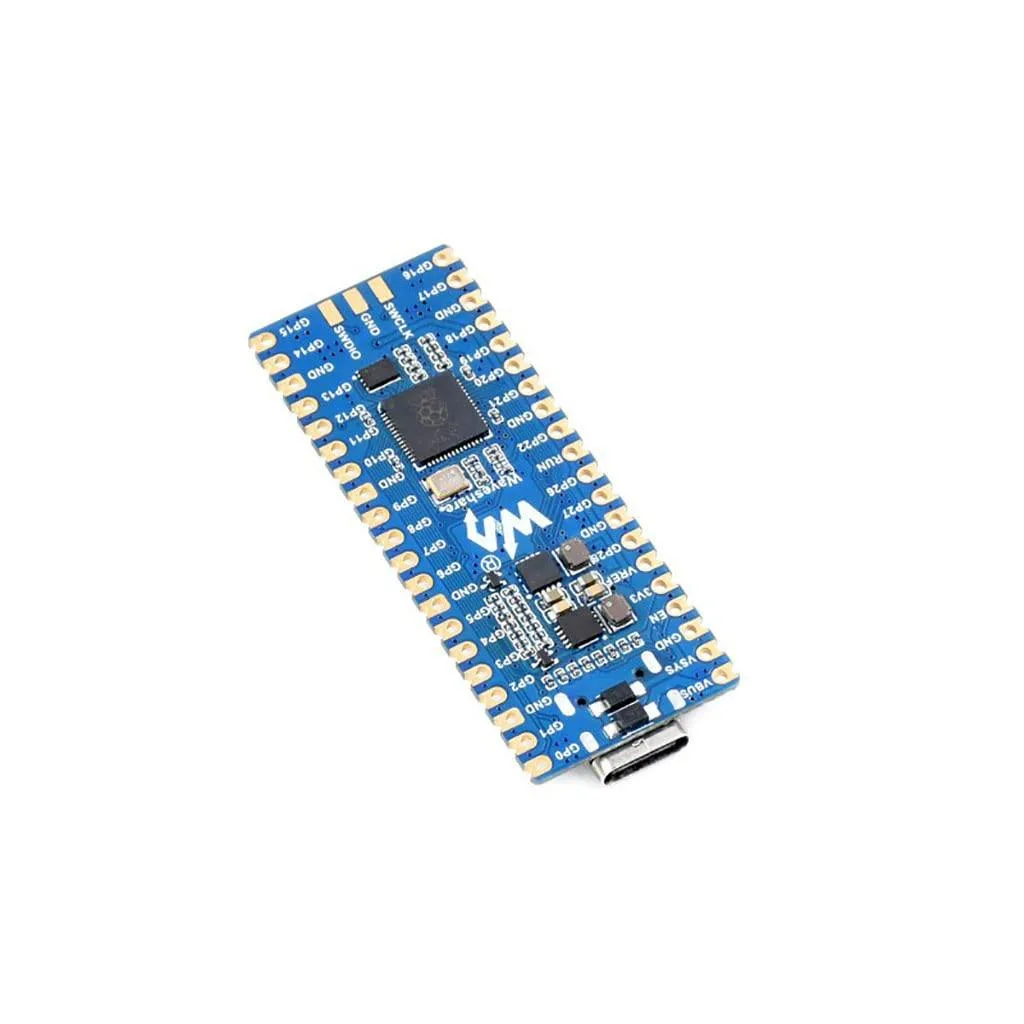

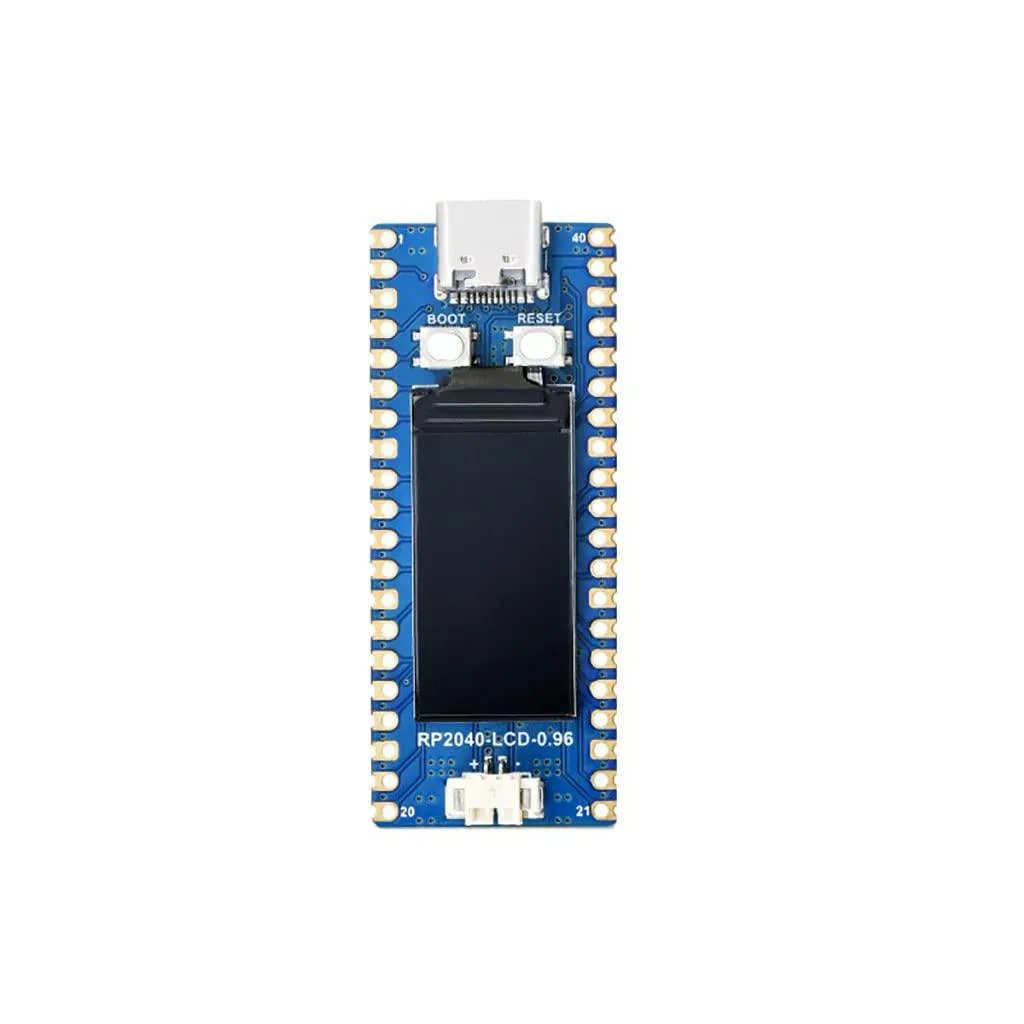

LORDWORLD RP2040-LCD-0.96 development board with pre-soldered header

SKU CH-1KWY-S3AYD

Pico-like RP2040 board with a 0.96 inch 160×80 IPS LCD, USB-C, lithium-battery header and castellated edges for embedding

  • Dual-core Arm Cortex M0+ processor runs up to 133 MHz for responsive embedded tasks
  • 264 KB SRAM plus 2 MB Flash memory store code and data on board
  • 96 inch 160×80 pixel 65 K colour IPS LCD gives immediate visual feedback
  • USB-C connector simplifies power and programming with a single cable
  • Lithium battery header with TPS63000 buck-boost chip delivers 1.8 A for portable projects

RP2040 microcontroller with integrated LCD

The LORDWORLD RP2040-LCD-0.96 development board pairs a dual-core Arm Cortex M0+ processor running up to 133 MHz with a 0.96 inch 160×80 pixel 65K colour IPS display. It provides 264KB of SRAM and 2MB of on-board Flash memory. A USB-C connector simplifies programming and power delivery for hobbyists and embedded engineers building compact IoT prototypes.

2MB Flash and 264KB SRAM capacity

The 2MB Flash stores firmware, graphics assets and data logs while the 264KB SRAM handles runtime variables and display buffers. This combination comfortably drives the onboard LCD and typical sensor workloads. Larger graphical interfaces or extensive data logging will exhaust the available memory and require external storage.

TPS63000 buck-boost regulator and battery header

An onboard TPS63000 DC-DC chip supplies up to 1.8A for efficient voltage conversion across varying battery levels. The lithium battery recharge/discharge header enables portable operation without extra circuitry. Under normal loads the board runs cool and silent, drawing only the current needed by the application.

Highlights

  • Dual-core Arm Cortex M0+ processor runs up to 133 MHz for responsive embedded tasks
  • 264 KB SRAM plus 2 MB Flash memory store code and data on board
  • 96 inch 160×80 pixel 65 K colour IPS LCD gives immediate visual feedback
  • USB-C connector simplifies power and programming with a single cable
  • Lithium battery header with TPS63000 buck-boost chip delivers 1.8 A for portable projects

Specifications

BrandLORDWORLD

Questions about this item

Will the 0.96 inch LCD and castellated pins fit alongside my existing RP2040 boards?

The board uses the same RP2040 microcontroller with dual-core Arm Cortex-M0+ at up to 133 MHz, 264KB SRAM and 2MB flash, so code written for other RP2040 boards runs unchanged.

How can I verify the 0.96 inch IPS LCD and battery header are working after I flash firmware?

The 160×80 pixel 65K colour display will show graphics or text from your program, and the lithium battery recharge/discharge header will accept a Li-ion cell for portable operation.

What comes in the box and do I need to buy a USB-C cable or battery separately?

The board ships with the pre-soldered header already fitted; a USB-C cable for power and programming and a compatible lithium battery for mobile use are not included.
