MAIWO K1696P M.2 NVMe 10 Gbps Enclosure Gray
Houses a single M.2 NVMe SSD up to 4 TB and connects via USB 3.2 Gen 2 at 10 Gbps
- ColorGray
- TypeEnclosure
- AC AdapterNo
- External InterfaceUSB 3.2 Gen 2
- HDD Count SupportedSingle NVMe SSD
- Number of Bay1 Bay
External Interface USB 3.2 Gen 2
- USB 3.1 Type-C
- USB 3.2 Gen 2
HDD Supported Single NVMe SSD
- Single NVMe SSD
- With Clone
Size M.2 NVME SSD
- M.2 NVME SSD
- M.2 SATA&NVMe SSD
Struck-through versions exist but are not stocked here.
- Transfers up to 10 Gbps over USB 3.2 Gen 2
- Fits M.2 NVMe sizes 2230, 2242, 2260, 2280 and 22110
- Works with Windows, Mac OS and Linux without drivers
- Compact 7.87 × 3.93 inch design weighs just .08 lbs
- Tool-free plug-and-play installation in seconds
Portable NVMe adapter for idle drives

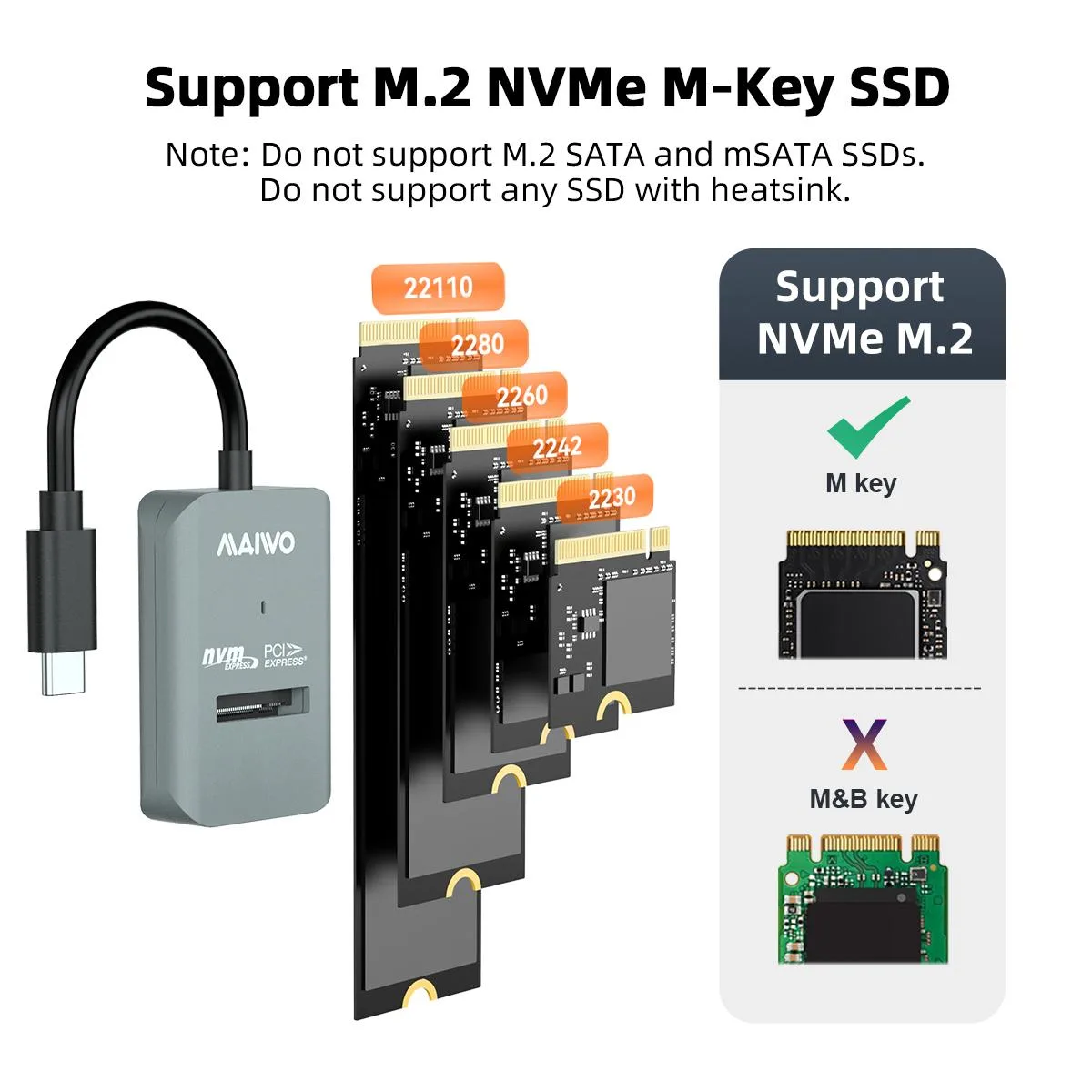

The MAIWO K1696P turns a spare M.2 NVMe SSD into an external drive through a USB 3.2 Gen 2 Type C connection. It accepts single-sided M-key modules in 2230, 2242, 2260, 2280 and 22110 lengths up to 4TB. The gray enclosure weighs .08 lbs and measures 7.87*3.93*1 inch. No AC adapter is required.
Integrated short cable and tool-free slot
A 10 cm captive cable prevents tangling and keeps workspaces tidy. The inline design lets you insert the SSD directly into the M-key slot without screws or a separate enclosure body. Plug-and-play operation works on Windows, Mac OS and Linux with no driver installation. UASP support is included for reduced protocol overhead.

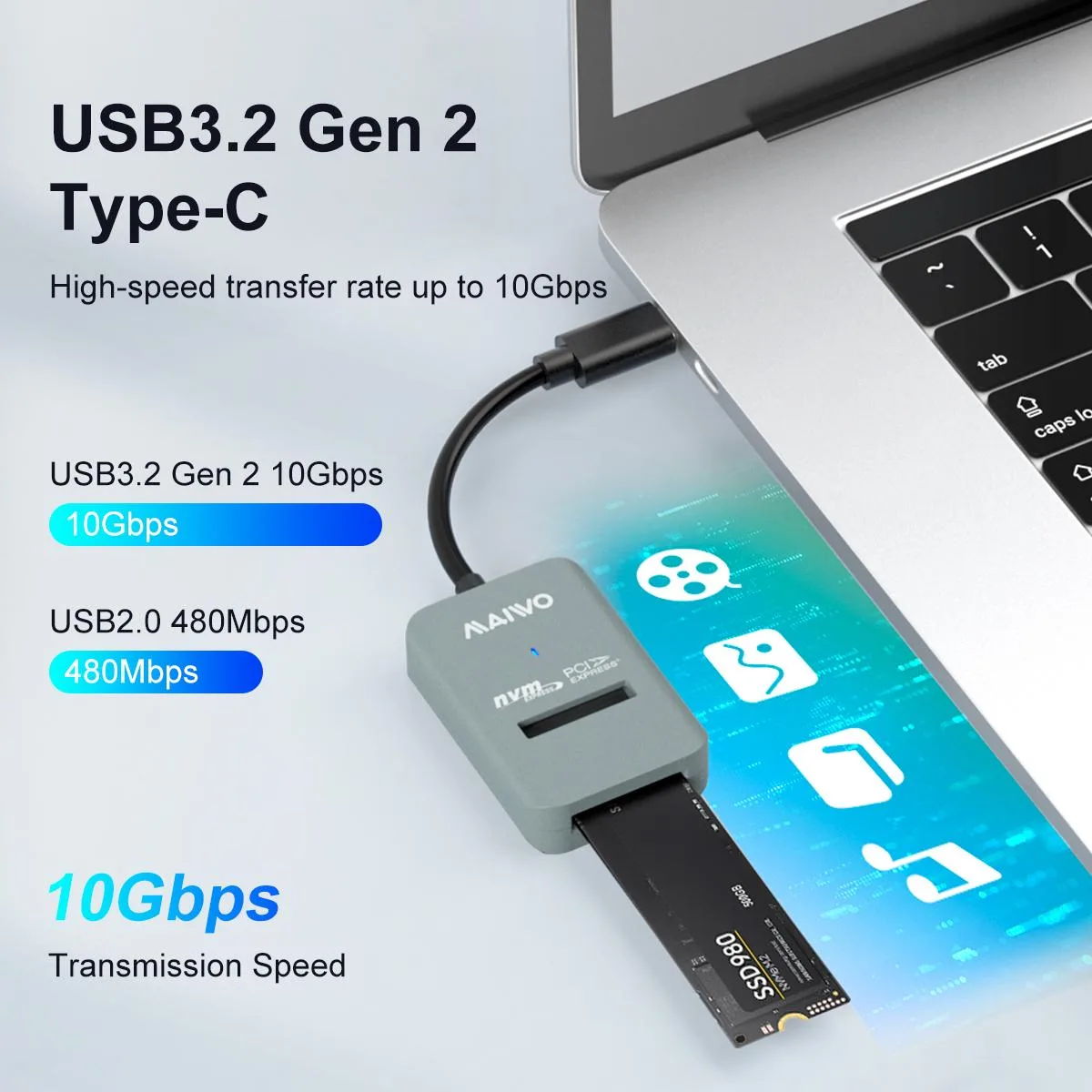

10 Gbps ceiling for large transfers
The USB 3.2 Gen 2 link tops out at 10 Gbps, so sequential reads and writes from fast NVMe media will saturate the bus. SATA-based M.2 drives with B+M keying are not supported, and the single bay cannot accommodate two drives simultaneously. First-time drives must be initialised, partitioned and formatted in the host OS before use.
Highlights
- Transfers up to 10 Gbps over USB 3.2 Gen 2
- Fits M.2 NVMe sizes 2230, 2242, 2260, 2280 and 22110
- Works with Windows, Mac OS and Linux without drivers
- Compact 7.87 × 3.93 inch design weighs just .08 lbs
- Tool-free plug-and-play installation in seconds
Specifications
| Brand | MAIWO |
|---|---|
| Model | M.2 nvme SSD Enclosure |
| Color | Gray |
| Type | Enclosure |
| AC Adapter | No |
| External Interface | USB 3.2 Gen 2 |
| HDD Count Supported | Single NVMe SSD |
| Number of Bay | 1 Bay |
| Maximum Capacity (per Bay) | Up to 4TB |
| Fan | No |
| Dimensions | 7.87*3.93*1 inch |
| Weight | 0.08lbs |
| Package Contents | 1x M.2 PCIe NVMe hard drive enclosure |
Other versions of this model
1 more in the same range
Same family, different memory, cooler or clock — compare before you commit.
Questions about this item
Does the MAIWO K1696P enclosure need a fan or thermal pad replacement after long use?
The enclosure has no fan and relies on its metal body for passive cooling, so there are no moving parts or thermal pads to replace over time.
What limits the 10 Gbps transfer rate during sustained heavy workloads?
The USB 3.2 Gen 2 interface caps throughput at 10 Gbps, so the enclosure itself becomes the bottleneck before the NVMe SSD reaches its own limits.
How hot or noisy does the K1696P get when running all day?
With no fan and a compact 7.87 by 3.93 inch aluminum shell, it stays silent and warm to the touch but does not throttle under typical all-day file transfers.
