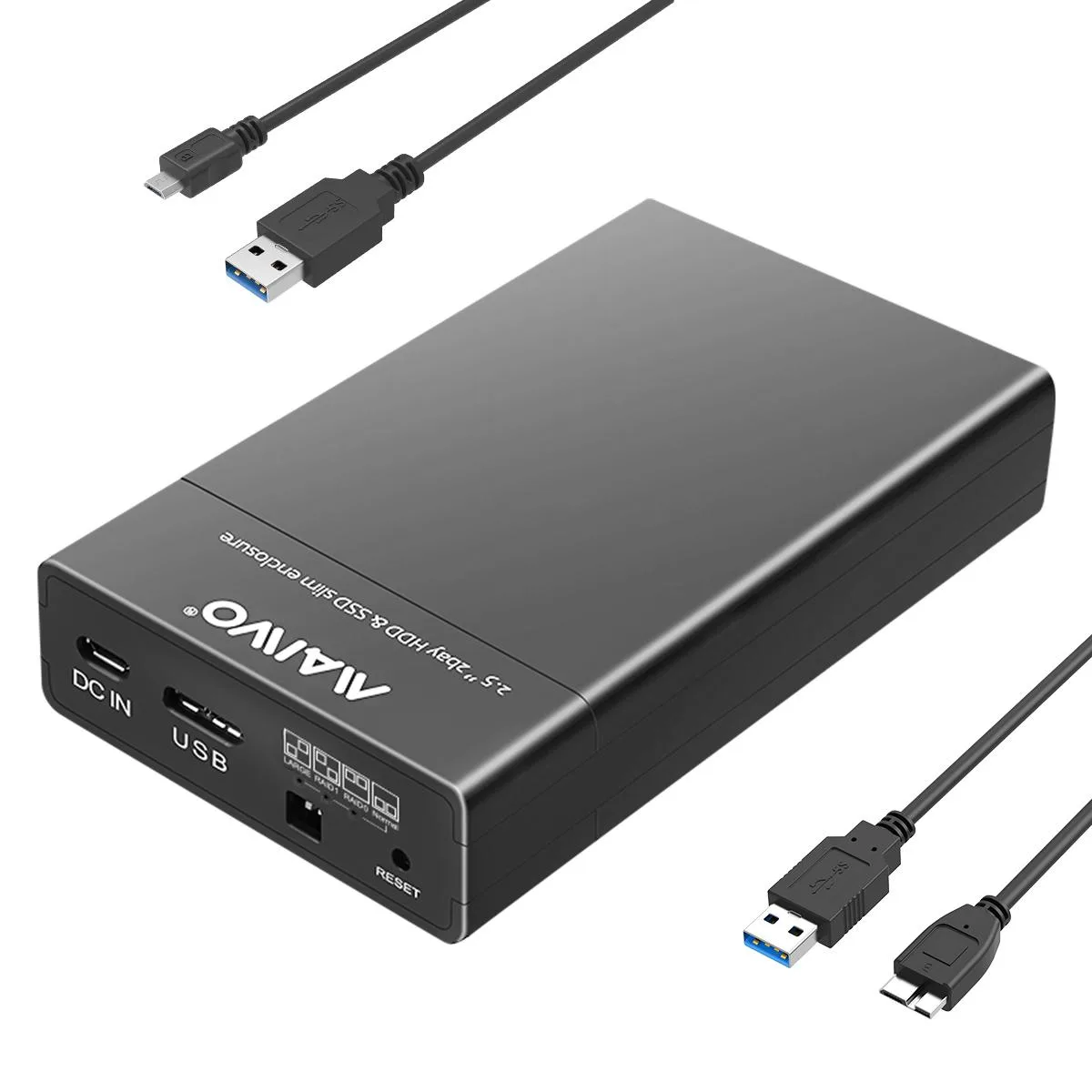

Black ABS dual-bay 2.5 inch SATA RAID enclosure with USB-C cables

MAIWO

MAIWO K25682 Dual-Bay 2.5" SATA RAID Enclosure USB 3.0

SKU CH-GGB5-ZXS89

A compact dual-bay 2.5″ SATA RAID enclosure with USB 3.0 and UASP, tool-free installation, four RAID modes and up to 16 TB per drive

  • ColorBlack
  • TypeDual Bay RAID Enclosure
  • MaterialABS
  • External InterfaceUSB 3.0 w/UASP & SATA III
  • HDD Count SupportedDual Bay RAID Enclosure for 2.5" SATA Hard Drive
  • Number of Bay2 Bay

Material abs plastic

  • Aluminum
  • abs plastic

Struck-through versions exist but are not stocked here.

External Interface USB 3.0 w/UASP & SATA III

  • USB 3.0
  • USB 3.0 w/UASP & SATA III
  • USB 3.1
  • USB3.1 Gen2

Struck-through versions exist but are not stocked here.

Model Tool-free

  • Tool-free
  • Tool-needed
  • RAID Enclosure
  • 4 Bay USB 3.1 w/UASP & SATA III

Struck-through versions exist but are not stocked here.

  • Dual 2.5" SATA bays expand storage up to 16 TB per drive
  • USB 3.0 with UASP delivers up to 5 Gbps theoretical throughput
  • Four hardware RAID modes selected by a physical toggle switch

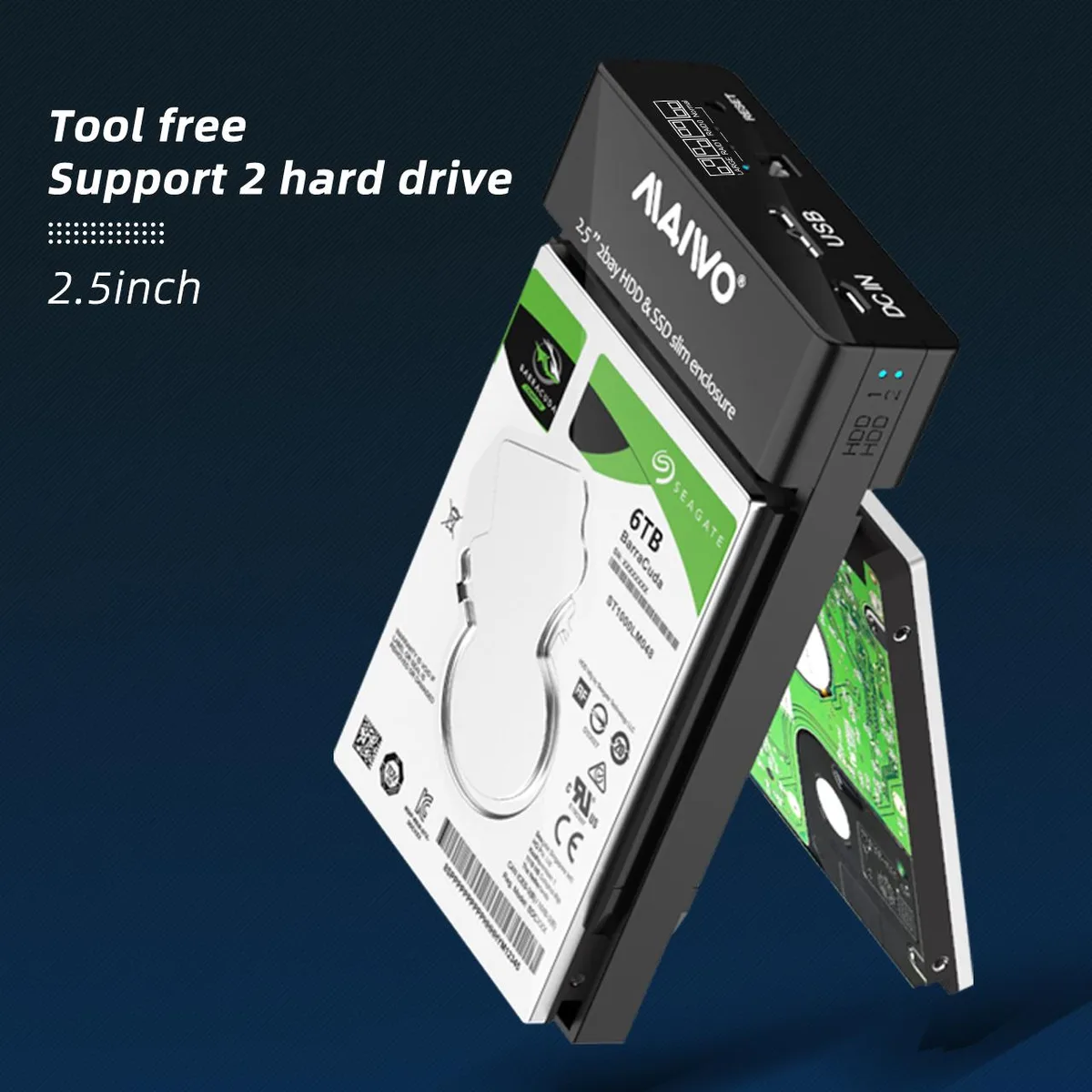

  • Tool-free slide design with included cables enables hot-swap installation
  • Compact ABS enclosure weighs 89 g and measures 132 × 79 × 27 mm

Dual-bay 2.5" SATA RAID enclosure

The MAIWO K25682 is a dual-bay RAID enclosure that accepts two 2.5-inch SATA hard drives or SSDs. It connects via USB 3.0 with UASP support and includes a tool-free slide design for quick drive changes. Four RAID modes — JBOD, RAID 0, RAID 1 and PM — are selectable by a hardware switch. The ABS housing measures 132*79*27 mm and weighs 89 g. USB-C to USB-C and USB-C to USB-A cables are supplied.

Compatibility and use cases

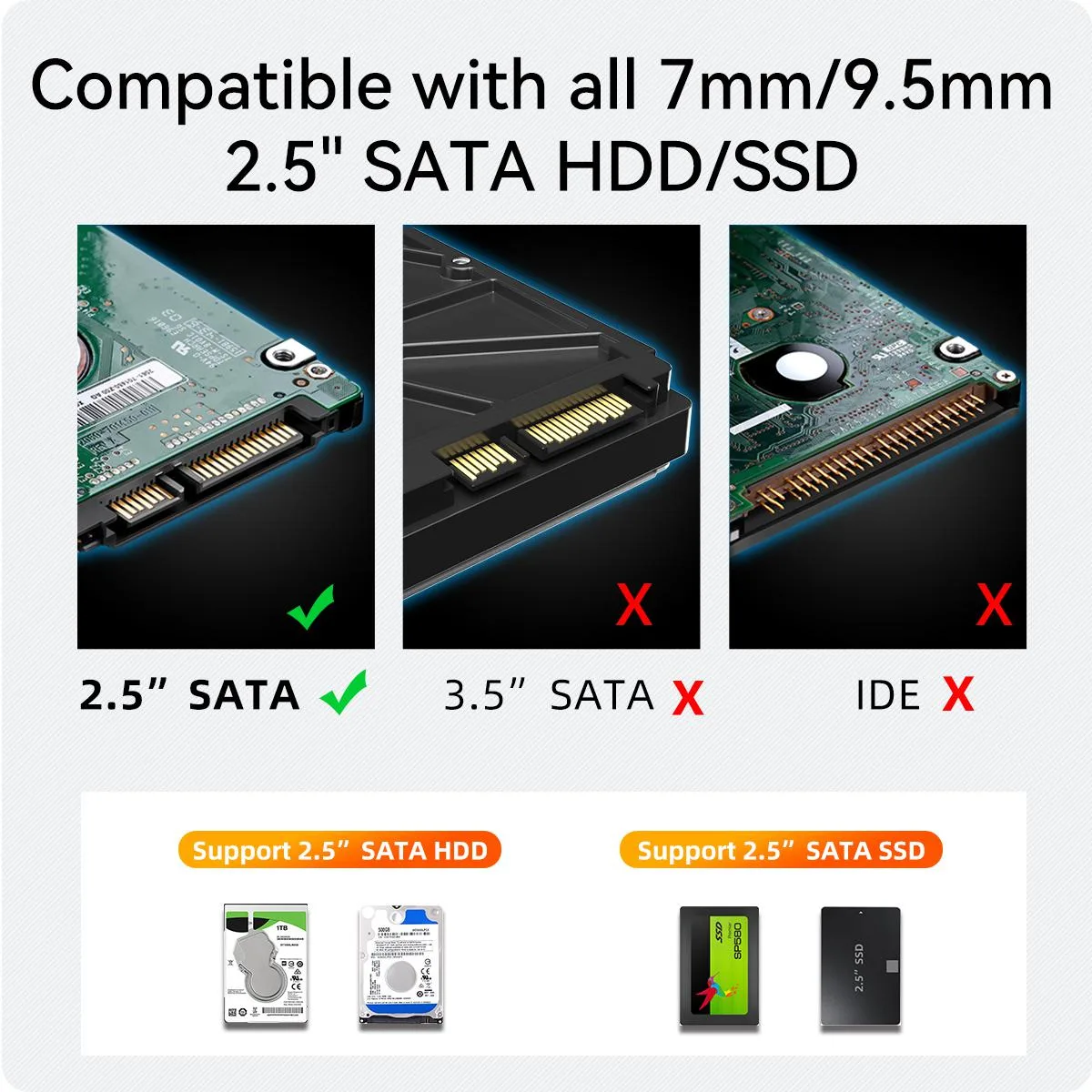

The enclosure supports Windows 8.1 and 10, macOS 10.6 or later, and Linux. It works with 2.5-inch SATA drives up to 16 TB per bay, making it suitable for users who need portable redundant storage or high-speed striped capacity. It does not accept 3.5-inch drives or IDE drives, so builders requiring those form factors cannot use this unit.

RAID mode selection

A physical toggle switch on the enclosure sets the RAID mode — JBOD (PM), RAID 0 (FAST) or RAID 1 (mirrorSAFE) — without software configuration. This hardware-level control decides whether the two drives appear as a single large volume, a striped performance array or a mirrored backup pair.

Highlights

  • Dual 2.5" SATA bays expand storage up to 16 TB per drive
  • USB 3.0 with UASP delivers up to 5 Gbps theoretical throughput
  • Four hardware RAID modes selected by a physical toggle switch
  • Tool-free slide design with included cables enables hot-swap installation
  • Compact ABS enclosure weighs 89 g and measures 132 × 79 × 27 mm

Specifications

ColorBlack
TypeDual Bay RAID Enclosure
MaterialABS
External InterfaceUSB 3.0 w/UASP & SATA III
HDD Count SupportedDual Bay RAID Enclosure for 2.5" SATA Hard Drive
Number of Bay2 Bay
Maximum Capacity (per Bay)Up to 16TB
FanNo
Power5V2A
Specifications- Fast USB-C interface.
- Tool Kit and USB-C to USB-C, USB-C to USB-A cables included.
- ABS housing, compact and smart design.
- Both drives are visible for Status/Temperature control (Normal Mode).
- Power cable included (external power not needed if both drives are SSD).
- Use SSD drives and USB-C interface for maximum speed.
- Versatile enclosure for 2.5" SSD and HDD
Operating Systems SupportedSupport 8.1/10, MAC OS X 10.6 or above, Linux
Features1.Tool Kit and USB-C to USB-C, USB-C to USB-A cables included
2. Both drives are visible for Status/Temperature control (Normal Mode)
Dimensions132*79*27MM
Weight89g
Package ContentsUSB 3.0 Dual 2.5" SATA SSD/HDD RAID Enclosure
Tool Kit and USB-C to USB-C, USB-C to USB-A cables
Quick Installation Guide

Questions about this item

How often should the 5V 2A power adapter be checked or replaced for reliable RAID operation?

The enclosure draws power through the included 5V 2A adapter; no internal fan or moving parts exist, so the adapter only needs attention if the blue LED fails to light or drives disconnect under load.

Which limit appears first during continuous dual-drive transfers — the USB 3.0 5Gbps ceiling or the SATA III drive speed?

The USB 3.0 link with UASP tops out at 5Gbps theoretical, so sustained large-file copies will hit that interface ceiling before the SATA III drives reach their own maximum throughput.

How hot and loud does the ABS chassis get when both 2.5" drives run all day without a fan?

The fanless ABS body relies on passive airflow; the blue LED stays solid in standby and blinks during access, but the supplier gives no temperature or acoustic figures for prolonged dual-drive workloads.
