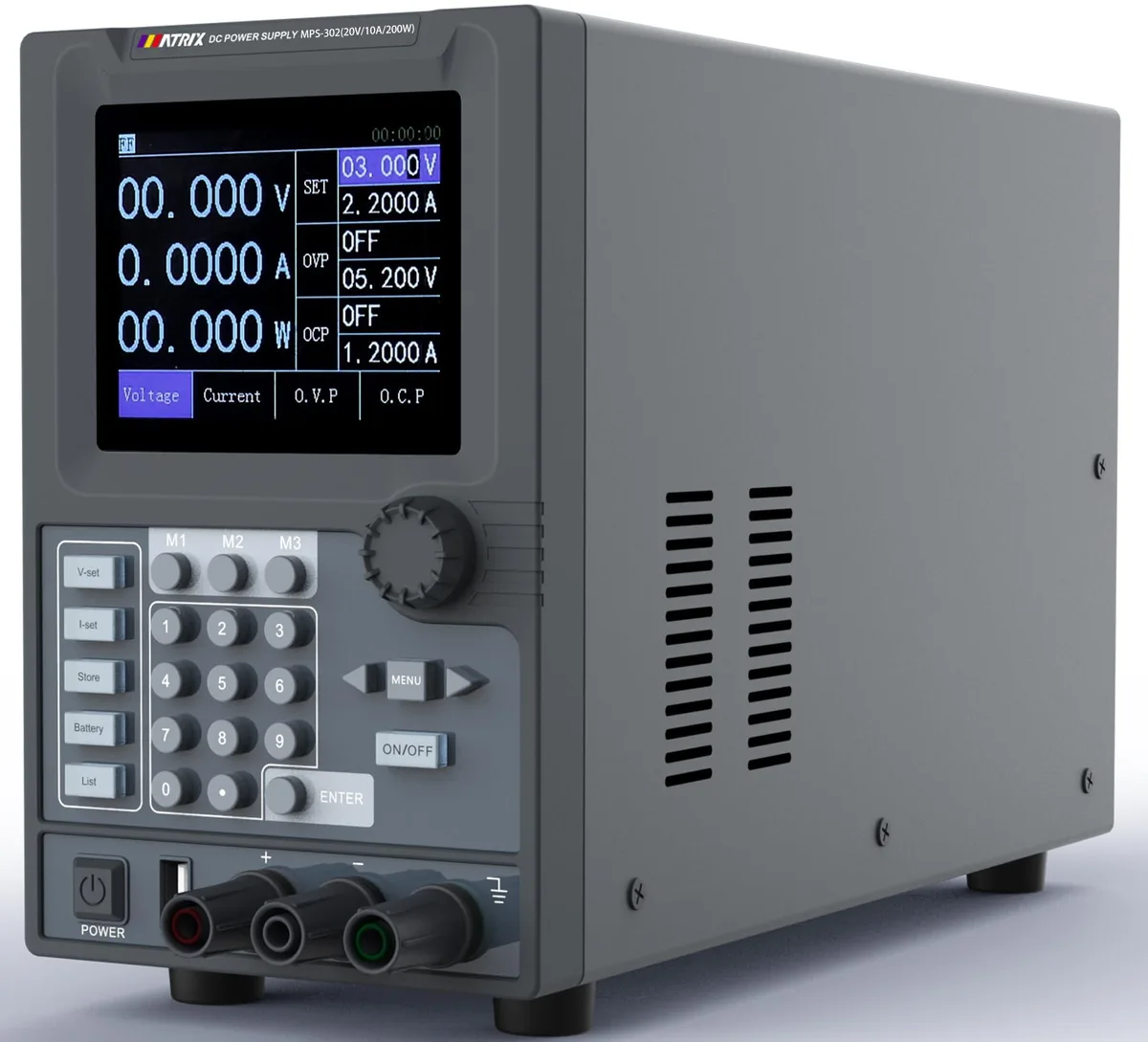

Rectangular benchtop unit, matte grey front, 3.5 inch colour display, knobs and keypad, ventilation slots, 13 pounds

Matrix

Matrix MPS-302 20V 10A 200W linear DC power supply

SKU CH-TVWC-R48BS

A programmable linear DC supply delivering 20 V at 10 A with 1 mV and 0.1 mA resolution, USB data logging, battery-charge mode and SCPI/MODBUS control

  • Single/RedundantMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply
  • Maximum Power200 watts
  • Output Current10 amps
  • Output200 watts
  • Input Frequency Rangenot_applicable
  • +12V RailsMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply
  • Precise 1 mV / 0.1 mA resolution for exact bench work
  • 20 V 10 A 200 W linear output with low ripple and noise
  • 5 in TFT colour display plus numeric keypad and knobs
  • USB data storage plus RS-232 RS-485 USB interfaces with SCPI MODBUS
  • Adjustable voltage rise under 10 ms plus battery charging and external trigger

Matrix MPS-302 20V 10A bench supply

The Matrix MPS-302 is a single-channel linear DC power supply rated for 20V and 10A with a maximum output of 200W. It targets engineers, technicians and students who need precise, low-noise power for bench testing, electronic repair or automated integration work. The 3.5-inch TFT colour display shows voltage, current and power with 1mV and 0.1mA resolution. Adjustments can be made via numeric keypad or rotary knobs for quick manual control.

Replaces noisy switching units

Switching supplies often introduce ripple that masks small signals or distorts sensitive measurements; the linear topology here keeps output clean for production-line checks and lab routines. The upgrade is worth it when test plans demand fast voltage transitions under 10ms, programmable ramp rates or battery-charge profiles that switching designs cannot reproduce accurately. SCPI and MODBUS over RS-232, RS-485 and USB let the unit slot into existing automated test scripts without rewrite.

Linear regulation limits

Linear regulation dissipates the difference between input and output as heat, so continuous full-load operation runs the internal fan harder and warms the bench. The 110V/220V auto-switching input works worldwide, but the 13-pound chassis and 4.3 x 11.4 x 7.2-inch footprint need dedicated bench space. Users who need higher voltage, higher current or multi-channel output must look beyond this single 200W channel.

Highlights

  • Precise 1 mV / 0.1 mA resolution for exact bench work
  • 20 V 10 A 200 W linear output with low ripple and noise
  • 5 in TFT colour display plus numeric keypad and knobs
  • USB data storage plus RS-232 RS-485 USB interfaces with SCPI MODBUS
  • Adjustable voltage rise under 10 ms plus battery charging and external trigger

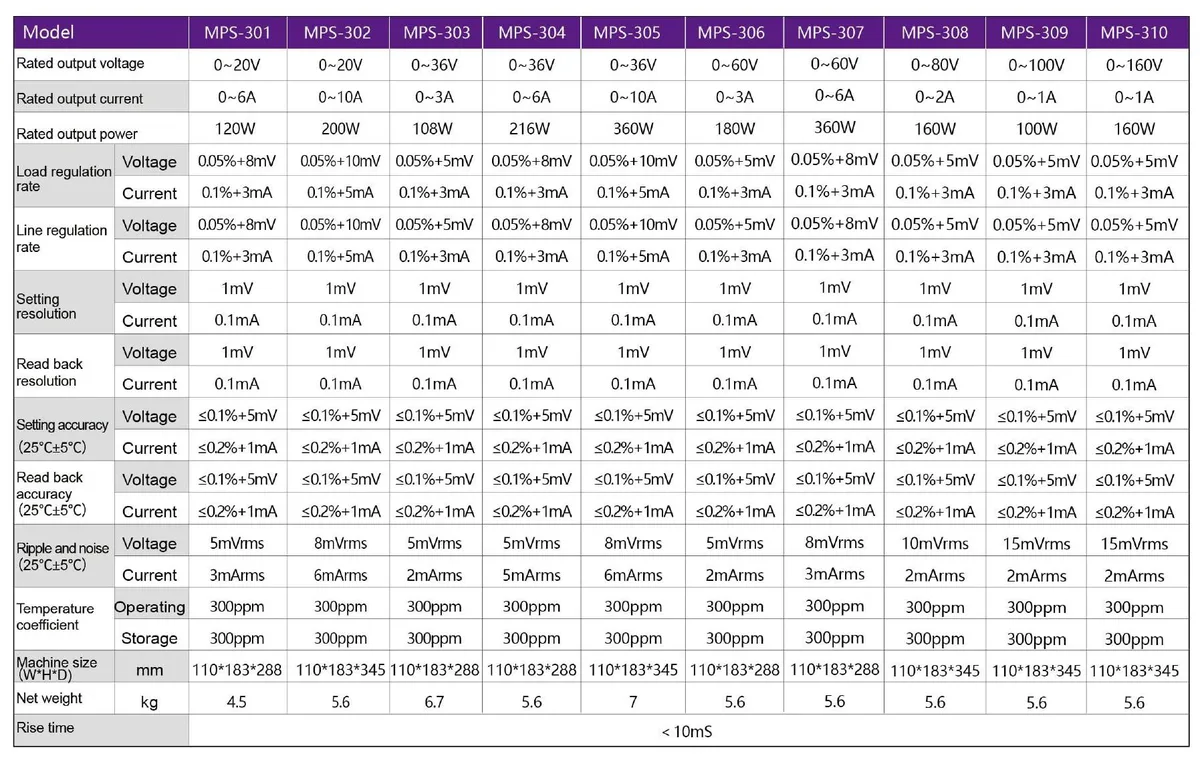

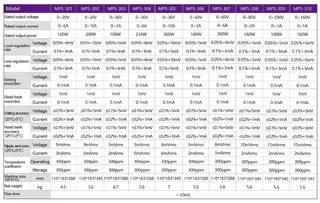

Specifications

BrandMATRIX
Series20V 10A, MPS-302
Model20V 10A
Part NumberMPS-302
Single/RedundantMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply Programmable, 1mV 0.1mA High Resolution, USB Data Storage, Adjustable Upward Slope, Battery Charging and External Triggering Function, linear programmable dc power supply adjustable power supply for Prouduction line work bench routine test Lab and institute Electronic repair Automated equipment integration testing
Maximum Power200 watts
Output Current10 amps
Output200 watts
Input Frequency Rangenot_applicable
+12V RailsMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply Programmable, 1mV 0.1mA High Resolution, USB Data Storage, Adjustable Upward Slope, Battery Charging and External Triggering Function, linear programmable dc power supply adjustable power supply for Prouduction line work bench routine test Lab and institute Electronic repair Automated equipment integration testing
PFCMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply Programmable, 1mV 0.1mA High Resolution, USB Data Storage, Adjustable Upward Slope, Battery Charging and External Triggering Function, linear programmable dc power supply adjustable power supply for Prouduction line work bench routine test Lab and institute Electronic repair Automated equipment integration testing
Protectionlinear programmable dc power supply adjustable power supply for Prouduction line work bench routine test Lab and institute Electronic repair Automated equipment integration testing
Featureslinear programmable dc power supply adjustable power supply for Prouduction line work bench routine test Lab and institute Electronic repair Automated equipment integration testing
Dimensions4.3 in x 11.4 in x 7.2 in
Weight13 pounds
Package ContentsMATRIX MPS-302 20V 10A Single Channel Linear DC Power Supply Programmable, 1mV 0.1mA High Resolution, USB Data Storage, Adjustable Upward Slope, Battery Charging and External Triggering Function x 1

Questions about this item

What bench space do the 4.3 by 11.4 by 7.2 inch dimensions need?

The unit occupies 4.3 inches high, 11.4 inches wide and 7.2 inches deep; allow extra clearance at the rear for the RS-232, RS-485 and USB cables and for the intelligent fan exhaust.

Which step is often missed when wiring the 20 V 10 A output for remote sensing?

Connect the separate sense leads to the load terminals before enabling output; the voltage remote compensation function only corrects drop when the sense wires are attached.

When should the internal cooling fan be cleaned on this 13 pound supply?

The intelligent fan control runs the fan only when needed; inspect the intake vents every six months and blow out dust with low-pressure air to keep airflow unrestricted.
