Silver 2U rack power supply with front display and controls

Matrix

Matrix MPS-6000S-1200-5 1200V 5A 6000W 2U server power supply

SKU CH-QCRE-YEWXE

High-voltage programmable DC supply delivers up to 1200 V at 5 A for 6000 W in a 2U rack unit with OVP, OCP, OTP and short-circuit protection

  • Single/RedundantMATRIX MPS-6000S-1200-5 High Voltage Programmable DC Power S
  • Form Factor2U
  • Maximum Power6000 watts
  • Output Current5 amps
  • Output6000 watts
  • Input Frequency Rangenot_applicable
  • 6000 W programmable output for high-power test rigs
  • 0–1200 V adjustable range covers wide voltage needs
  • Five-digit simultaneous readout gives precise voltage and current
  • OVP, OCP, OTP and short-circuit protection safeguard equipment
  • RS-232 and RS-485 interfaces enable remote automation

Matrix 6000W 2U programmable DC supply

The Matrix MPS-6000S-1200-5 is a high-voltage programmable DC power supply rated at 6000 watts, delivering 0-1200 volts at 0-5 amps. It fits a 2U rack form factor and accepts single-phase AC 220V ±10% at 50 Hz. Engineers and lab technicians use it for precise bench testing and system integration.

Capacity 1200V 5A continuous output

The unit provides adjustable output up to 1200 volts and 5 amps, with a simultaneous five-digit display for voltage and current. PWM modulation and high-gain amplification keep regulation stable under full load. Protection includes over-voltage, over-current, over-temperature and short-circuit safeguards. Remote voltage compensation maintains accuracy at the load terminals.

RS-232 RS-485 remote control and key lock

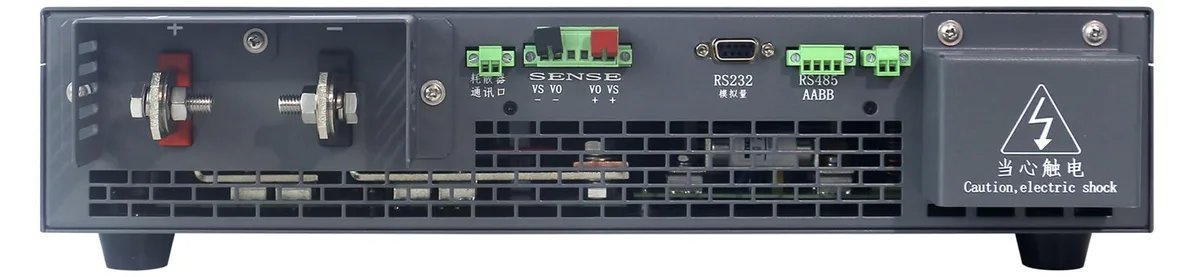

Rear-panel RS-232 and RS-485 interfaces enable automated control and data logging. Front-panel preset buttons store voltage and current values for quick recall. A key-lock function prevents accidental parameter changes during long runs. Imported key components support continuous full-load operation.

Highlights

  • 6000 W programmable output for high-power test rigs
  • 0–1200 V adjustable range covers wide voltage needs
  • Five-digit simultaneous readout gives precise voltage and current
  • OVP, OCP, OTP and short-circuit protection safeguard equipment
  • RS-232 and RS-485 interfaces enable remote automation

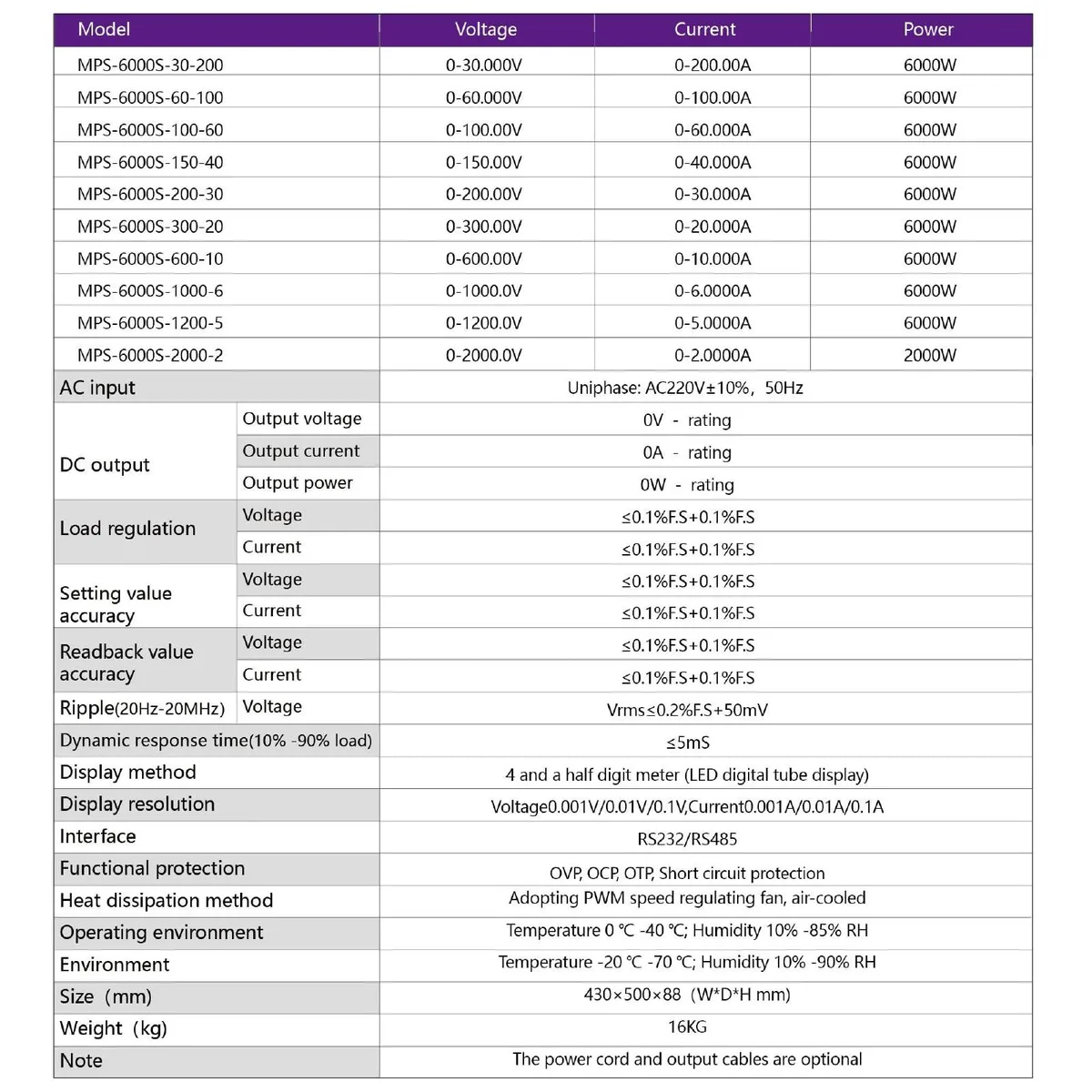

Specifications

BrandMATRIX
SeriesMPS-6000S-1200-5
ModelMPS-6000S-1200-5
Part NumberMPS-6000S-1200-5
Single/RedundantMATRIX MPS-6000S-1200-5 High Voltage Programmable DC Power Supply 1200V 5A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Form Factor2U
Maximum Power6000 watts
Output Current5 amps
Output6000 watts
Input Frequency Rangenot_applicable
+12V RailsMATRIX MPS-6000S-1200-5 High Voltage Programmable DC Power Supply 1200V 5A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
PFCMATRIX MPS-6000S-1200-5 High Voltage Programmable DC Power Supply 1200V 5A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz, adjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Protectionadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Featuresadjustable bench dc power supply 6000w variable lab dc power supply switching dc power supply
Dimensions17 in x 20 in x 3.5 in
Weight35 pounds
Package ContentsMATRIX MPS-6000S-1200-5 High Voltage Programmable DC Power Supply 1200V 5A 6KW High-Power with OVP, OCP, OTP, Short Circuit Protection, Input AC 220V 50Hz x 1

Questions about this item

Will the MPS-6000S-1200-5 fit in the same 2U rack slot as my existing server PSU?

Yes, the unit uses a standard 2U form factor measuring 17 in x 20 in x 3.5 in, so it occupies the same rack height as any 2U power supply.

How can I confirm the 1200 V 5 A output is stable after I connect the load?

The front panel shows simultaneous five-digit voltage and current readouts; watch both values settle to your preset levels and verify no OVP, OCP or OTP alarms appear.

Does the box include the RS-232 and RS-485 cables for remote control?

The package contains only the power supply itself; communication cables for RS-232 or RS-485 must be purchased separately.
