Low-profile fanless card with four Mini DisplayPort outputs and ATX bracket

matrox

Matrox M9148-E1024LAF 1GB PCI Express x16 Low-profile Workstation Graphics Card

SKU CH-VKH5-WJTX2

Low-profile workstation card drives four Mini DisplayPort monitors at 2560 x 1600 each with 1 GB memory and fanless cooling

  • InterfacePCI Express x16
  • Chipset Manufacturermatrox
  • GPUM9148
  • Memory Size1GB
  • OpenGLOpenGL 2.0
  • DisplayPort4 x Mini DisplayPort
  • Drives four independent displays from a single card
  • Delivers 2560 x 1600 resolution on each output
  • Operates silently with a fanless cooling design
  • Fits compact systems using the included low-profile bracket
  • Connects legacy DVI monitors via supplied miniDP adapters

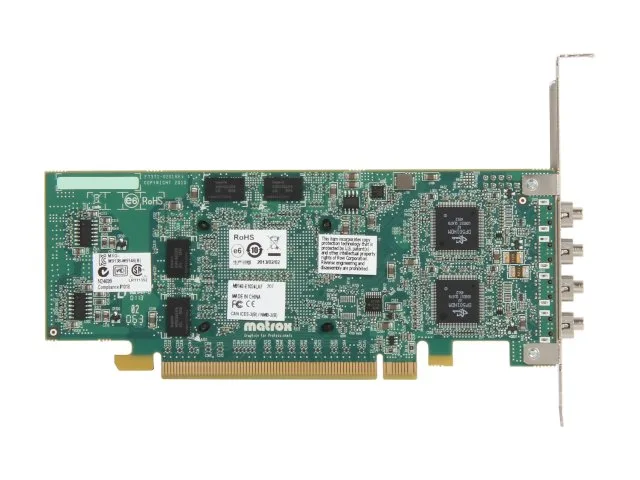

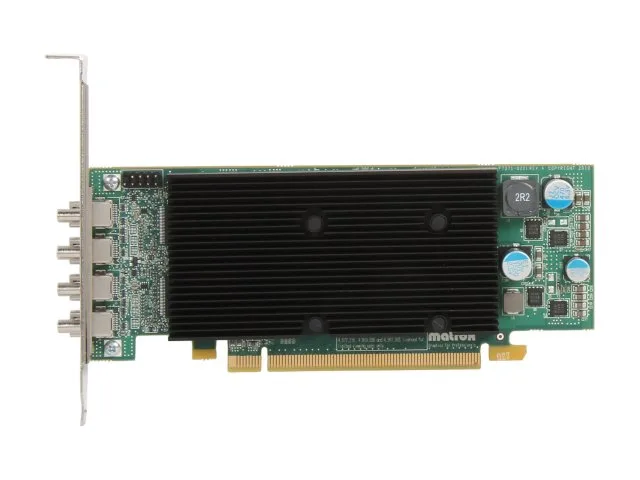

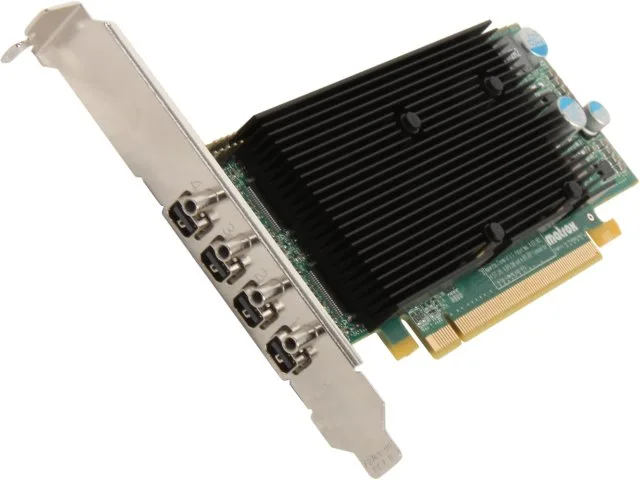

Matrox M9148-E1024LAF 1GB Low-Profile Card

The Matrox M9148-E1024LAF is a new workstation graphics card with 1GB memory and a PCI Express x16 interface. It occupies a single low-profile slot and uses a fanless cooler for silent operation. Four Mini DisplayPort outputs each support up to 2560 x 1600 digital resolution. The board drives a maximum of four displays simultaneously.

Multi-Monitor Workstations and Legacy OS Support

This card suits users who need four independent monitors from a single low-profile board in Windows 7, Vista, XP, Server 2003 or 2008 and Linux. It is not for buyers who want more than 1GB video memory or higher OpenGL versions. It is not for builders who need active cooling for sustained 3D workloads. It is not for systems lacking a PCI Express x16 slot.

Bracket Compatibility and Adapter Requirements

The card ships with a factory-installed ATX bracket and a low-profile bracket in the box for small-form-factor cases. Four miniDP to DP adapters and four DP to DVI adapters are included for monitor connections. Verify that your chassis can accommodate the chosen bracket height before ordering. Check that your power supply can deliver sufficient power through the PCI Express slot alone.

Highlights

  • Drives four independent displays from a single card
  • Delivers 2560 x 1600 resolution on each output
  • Operates silently with a fanless cooling design
  • Fits compact systems using the included low-profile bracket
  • Connects legacy DVI monitors via supplied miniDP adapters

Specifications

BrandMatrox
ModelM9148-E1024LAF
InterfacePCI Express x16
Chipset Manufacturermatrox
GPUM9148
Memory Size1GB
OpenGLOpenGL 2.0
DisplayPort4 x Mini DisplayPort
Digital Resolution2560 x 1600
Max Displays Per Board4
CoolerFanless
Operating Systems SupportedWindows 7 (32/64bit) Windows Vista (32/64bit) Windows XP (32/64bit) Windows Server 2003/2008 (32/64bit) Linux
FeaturesHigh-resolution four DisplayPort monitor support -Support resolutions up to 2560 x 1600 per output Native PCI Express x16 performance -Maximum bandwidth to ensure best performance 1 GB of memory -For enhanced performance in demanding multi-monitor applications Low-profile form factor -To fit in a wide variety of systems; includes bracket for full-height ATX form factor Passive cooling and low power consumption -Fanless design eliminates noise and increases product reliability Stretched and independent desktop modes -Expand your desktop across multiple monitors or set each monitor ind
Package Contentsatrox M9148 LP PCIe x16 graphics card with factory-installed ATX bracket (low-profile bracket in the box) Four miniDP to DP adapters Four DP to DVI connector adapters

Questions about this item

Does my motherboard need a PCI Express x16 slot for the M9148-E1024LAF to work?

Yes, the card requires a PCI Express x16 slot and fits low-profile or full-height cases with the included brackets.

Can I keep older monitors that only have DVI inputs when using the four Mini DisplayPort outputs?

The package includes four Mini DisplayPort to DisplayPort adapters and four DisplayPort to DVI adapters for legacy screens.

How can I confirm all four displays are running at 2560 x 1600 after installation?

Open the OS display settings or Matrox PowerDesk utility; each Mini DisplayPort output should show 2560 x 1600 resolution.
