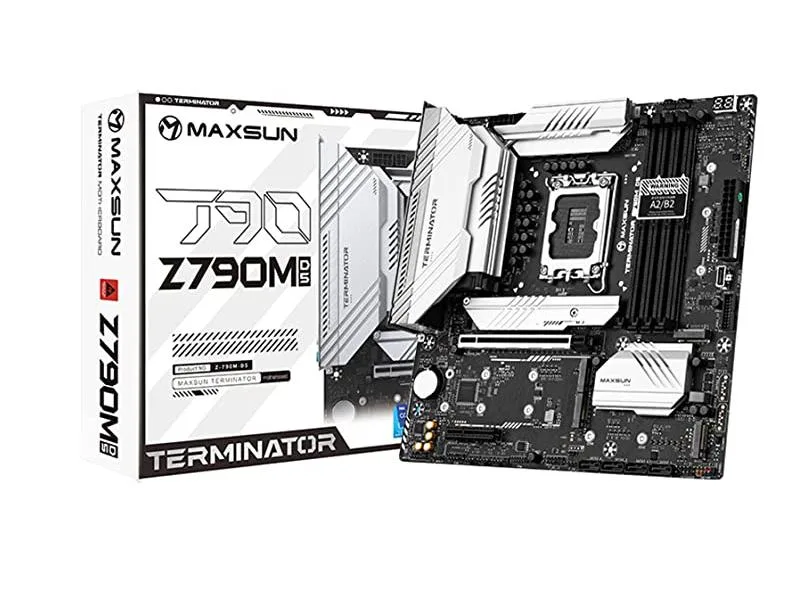

Black M-ATX motherboard with large silver VRM heatsinks, four DDR5 slots, five M.2 covers and rear I/O shield

MAXSUN

MAXSUN FF4D516G6000HC38ADC01 Z790 Intel motherboard

SKU CH-N4QZ-J6GKW MPN FF4D516G6000HC38ADC01

M-ATX Z790 board for 12th/13th Gen Intel Core with DDR5, PCIe 5.0 x16, five M.2 slots, 2.5G LAN and 8+1+1 50A Dr.MOS power

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported256GB
  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket

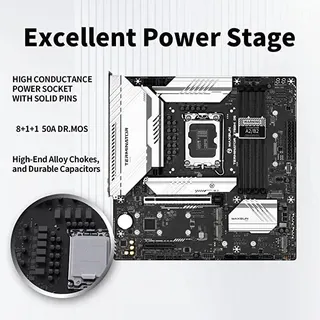

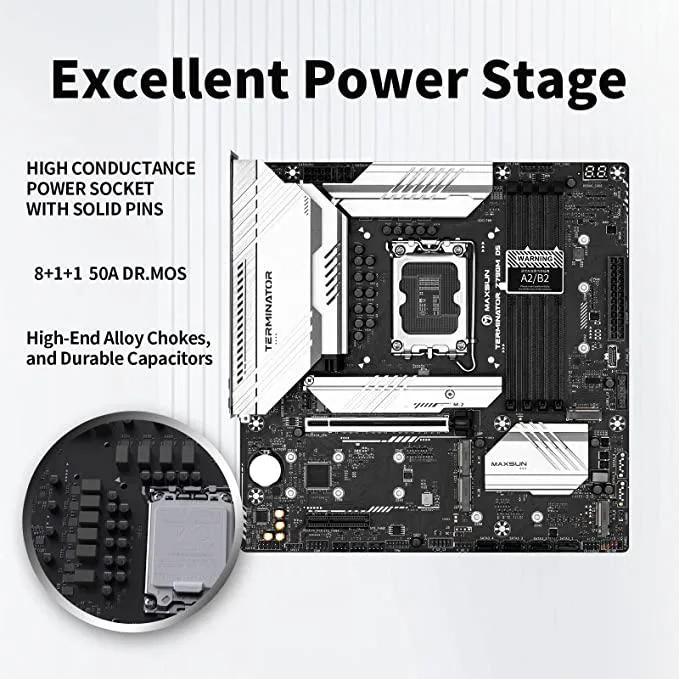

  • 8+1+1 phase 50A Dr.MOS power delivery for high-end CPUs

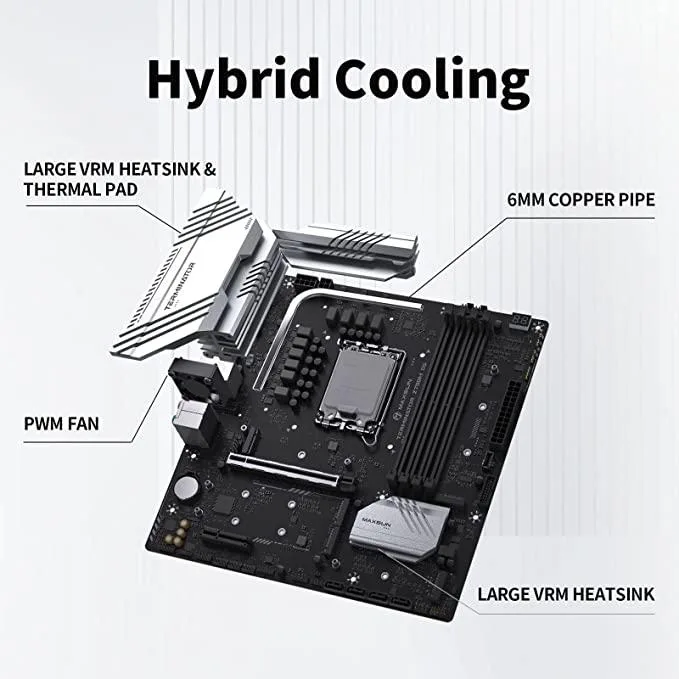

  • VRM heatsink with 6mm copper pipe and hybrid fan for sustained cooling
  • PCIe 5.0 x16 slot plus five M.2 slots for fast expansion
  • 5G LAN and Realtek ALC897 7.1 channel audio built in

Z790 micro-ATX motherboard for 12th

The MAXSUN Terminator Z790 uses the Intel LGA 1700 socket and Z790 chipset in a 24.5cm square micro-ATX form factor. It delivers PCIe 5.0 on the primary x16 slot and quad-channel DDR5 memory support up to 256GB. The board targets builders who want a compact platform with high-end connectivity and strong power delivery.

Suits compact high-performance builds.

This board fits micro-ATX chassis and supports Core i9 and i7 processors through an 8+1+1 phase 50A Dr.MOS design with a hybrid VRM heatsink. Five M.2 slots and 2.5G LAN provide extensive storage and network bandwidth. Builders needing more than two full-size expansion slots or legacy PCI support should consider a standard ATX Z790 alternative.

DDR5 memory speed ceiling of 7000MHz

The four 288-pin slots run DDR5 at a 4800MHz base with overclocked headroom to 7000MHz. Quad-channel architecture enables up to 128GB/s bandwidth when all slots are populated. This specification determines whether the platform can meet the memory throughput demands of the intended workload.

Highlights

  • Supports 12th and 13th Gen Intel Core processors on LGA 1700 socket
  • 8+1+1 phase 50A Dr.MOS power delivery for high-end CPUs
  • VRM heatsink with 6mm copper pipe and hybrid fan for sustained cooling
  • PCIe 5.0 x16 slot plus five M.2 slots for fast expansion
  • 5G LAN and Realtek ALC897 7.1 channel audio built in

Specifications

BrandMAXSUN
SeriesTerminator
ModelZ790
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported256GB
Channel SupportedQuad Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x41 x PCI Express x4
Other SlotsM.2 Wifi slot
Serial ATA (SATA)3 x SATA 6Gb/s
M.25 x M.2
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels5.1 Channels
LAN ChipsetRTL8125GB
Max LAN Speed2.5Gbps
Back I/O Ports1 x DisplayPort / 1 x HDMI
Video Portsdp+hdmi
HDMI1 x HDMI
RJ451 x RJ45
DisplayPort1 x DisplayPort
USB 3.04 x USB 3.2 Gen 1 Type-A
USB 1.1/2.04 x USB 2.0 Type-A
USB Type-C1 x USB 3.2 Gen 2x2
S/PDIF Out1 x Optical
Audio Ports5 Ports
Onboard USB1 x USB 3.2 Gen 2x2 Type-C + 1 x USB 3.2 Gen 1
Windows 11Supported
Form FactorMicro ATX
LED LightingNone RGB
Dimensions (W x L)11.6" x 11.2"
Power Pin24 Pin

Questions about this item

What are the exact dimensions of this M-ATX board so I can confirm it fits my case?

The board measures 24.5 cm by 24.5 cm (9.64 in by 9.64 in), the standard M-ATX footprint that fits any case with M-ATX or larger mounting holes.

What is the correct order for seating the CPU, DDR5 modules, and M.2 drives, and which step do builders most often skip?

Install the LGA 1700 processor first, then the four DDR5 DIMMs, then the M.2 NVMe SSDs; the step most often skipped is removing the M.2 heatsink screws before inserting the drives.

Which components on this board will need replacement or service over time?

The hybrid VRM fan and the M.2 heatsink thermal pads are the only serviceable cooling parts; the audio and LAN controllers are soldered and not user-replaceable.
