MAXSUN

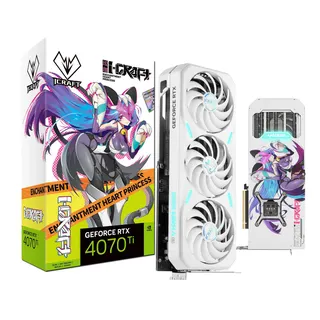

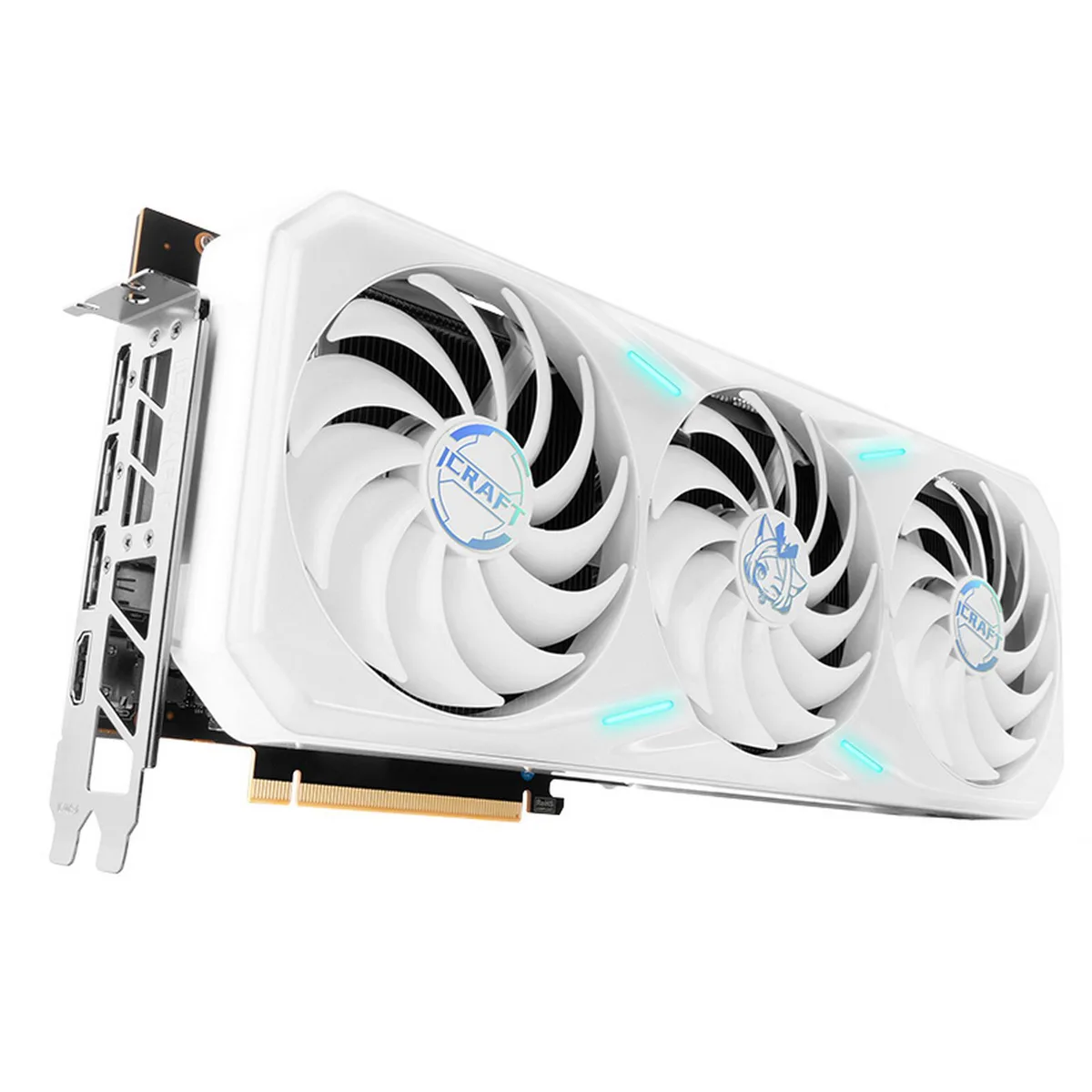

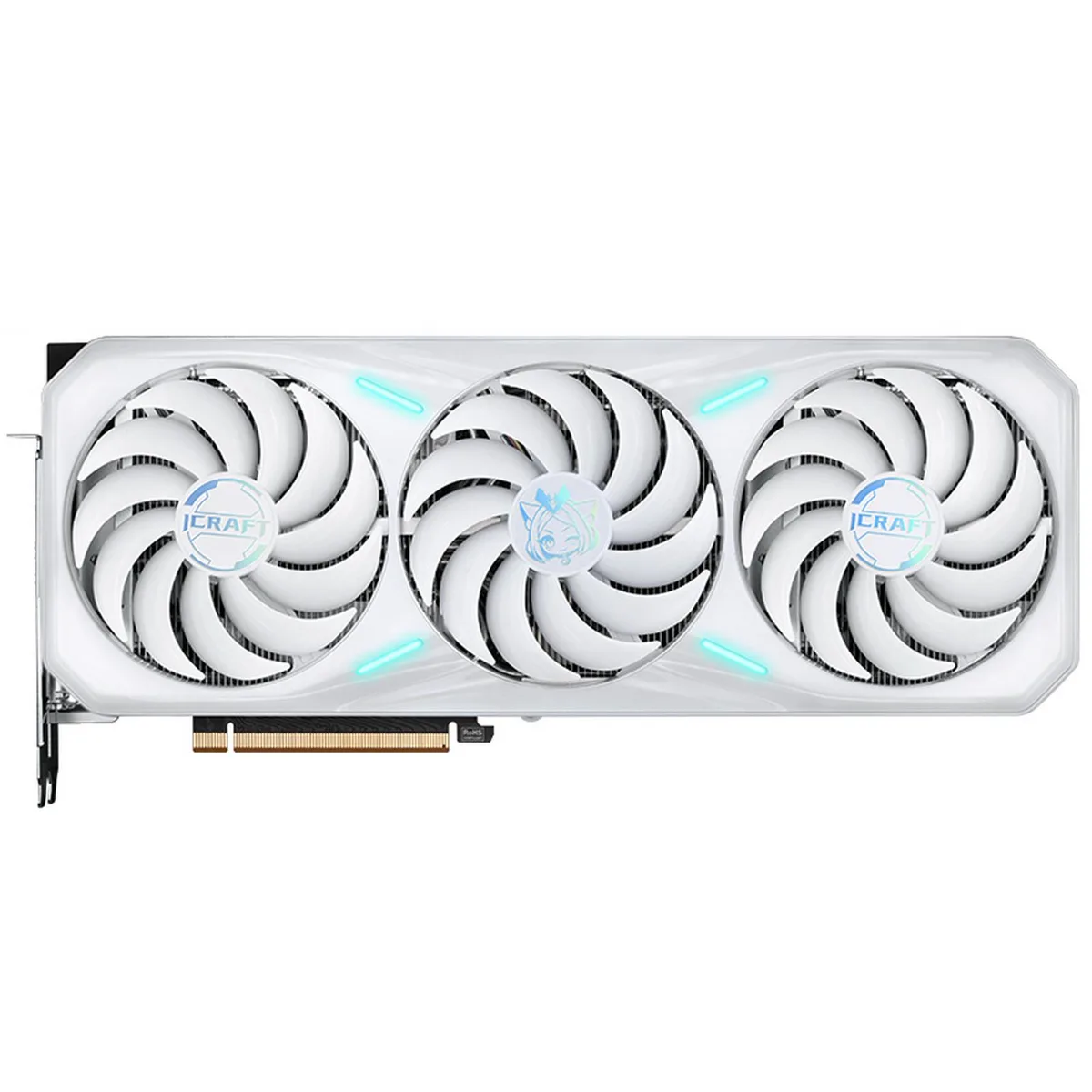

MAXSUN GeForce RTX 4070 Ti iCraft Limited Edition OC 12GB graphics card
A GeForce RTX 4070 Ti with 12GB GDDR6X, 2685 MHz boost clock, triple-fan cooling and an iCraft RGB metal backplate
- InterfacePCI Express 4.0 x16
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPURTX 4070 Ti
- ArchitectureAda Lovelace
- Core Clock2310 MHz
- Ada Lovelace architecture drives high frame rates with 7680 CUDA cores
- 12GB GDDR6X memory at 21 Gbps feeds 4K textures through a 192-bit bus
- Boost clock reaches 2685 MHz for responsive 1440p and 4K gaming
- Triple-fan cooler with eight heat pipes keeps thermals low under 300 W load
- HDMI 2.1 and three DisplayPort outputs drive four displays up to 7680 × 4320
Target Build
This MAXSUN GeForce RTX 4070 Ti iCraft Limited Edition OC 12GB graphics card targets gamers and creators who want Ada Lovelace performance. The GPU runs at a 2310 MHz base clock and can boost to 2685 MHz across 7680 CUDA cores. 12GB of GDDR6X memory on a 192-bit bus delivers 21 Gbps bandwidth for 4K gaming and heavy workloads.
Compatibility Check
Verify your motherboard has a PCI Express 4.0 x16 slot and that your power supply meets the 750W recommendation. The card draws up to 300W and requires a 12+4 pin connector. Ensure the case has enough length and airflow for a triple-fan design with an 8 heat-pipe radiator. Display outputs include three DisplayPort and one HDMI 2.1 port for up to four monitors.
Sustained Load Behaviour
Under continuous load the PWM intelligent temperature control adjusts fan speeds to keep the AD104 core stable at its 2685 MHz boost. The independent S.I.P digital power supply system maintains precise voltage regulation across long sessions. The metal backplate and 8 heat-pipe radiator spread heat evenly, preventing throttling during extended gaming or rendering at 7680x4320 resolution.
Highlights
- Ada Lovelace architecture drives high frame rates with 7680 CUDA cores
- 12GB GDDR6X memory at 21 Gbps feeds 4K textures through a 192-bit bus
- Boost clock reaches 2685 MHz for responsive 1440p and 4K gaming
- Triple-fan cooler with eight heat pipes keeps thermals low under 300 W load
- HDMI 2.1 and three DisplayPort outputs drive four displays up to 7680 × 4320
Specifications
| Brand | MAXSUN |
|---|---|
| Series | iCraft Anime |
| Model | Nvidia Geforce RTX 4070 Ti |
| Interface | PCI Express 4.0 x16 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | RTX 4070 Ti |
| Architecture | Ada Lovelace |
| Core Clock | 2310 MHz |
| Boost Clock | 2685 MHz |
| Stream Processors | 7680 |
| CUDA Cores | 7680 |
| Effective Memory Clock | 21000 MHz (21 Gbps) |
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6X |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| 3D VISION Game Ready | Yes |
| TrueAudio Support | Yes |
| Virtual Reality Ready | Yes |
| Cooler | Triple Fans |
| Operating Systems Supported | Windows 11, Windows 10, Windows 8 & 8.1, Windows 7, Windows Vista, Linux, FreeBSD x86 👉Check gaming pc with Windows 11 Pro |
| Thermal Design Power | 300W |
| Recommended PSU Wattage | 750W |
| Power Connector | 12 pin |
| Windows Vista | Works with Windows Vista |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 336 mm |
| Card Dimensions (L x H) | 13.22x5.39in/336x137mm |
| Slot Width | 3 Slots |
| Package Contents | GPU bracket |
Questions about this item
What cables and accessories come in the box with the MAXSUN iCraft RTX 4070 Ti?
The card ships with the graphics card itself and a 12+4 pin power adapter; cables for the three DisplayPort and one HDMI 2.1 outputs are not included and must be sourced separately
Should I pick the 12 GB GDDR6X version or look for a different capacity for 1440p gaming?
This model is only offered with 12 GB of GDDR6X on a 192-bit bus; that capacity is well suited for 1440p and entry 4K gaming, so no other capacity choice exists for this SKU
What does the 2685 MHz boost clock deliver in actual frame rates at 1440p?
The 2685 MHz boost, 7680 CUDA cores and 21 Gbps memory combine to push high frame rates in modern titles at 1440p, especially with DLSS 3 frame generation enabled
