Compact square Mini ITX motherboard with silver heatsinks and integrated fan

MAXSUN

MAXSUN iCraft Z690 ITX WiFi Intel motherboard

SKU CH-GTQ4-BF2PF

Mini-ITX board for 12th and 13th Gen Intel CPUs with DDR5, PCIe 5.0, dual M.2, WiFi 6E and dual 2.5 GbE LAN

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 17
  • ChipsetIntel Z690
  • Number of Memory Slots2x288pin (DDR5)
  • Memory StandardDDR5 4800
  • Maximum Memory Supported64GB
  • Supports Intel 12th and 13th Gen CPUs via LGA 1700 socket
  • 8+1 phase 90A Dr.MOS power on a 10-layer PCB for stable overclocking
  • DDR5 memory up to 6000 MHz overclock with 64 GB maximum capacity
  • PCIe 5.0 x16 slot plus two M.2 PCIe 4.0 x4 connectors for fast storage
  • Intel WiFi 6E with Bluetooth 5.2 and dual 2.5 GbE LAN for high-speed networking

Compact Z690 ITX platform

The MAXSUN iCraft Z690 ITX WiFi motherboard fits Intel 12th and 13th generation Core processors into a 17.2 cm square Mini-ITX board. It targets builders who need high-end chipset features in a small-form-factor chassis. Dual-channel DDR5 memory support and a single PCIe 5.0 x16 slot deliver current-generation throughput for gaming or workstation tasks.

Bundled cooling and connectivity extras

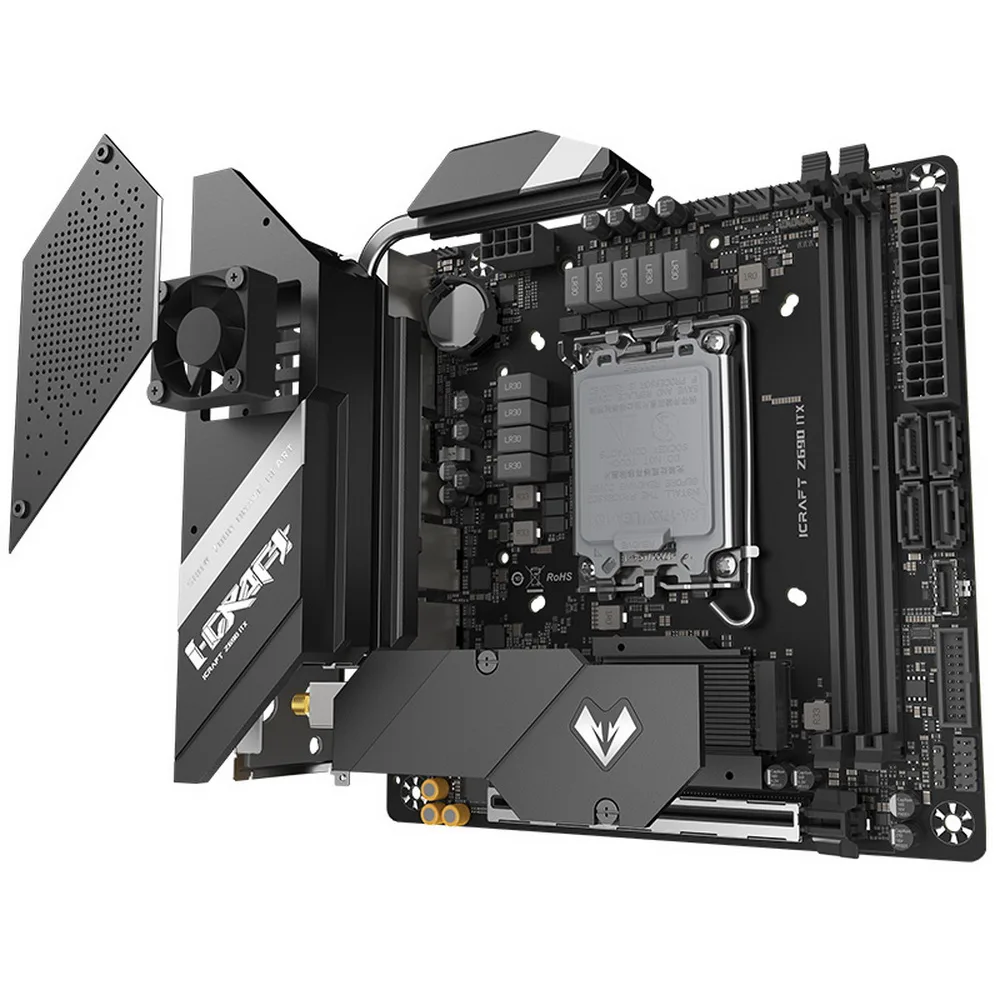

A magnetic WiFi 6E antenna is included to enable the on-board Intel AX211 wireless module with Bluetooth 5.2. An integrated VRM fan sits on a large heatsink that covers the 8+1 phase 90A Dr.MOS power stages. A dedicated M.2 heatsink covers one of the two 2280 slots, both wired for PCIe 4.0 x4 with NVME and SATA auto-switching.

Straightforward ITX installation

Coloured front-panel pins and a clear CMOS button simplify first-time builds and quick troubleshooting. Four 4-pin PWM fan headers and dual 2.5 GbE LAN ports are routed around the compact layout. The rear I/O supplies two HDMI 2.0 and two DisplayPort 1.4 outputs alongside six USB 3.2 Gen1 ports and a front-panel USB 3.2 Gen1 header plus a 10 Gbps Type-C header.

Highlights

  • Supports Intel 12th and 13th Gen CPUs via LGA 1700 socket
  • 8+1 phase 90A Dr.MOS power on a 10-layer PCB for stable overclocking
  • DDR5 memory up to 6000 MHz overclock with 64 GB maximum capacity
  • PCIe 5.0 x16 slot plus two M.2 PCIe 4.0 x4 connectors for fast storage
  • Intel WiFi 6E with Bluetooth 5.2 and dual 2.5 GbE LAN for high-speed networking

Specifications

BrandMAXSUN
SeriesiCraft
ModelZ690
CPU Socket TypeLGA 1700
CPU TypeIntel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700)
ChipsetIntel Z690
Number of Memory Slots2x288pin (DDR5)
Memory StandardDDR5 4800
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x42 x PCI Express x4
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/5/10
BluetoothYes
HDMI2 x HDMI
DisplayPort2 x DisplayPort
Windows 11Ready
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.79*6.79 inch

Questions about this item

Will a 13th Gen Intel Core processor work in the LGA 1700 socket without a BIOS update?

The board supports 12th and 13th Gen Intel Core, Pentium and Celeron CPUs in the LGA 1700 socket and is Windows 11 ready.

How many DDR5 modules can be installed and what is the maximum capacity?

Two 288-pin DDR5 slots run in dual channel with a maximum supported capacity of 64 GB and overclocking potential to 6000 MHz.

What M.2 drives fit the two slots and do they share bandwidth with the PCIe 5.0 x16 slot?

Both M.2 slots accept 2280 drives using PCIe 4.0 x4; one slot auto-switches between NVME and SATA protocols.
