Silver aluminium-alloy EATX tower with tempered-glass side panel, 429 by 205 by 349 millimetres

Mechanic master

Mechanic master C34 Pro EATX Aluminium Case Silver

SKU CH-W5VT-0SHGX

An EATX aluminium chassis supporting 360 mm AIO cooling, 336 mm GPUs and 165 mm CPU coolers in a 429 × 205 × 349 mm frame

  • TypeATX Desktop
  • ColorSilver
  • Case Materialaluminum alloy tempered glass
  • With Power SupplyNo
  • Side Panelwith Side Window
  • Max GPU Length336 mm

Options Silver

Struck-through versions exist but are not stocked here.

  • Supports E-ATX boards up to 305 by 275 mm
  • Fits 360 mm AIO and 336 mm graphics cards
  • 165 mm CPU cooler clearance for high-end air towers
  • Aluminium alloy frame with tempered glass side panel

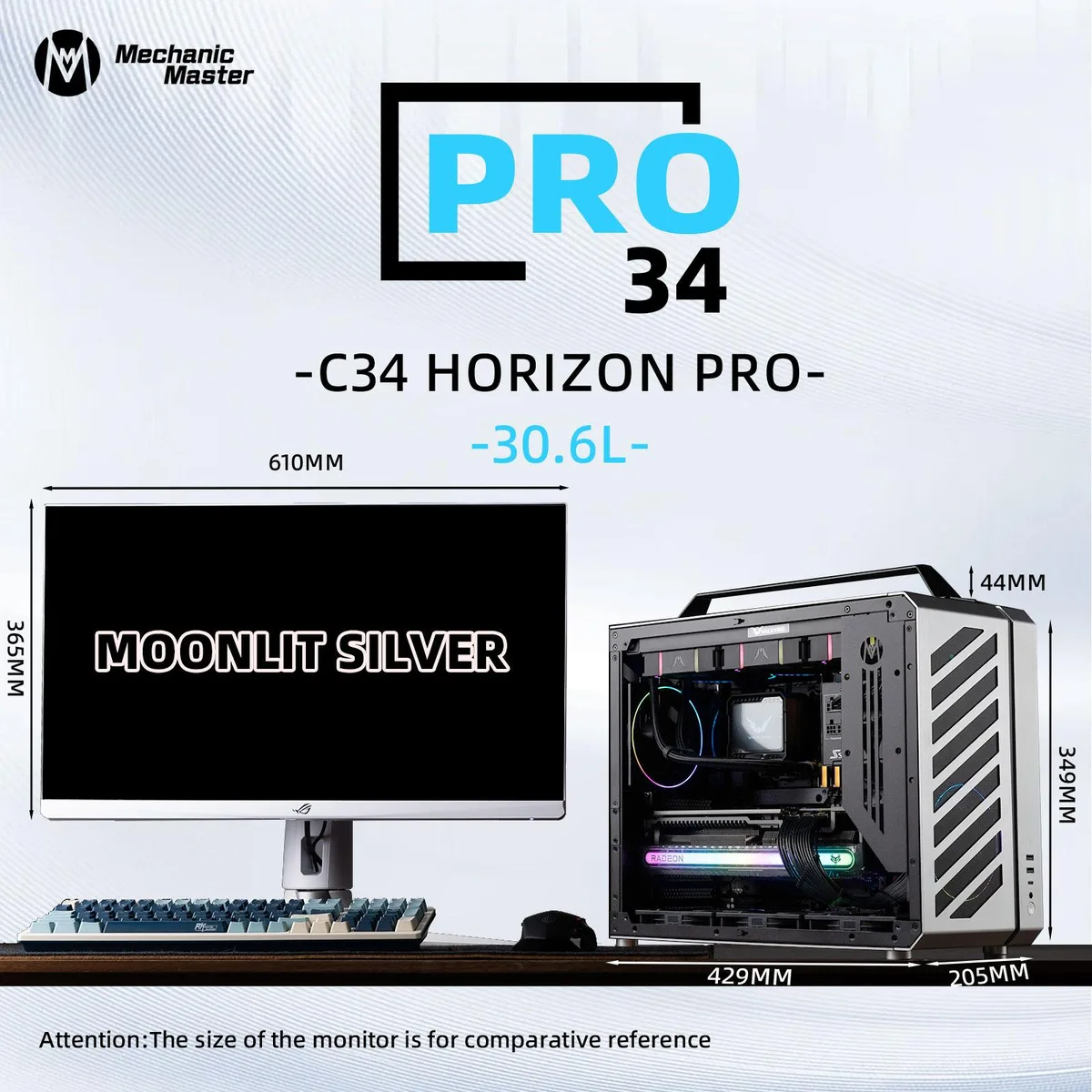

  • Compact 30-litre footprint at 429 by 205 by 349 mm

Flagship 30-litre aluminium chassis

The Mechanical Master C34 Pro is a compact EATX enclosure built from aluminium alloy and tempered glass. It accepts motherboards up to 305 by 275 mm, graphics cards to 336 mm and ATX power supplies to 220 mm. The silver finish suits builders who want premium materials in a 429 by 205 by 349 mm footprint.

Thermals and acoustics in daily use

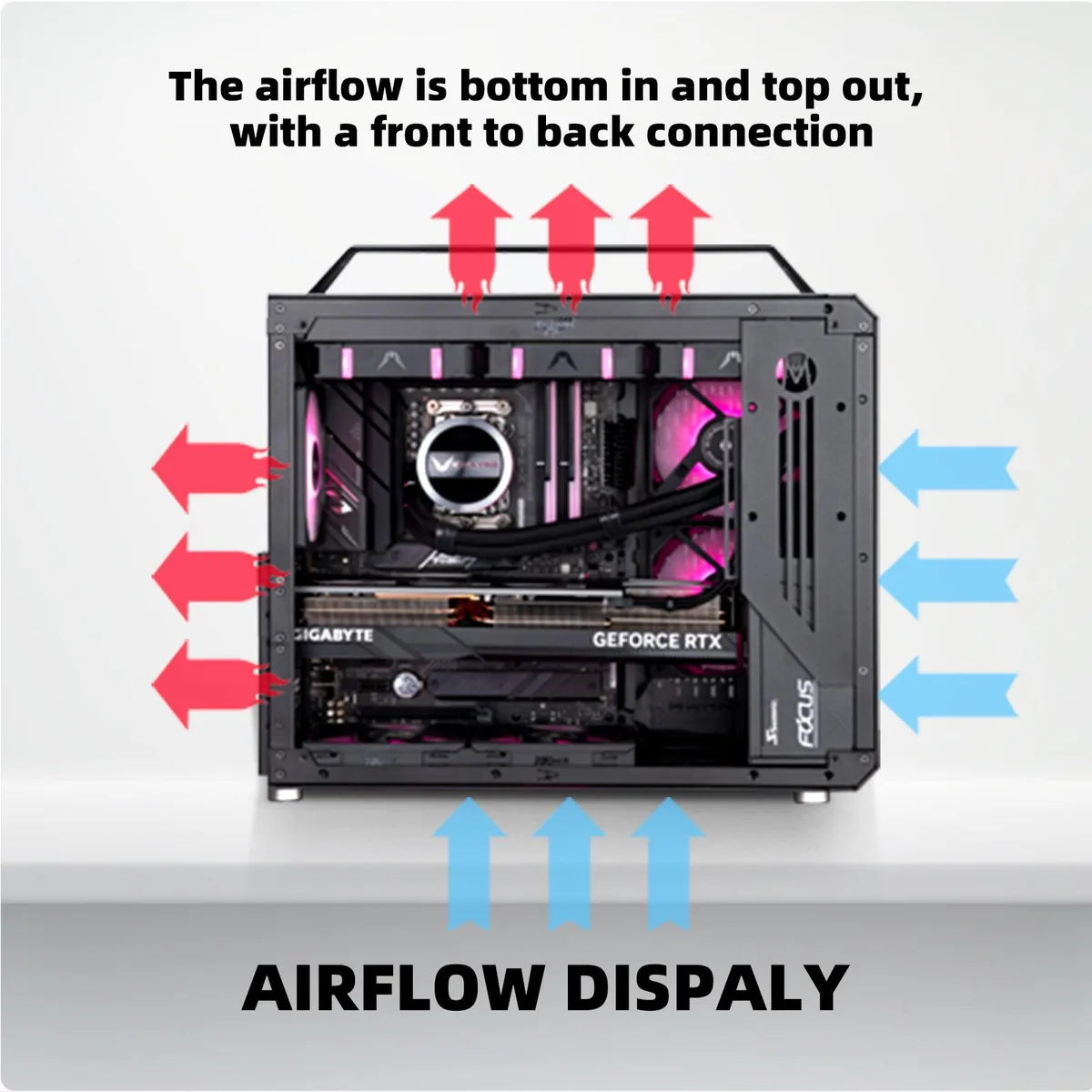

A 360 mm radiator fits in the top position while 240 mm and 280 mm units are also supported, giving headroom for high-wattage CPUs. The 165 mm CPU-cooler clearance allows large tower air coolers to run at lower fan speeds. Open mesh panels promote direct airflow so components stay cool without forcing fans to high RPM.

Build practicality and connectivity

The aluminium frame saves weight compared with steel equivalents and the side window displays the interior. Modular brackets let you reposition the PSU and radiator mounts for custom loop routing. Builders who need more than two 3.5-inch drive bays or a second full-length GPU will find the internal volume limiting.

Highlights

  • Supports E-ATX boards up to 305 by 275 mm
  • Fits 360 mm AIO and 336 mm graphics cards
  • 165 mm CPU cooler clearance for high-end air towers
  • Aluminium alloy frame with tempered glass side panel
  • Compact 30-litre footprint at 429 by 205 by 349 mm

Specifications

BrandMechanica master
ModelC34 pro
TypeATX Desktop
ColorSilver
Case Materialaluminum alloy tempered glass
With Power SupplyNo
Side Panelwith Side Window
Max GPU Length336 mm
Max CPU Cooler Height165 mm
Max PSU Length220 mm
Dimensions429mm x205mm x349mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the motherboard and what is the most common alignment mistake?

Mount an E-ATX board up to 305 x 275 mm using the standoffs pre-installed for that tray size; the error builders make is leaving ATX standoffs in place, which shorts the larger board.

What parts will need replacement after a few years of use?

The tempered-glass side panel can be swapped if damaged; dust filters on the intake areas are removable and should be cleaned or replaced periodically.

What is the first limit reached when running a heavy load for hours?

The CPU cooler height limit of 165 mm restricts the size of tower coolers, which often becomes the thermal bottleneck before GPU length or PSU space.
