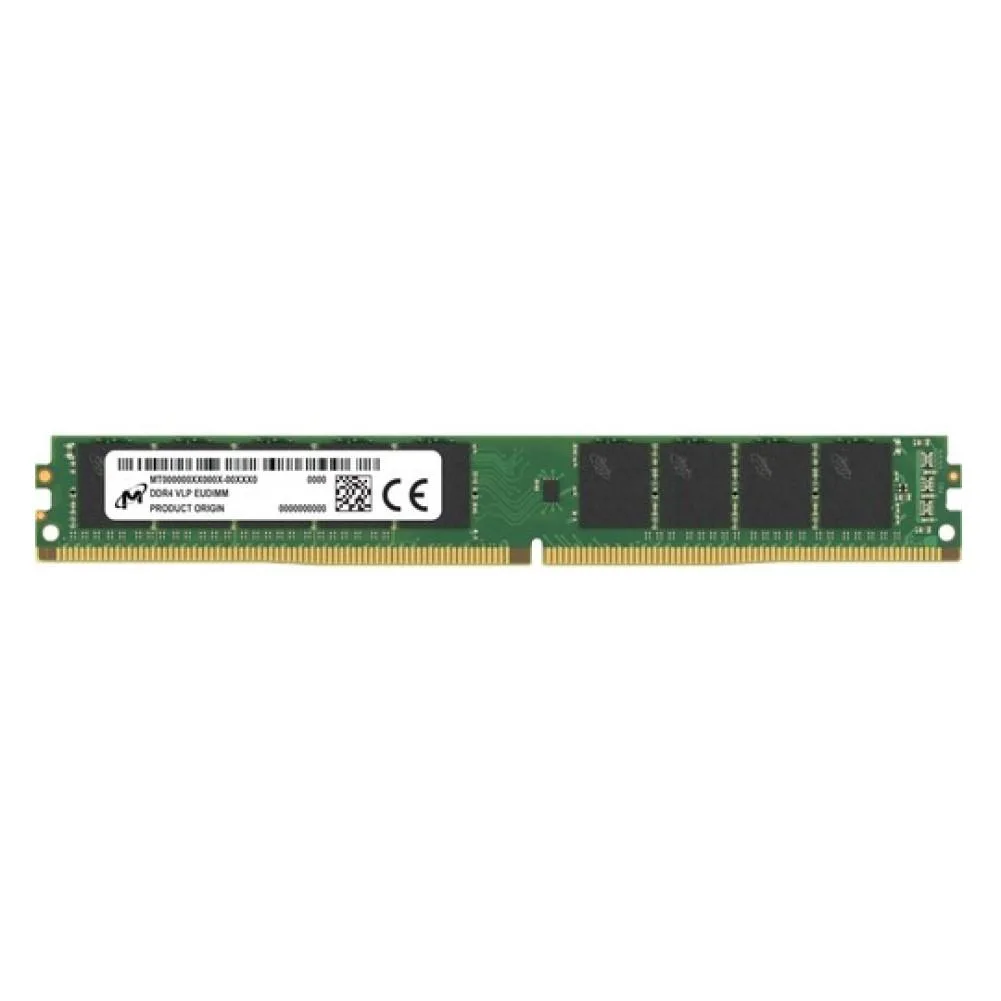

Green rectangular DDR4 memory module with gold contacts and black chips

Micron Technology, Inc.

Micron Technology, Inc. MTA18ADF2G72AZ-3G2R1 16GB DDR4 3200 ECC Registered server RAM

SKU CH-K3FS-RBPVH MPN MTA18ADF2G72AZ-3G2R1

16 GB DDR4 3200 ECC registered DIMM with CL22 timing and 1.20 V operation

  • Capacity16GB
  • SpeedDDR4 3200 (PC4 25600)
  • CAS LatencyCL22
  • Timing22-22-22
  • Voltage1.20V
  • ECCYes
  • ECC protection prevents data corruption with built-in error correction
  • Registered signal buffering reduces electrical load for stable multi-module operation
  • 16 GB capacity expands server memory for larger workloads
  • DDR4 3200 speed delivers 25 600 MB/s peak bandwidth
  • Low 1.20 V voltage cuts power draw per module

16GB DDR4 3200 Registered ECC Module

This 16GB DDR4 3200 module delivers PC4 25600 bandwidth with CL22 22-22-22 timing at 1.20V. Registered design and ECC support target server platforms that require registered memory. The 2Rx8 organisation suits dual-rank channel populations.

Installation and Common Issues

Align the module key with the slot and press until the latches engage; registered modules will not fit unbuffered desktop slots. Mismatched registered and unbuffered DIMMs prevent boot. Mixing ranks or speeds can force the channel to the slowest common timing.

DDR4 3200 Practical Limits

DDR4 3200 caps transfer rate at PC4 25600 per module; total throughput depends on channel count and CPU memory controller. Registered buffering adds one cycle of command delay versus unbuffered DIMMs. Maximum capacity per channel is limited by the platform memory controller and qualified vendor list.

Highlights

  • ECC protection prevents data corruption with built-in error correction
  • Registered signal buffering reduces electrical load for stable multi-module operation
  • 16 GB capacity expands server memory for larger workloads
  • DDR4 3200 speed delivers 25 600 MB/s peak bandwidth
  • Low 1.20 V voltage cuts power draw per module

Specifications

BrandMicron
ModelMTA18ADF2G72AZ-3G2R1
Capacity16GB
SpeedDDR4 3200 (PC4 25600)
CAS LatencyCL22
Timing22-22-22
Voltage1.20V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx8
FeaturesMicron server DRAM - Speed up your servers | Micron Server DRAM increases performance and helps maximize IT budgets.
Speed up applications and get more out of your IT budget with Micron Server DRAM. Maximizing installed memory capacity with Micron Server DRAM is one of the easiest and most affordable ways to make your deployments faster and more efficient.
Speed up server applications
By installing Micron DRAM, you'll be able to maximize the performance capability of your CPUs and optimize your servers' computing potential. Since memory typically functions as a fixed (non-shared) com
Shipping weight0.09 kg
Package size152 × 51 × 25 mm

Questions about this item

How do I verify the module is running at DDR4 3200 with CL22 timing after installation?

Check the BIOS or a system utility such as CPU-Z; the memory should report 3200 MT/s, CAS latency 22, and timing 22-22-22 at 1.20 V.

What comes in the box and do I need any extra brackets or cables?

The package contains the 16 GB DDR4 3200 ECC Registered DIMM only; no brackets, cables or additional hardware are included.

Which capacity and rank should I choose for a dual-channel server board?

This is a single 16 GB 2Rx8 module; add a second identical module to populate both channels for optimal bandwidth.
