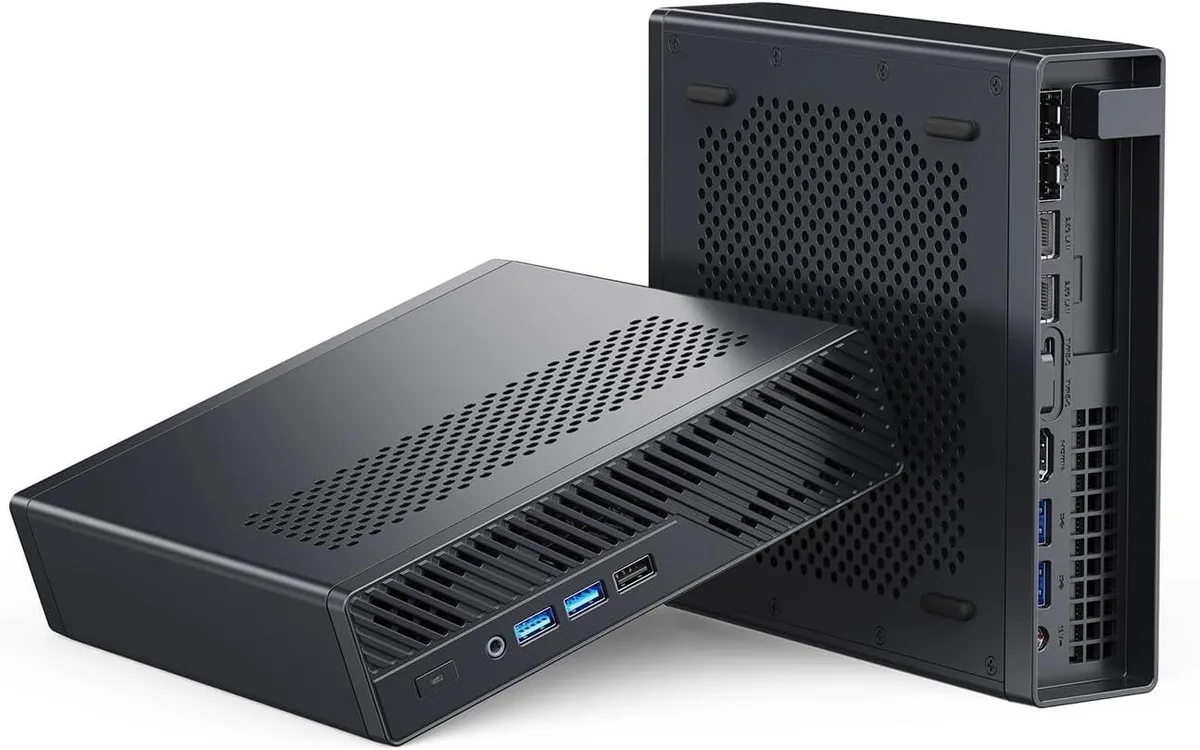

Small black square mini PC with front ports and dual fans visible

minisforum

minisforum MS-A2 DeskMini Ryzen 7 7745HX barebone mini PC

SKU CH-SGFG-FM1M2

Barebone mini workstation with Ryzen 7 7745HX, Radeon 610M graphics, dual 2.5G LAN plus 10G SFP+, triple 8K display outputs, DDR5-5200 up to 96 GB, and three PCIe 4.0 M.2 slots

  • ColorBlack
  • CPU TypeAMD Ryzen 7 7745HX
  • CPU SocketFL1
  • CPU Cores8-Core
  • Memory installedNo Memory
  • Memory slot2

Option MSA2-7745 · 0+0

  • 8-core Ryzen 7 7745HX up to 5.1 GHz for demanding workloads

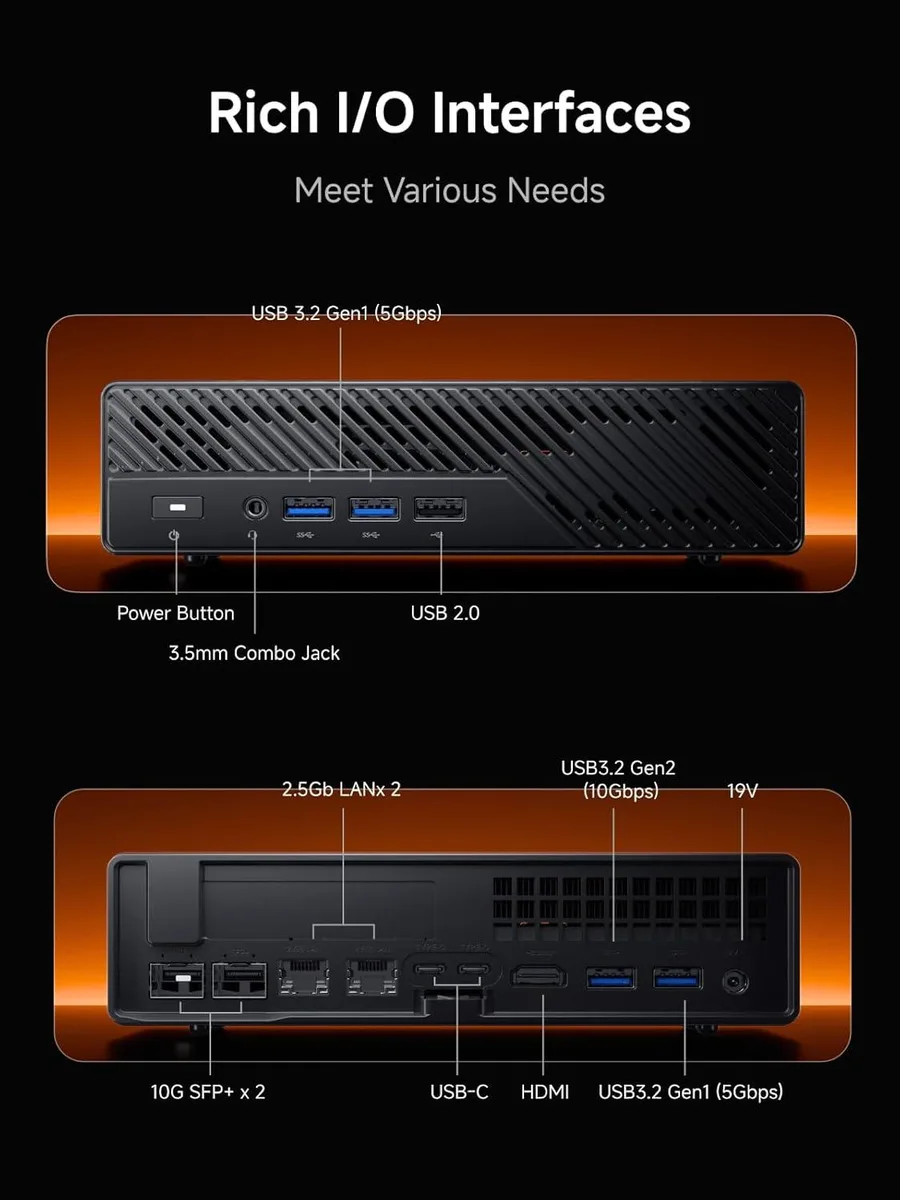

  • Dual 10 G SFP+ and dual 2.5 G RJ45 for high-speed networking
  • HDMI plus two USB-C ports drive three 8K 60 Hz displays
  • Two DDR5 5200 slots accept up to 96 GB dual-channel memory
  • Dual-fan four-heat-pipe cooling keeps temperatures low under load

Compact workstation barebone

The minisforum MS-A2 DeskMini arrives as a barebone mini PC with an AMD Ryzen 7 7745HX processor already installed. Eight cores and sixteen threads reach 5.1 GHz for demanding workloads. Integrated AMD Radeon 610M graphics drive three 8K displays at 60 Hz through HDMI and two USB-C ports. The unit targets professionals who need high multi-thread performance in a small footprint.

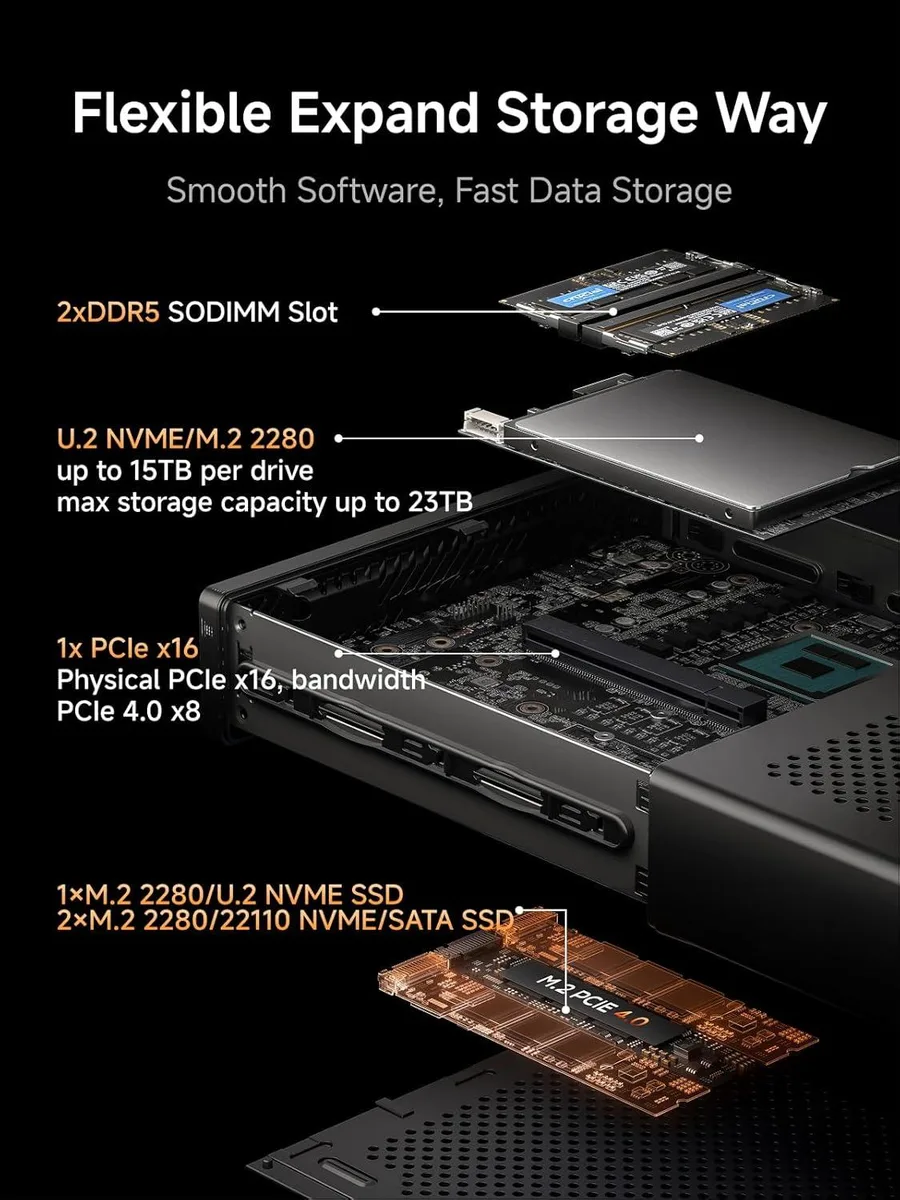

Memory, storage and networking you add

Two SODIMM slots accept DDR5 5200 memory up to 96 GB in dual-channel mode. Three PCIe 4.0 x4 M.2 slots support 2280, 22110 and U.2 NVMe drives with RAID capability. Dual 2.5 Gbps RJ45 ports and a 10 Gbps SFP+ port provide wired throughput for fast NAS or cluster links. Wi-Fi 6E and Bluetooth 5.2 handle wireless peripherals. No memory or storage is included, so builders supply both.

Dual-fan cooling with four heat pipes

A dual-fan cooler and four heat pipes manage the 7745HX thermals inside the compact chassis. The 240 W (19 V, 12.63 A) external power adapter feeds the system. In typical workloads the solution keeps temperatures in check while fan noise stays low enough for quiet offices.

Highlights

  • 8-core Ryzen 7 7745HX up to 5.1 GHz for demanding workloads
  • Dual 10 G SFP+ and dual 2.5 G RJ45 for high-speed networking
  • HDMI plus two USB-C ports drive three 8K 60 Hz displays
  • Two DDR5 5200 slots accept up to 96 GB dual-channel memory
  • Dual-fan four-heat-pipe cooling keeps temperatures low under load

Specifications

BrandMINISFORUM
ModelDeskMini
ColorBlack
CPU TypeAMD Ryzen 7 7745HX
CPU SocketFL1
CPU Cores8-Core
Memory installedNo Memory
Memory slot2
Memory Type SupportedDDR5 5200
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Other3x PCIe4.0x4
Integrated GraphicsAMD Radeon 610M
Max LAN Speed2.5Gbps
Wireless LAN802.11ax
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.2
Front USB3
HDMI1
Rear USB2
RJ452
Power Supply19V/12.63A 240W

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What thermal limit does the dual-fan four-heat-pipe cooler hit first during sustained 5.1 GHz loads?

The 240 W power supply caps total system draw, so the CPU will throttle before the cooling reaches its maximum dissipation.

How loud and hot does the MS-A2 get when both 10 G SFP+ ports and the 2.5 G RJ45 links run 24/7?

Dual fans and four heat pipes keep the chassis warm but not hot; noise stays at a low office hum even with all network ports saturated.

Which DDR5-5200 SO-DIMMs and M.2 2280 NVMe drives must I supply to make this barebone boot?

You need two DDR5-5200 SO-DIMMs up to 96 GB total and at least one PCIe 4.0 M.2 2280 NVMe SSD; the board also accepts 22110 and U.2 drives.
