Black mid-tower case with curved tempered glass front panel

Montech

Montech HS02 (B) ATX Mid-Tower PC Case Black

SKU CH-647G-F2288 MPN HS02 (B)

An ATX mid-tower with reversible layout, 8-degree curved tempered glass front panel and chimney-style bottom-to-top airflow supporting 420 mm GPUs, 360 mm top radiators and 14 expansion slots

  • ColorBlack
  • Case MaterialSPCC / Tempered Glass
  • Motherboard CompatibilityATX / Micro ATX / Mini ITX
  • Internal 3.5" Drive Bays2
  • Internal 2.5" Drive Bays2
  • Expansion Slots14

Options HS02 Glass Black

Struck-through versions exist but are not stocked here.

  • Reversible layout lets you showcase the build on either side

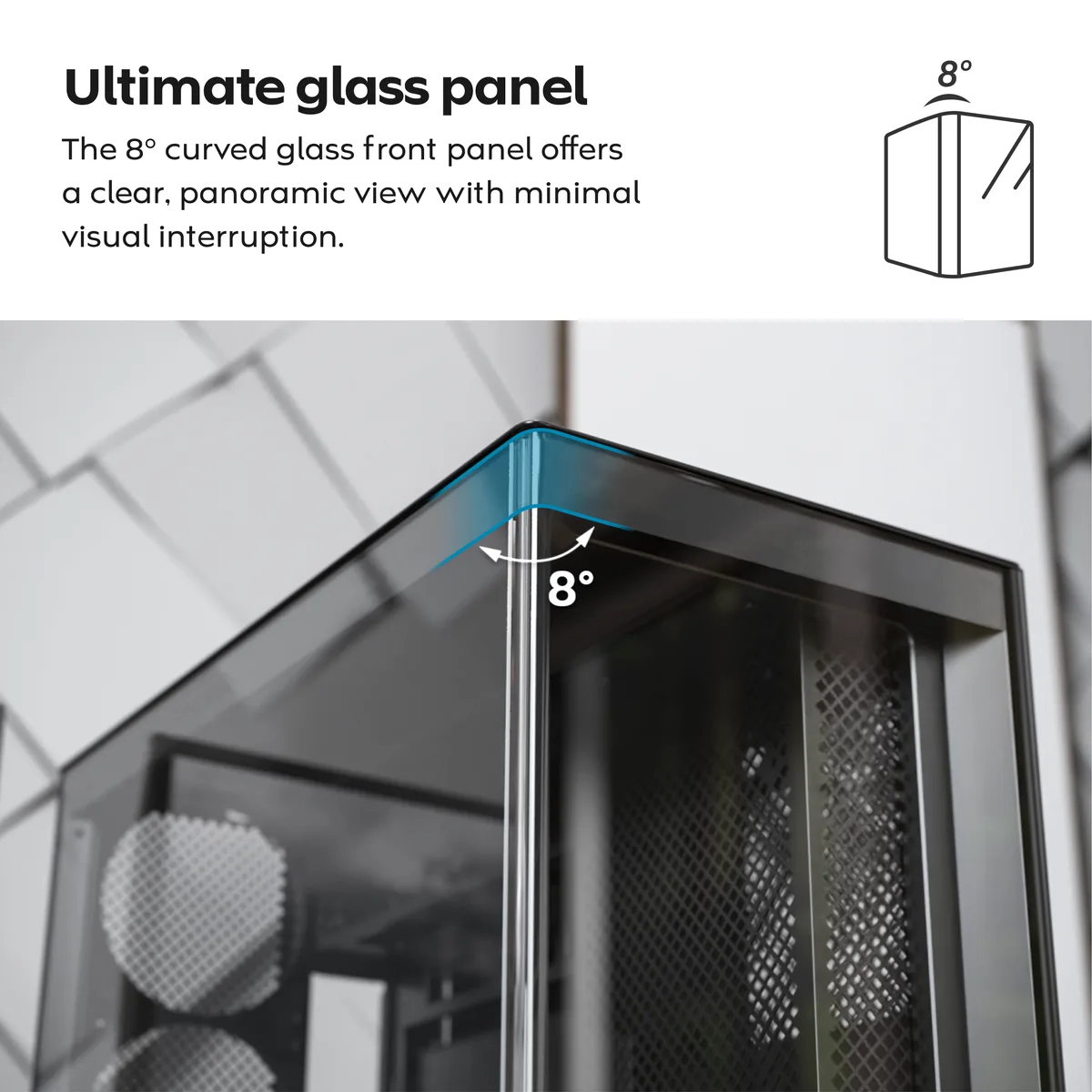

  • 8-degree curved front glass gives a wide, low-distortion view of components
  • Chimney-style airflow moves cool air from bottom intake to top exhaust for efficient heat dissipation
  • Rotatable PCIe slots enable vertical GPU mounting without extra brackets
  • Relocated PSU area supports back-connect motherboards for cleaner cable routing

Reversible ATX Mid-Tower with Curved Glass

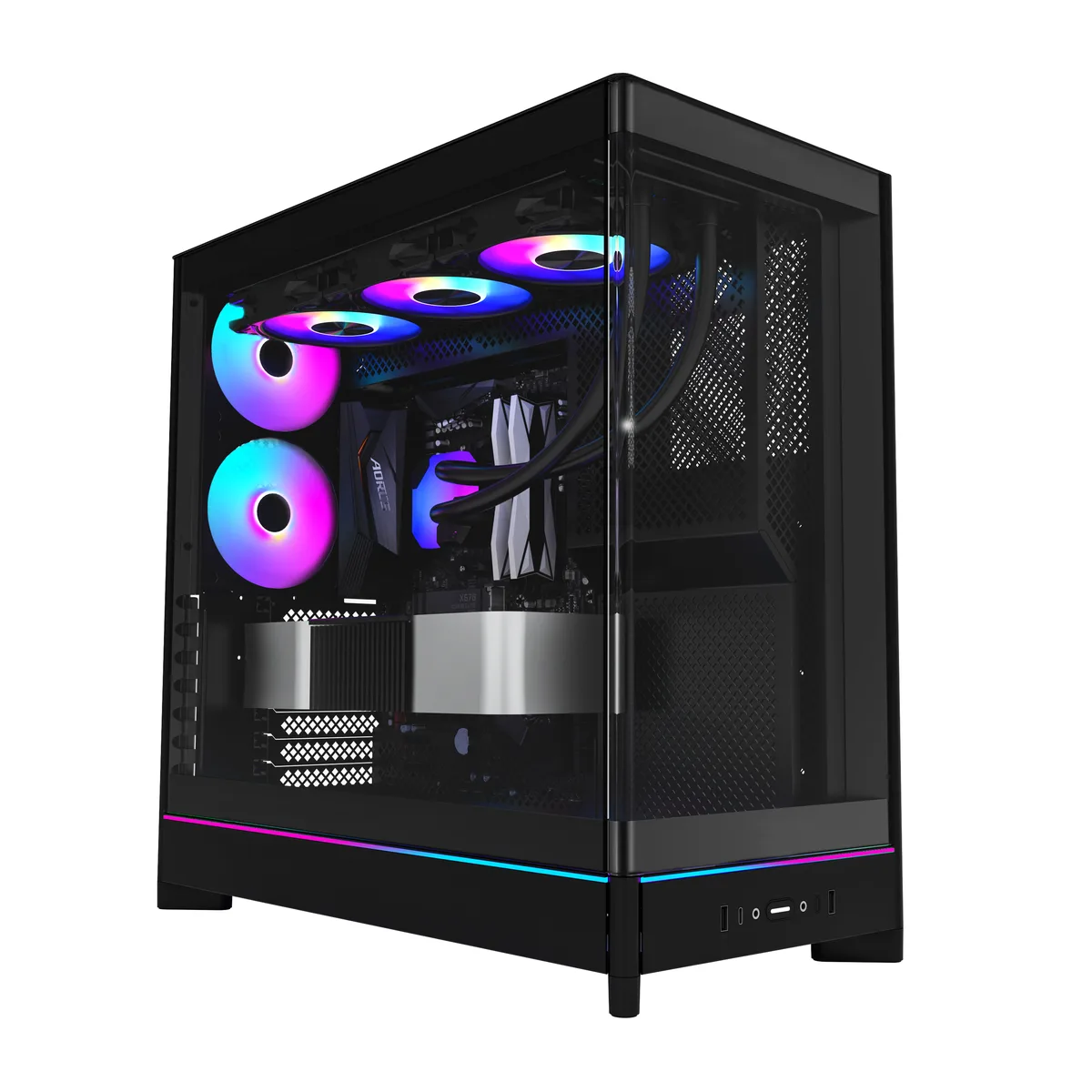

The Montech HS02 (B) is an ATX mid-tower case finished in black with an 8-degree curved tempered glass front panel and a reversible top-down layout that lets the glass sit on either side. It supports ATX, Micro ATX and Mini ITX motherboards and provides two 3.5-inch and two 2.5-inch internal drive bays. Fourteen expansion slots accommodate long graphics cards and vertical mounting.

Toolless Panels and Bottom-to-Top Airflow

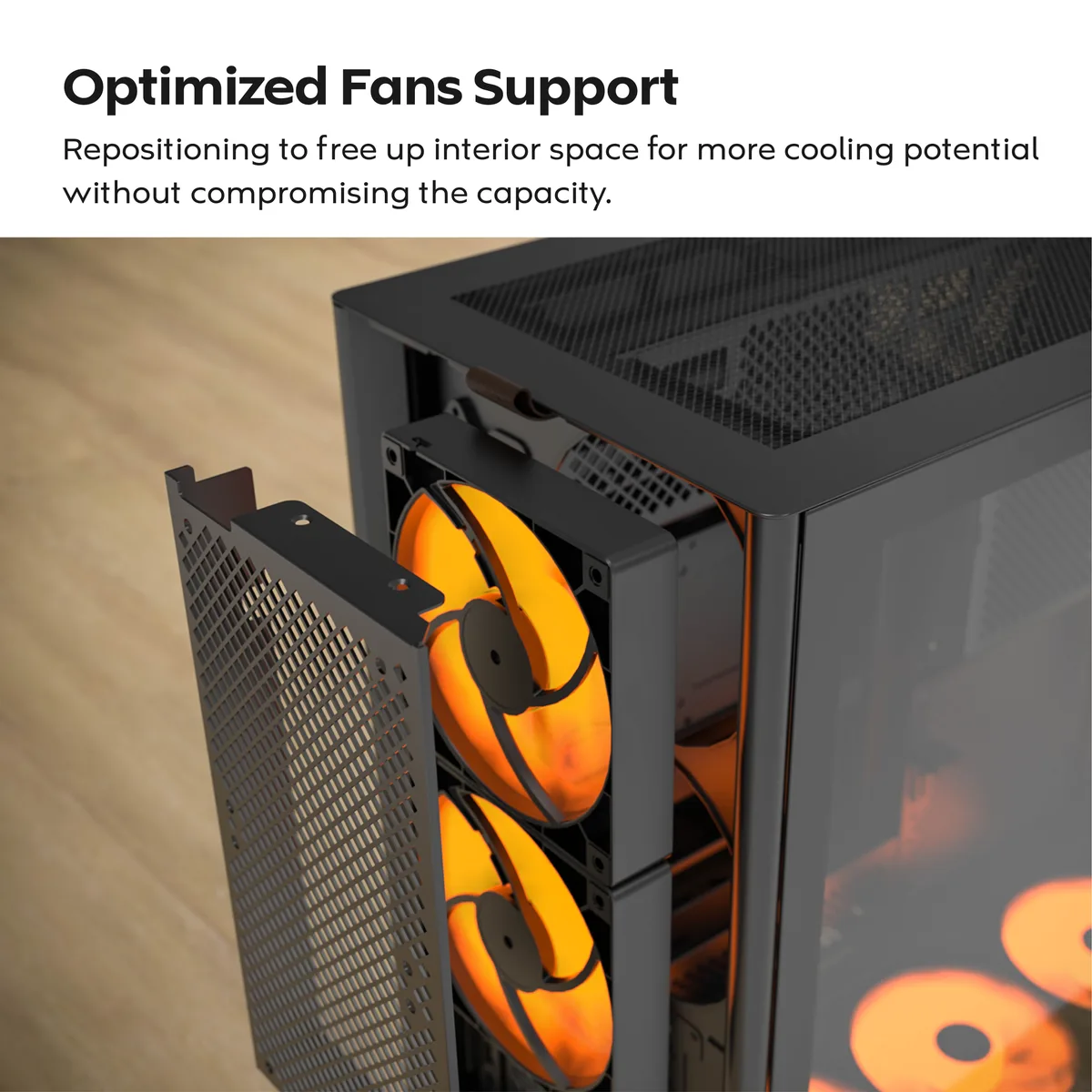

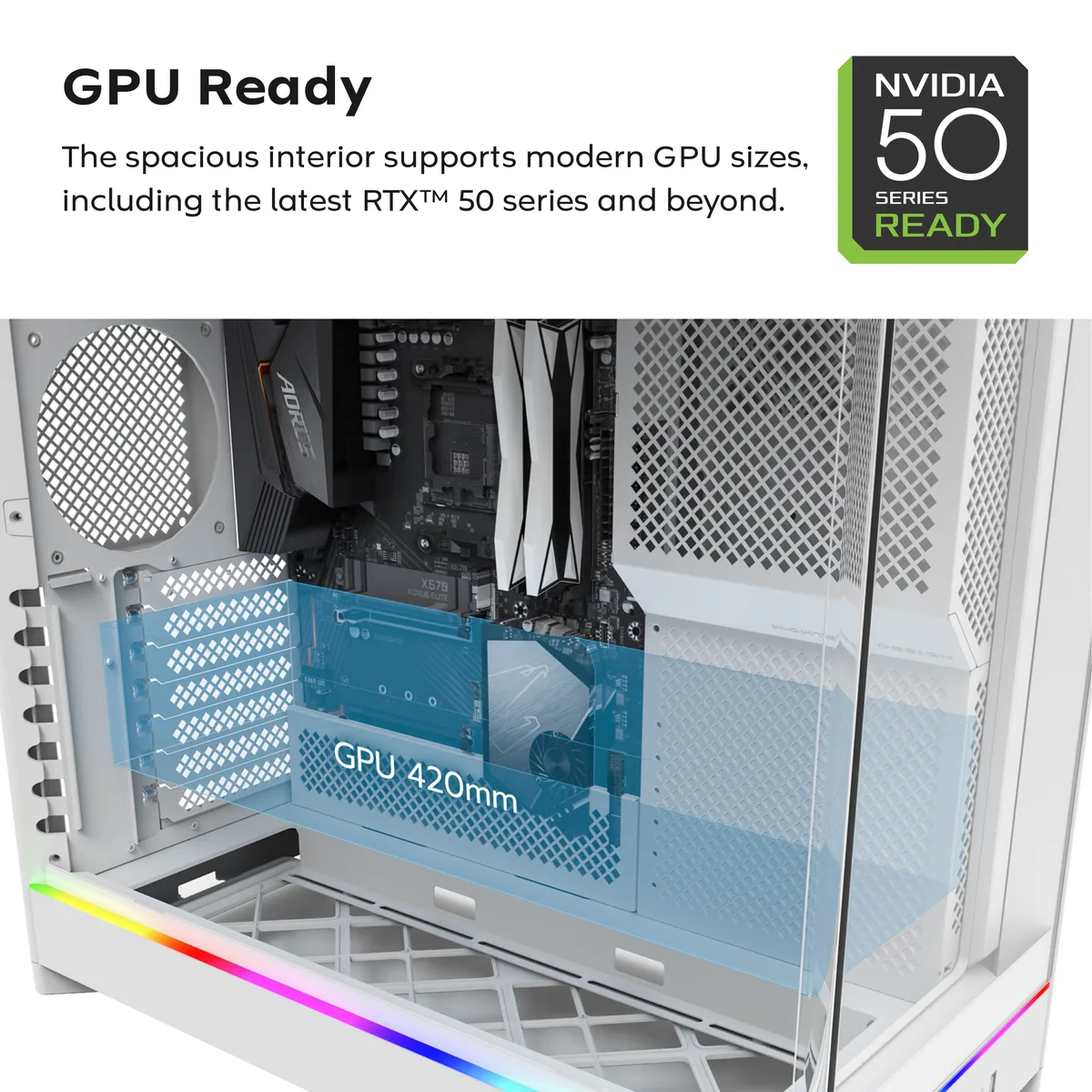

Toolless side and front panels simplify access, while the sink-in design recesses the bottom fans and motherboard tray for a clean side view. The chimney-style airflow draws cool air from three 120 mm bottom fans and exhausts through three top and two rear 120 mm positions. Radiator support reaches 360 mm at the top and 120 mm at the rear and bottom. The top radiator width is limited to 123 mm. Maximum component clearances are 420 mm for graphics cards, 175 mm for CPU coolers and 200 mm for power supplies.

ARGB Lighting and Back-Connect Cable Management

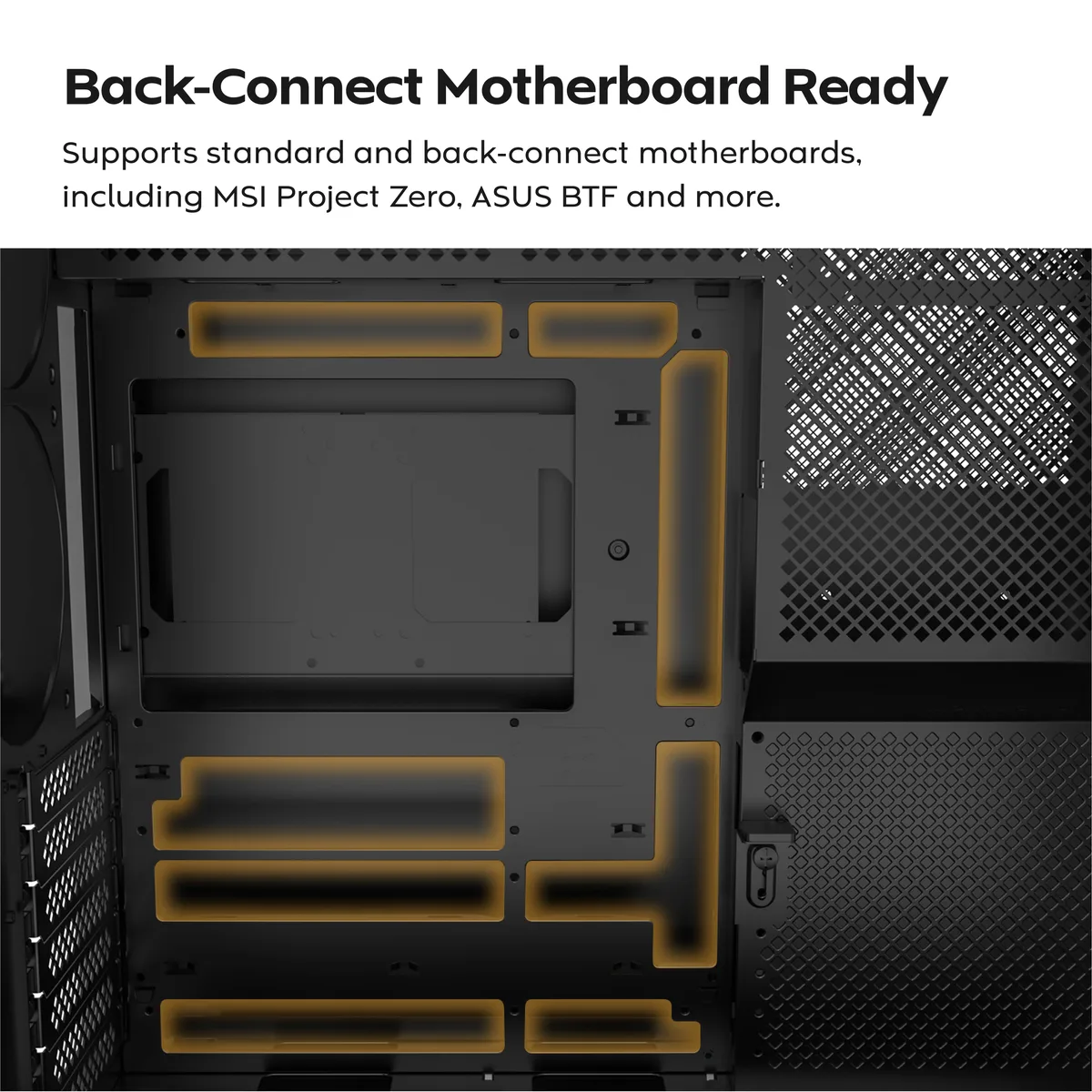

Built-in ARGB lighting offers 29 modes controlled via the I/O panel, which also includes USB Type-C, two USB Type-A ports and audio jacks. The relocated PSU chamber supports back-connect motherboards for concealed cable routing. Builders who need more than two 3.5-inch bays or a wider top radiator than 123 mm should consider other options.

Highlights

  • Reversible layout lets you showcase the build on either side
  • 8-degree curved front glass gives a wide, low-distortion view of components
  • Chimney-style airflow moves cool air from bottom intake to top exhaust for efficient heat dissipation
  • Rotatable PCIe slots enable vertical GPU mounting without extra brackets
  • Relocated PSU area supports back-connect motherboards for cleaner cable routing

Specifications

BrandMontech
Part NumberHS02 (B)
ColorBlack
Case MaterialSPCC / Tempered Glass
Motherboard CompatibilityATX / Micro ATX / Mini ITX
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays2
Expansion Slots14
Fan OptionsBottom - 3 x 120mm / Front - 3 x 120mm / Rear - 2 x 120mm / Top - 3 x 120mm
Radiator OptionsBottom - Up to 120mm / Rear - Up to 120mm / Top - Up to 360mm
Max GPU Length420 mm
Max CPU Cooler Height175 mm
Max PSU Length200 mm
Dimensions18.91" x 9.45" x 18.91"
Shipping weight12.34 kg
Package size584 × 559 × 330 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I verify the chimney-style airflow is working after I install bottom intake and top exhaust fans?

With bottom fans drawing cool air up through the vertical GPU and motherboard area, then out the dual rear and top fans, you should feel strong exhaust at the top and rear while GPU and CPU temperatures drop under load compared to a traditional front-to-back layout.

Which fans, panels and mounting hardware are included and what must I purchase separately?

The case includes the 8-degree curved tempered glass front panel, a side glass panel, toolless panel latches, and all screws and standoffs for ATX, Micro-ATX and Mini-ITX boards; you must buy the three 120 mm bottom fans, three 120 mm front fans, two 120 mm rear fans and three 120 mm top fans separately.

Should I choose the version that supports a 360 mm top radiator or the one limited to 120 mm rear and bottom radiators?

The single HS02 (B) model supports a 360 mm radiator up to 123 mm wide at the top plus 120 mm radiators at the rear and bottom, so pick this version if you want maximum liquid-cooling capacity for high-TDP CPUs.
