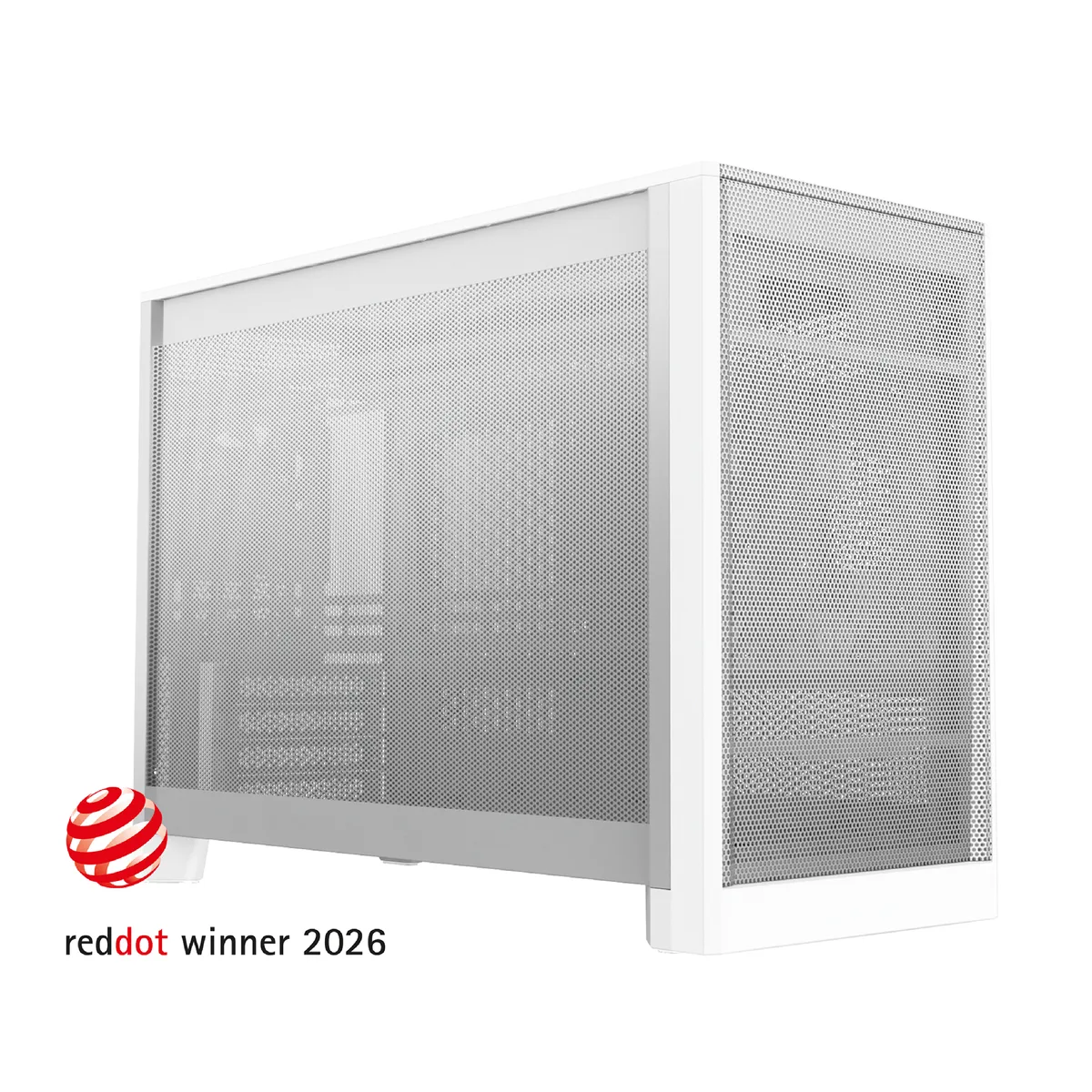

White compact micro ATX case with mesh panels, 22.7 litre volume

Montech

Montech TEN M1 22.7L Micro ATX PC Case White

SKU CH-XYJS-5CPMX

A compact 22.7 L Micro ATX chassis with modular layout, mesh panels for high airflow, and support for 360 mm radiators or 438 mm GPUs

  • TypeSmall Form Factor
  • ColorWhite
  • Case MaterialSPCC
  • With Power SupplyNo
  • Power Supply MountedRear
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • Modular layout adapts to air, liquid or compact builds with three distinct modes
  • Mesh panels maximise airflow while softly diffusing internal lighting for a clean look
  • Chimney-effect design pulls cool air from the bottom and exhausts heat through the top
  • Supports 360 mm radiators and CPU coolers up to 165 mm in a 22.7 L chassis
  • Fits GPUs up to 438 mm horizontal or 433 mm vertical with flexible mounting options

Adaptive Micro-ATX Chassis

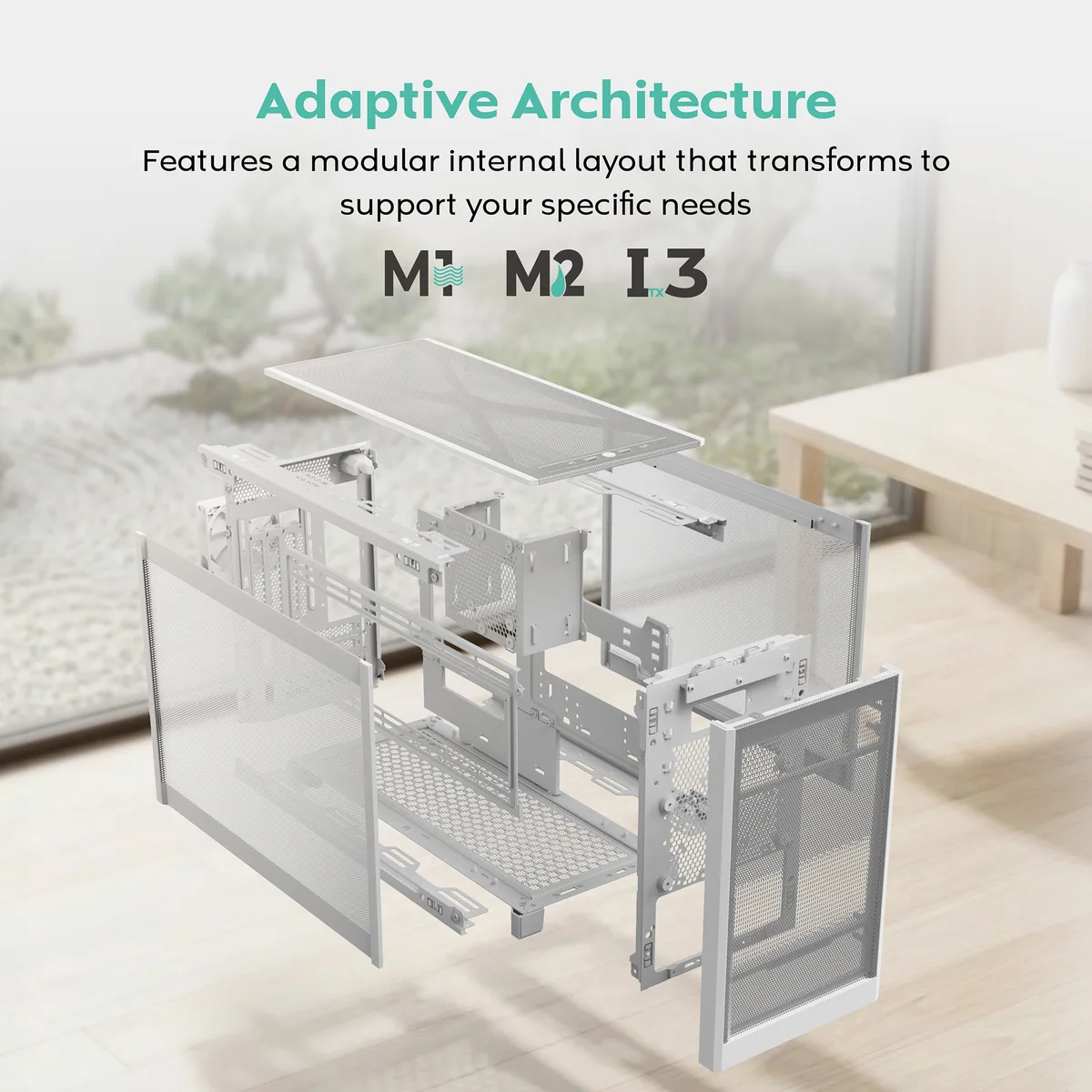

The Montech TEN M1 is a 22.7L Small Form Factor case designed for Micro-ATX and Mini-ITX motherboards. Its modular internal layout supports three distinct build modes — air cooling, liquid cooling, and compact SFF — letting builders tailor the chassis to their performance and space requirements without changing cases.

360mm Radiator Clearance

The single specification that decides fit is the 360mm radiator support at the bottom and side positions. This capacity enables high-performance liquid cooling loops for demanding CPUs and GPUs while staying inside the compact footprint, a combination rarely found in volumes this small.

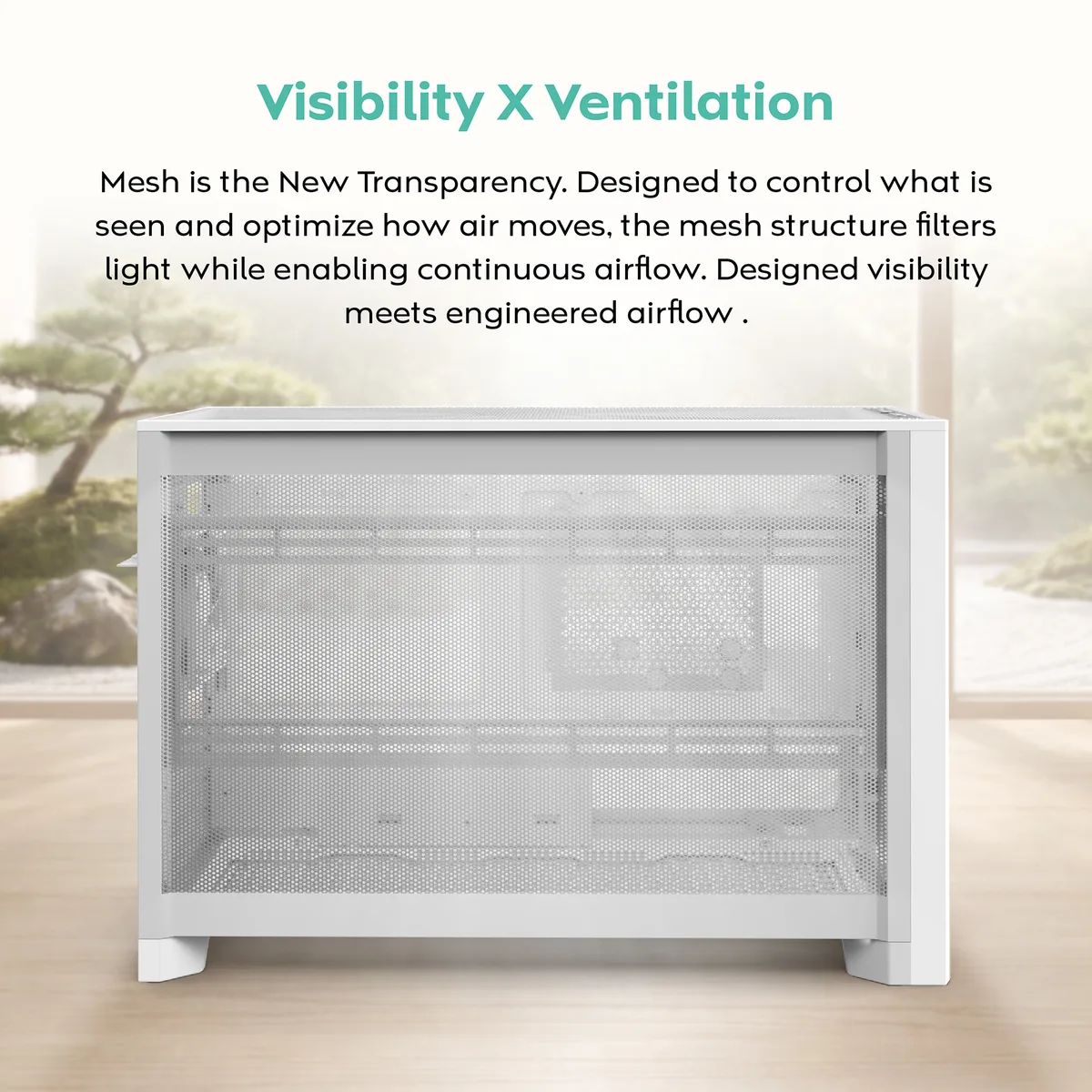

Mesh Airflow and Component Room

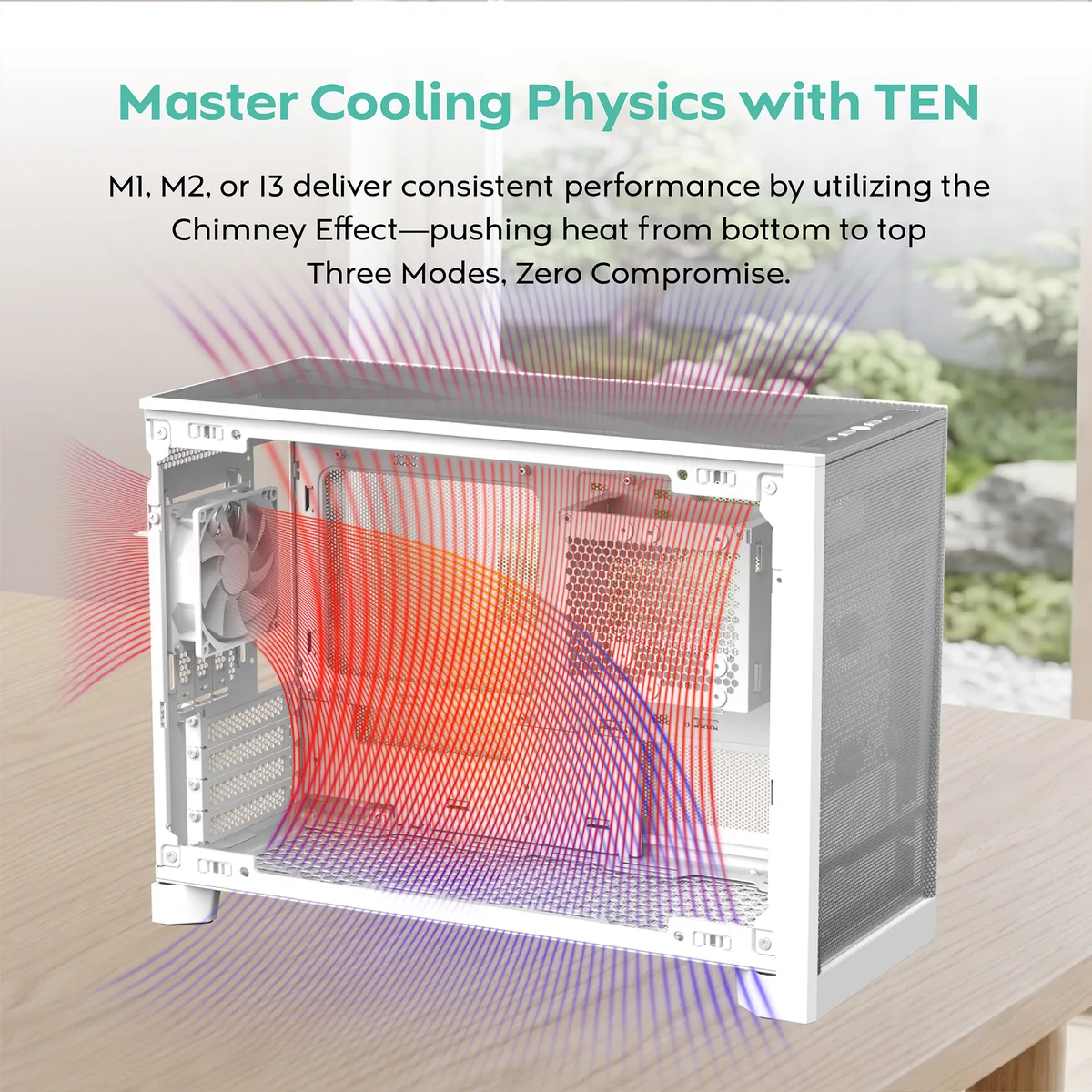

Precision mesh panels on multiple faces create a chimney-effect airflow path that pulls cool air from the bottom and exhausts heat through the top. The chassis fits graphics cards up to 438mm horizontally or 433mm vertically, CPU coolers up to 165mm, one 3.5in drive, three 2.5in drives, and includes a pre-installed rear fan to complete the thermal circuit.

Highlights

  • Modular layout adapts to air, liquid or compact builds with three distinct modes
  • Mesh panels maximise airflow while softly diffusing internal lighting for a clean look
  • Chimney-effect design pulls cool air from the bottom and exhausts heat through the top
  • Supports 360 mm radiators and CPU coolers up to 165 mm in a 22.7 L chassis
  • Fits GPUs up to 438 mm horizontal or 433 mm vertical with flexible mounting options

Specifications

BrandMontech
ModelTEN M1
TypeSmall Form Factor
ColorWhite
Case MaterialSPCC
With Power SupplyNo
Power Supply MountedRear
Motherboard CompatibilityMicro ATX / Mini ITX
Internal 3.5" Drive Bays1 (PSU Bracket)
Internal 2.5" Drive Bays3 (Front / PSU Bracket)
Expansion Slots4
Fan OptionsBottom - 2 x 140mm / Bottom - 3 x 120mm / Side - 2 x 140mm / Side - 3 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm
Radiator OptionsBottom - Up to 360mm / Side - Up to 360mm
Max GPU Length438 mm Horizontal
433 mm Vertical
Max CPU Cooler Height165 mm
Dimensions442 x 196.5 x 325mm
Shipping weight6.53 kg
Package size500 × 399 × 267 mm

Questions about this item

Will a 360 mm radiator fit in the bottom or side position?

Yes, the case supports up to a 360 mm radiator in both the bottom and side mounting locations.

What is the maximum graphics card length in horizontal and vertical orientation?

A graphics card up to 438 mm long fits horizontally and up to 433 mm fits vertically.

How many 2.5 inch drives can be installed and where are they mounted?

Three 2.5 inch drives can be installed, with mounting points at the front and on the PSU bracket.
