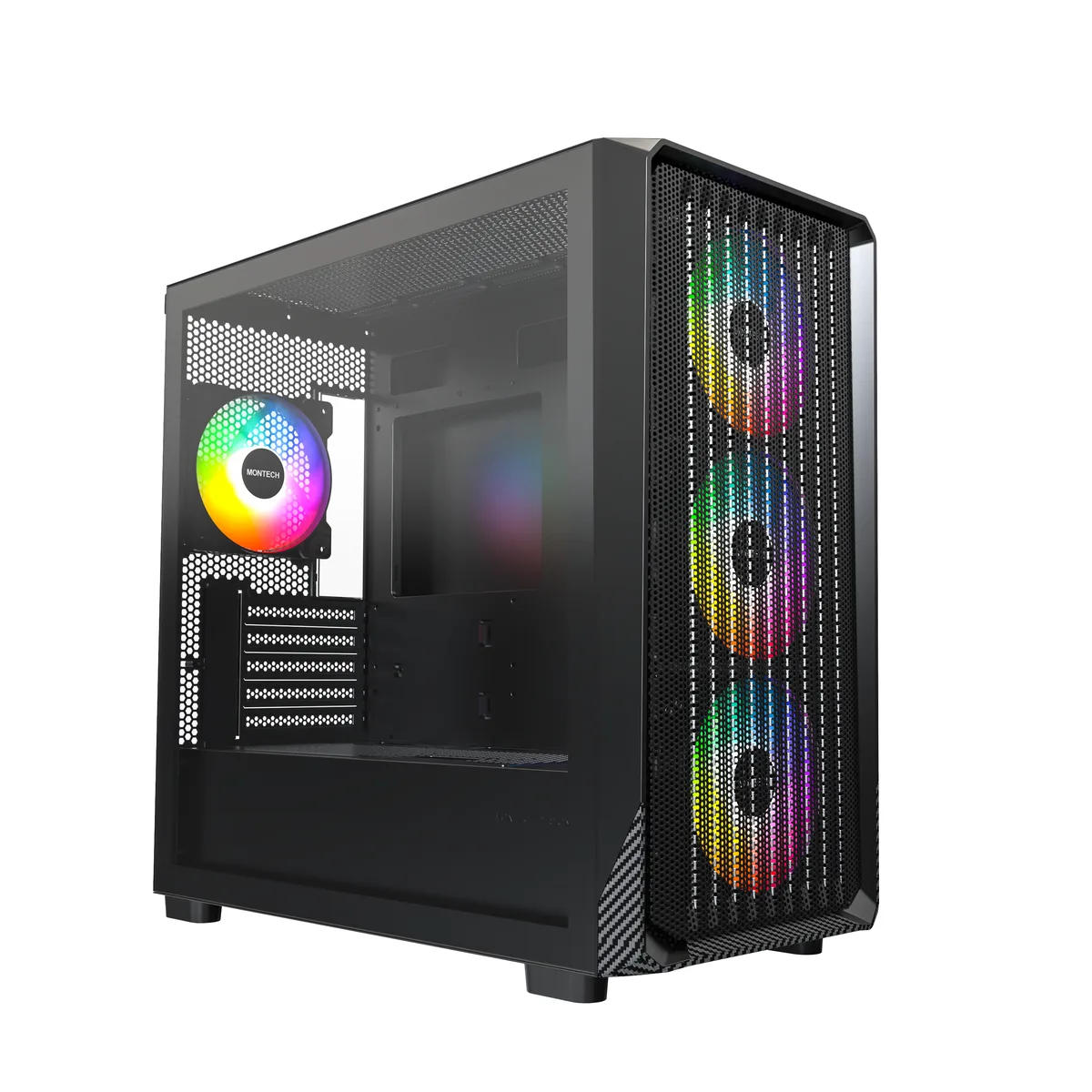

Black micro-ATX tower with tempered-glass side panel, carbon-fibre front accents and four pre-installed ARGB fans

Montech

Montech X5M (B) Micro ATX PC case

SKU CH-PCTX-4P094 MPN X5M (B)

Micro-ATX chassis with four pre-installed 120 mm ARGB fans, tempered-glass side panel and support for 405 mm graphics cards

  • TypeMicro ATX Cases
  • ColorBlack
  • Power Supply MountedBottom
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • Side PanelTempered Glass / Mesh Panel
  • Dust FiltersBottom / Top

Option X5M (Black)

  • Fits RTX 50 Series cards up to 405 mm long
  • Four 120 mm ARGB fans pre-installed for immediate airflow
  • Tempered glass and mesh side panels show the build
  • USB Type-C, USB 3.0 and USB 2.0 on the front panel
  • Supports 360 mm radiators at front and top

Micro ATX case for compact builds

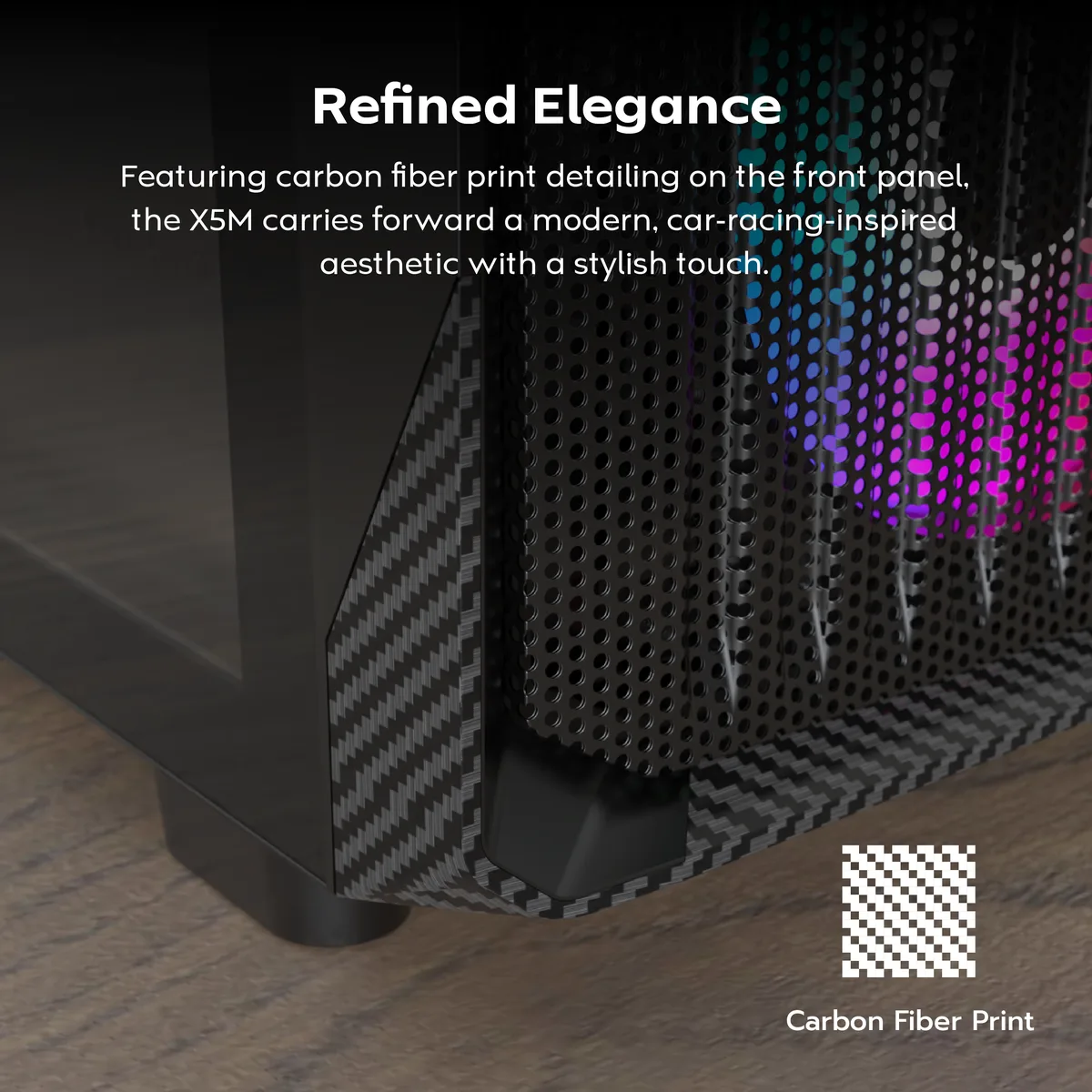

The Montech X5M (B) is a Micro ATX chassis that also accepts Mini ITX boards. It arrives with four 120mm ARGB fans already fitted at the front and rear. A tempered glass side panel and a mesh alternative are included, alongside carbon fibre print accents on the front frame.

Thermals and airflow in daily use

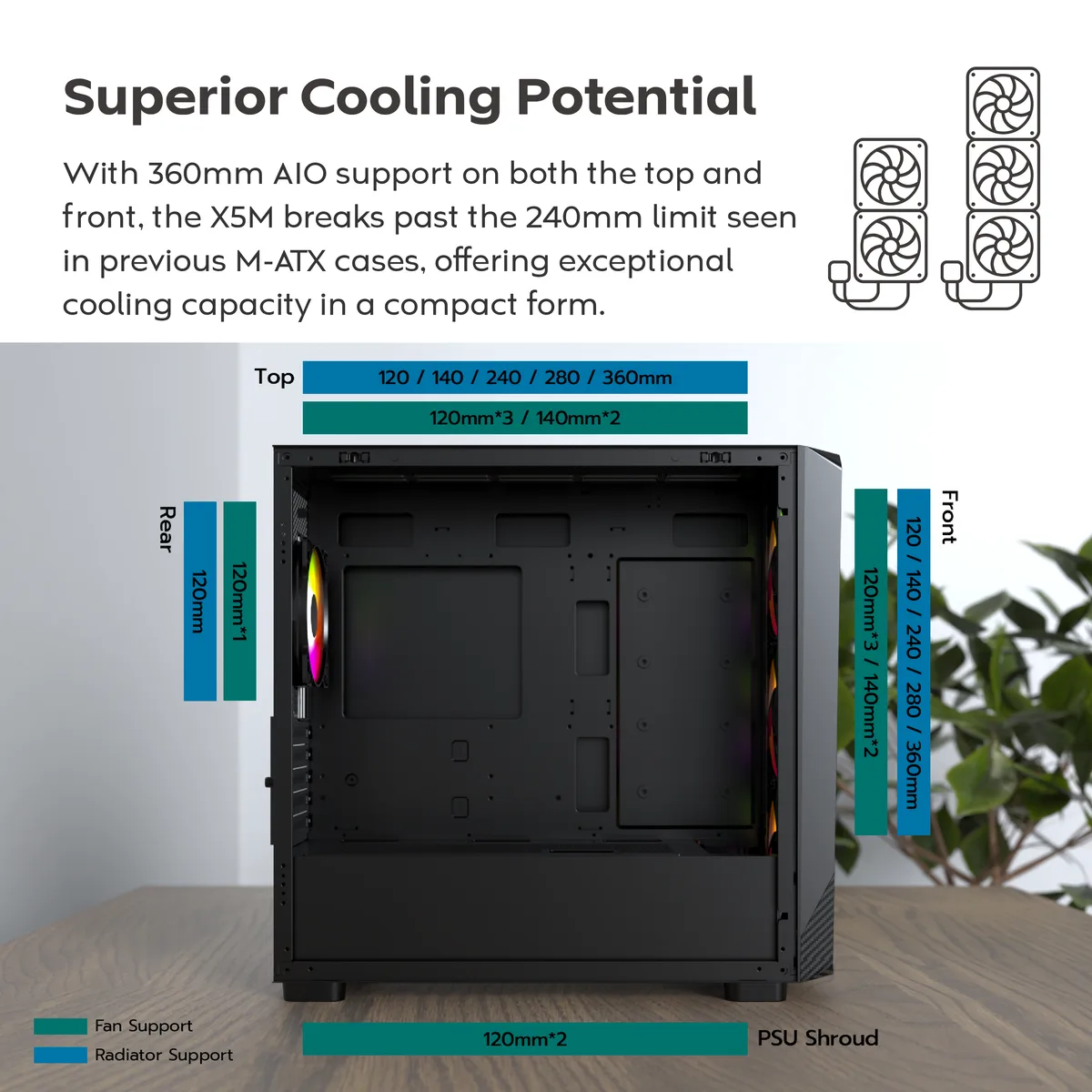

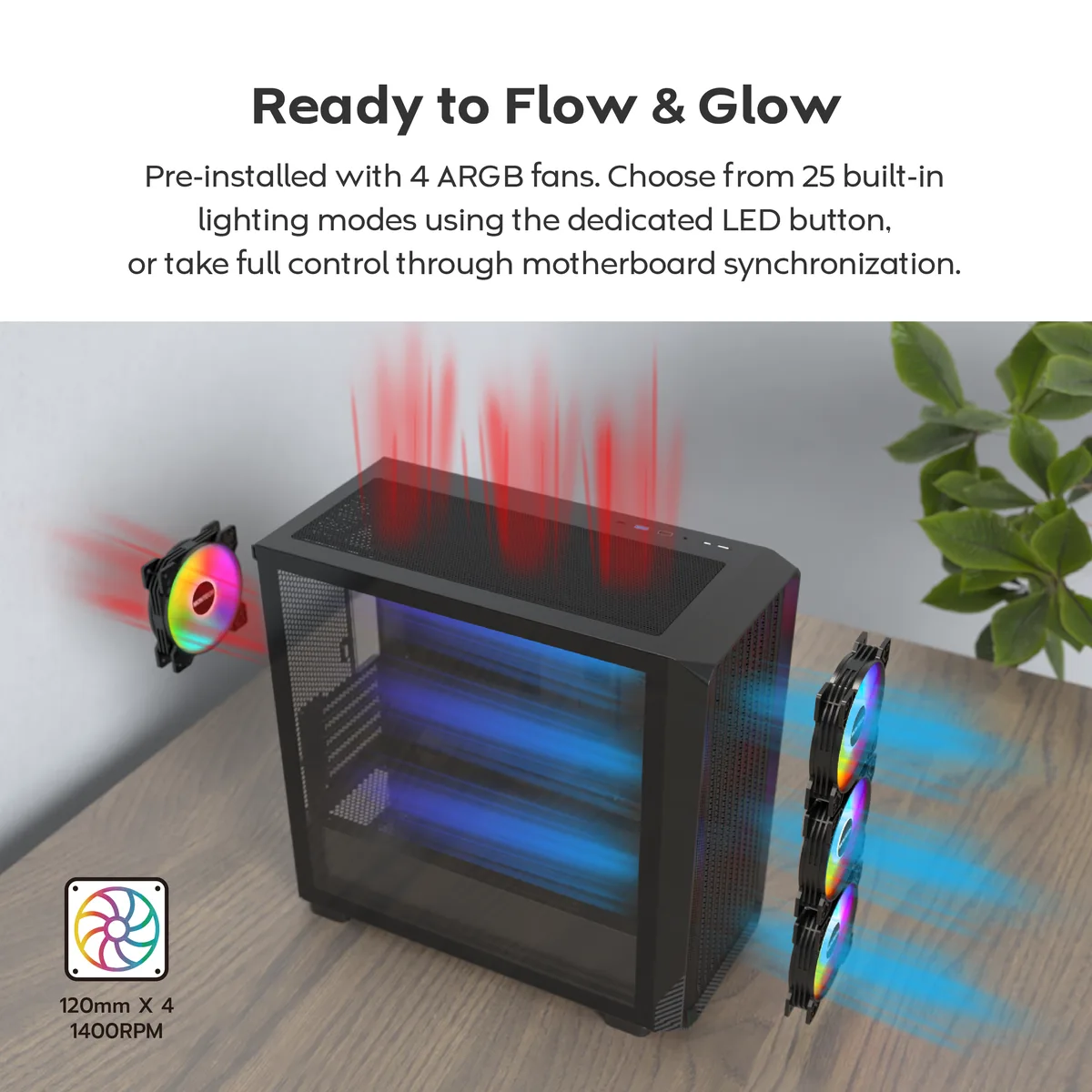

Three front intake fans and one rear exhaust fan create a direct airflow path through the interior. Dust filters on the top and bottom panels help keep components clean. The layout supports additional 120mm or 140mm fans at the top, bottom and front, plus radiators up to 360mm at the front or top and 120mm at the rear.

GPU length clearance decides fit

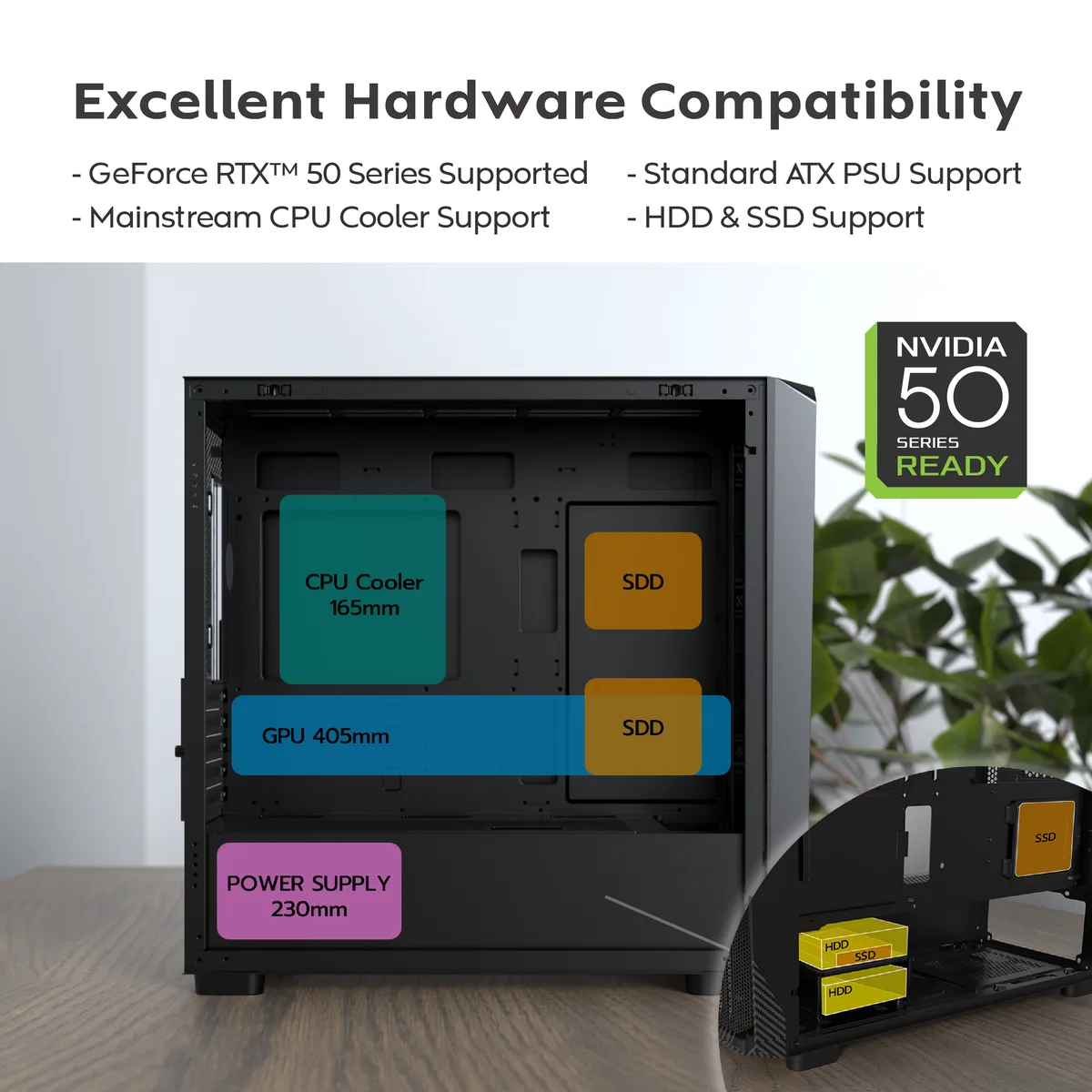

The interior accommodates graphics cards up to 405mm long, covering current RTX models. CPU coolers up to 165mm tall and power supplies up to 230mm deep are also supported. Front I/O provides USB 2.0, USB 3.0, Type-C and a headset audio jack.

Highlights

  • Fits RTX 50 Series cards up to 405 mm long
  • Four 120 mm ARGB fans pre-installed for immediate airflow
  • Tempered glass and mesh side panels show the build
  • USB Type-C, USB 3.0 and USB 2.0 on the front panel
  • Supports 360 mm radiators at front and top

Specifications

BrandMontech
ModelX5M
TypeMicro ATX Cases
ColorBlack
Power Supply MountedBottom
Motherboard CompatibilityMicro ATX / Mini ITX
Side PanelTempered Glass / Mesh Panel
Dust FiltersBottom / Top
Internal 3.5" Drive Bays2
Internal 2.5" Drive Bays4
Expansion Slots5
Front PortsPower Button / LED Button / Headset Audio Jack x 1 / USB2.0 x 1 / USB3.0 x 1 / Type-C x 1
Fan OptionsBottom - 2 x 120mm / Front - 2 x 140mm / Front - 3 x 120mm / Rear - 1 x 120mm / Top - 2 x 140mm / Top - 3 x 120mm
Pre-installed FansFront - 3 x 120mm / Rear - 1 x 120mm
Radiator OptionsFront - Up to 280mm / Front - Up to 360mm / Rear - Up to 120mm / Top - Up to 280mm / Top - Up to 360mm
Max GPU Length405 mm
Max CPU Cooler Height165 mm
Max PSU Length230 mm
Dimensions18.43" x 8.46" x 17.72"
Shipping weight7.21 kg
Package size533 × 483 × 279 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the pre-installed 120mm ARGB fans and what step do builders often miss?

The four 120mm ARGB fans come already mounted at the front and rear. Connect each fan's power and ARGB cables to the motherboard headers, then route them behind the PSU shroud. Many builders forget the separate ARGB lead, so lighting stays dark until it is plugged in.

What maintenance will the dust filters need over time?

Magnetic dust filters sit at the top and bottom. Remove them every few months, rinse with water, dry fully, and snap them back. No tools are required and no replacement parts are scheduled.

What thermal limit appears first when the system runs a long, heavy load?

The CPU cooler height is capped at 165 mm, which restricts cooler surface area. Under sustained load this height limit typically becomes the bottleneck before GPU length (405 mm) or radiator space (up to 360 mm) does.
