MSI 1650D6VentusXSOCV1 graphics card

Ventus GTX 1650 GDDR6 entry card

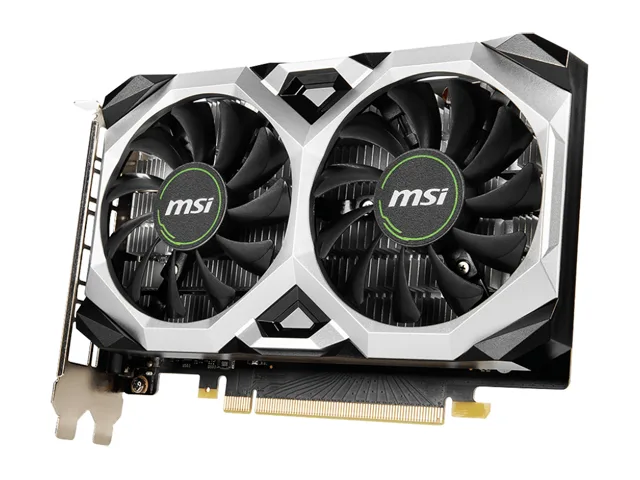

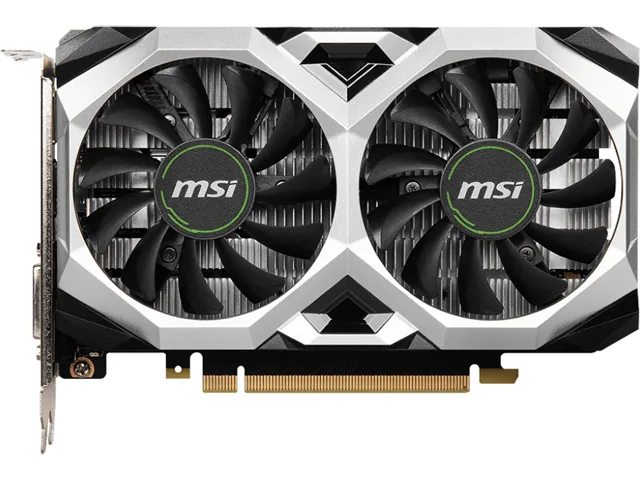

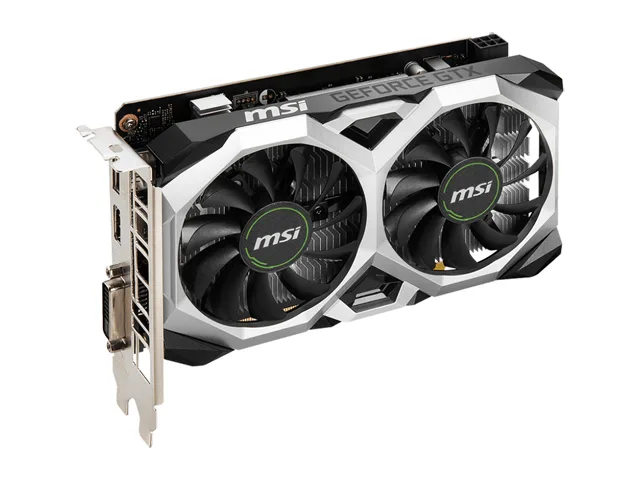

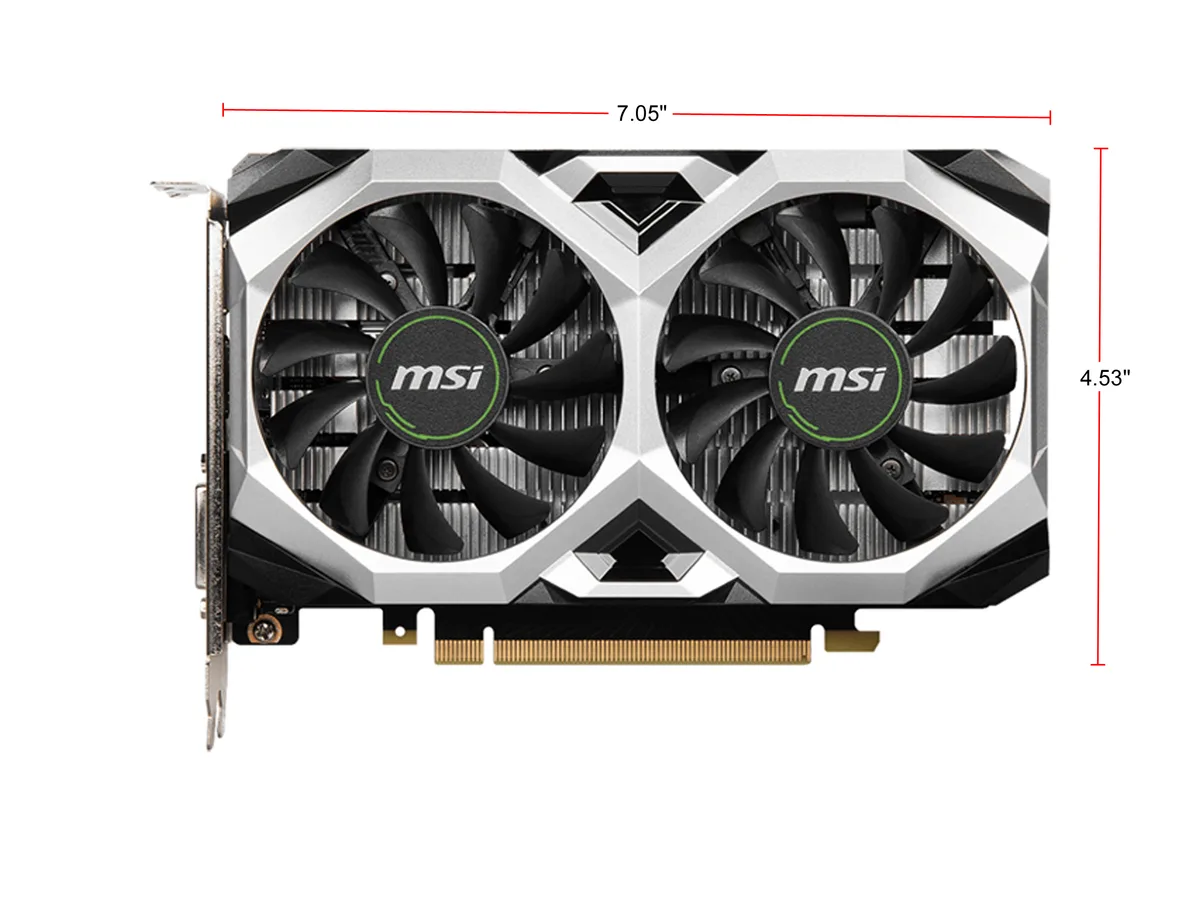

This Ventus model is a compact graphics card built around the GeForce GTX 1650 GPU with 896 CUDA cores and 4GB of GDDR6 memory on a 128-bit bus. It connects through a PCI Express 3.0 x16 slot and draws up to 75W from a single 6-pin power connector. The card targets budget builds and office upgrades that need modern display outputs without a large power supply.

Sustained load behaviour at 75W TDP

With a thermal design power of 75W and a dual-fan cooler, the card maintains its 1620 MHz boost clock during extended sessions rather than throttling after a short burst. The 12 Gbps effective memory clock keeps texture throughput steady in 1080p workloads. A 300W system power supply is sufficient for stable operation under continuous load.

Upgrade from older GTX or integrated graphics

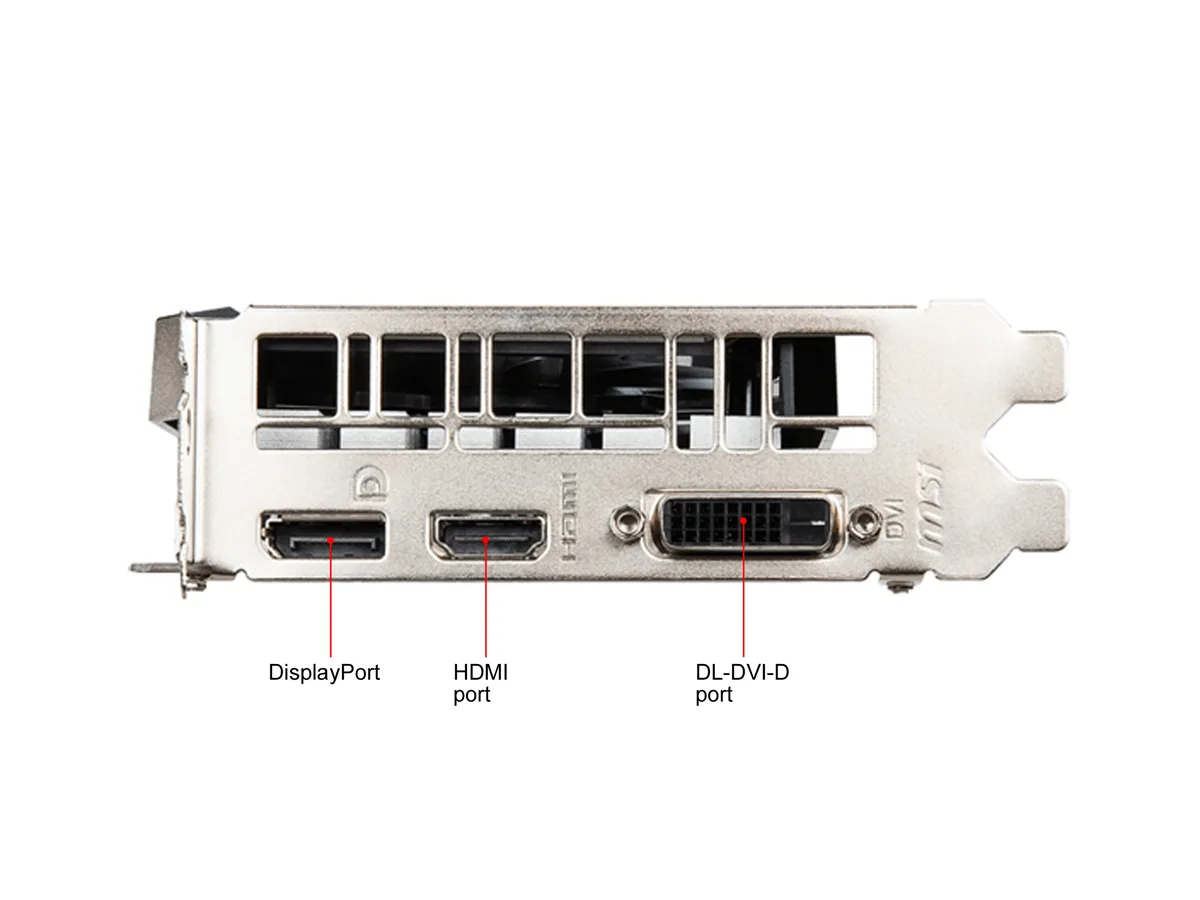

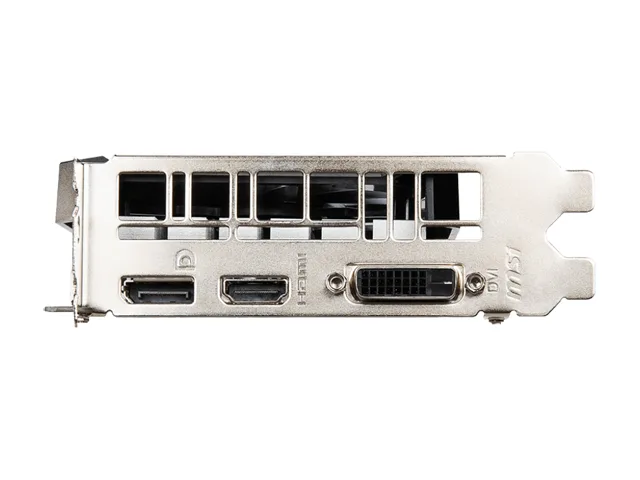

The move from an older GTX card or integrated graphics is worthwhile when a system needs DirectX 12 support, three simultaneous monitors, and HDMI 2.0b plus DisplayPort 1.4a for 7680 x 4320 resolution. The 4GB GDDR6 buffer also removes the VRAM bottleneck common in 2GB models at 1080p medium settings.
