Green rectangular ATX motherboard with black expansion slots and silver heatsinks

MSI

MSI 870S-G54 AMD 870 motherboard Socket AM3 DDR3 16GB

SKU CH-P8CR-982PH

Socket AM3 ATX board with AMD 870 chipset, dual-channel DDR3 to 2000 MHz, 16 GB max, two PCIe 2.0 x16 slots, six SATA ports and Realtek gigabit LAN

  • CPU Socket TypeSocket AM3
  • CPU TypeSupports 64-bit AMD Phenom II processors
  • ChipsetAMD 870
  • Memory StandardSupports dual-channel DDR3 2000 (overclocking)/1800 (overclo
  • Maximum Memory Supported16GB
  • PCI Slots2 PCI Express x16 slots - 1, slot (PCI_E2) supports PCIE 2.0
  • Supports up to 16GB DDR3 memory for multitasking headroom
  • Dual-channel DDR3 up to 2000MHz overclocking for faster data rates
  • Two PCI Express x16 slots with PCIe 2.0 x16 and x4 speeds for graphics flexibility
  • Six SATA interfaces for multiple storage drives
  • Realtek ALC892 8-channel audio with Blu-ray sound output

Socket AM3 AMD 870 board

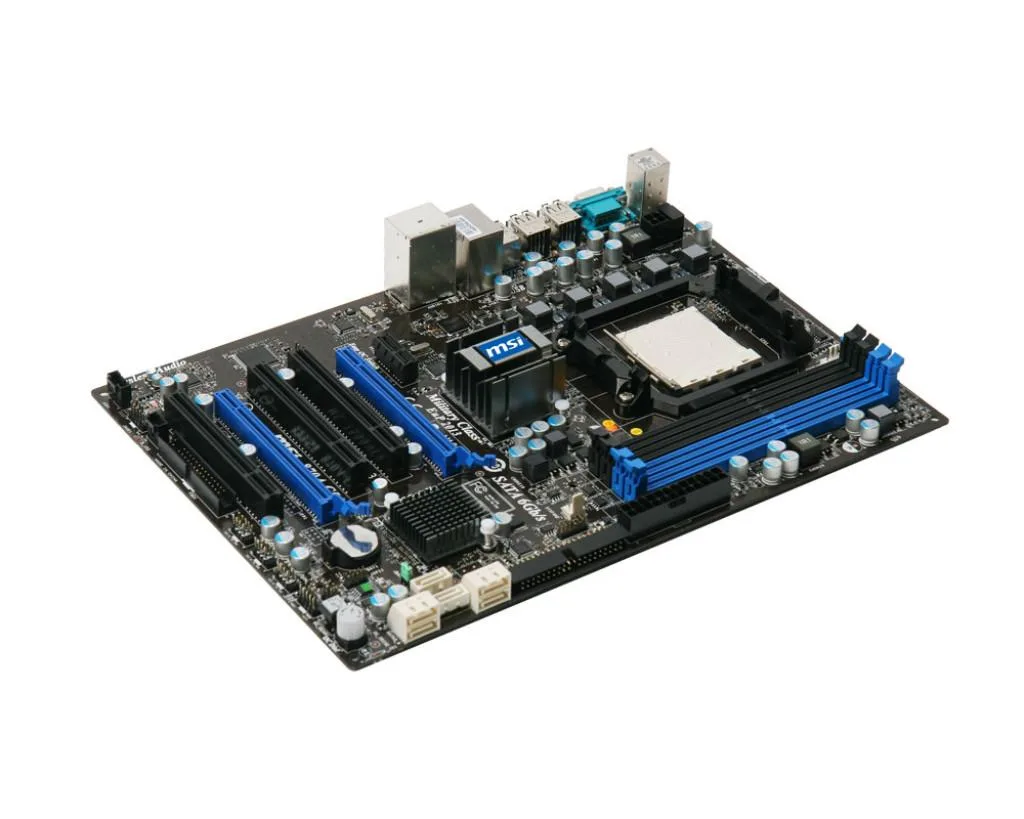

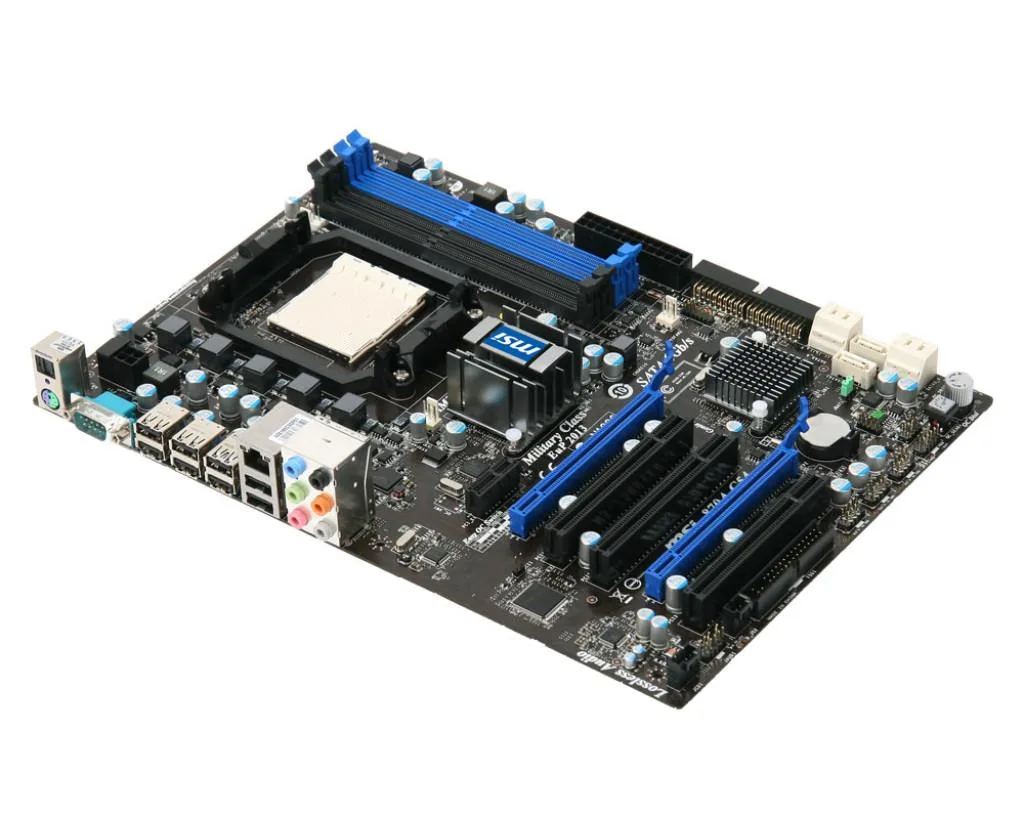

The MSI 870S-G54 is an ATX motherboard built on the AMD 870 chipset for Socket AM3 processors. It targets builders assembling or refreshing systems around 64-bit Phenom II CPUs. The board delivers core platform features without onboard video, leaving graphics choice entirely to the add-in card.

16GB dual-channel DDR3 headroom

Four DIMM slots support dual-channel DDR3 at 800, 1066, 1600, 1800 and 2000 MHz, the last three achieved through overclocking. Maximum capacity is 16GB, giving comfortable headroom for period workloads while the 2000 MHz ceiling marks the practical limit for memory speed on this platform.

ATX layout with legacy and modern I/O

The board provides two PCI Express x16 slots, one x1 slot and three 3.3V/5V PCI slots for older expansion cards. Six SATA 6Gbps ports handle storage, while a Realtek ALC892 codec drives 8-channel audio and a Realtek 8111DL controller supplies Gigabit LAN. Eight USB 2.0 ports on the rear panel cover everyday peripherals.

Highlights

  • Supports up to 16GB DDR3 memory for multitasking headroom
  • Dual-channel DDR3 up to 2000MHz overclocking for faster data rates
  • Two PCI Express x16 slots with PCIe 2.0 x16 and x4 speeds for graphics flexibility
  • Six SATA interfaces for multiple storage drives
  • Realtek ALC892 8-channel audio with Blu-ray sound output

Specifications

BrandMSI
SeriesMSI 870S-G54
ModelMSI 870S-G54
CPU Socket TypeSocket AM3
CPU TypeSupports 64-bit AMD Phenom II processors
ChipsetAMD 870
Memory StandardSupports dual-channel DDR3 2000 (overclocking)/1800 (overclocking)/1600 (overclocking)/1066/800MHz memory
Maximum Memory Supported16GB
PCI Slots2 PCI Express x16 slots
- 1, slot (PCI_E2) supports PCIE 2.0 x 16 speed execution
- 1, slot (PCI_E3) supports PCIE 2.0 x4 speed execution
1 PCI Express x1 slot
3 PCI slots, supporting 3.3v/5v PCI main bus interface
SATA RAID6XSATA III interface
Audio ChipsetRealtek ALC892 Chip
- Support Blu-ray sound output
- Supports 8-channel sound effects detected by intelligent sound interface
Compatible with Azalia 1.0 specifications
LAN ChipsetRealtek PCI-E GbLAN Controller 8111DL Chip
- Integrate Fast Ethernet MAC and PHY into a single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
Compliant with PCI-Express bus specification v1.0a.
Onboard USB8 USB 2.0 ports (backplane)

Questions about this item

Will my existing PCI cards still work with the three 3.3v/5v PCI slots on this board?

Yes, the three PCI slots accept 3.3v and 5v cards so legacy expansion cards can be used alongside the newer PCI Express slots.

How can I verify the Realtek ALC892 audio is functioning after I build the system?

Check Device Manager for the Realtek High Definition Audio device and play a test sound through the 8-channel output to confirm the codec is detected and working.

Which accessories come in the box and what must I source separately for a complete build?

The package includes the motherboard, one CMOS battery, one SATA cable and the chassis I/O back panel; you will need to buy a CPU, DDR3 memory, storage drives, power supply and case separately.
