MSI
MSI 880GMA-E41 AM3 DDR3 16GB Micro ATX AMD motherboard
Socket AM3 Micro ATX board with AMD 880G chipset, dual-channel DDR3 up to 16 GB, PCI Express 2.0 x16, six SATA ports, USB 3.0 and Gigabit LAN
- CPU Socket TypeSocket AM3
- CPU TypeSupports 64-bit AMD Phenom II X6/X4/X3/X2, Athlon II X4/X3/X
- ChipsetAMD 880G
- Memory StandardSupports dual-channel DDR3 1333/1066/800MHz memory
- Maximum Memory Supported16GB
- PCI Slots1 PCI Express x16 slot supports PCIE 2.0 x 16 speed executio
- Supports six-core AMD processors on Socket AM3
- Dual-channel DDR3 memory up to 1333 MHz for responsive multitasking
- Six SATA ports provide ample drive connectivity
- Realtek ALC887 delivers eight-channel audio output
- NEC D720200 controller adds two USB 3.0 ports
Socket AM3 Micro ATX motherboard

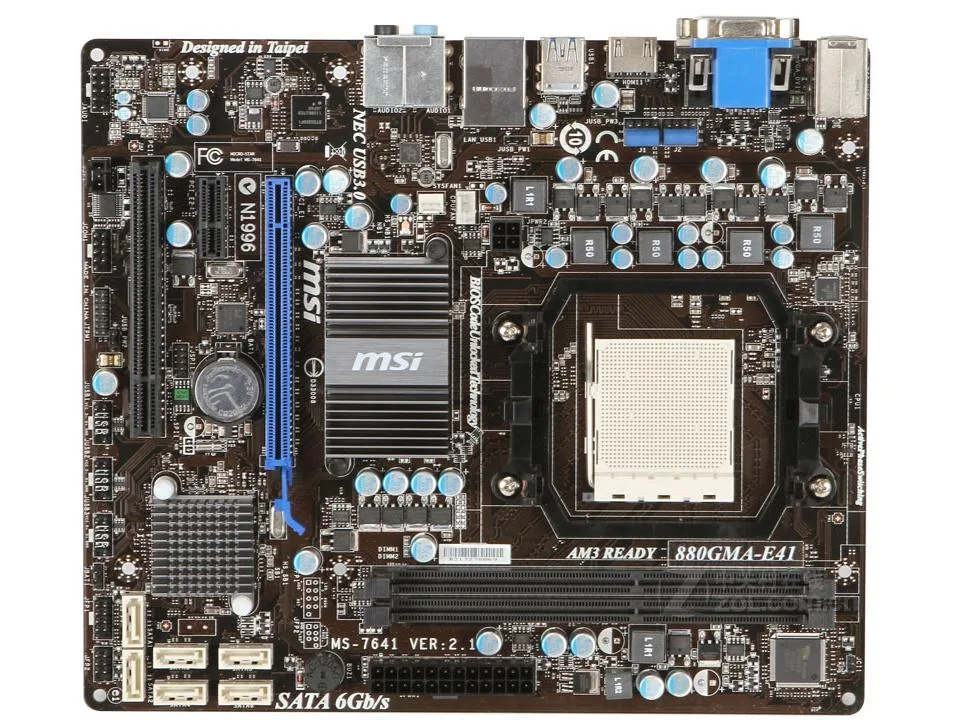

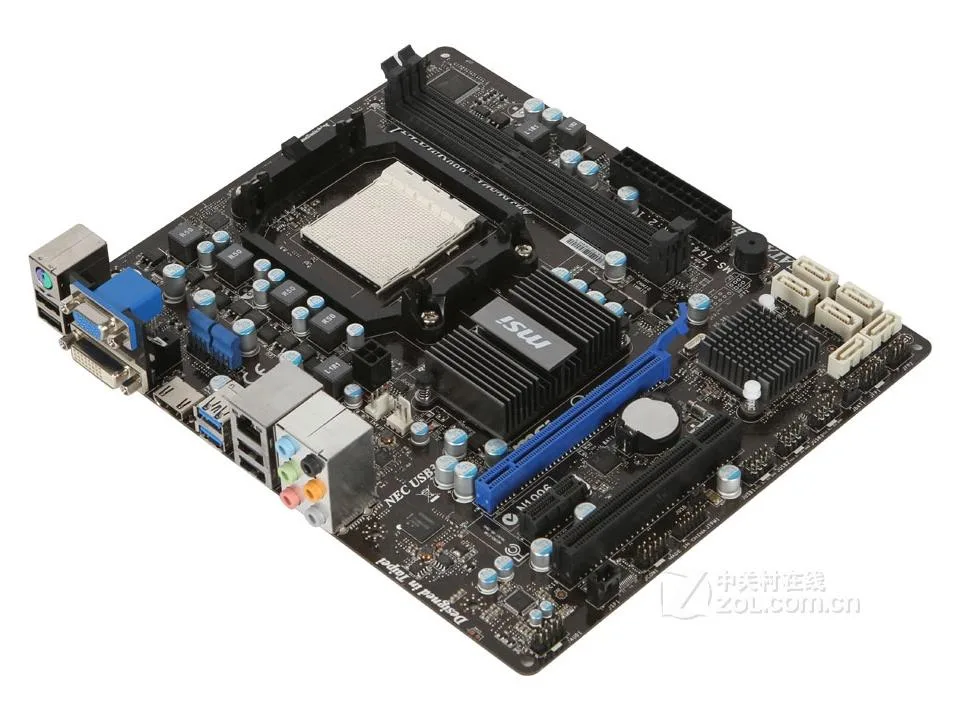

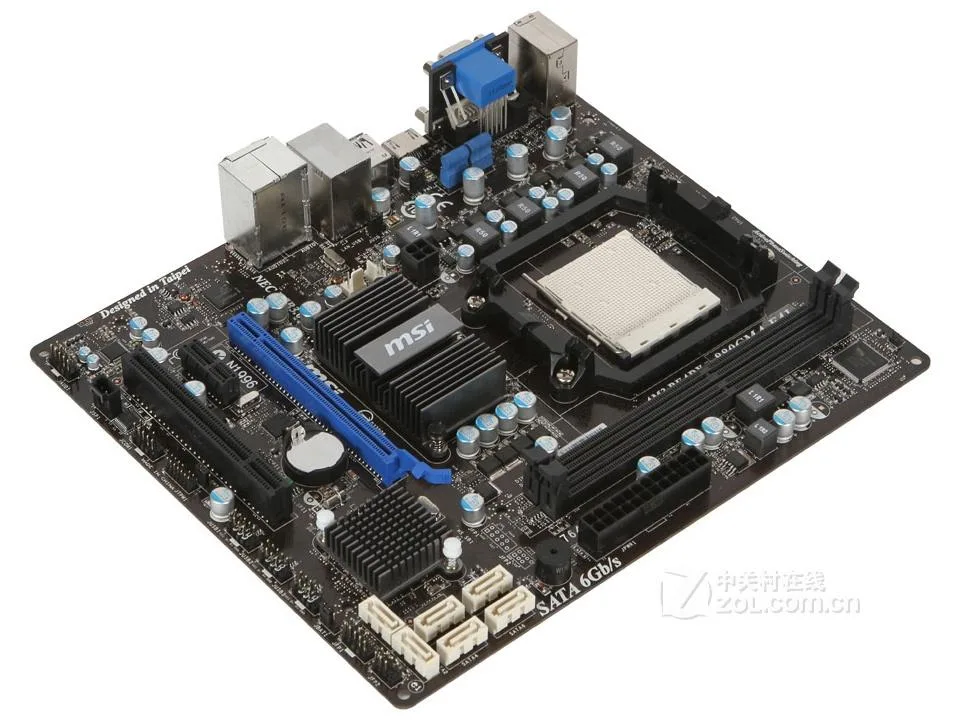

The MSI 880GMA-E41 is a Micro ATX board built on the AMD 880G chipset for Socket AM3 processors. It accepts Phenom II X6, X4, X3, X2, Athlon II X4, X3, X2 and Sempron CPUs. Dual-channel DDR3 memory runs at 1333, 1066 or 800 MHz up to 16 GB total capacity.
PCI Express 2.0 and SATA limits
One PCI Express x16 slot operates at 2.0 x16 speed, a single PCI Express x1 slot and one 3.3 V or 5 V PCI slot provide legacy expansion. Six SATA ports deliver 3.0 Gb/s throughput each. The NEC D720200 controller adds two USB 3.0 ports, while the Realtek 8111E LAN handles 10, 100 and 1000 Mb/s links.
Realtek audio and back-panel I/O
The Realtek ALC887 codec drives 8-channel audio with Azalia 1.0 compliance. Onboard headers include the two USB 3.0 ports, Gigabit LAN, audio jacks and standard legacy connectors. A CMOS battery, one SATA cable and an I/O shield ship in the box; no other accessories are included.
Highlights
- Supports six-core AMD processors on Socket AM3
- Dual-channel DDR3 memory up to 1333 MHz for responsive multitasking
- Six SATA ports provide ample drive connectivity
- Realtek ALC887 delivers eight-channel audio output
- NEC D720200 controller adds two USB 3.0 ports
Specifications
| Brand | MSI |
|---|---|
| Series | MSI 880GMA-E41 |
| Model | MSI 880GMA-E41 |
| CPU Socket Type | Socket AM3 |
| CPU Type | Supports 64-bit AMD Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2 and Sempron processors |
| Chipset | AMD 880G |
| Memory Standard | Supports dual-channel DDR3 1333/1066/800MHz memory |
| Maximum Memory Supported | 16GB |
| PCI Slots | 1 PCI Express x16 slot supports PCIE 2.0 x 16 speed execution 1 PCI Express x1 slot 1 PCI slot, supports 3.3v/5v PCI main bus interface |
| SATA RAID | 6XSATA III interface |
| Audio Chipset | Realtek ALC887 Chip - Supports 8-channel sound effects detected by intelligent sound interface Compatible with Azalia 1.0 specifications |
| LAN Chipset | Realtek PCI-E GbLAN Controller REL8111E Chip - Supports 10Mb/s, 100Mb/s and 1000Mb/s Compliant with PCI-Express bus specification v1.0a. |
| Onboard USB | The NEC D720200 chip supports two USB 3.0 ports |
Questions about this item
Which memory speed should I choose for the 16GB maximum on this board?
The board runs dual-channel DDR3 at 1333, 1066 or 800 MHz; pick the highest speed your CPU's memory controller officially supports to reach the 16 GB limit.
What does the single PCI Express x16 slot at 2.0 speed mean for a graphics card?
A modern card will work but is limited to the 2.0 bandwidth ceiling, so high-end GPUs may leave some performance on the table.
How fast are the six SATA ports and the two USB ports on the back panel?
All six SATA ports run at the SATA 6 Gb/s rate, while the two rear USB ports are driven by a NEC D720200 controller at USB 3.0 speeds.
