MSI
MSI A320M-A PRO M2 AMD A320 motherboard
Micro-ATX board for AM4 CPUs with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, four SATA ports, 7.1 audio and Gigabit LAN
- CPU Socket TypeSocket AM4
- CPU Type7th generation A-series/Athlon processors with AM4 pin suppo
- ChipsetAMD A320
- Memory StandardSupports dual-channel DDR4 1866/2133/2400MHz memory
- Maximum Memory Supported32GB
- PCI Slots1 PCIe 3.0 x16 slot 7th generation A-series/Athlon processor
- Supports dual-channel DDR4 memory up to 2400MHz for responsive multitasking
- 32GB maximum capacity lets you run demanding applications smoothly
- Single PCIe 3.0 x16 slot provides dedicated graphics bandwidth
- Realtek ALC887 codec delivers 7.1 channel high-definition audio
- Realtek 8111H Gigabit LAN ensures stable wired network connectivity
Socket AM4 motherboard for 7th generation A-series

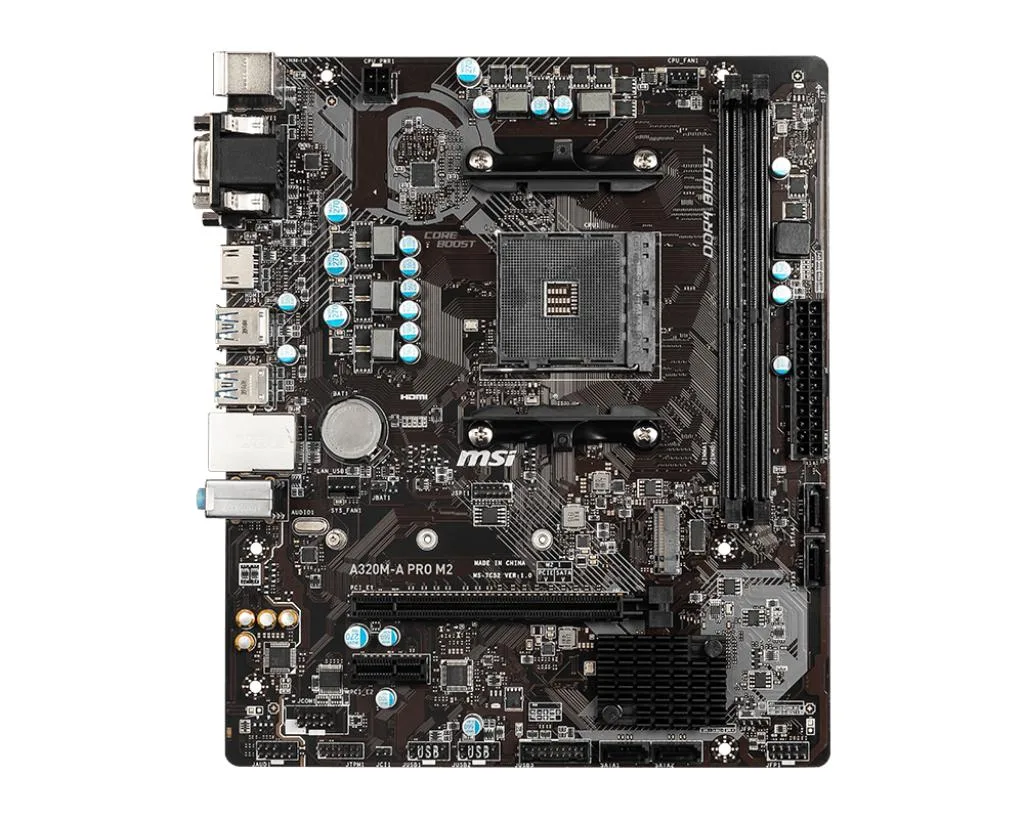

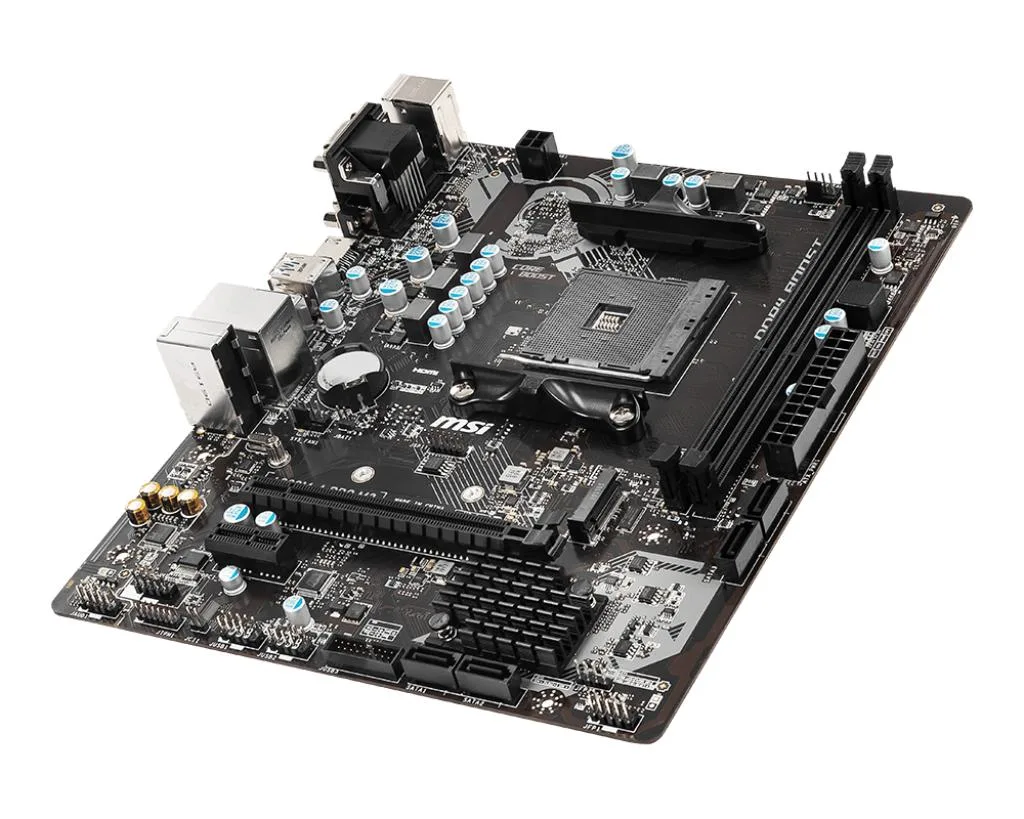

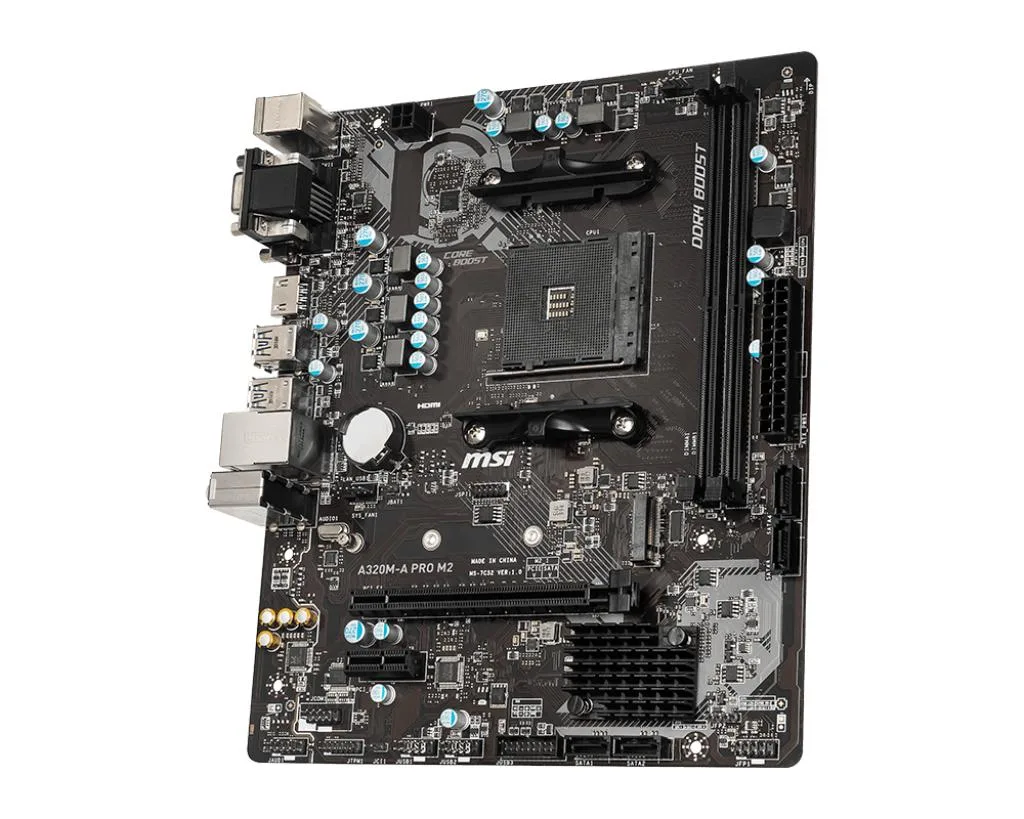

The MSI A320M-A PRO M2 uses the AMD A320 chipset on a Micro ATX board. It accepts Socket AM4 processors from the 7th generation A-series and Athlon lines. Dual-channel DDR4 memory runs at 1866, 2133 or 2400MHz up to a total of 32GB. One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots provide expansion room.
Check CPU generation, memory speed
Confirm the processor is a supported 7th generation A-series or Athlon part for Socket AM4. Verify that your DDR4 modules match the 1866, 2133 or 2400MHz speeds and do not exceed 32GB total. The board needs a Micro ATX compatible case and a chassis I/O back panel is supplied. Four SATA III ports and six USB 3.1 Gen1 ports handle storage and peripherals.
Sustained operation stays stable
The A320 chipset runs without active cooling during long sessions. Realtek ALC887 audio and Realtek 8111H Gigabit LAN maintain steady throughput. Six USB 2.0 ports and four SATA III connections keep data moving without throttling. The supplied CMOS battery preserves firmware settings across power cycles.
Highlights
- Supports dual-channel DDR4 memory up to 2400MHz for responsive multitasking
- 32GB maximum capacity lets you run demanding applications smoothly
- Single PCIe 3.0 x16 slot provides dedicated graphics bandwidth
- Realtek ALC887 codec delivers 7.1 channel high-definition audio
- Realtek 8111H Gigabit LAN ensures stable wired network connectivity
Specifications
| Brand | MSI |
|---|---|
| Series | MSI A320M-A PRO M2 |
| Model | MSI A320M-A PRO M2 |
| CPU Socket Type | Socket AM4 |
| CPU Type | 7th generation A-series/Athlon processors with AM4 pin support |
| Chipset | AMD A320 |
| Memory Standard | Supports dual-channel DDR4 1866/2133/2400MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 PCIe 3.0 x16 slot 7th generation A-series/Athlon processors support x8 mode 2 PCIe 3.0 x1 slots |
| SATA RAID | 4XSATA III interface |
| Audio Chipset | Realtek ALC887 decoding chip - 7.1 channel high-quality sound effects |
| LAN Chipset | 1 Realtek 8111H Gigabit network interface card |
| Onboard USB | AMD A320 chipset - 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports) - 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports) |
Questions about this item
What CPUs can I install in the Socket AM4 on this board?
The motherboard supports 7th generation A-series and Athlon processors that use the AM4 pin layout.
How much system memory can I add and at what speeds?
You can install up to 32 GB of dual-channel DDR4 running at 1866, 2133 or 2400 MHz.
Which expansion cards fit the available slots?
There is one PCIe 3.0 x16 slot that operates at x8 with supported CPUs, plus two PCIe 3.0 x1 slots for add-in cards.
