Green Micro ATX motherboard with black components and silver I/O shield

MSI

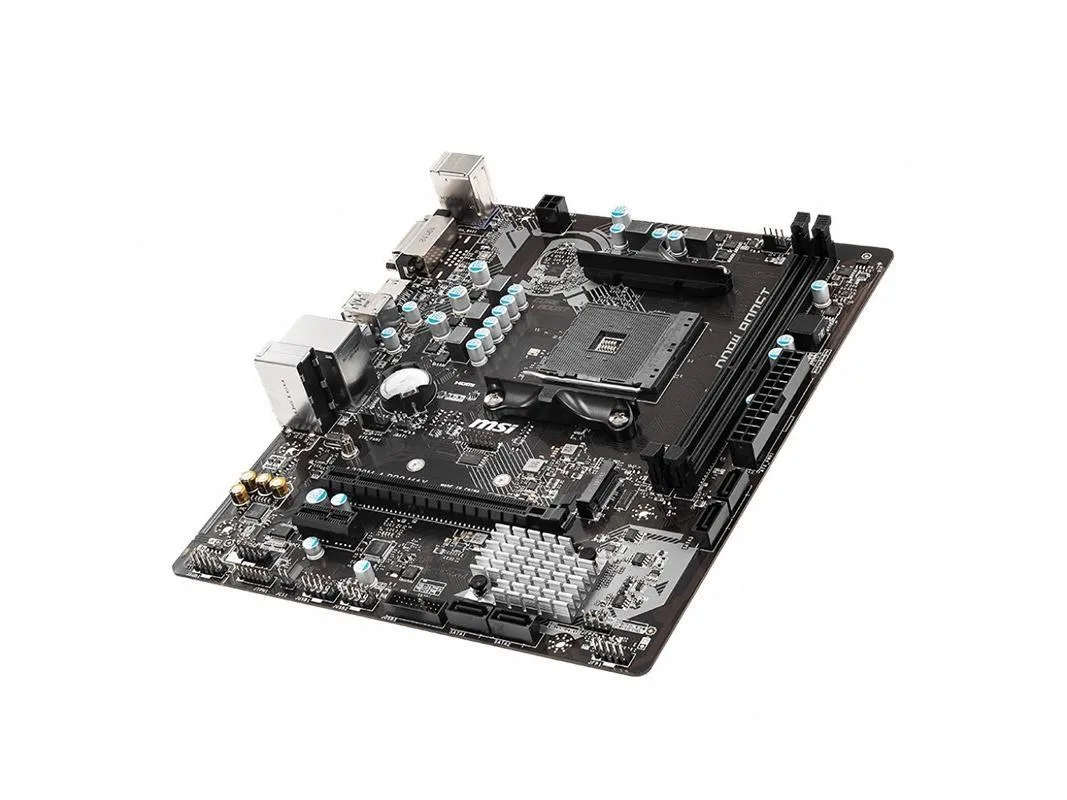

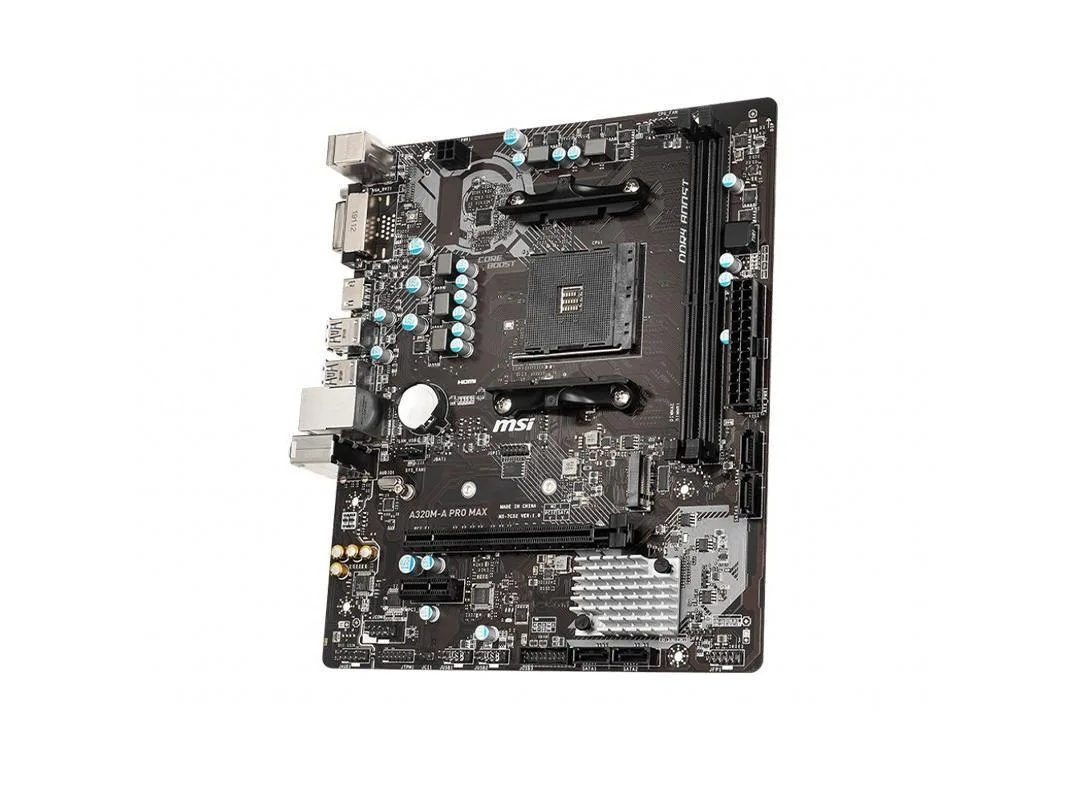

MSI A320M-A PRO MAX AMD motherboard

SKU CH-801K-SAQVP

Socket AM4 board with AMD A320 chipset, dual-channel DDR4 to 32 GB, one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, four SATA III ports, Realtek ALC887 7.1 audio, Realtek 8111H Gigabit LAN.

  • CPU Socket TypeSocket AM4
  • CPU Type7th generation A-series/Athlon processors with AM4 pin suppo
  • ChipsetAMD A320
  • Memory StandardSupports dual-channel DDR4 1866/2133/2400MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot 7th generation A-series/Athlon processor
  • Supports up to 32GB DDR4 memory for multitasking
  • Dual-channel DDR4 at 1866, 2133 or 2400MHz for responsive performance
  • Realtek ALC887 chipset delivers 7.1 channel audio clarity
  • Realtek 8111H Gigabit LAN provides wired network connectivity
  • Six USB 3.1 Gen1 ports plus six USB 2.0 ports for peripheral flexibility

AM4 entry board for basic builds

The MSI A320M-A PRO MAX uses the AMD A320 chipset on a Micro ATX PCB and accepts Socket AM4 processors from the 7th generation A-series and Athlon lines. Dual-channel DDR4 memory runs at 1866, 2133 or 2400MHz with a maximum capacity of 32GB. A single PCIe 3.0 x16 slot operates at x8 speed with those CPUs and two PCIe 3.0 x1 slots provide additional expansion.

Suits budget systems not overclockers

This board fits users pairing supported AM4 CPUs with standard memory speeds of 1866, 2133 or 2400MHz who want 7.1-channel audio from the Realtek ALC887 codec and a single Realtek 8111H Gigabit LAN port. Six USB 3.1 Gen1 ports and six USB 2.0 ports cover most peripheral needs. Builders needing CPU overclocking, multiple graphics cards or faster memory should choose a different chipset.

32GB DDR4 limit defines capacity

The hard ceiling of 32GB across two dual-channel DDR4 slots is the specification that decides whether this motherboard matches the planned memory configuration. Four SATA III ports provide storage connectivity while the onboard USB headers come from the A320 chipset itself.

Highlights

  • Supports up to 32GB DDR4 memory for multitasking
  • Dual-channel DDR4 at 1866, 2133 or 2400MHz for responsive performance
  • Realtek ALC887 chipset delivers 7.1 channel audio clarity
  • Realtek 8111H Gigabit LAN provides wired network connectivity
  • Six USB 3.1 Gen1 ports plus six USB 2.0 ports for peripheral flexibility

Specifications

BrandMSI
SeriesMSI A320M-A PRO MAX
ModelMSI A320M-A PRO MAX
CPU Socket TypeSocket AM4
CPU Type7th generation A-series/Athlon processors with AM4 pin support
ChipsetAMD A320
Memory StandardSupports dual-channel DDR4 1866/2133/2400MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
7th generation A-series/Athlon processors support x8 mode
2 PCIe 3.0 x1 slots
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USBAMD A320 chipset
- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)

Questions about this item

What clearance does the Micro-ATX board and its single PCIe 3.0 x16 slot need inside the chassis?

The board uses the Micro-ATX form factor, so it fits any case with matching mounting holes and enough room for a full-length card in the one PCIe 3.0 x16 slot.

Which screws and connectors must be attached during installation, and which step is often missed?

Secure the board with the standard Micro-ATX standoffs, connect the 24-pin ATX and 4-pin CPU power headers, then fit the supplied I/O shield before seating the board — the shield is the step most often forgotten.

What component will need replacement over time, and what is included in the box for it?

A CMOS battery is included; when the system starts losing date, time or BIOS settings after power-off, that cell should be swapped for a new one.
