Green micro-ATX board with black heatsinks and AM4 socket

MSI

MSI A320M Gaming Pro AMD motherboard

SKU CH-72SC-BYH70

Micro-ATX board for AM4 Ryzen CPUs with dual-channel DDR4 up to 32GB, one PCIe 3.0 x16 slot, four SATA III ports, Realtek ALC887 7.1 audio and gigabit LAN

  • CPU Socket TypeSocket AM4
  • CPU TypeAMD RYZEN series processors with AM4 pin support, as well as
  • ChipsetAMD A320
  • Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667/2933 (OC)/320
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot - RYZEN series processors support x16 mo
  • Supports RYZEN and 7th-gen Athlon CPUs via Socket AM4
  • Dual-channel DDR4 up to 3200 MHz OC with 32 GB max capacity
  • PCIe 3.0 x16 slot runs at x16 with RYZEN, x8 with Athlon
  • Realtek ALC887 delivers 7.1 channel audio quality
  • Realtek 8111H Gigabit LAN plus four SATA III ports

Socket AM4 DDR4 Platform

The MSI A320M Gaming Pro is a Micro ATX motherboard built around the AMD A320 chipset for Socket AM4 processors. It accepts AMD RYZEN series CPUs as well as 7th generation A-series and Athlon chips. Dual-channel DDR4 memory runs at 1866, 2133, 2400, 2667, 2933 (OC) or 3200 (OC) MHz up to 32GB total capacity.

Build Integration

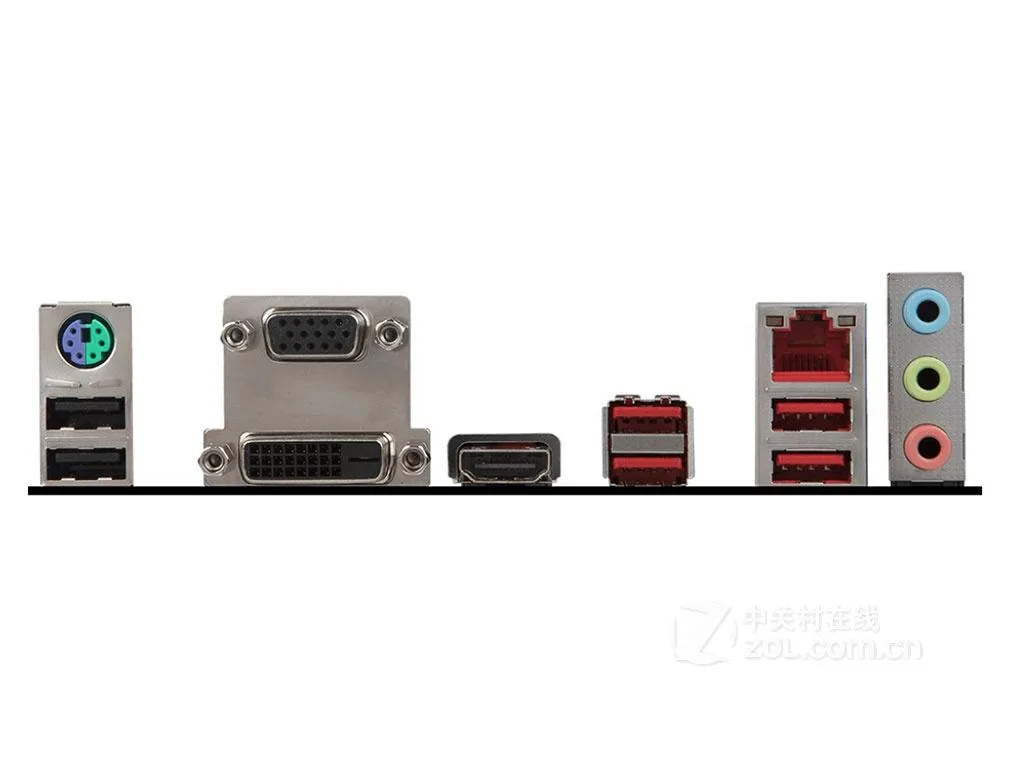

A single PCIe 3.0 x16 slot provides x16 bandwidth with RYZEN CPUs and x8 with 7th generation A-series or Athlon CPUs. Two PCIe 2.0 x1 slots add further expansion room. Storage connects through one M.2 interface and four SATA III ports. Rear I/O supplies two USB 3.1 Gen1 ports and two USB 2.0 ports while internal headers add four more USB 2.0 connections. A Realtek 8111H Gigabit LAN port handles wired networking.

Included Extras

The package ships with the motherboard, a CMOS battery, one SATA cable and a chassis I/O back panel. No WiFi antenna is included because the board lacks a built-in WiFi module. Realtek ALC887 audio delivers 7.1 channel output for surround sound. These bundled items cover the essentials for a basic system assembly.

Highlights

  • Supports RYZEN and 7th-gen Athlon CPUs via Socket AM4
  • Dual-channel DDR4 up to 3200 MHz OC with 32 GB max capacity
  • PCIe 3.0 x16 slot runs at x16 with RYZEN, x8 with Athlon
  • Realtek ALC887 delivers 7.1 channel audio quality
  • Realtek 8111H Gigabit LAN plus four SATA III ports

Specifications

BrandMSI
SeriesMSI A320M Gaming Pro
ModelMSI A320M Gaming Pro
CPU Socket TypeSocket AM4
CPU TypeAMD RYZEN series processors with AM4 pin support, as well as 7th generation A series/Athlon processors
ChipsetAMD A320
Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667/2933 (OC)/3200 (OC) MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
- 7th generation A-series/Athlon processors support x8 mode
2 PCIe 2.0 x1 slots
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USBAMD A320 chipset
- 2 USB 3.1 Gen1 (SuperSpeed USB) ports are provided via the onboard USB 3.1 Gen1 port
- 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)
AMD CPU Chipset
- 4 USB 3.1 Gen1 (SuperSpeed USB) Type-A interfaces on the backplane

Questions about this item

How much DDR4 memory can the MSI A320M Gaming Pro actually hold?

The board supports up to 32 GB of dual-channel DDR4 across its two slots.

How loud or hot does the Realtek 8111H Gigabit LAN and ALC887 audio get during all-day use?

Both controllers are low-power integrated chips; they add negligible heat and produce no audible noise under continuous operation.

Which Ryzen processor and DDR4 modules do I need to already own for this motherboard to work?

Any Socket AM4 Ryzen CPU or 7th-gen A-series/Athlon plus DDR4 DIMMs rated 1866–3200 MHz will boot the system.
