Green rectangular micro-ATX board with silver AM4 socket and four black DDR4 slots

MSI

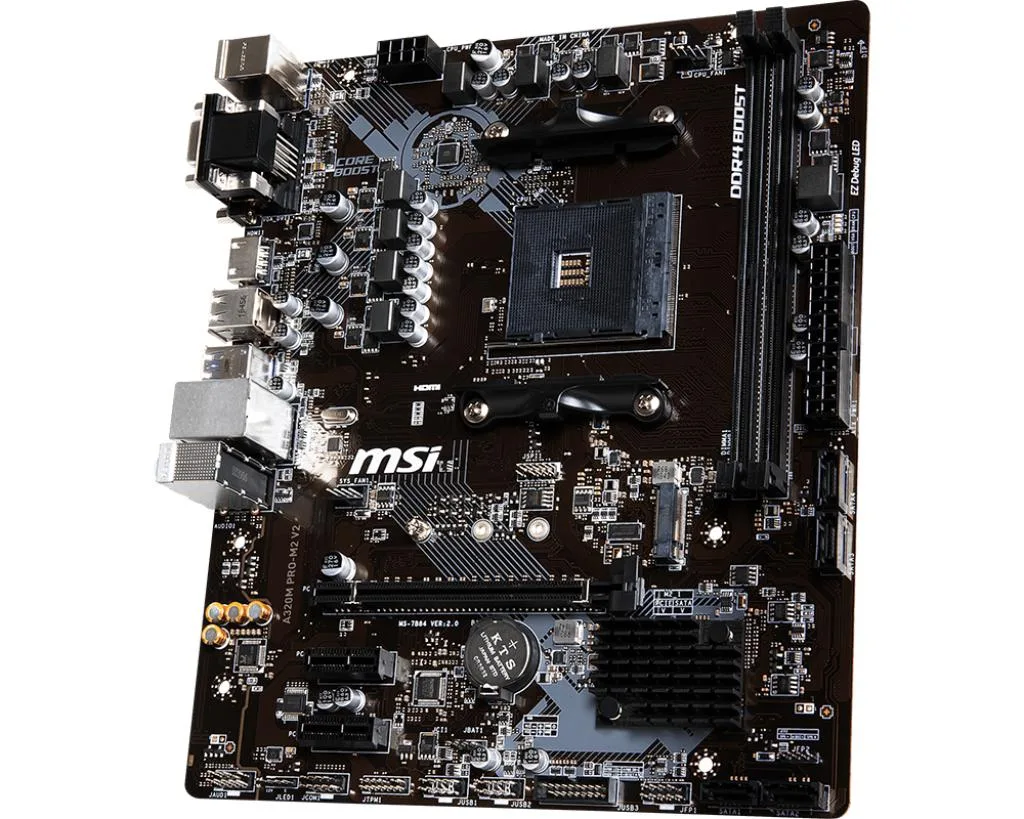

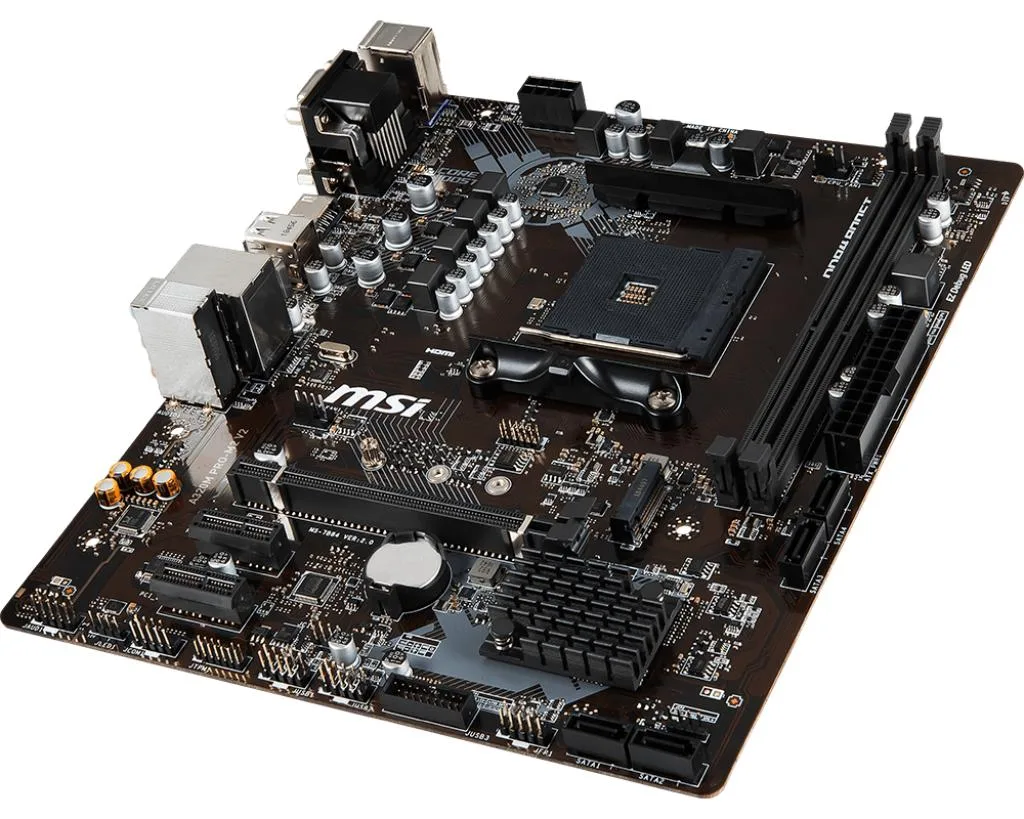

MSI A320M PRO-M2 V2 AMD motherboard

SKU CH-G2VM-2HJ73

A micro-ATX board with an AM4 socket and A320 chipset, supporting dual-channel DDR4 up to 32 GB at 2400 MHz, one PCIe 3.0 x16 slot, four SATA ports.

  • CPU Socket TypeSocket AM4
  • CPU Type7th generation A-series/Athlon processors with AM4 pin suppo
  • ChipsetAMD A320
  • Memory StandardSupports dual-channel DDR4 1866/2133/2400MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot 7th generation A-series/Athlon processor
  • Dual-channel DDR4 up to 2400 MHz for responsive multitasking
  • 32 GB maximum memory capacity supports demanding workloads
  • PCIe 3.0 x16 slot delivers full graphics bandwidth
  • Realtek ALC887 codec provides 7.1 channel audio
  • Realtek 8111H Gigabit LAN ensures wired network speed

Socket AM4 platform for entry AMD builds

The MSI A320M PRO-M2 V2 is a micro ATX board built around the AMD A320 chipset and the Socket AM4 interface. It targets 7th generation A-series and Athlon processors that use AM4 pins. The board provides a compact foundation for office PCs, home servers or budget gaming rigs that do not need overclocking features.

Dual-channel DDR4 up to 32 GB at 2400 MHz

Before ordering, confirm your CPU is a supported 7th generation A-series or Athlon AM4 part and that you have DDR4 modules rated for 1866, 2133 or 2400 MHz. The board runs memory in dual-channel mode and caps total capacity at 32 GB. Check that your case accepts a micro ATX form factor and that your power supply delivers the 24-pin ATX and 4-pin CPU connectors the board requires.

Steady Gigabit networking and 7.1 audio under load

The Realtek 8111H Gigabit LAN and Realtek ALC887 7.1 audio codecs are wired directly to the A320 chipset, so sustained file transfers or long streaming sessions do not saturate a secondary controller. Four SATA III ports and six USB 3.1 Gen1 ports maintain consistent throughput during extended backups, while the single PCIe 3.0 x16 slot runs at x8 electrical with the supported CPUs, keeping GPU performance stable over time.

Highlights

  • Dual-channel DDR4 up to 2400 MHz for responsive multitasking
  • 32 GB maximum memory capacity supports demanding workloads
  • PCIe 3.0 x16 slot delivers full graphics bandwidth
  • Realtek ALC887 codec provides 7.1 channel audio
  • Realtek 8111H Gigabit LAN ensures wired network speed

Specifications

BrandMSI
SeriesMSI A320M PRO-M2 V2
ModelMSI A320M PRO-M2 V2
CPU Socket TypeSocket AM4
CPU Type7th generation A-series/Athlon processors with AM4 pin support
ChipsetAMD A320
Memory StandardSupports dual-channel DDR4 1866/2133/2400MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
7th generation A-series/Athlon processors support x8 mode
2 PCIe 3.0 x1 slots
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USBAMD A320 chipset
- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)

Questions about this item

What comes in the box with the MSI A320M PRO-M2 V2 and what must I buy separately?

The package includes the motherboard, a CMOS battery, one SATA cable and the chassis I/O back panel. You will need to buy a compatible AM4 processor, DDR4 memory modules, storage drives, a power supply, a case and a CPU cooler separately.

Which memory capacity and speed should I choose for this board?

The board supports dual-channel DDR4 at 1866, 2133 and 2400 MHz up to a maximum of 32 GB. For best performance use two matching modules running at 2400 MHz; a single 16 GB stick works but leaves the second channel unused.

What does the PCIe 3.0 x16 slot actually deliver when a 7th generation A-series or Athlon processor is installed?

With those processors the primary slot operates at x8 electrical speed instead of x16, so a graphics card will run at half the theoretical bandwidth of a full x16 link.
