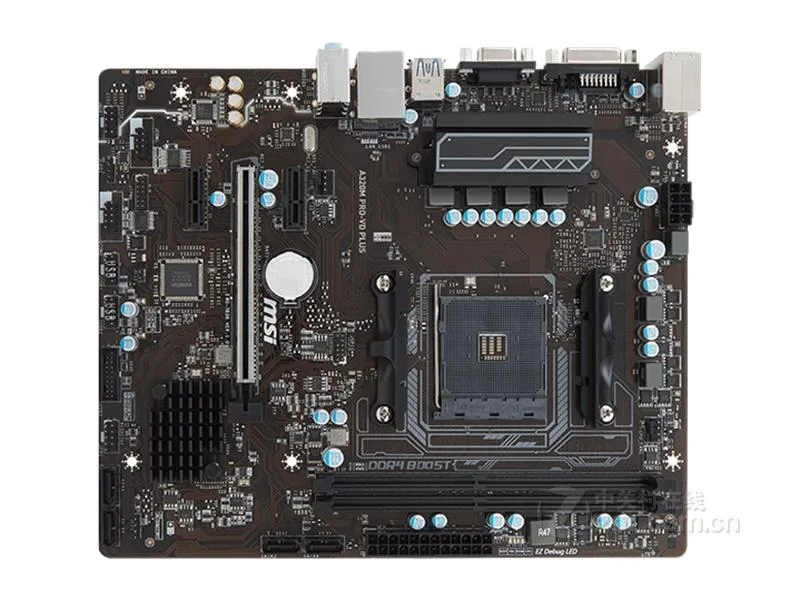

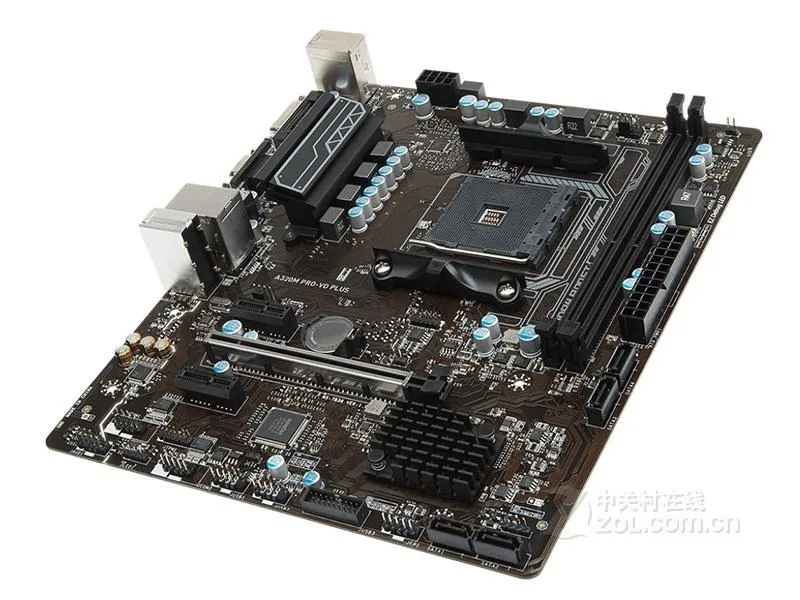

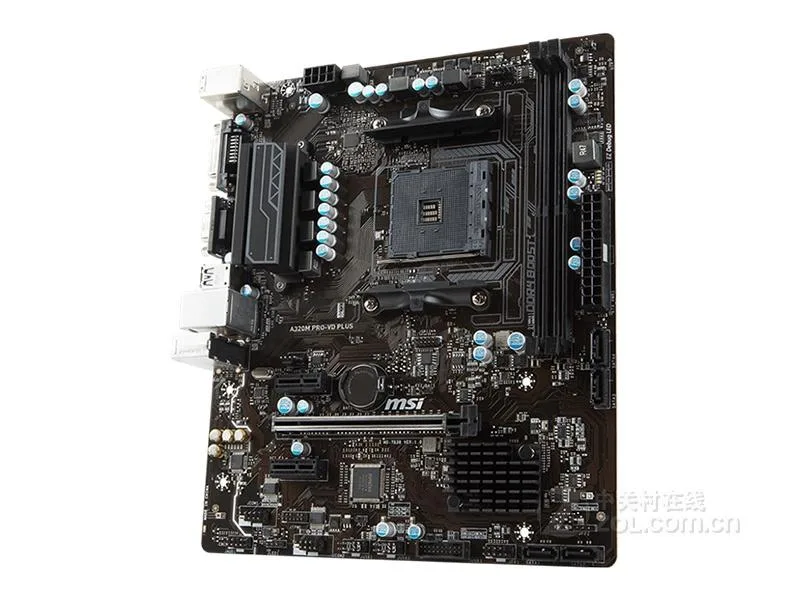

MSI A320M PRO-VD PLUS AMD motherboard

Socket AM4 DDR4 Micro ATX Board

The MSI A320M PRO-VD PLUS is a Micro ATX motherboard built around the AMD A320 chipset for Socket AM4 processors. It accepts Ryzen series CPUs and 7th generation A-series or Athlon chips. Dual-channel DDR4 memory runs at speeds up to 3200 MHz when overclocked, with a maximum capacity of 32 GB. A single PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots provide basic expansion.

Entry Builders and Legacy Upgraders

This board suits builders assembling a cost-conscious office or home PC around a supported AM4 processor. The four SATA III ports handle traditional hard drives and SATA SSDs, while six USB 3.1 Gen1 and six USB 2.0 ports cover peripheral needs. Realtek ALC887 audio delivers 7.1 channel output and the Realtek 8111H controller provides Gigabit LAN. Users requiring multiple graphics cards, extensive M.2 storage or higher-end power delivery should consider a different chipset.

PCIe 3.0 x16 Slot for Ryzen CPUs

The primary expansion slot operates at x16 electrical width when a Ryzen series processor is installed, allowing a modern graphics card to run at full interface bandwidth. With 7th generation A-series or Athlon processors the same slot runs at x8 mode, which may limit high-end GPU performance. This distinction is the key specification for matching the board to the intended processor.
