Green Micro-ATX board with black slots and silver heatsink

MSI

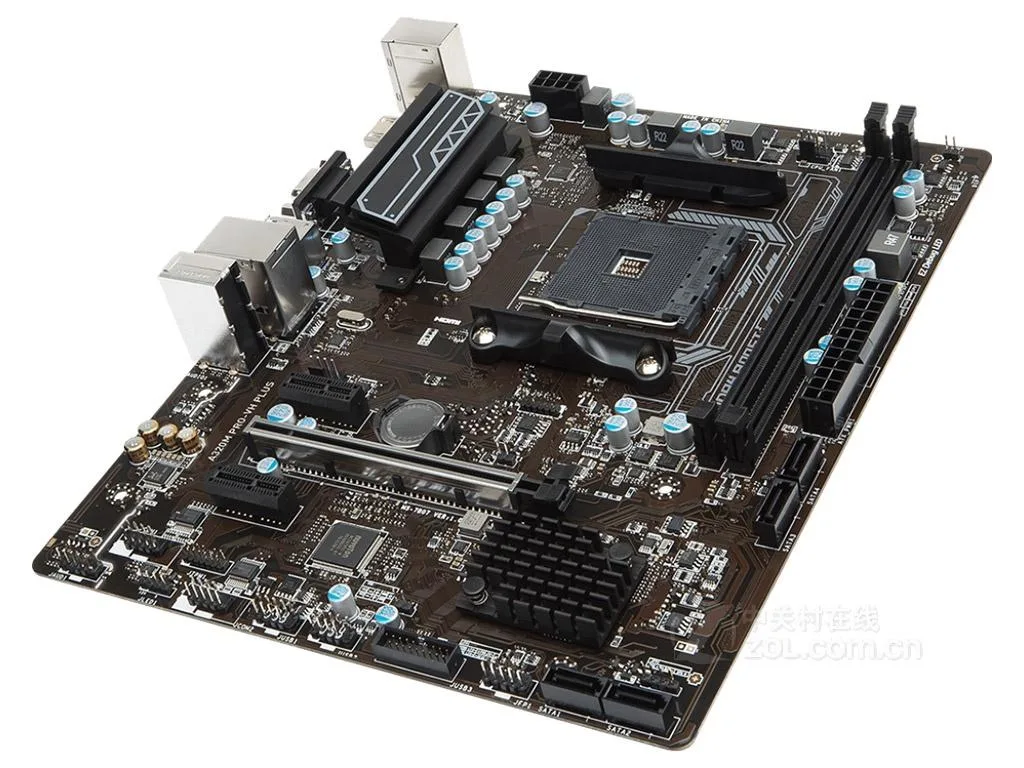

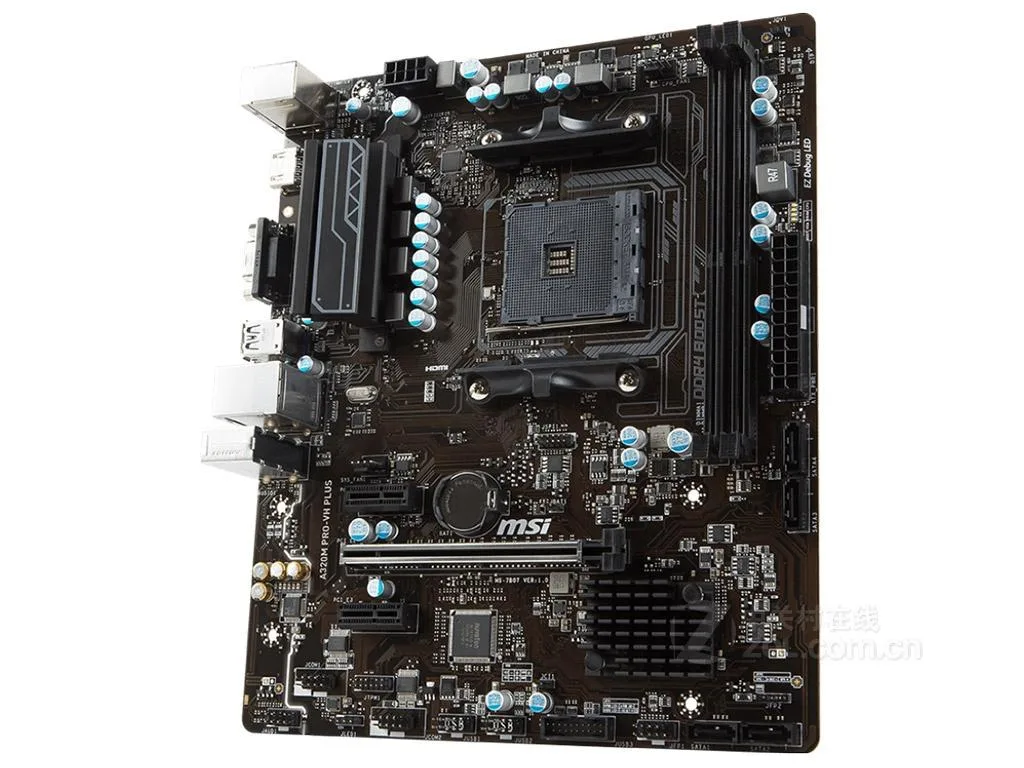

MSI A320M PRO-VH PLUS AMD motherboard

SKU CH-BRAB-VX539

Micro ATX board for AM4 Ryzen CPUs with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, four SATA III ports, Realtek 7.1 audio and Gigabit LAN

  • CPU Socket TypeSocket AM4
  • CPU TypeAMD RYZEN series processors with AM4 pin support, as well as
  • ChipsetAMD A320
  • Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667/2933 (OC)/320
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot - RYZEN series processors support x16 mo
  • Socket AM4 supports AMD RYZEN processors
  • AMD A320 chipset handles DDR4 memory up to 3200 (OC) MHz
  • Dual-channel DDR4 design allows 32GB maximum capacity
  • PCIe 3.0 x16 slot runs at x16 with RYZEN CPUs
  • Realtek ALC887 codec delivers 7.1 channel audio

AM4 socket board for Ryzen and A-series

The MSI A320M PRO-VH PLUS fits AMD RYZEN series processors with AM4 pin support and 7th generation A-series or Athlon chips. It uses the AMD A320 chipset on a Micro ATX form factor. Dual-channel DDR4 memory runs at 1866, 2133, 2400, 2667, 2933 (OC) or 3200 (OC) MHz up to 32GB total capacity.

Build quality and daily connectivity

The board provides one PCIe 3.0 x16 slot running at x16 mode with RYZEN CPUs and x8 mode with A-series or Athlon CPUs, plus two PCIe 3.0 x1 slots for add-in cards. Four SATA III ports handle storage drives while six USB 3.1 Gen1 ports and six USB 2.0 ports cover peripherals. Realtek ALC887 delivers 7.1 channel audio and a Realtek 8111H controller supplies Gigabit LAN.

Practical limits of the A320 platform

Memory overclocking above 2667 MHz depends on CPU and module quality, so 2933 and 3200 MHz are not guaranteed. The single x16 slot and two x1 slots restrict multi-GPU or high-bandwidth add-in configurations. Four SATA ports limit the number of drives without extra controllers. USB 3.1 Gen1 tops out at 5 Gbps, so faster external storage will not reach its full potential.

Highlights

  • Socket AM4 supports AMD RYZEN processors
  • AMD A320 chipset handles DDR4 memory up to 3200 (OC) MHz
  • Dual-channel DDR4 design allows 32GB maximum capacity
  • PCIe 3.0 x16 slot runs at x16 with RYZEN CPUs
  • Realtek ALC887 codec delivers 7.1 channel audio

Specifications

BrandMSI
SeriesMSI A320M PRO-VH PLUS
ModelMSI A320M PRO-VH PLUS
CPU Socket TypeSocket AM4
CPU TypeAMD RYZEN series processors with AM4 pin support, as well as 7th generation A series/Athlon processors
ChipsetAMD A320
Memory StandardSupports dual-channel DDR4 1866/2133/2400/2667/2933 (OC)/3200 (OC) MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
7th generation A-series/Athlon processors support x8 mode
2 PCIe 3.0 x1 slots
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USBAMD A320 chipset
- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 ports provided via onboard USB ports)
- 6 USB 2.0 (High-speed USB) interfaces (2 interfaces located on the backplane, 4 interfaces provided through the onboard USB interface)

Questions about this item

What memory speeds does the AMD A320 chipset on this board support in practice?

The board runs dual-channel DDR4 at 1866, 2133, 2400, 2667, 2933 (OC) and 3200 (OC) MHz.

What expansion slots and back-panel USB ports are physically present?

One PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, four USB 3.1 Gen1 ports and two USB 2.0 ports on the rear I/O.

How do I enable the higher DDR4 speeds such as 2933 or 3200 MHz?

Enter the BIOS after first boot, load the memory XMP or A-XMP profile for your kit, save and reboot to run at the rated overclock speed.
