MSI
MSI A520M-A PRO AMD motherboard AM4 Micro-ATX
AM4 micro-ATX board for 3rd Gen Ryzen and Ryzen 4000 G-Series CPUs with DDR4 up to 4600 MHz, one PCIe 3.0 x16 slot, one M.2 slot, four SATA 6Gb/s ports, HDMI 2.1 and DVI-D video.
- CPU Socket TypeAM4
- CPU TypeSupport 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4
- ChipsetAMD A520
- Number of Memory Slots2x288pin (DDR4)
- Memory StandardSupports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 360
- Maximum Memory Supported64GB
Option A520M-A PRO
- A520M PRO-VH
- A520M-A PRO
Struck-through versions exist but are not stocked here.
- Supports 3rd Gen Ryzen and 4000 G-Series processors on AM4 socket
- Dual-channel DDR4 up to 64GB with A-XMP speeds to 4600 MHz
- PCIe 3.0 x16 slot plus M.2 Key M for NVMe or SATA drives
- HDMI 2.1 and DVI-D output 4K at 60Hz from Ryzen G-Series CPUs
- Realtek ALC892 7.1 audio and RTL8111H 1Gbps LAN on 2oz copper PCB
AM4 Micro-ATX board for Ryzen 3000 and 4000 G-Series

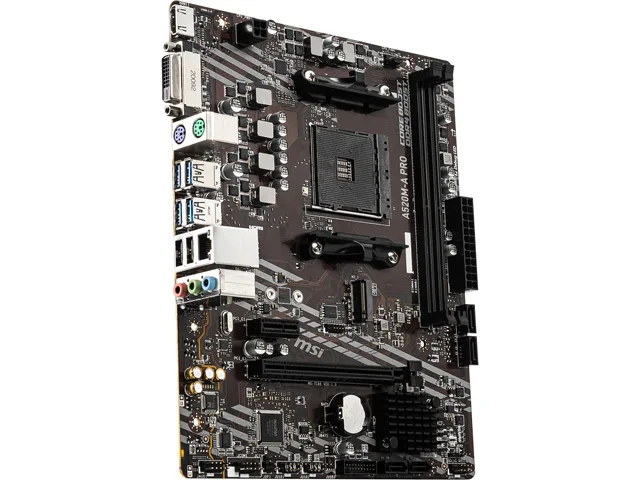

The MSI A520M-A PRO uses the AMD A520 chipset on a Micro-ATX form factor. It accepts 3rd Gen Ryzen desktop processors and Ryzen 4000 G-Series APUs in the AM4 socket. Two 288-pin DDR4 slots support up to 64GB of dual-channel memory. One PCI Express 3.0 x16 slot and one PCIe 3.0 x1 slot handle expansion cards.
Sustained operation with Core Boost and 2oz copper
Core Boost arranges an optimized power circuit layout with digital regulation to deliver stable current to the CPU during extended workloads. The PCB uses 2oz thickened copper to improve heat dissipation and conductivity across the board. This combination helps maintain consistent performance when the processor runs at higher loads for longer periods.
PCIe 3.0 and SATA 6Gb/s set the interface ceiling
The single M.2 Key M slot operates at PCIe 3.0 x4 speeds for NVMe SSDs and also accepts SATA 6Gb/s drives in 2242, 2260 and 2280 lengths. Four SATA 6Gb/s ports support RAID 0, 1 and 10 arrays. HDMI 2.1 outputs up to 4096x2160 at 60Hz while DVI-D reaches 1920x1200 at 60Hz, both requiring a CPU with integrated graphics.
Highlights
- Supports 3rd Gen Ryzen and 4000 G-Series processors on AM4 socket
- Dual-channel DDR4 up to 64GB with A-XMP speeds to 4600 MHz
- PCIe 3.0 x16 slot plus M.2 Key M for NVMe or SATA drives
- HDMI 2.1 and DVI-D output 4K at 60Hz from Ryzen G-Series CPUs
- Realtek ALC892 7.1 audio and RTL8111H 1Gbps LAN on 2oz copper PCB
Specifications
| Brand | MSI |
|---|---|
| Model | A520M-A PRO |
| CPU Socket Type | AM4 |
| CPU Type | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors |
| Chipset | AMD A520 |
| Number of Memory Slots | 2x288pin (DDR4) |
| Memory Standard | Supports DDR4 4600+/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE Supports DDR4 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 * Actual support may vary by CPU. |
| PCI Express x16 | 1 x PCI Express x16 |
| PCI Express x1 | 1 x PCIe 3.0 x1 slot |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | 1 x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 * Supports SATA 6Gb/s Supports 2242/2260/2280 storage devices * The supported specification depends on installed processor. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz12 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1 Maximum shared memory of 16GB 1 Available for the processor with integrated graphics. 2 Graphics specifications may vary depending on the CPU installed. |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 6 x USB 3.1 Gen 1 Type-A |
| USB 3.0 | 6 x USB 3.0 |
| Onboard USB | 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) |
| Other Connectors | 1 x 4-pin CPU fan connector 1 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | None RGB |

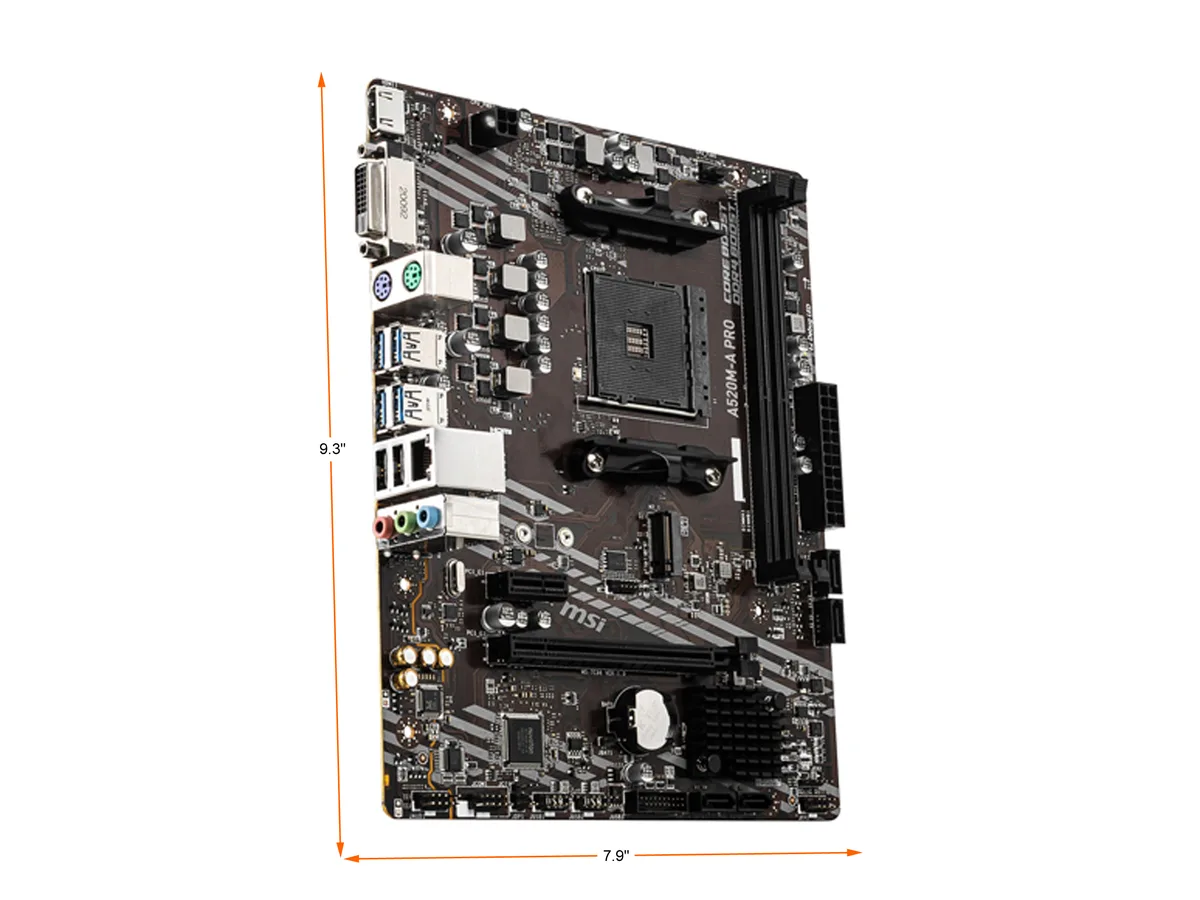

| Dimensions (W x L) | 9.3" x 7.9" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector |
| Windows 11 | Supported |
| Features | Support 3rd Gen AMD Ryzen Desktop Processors and AMD Ryzen 4000 G-Series Desktop Processors Supports DDR4 Memory, up to 4600(OC) MHz Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Core Boost: With premium layout and digital power design to support more cores and provide better performance DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability Audio Boost: Reward your ears with studio grade sound quality Drag |
| Shipping weight | 0.74 kg |
| Package size | 260 × 260 × 56 mm |
Questions about this item
Will a Ryzen 4000 G-Series CPU drive the onboard HDMI 2.1 and DVI-D ports?
Yes, the board exposes one HDMI 2.1 port up to 4096x2160 at 60Hz and one DVI-D port up to 1920x1200 at 60Hz when a processor with integrated graphics is installed.
What DDR4 speeds can I run with two single-rank modules?
With two single-rank DIMMs the maximum validated speed is 4600 MHz via A-XMP OC MODE; JEDEC speeds up to 3200 MHz are supported without overclocking.
Which M.2 drive lengths fit the Key M slot?
The slot accepts 2242, 2260 and 2280 form-factor drives; the electrical interface is PCIe 3.0 or SATA 6Gb/s depending on the installed CPU.
