MSI
MSI AMD B850 MATX 1TB KIT AMD motherboard
A micro-ATX AM5 board with B850 chipset, four DDR5 slots and a bundled 1TB PCIe 4.0 NVMe SSD
- CPU Socket TypeAM5
- CPU TypeRyzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series
- ChipsetAMD B850
- South BridgeAMD B850
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardDDR5 5600
- Ready-to-build bundle with motherboard plus 1TB NVMe SSD
- PCIe 5.0 x16 slot enables maximum GPU bandwidth for Ryzen 9000 series
- Four DDR5 slots support up to 256GB at 5600 with AMD EXPO
- Dual M.2 slots provide PCIe 5.0 and 4.0 x4 for fast storage expansion
- Four SATA 6Gb/s ports add high-capacity drive connectivity
Bundle for AM5 builders

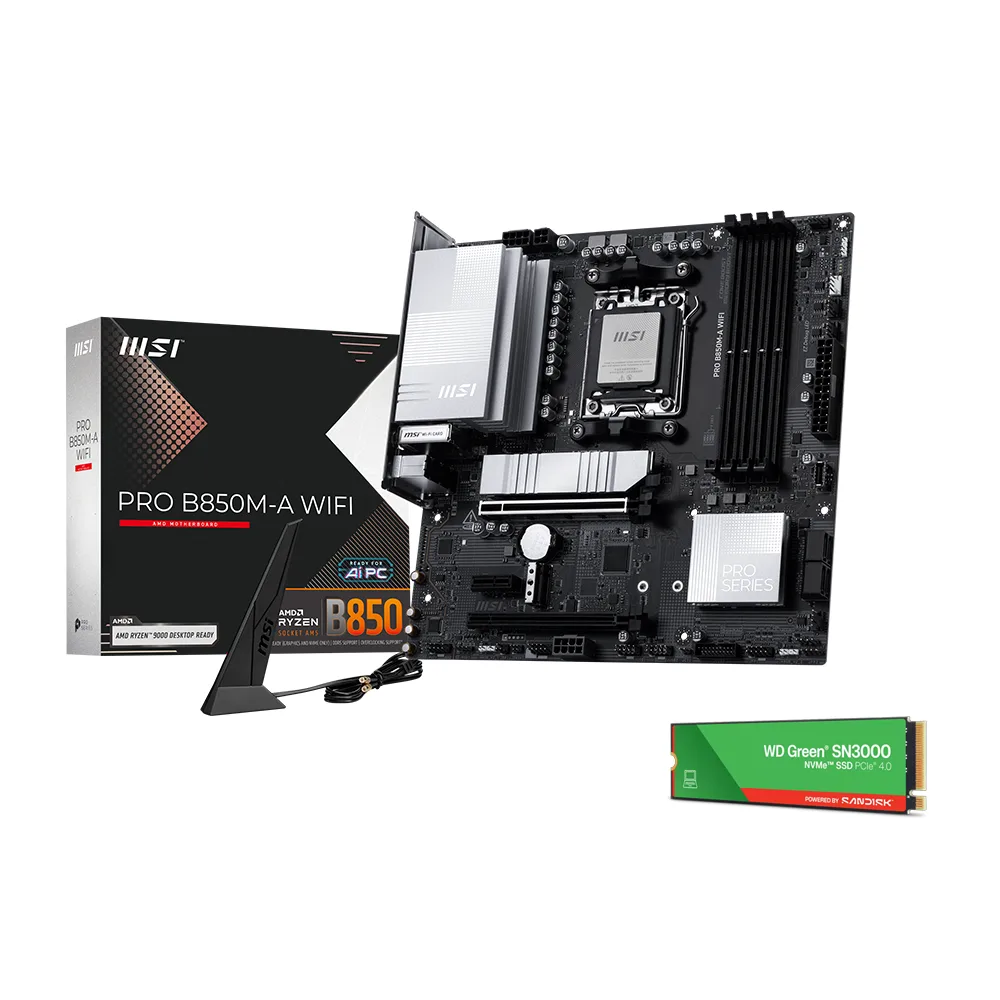

This kit pairs an MSI PRO B850M-A WiFi motherboard with a 1TB PCIe Gen4 NVMe M.2 SSD. It targets system builders using Ryzen 9000, 8000 or 7000 series processors who want a ready-to-boot foundation without sourcing storage separately. The board provides an AM5 socket, four DDR5 slots and dual-channel support up to 256GB.
Straightforward M.2 fit
The included 2280 drive drops into the CPU-linked M.2 slot and is held by a single screw, so no cables or brackets are required. Its single-sided layout clears most CPU coolers and leaves the second M.2 slot free for future expansion. The only common snag is forgetting to enable the NVMe device in BIOS before cloning an existing OS drive.
1 TB of Gen4 headroom
Sequential reads up to 5000 MB/s give snappy boot and app launch times for gaming and everyday workloads. The primary M.2 slot runs at PCIe 5.0 x4 with Ryzen 9000 or 7000 CPUs and at PCIe 4.0 x4 with Ryzen 8000 CPUs, while the second slot stays at PCIe 4.0 x4 regardless of processor. Four SATA 6Gb/s ports remain available for bulk storage when the 1 TB NVMe volume fills.
Highlights
- Ready-to-build bundle with motherboard plus 1TB NVMe SSD
- PCIe 5.0 x16 slot enables maximum GPU bandwidth for Ryzen 9000 series
- Four DDR5 slots support up to 256GB at 5600 with AMD EXPO
- Dual M.2 slots provide PCIe 5.0 and 4.0 x4 for fast storage expansion
- Four SATA 6Gb/s ports add high-capacity drive connectivity
Specifications
| Brand | MSI |
|---|---|
| Series | PRO |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 9000 Series, Ryzen 8000 Series, Ryzen 7000 Series |
| Chipset | AMD B850 |
| South Bridge | AMD B850 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express 5.0 x16 |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 |
| PCI Express 3.0 x16 | 0 x PCI Express 3.0 x16 |
| PCI Express x16 | 2 x PCI Express x16 |
| PCI Express x4 | 1 x PCI Express x4 |
| PCI Express x1 | 1 x PCI Express x1 |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M2_1 slot - Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors) - Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors) M2_2 slot - Supports up to PCIe 4.0 x4 (For Ryzen 9000/ 8700/ 8600/ 8400/ 7000 Series processors) - Supports up to PCIe 4.0 x2 (For Ryzen 8500/ 8300 Series processors) |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Depends on installed processor |
| Audio Chipset | Realtek ALC897 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8126VB |
| Max LAN Speed | 5Gbps |
| Wireless LAN | WiFi IEEE 802.11 a / b / g / n / ac / ax / be |
| Bluetooth | Yes |
| COM | 1 |
| Video Ports | HDMI + Display Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB 3.1 | 8 x USB 3.1 |
| USB 3.0 | 10 x USB 3.0 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| USB Type-C | 2 x USB Type-C® port, with USB 10Gbps support |
| Onboard USB | 1 x USB 3.2 + 4 x USB 2.0 |
| Form Factor | Micro ATX |
| LED Lighting | None RGB |
| Dimensions (W x L) | 243.84mm x 243.84mm |
| Power Pin | 24 Pin |
| Windows 11 | Supported |
| Shipping weight | 1.45 kg |
| Package size | 292 × 269 × 71 mm |
Questions about this item
Will this bundle fit a standard micro-ATX case?
The board uses the micro-ATX form factor, so it mounts in any case that supports micro-ATX or larger.
Which Ryzen processors are compatible out of the box?
The AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs.
Can I add more M.2 storage later without removing the included drive?
Yes, a second M.2 slot is available and runs at PCIe 4.0 x4 for additional NVMe drives.
