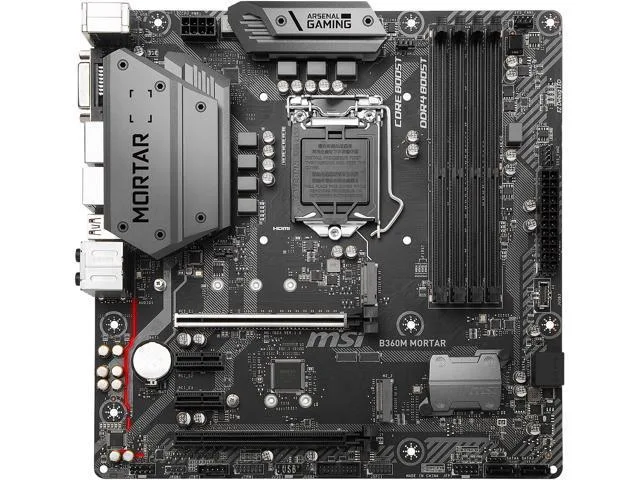

Micro-ATX board, matte black with silver heatsinks

MSI

MSI ARSENAL GAMING B360M MORTAR LGA 1151 (300 Series) Intel motherboard

SKU CH-KBQM-96SQ1

Micro-ATX board for 8th and 9th Gen Intel Core CPUs with four DDR4 slots, dual M.2 and Intel gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 2666
  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 (300 Series) socket
  • Dual-channel DDR4 memory up to 64 GB at 2666 MHz across four 288-pin slots
  • Two PCIe 3.0 x16 and two PCIe x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports and two M.2 sockets with Intel Optane memory ready
  • Realtek ALC892 7.1-channel audio and Intel I219-V 1 Gbps LAN

B360 Micro-ATX for 8th/9th Gen Intel

This Micro-ATX motherboard uses the Intel B360 chipset and an LGA 1151 socket to support 8th and 9th Generation Core i7, i5 and i3 processors. It targets builders who want a compact foundation for a mainstream gaming or productivity system without overclocking features. Four DDR4 slots accept up to 64GB of memory running at 2666, 2400 or 2133 MHz in dual-channel mode.

Military-class parts and versatile I/O

The board is built with military-class components for durability and includes Gaming LED accents. Two full-size PCI Express 3.0 x16 slots and two x1 slots give room for a graphics card plus add-in cards such as capture or sound devices. Storage connectivity covers four SATA 6Gb/s ports and two M.2 sockets, with Intel Optane memory ready for caching. Rear video outputs comprise HDMI, DisplayPort and DVI, all driven by the processor’s integrated graphics.

B360 platform limits and connectivity

The B360 chipset locks the CPU multiplier, so overclocking is not possible on this platform. Memory speed tops out at the official DDR4 2666 standard even if faster modules are installed. Networking relies on a single Intel I219-V controller delivering 1Gbps Ethernet, while audio uses the Realtek ALC892 codec for 7.1-channel output. Only six USB ports are provided in total, with two operating at USB 3.1 speeds.

Highlights

  • Supports 8th and 9th Gen Intel Core processors via LGA 1151 (300 Series) socket
  • Dual-channel DDR4 memory up to 64 GB at 2666 MHz across four 288-pin slots
  • Two PCIe 3.0 x16 and two PCIe x1 slots for graphics and add-in cards
  • Four SATA 6Gb/s ports and two M.2 sockets with Intel Optane memory ready
  • Realtek ALC892 7.1-channel audio and Intel I219-V 1 Gbps LAN

Specifications

BrandMSI
SeriesARSENAL GAMING
ModelB360M MORTAR
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 2666
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x162 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Intel Optane ReadyYes
Audio ChipsetRealtek ALC892
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Onboard USB3 x USB 3.1 + 2 x USB 2.0
Other Connectors1 x 4-pin CPU fan connector3 x 4-pin system fan connectors1 x Front panel audio connector2 x Front panel connectors1 x 5050 RGB LED strip 12V connector1 x Thunderbolt add-on card connector1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin24 Pin
FeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socketSupports DDR4 Memory, up to 2666 MHzTwin Turbo M.2: With 2 x M.2 slots. Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDsIntel Turbo USB 3.1 Gen2: Powered by Intel, ensure an uninterrupted connection with more stability and fastest USB speedsExtended Heatsink Design: MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speedCore Boost: With premium layout optimized power design to support more cores and provide better performanceDDR4 Boost: A

Questions about this item

What PCI Express 3.0 x16 lanes does the B360M MORTAR provide for graphics cards?

Two full-length PCI Express 3.0 x16 slots are available for add-in graphics cards.

What clearance and form-factor limits apply when mounting this board in a case?

Micro ATX footprint fits standard standoffs; four DDR4 DIMM slots and two M.2 sockets sit clear of most CPU coolers and long GPUs.

How do I install memory correctly on the four DDR4 slots, and what step is often missed?

Populate the two grey slots first for dual-channel 2666 MHz operation, then the black pair; seat each module until both side clips click.
