MSI B150M GAMING PRO Intel motherboard LGA 1151 DDR4 32GB Micro ATX
Supports 6th gen Intel LGA 1151 CPUs with dual-channel DDR4 2133MHz up to 32GB on Micro ATX
- CPU Socket TypeLGA 1151
- CPU Type6th generation Intel Core i3/i5/i7, Pentium/Celeron processo
- ChipsetIntel B150
- Memory StandardSupports dual-channel DDR4 2133MHz memory
- Maximum Memory Supported32GB
- PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
- Supports 6th-gen Intel Core and Pentium CPUs via LGA 1151 socket
- Dual-channel DDR4 2133MHz memory scales to 32GB capacity
- Intel B150 chipset provides one PCIe 3.0 x16 and two PCIe 3.0 x1 slots
- Six SATA III ports with RAID for flexible storage arrays
- Realtek ALC887 delivers 7.1-channel audio with Intel I219-V Gigabit LAN

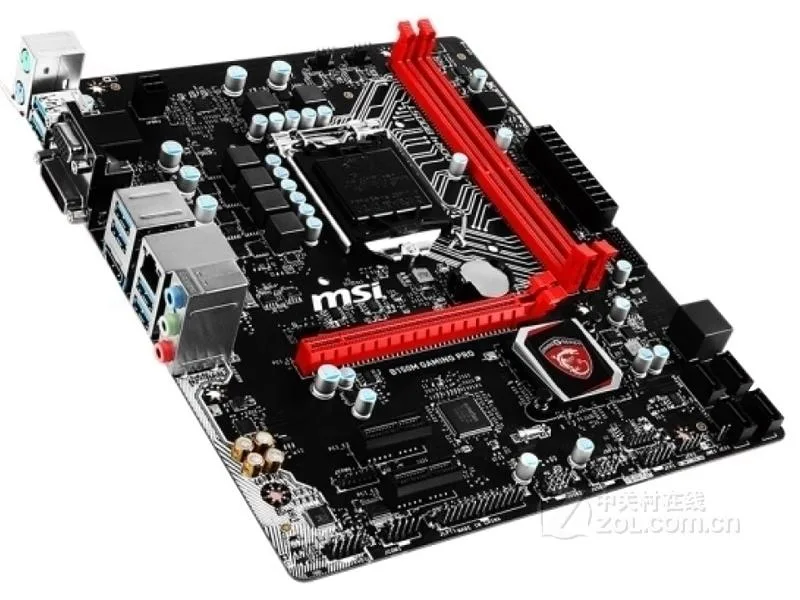

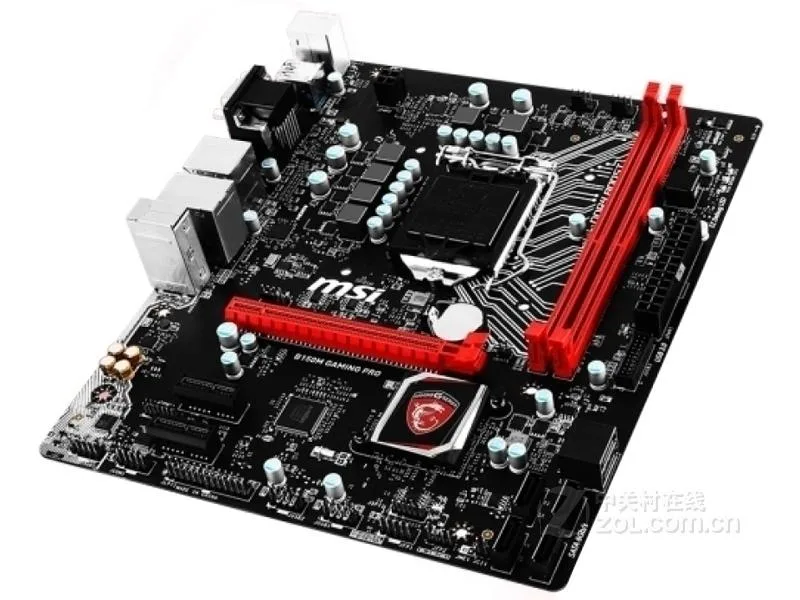

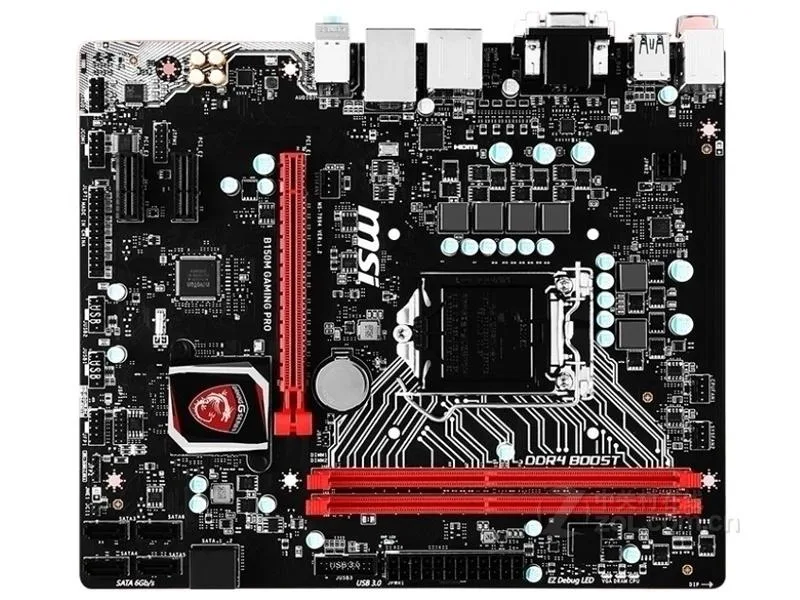

MSI B150M GAMING PRO motherboard
The MSI B150M GAMING PRO is an Intel B150 chipset motherboard built for LGA 1151 processors. It supports 6th generation Intel Core i3, i5, i7, Pentium and Celeron CPUs. The Micro ATX form factor fits compact builds while providing dual-channel DDR4 memory support up to 32GB.
Installation notes
The board uses standard Micro ATX mounting holes and a typical 24-pin ATX plus 8-pin CPU power layout. Align the I/O shield before securing the board. Handle the LGA 1151 socket carefully to avoid bent pins. Connect the front-panel headers using the labelled layout in the manual.
Pre-purchase checks
Verify that your case accepts Micro ATX dimensions and that the power supply provides a 24-pin ATX connector and an 8-pin CPU connector. Ensure you have DDR4 modules rated for 2133MHz dual-channel operation. Confirm the CPU is a supported LGA 1151 6th generation Intel processor.
Highlights
- Supports 6th-gen Intel Core and Pentium CPUs via LGA 1151 socket
- Dual-channel DDR4 2133MHz memory scales to 32GB capacity
- Intel B150 chipset provides one PCIe 3.0 x16 and two PCIe 3.0 x1 slots
- Six SATA III ports with RAID for flexible storage arrays
- Realtek ALC887 delivers 7.1-channel audio with Intel I219-V Gigabit LAN
Specifications
| Brand | MSI |
|---|---|
| Series | MSI B150M GAMING PRO |
| Model | MSI B150M GAMING PRO |
| CPU Socket Type | LGA 1151 |
| CPU Type | 6th generation Intel Core i3/i5/i7, Pentium/Celeron processors with LGA1151 architecture |
| Chipset | Intel B150 |
| Memory Standard | Supports dual-channel DDR4 2133MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots |
| SATA RAID | 6XSATA III interface |
| Audio Chipset | Realtek ALC887 Decoder Chip - 7.1 channel high-quality sound effects |
| LAN Chipset | 1 Intel I219-V Gigabit network interface card |
| Onboard USB | 8 USB 3.1 Gen1 (SuperSpeed USB) ports 6 on the backplane, 2 via onboard USB ports 4 USB 2.0 (High-speed USB) ports (4 via onboard USB ports) |
Questions about this item
How do I confirm the Realtek ALC887 audio is outputting 7.1 channel sound after installation?
Connect speakers to the rear audio jacks, open the Realtek control panel in Windows, select 7.1 speaker configuration and run the speaker test to verify each channel plays correctly.
What accessories are included with the board and what must I source separately?
The package provides the motherboard, a CMOS battery, one SATA cable and the rear I/O shield; you will need to buy a CPU, DDR4 memory, storage drives and a power supply yourself.
Which memory speed should I choose for the dual-channel DDR4 2133MHz limit?
Install DDR4 modules rated at 2133MHz; faster sticks will down-clock to 2133MHz and you can populate up to 32GB across the two channels.
