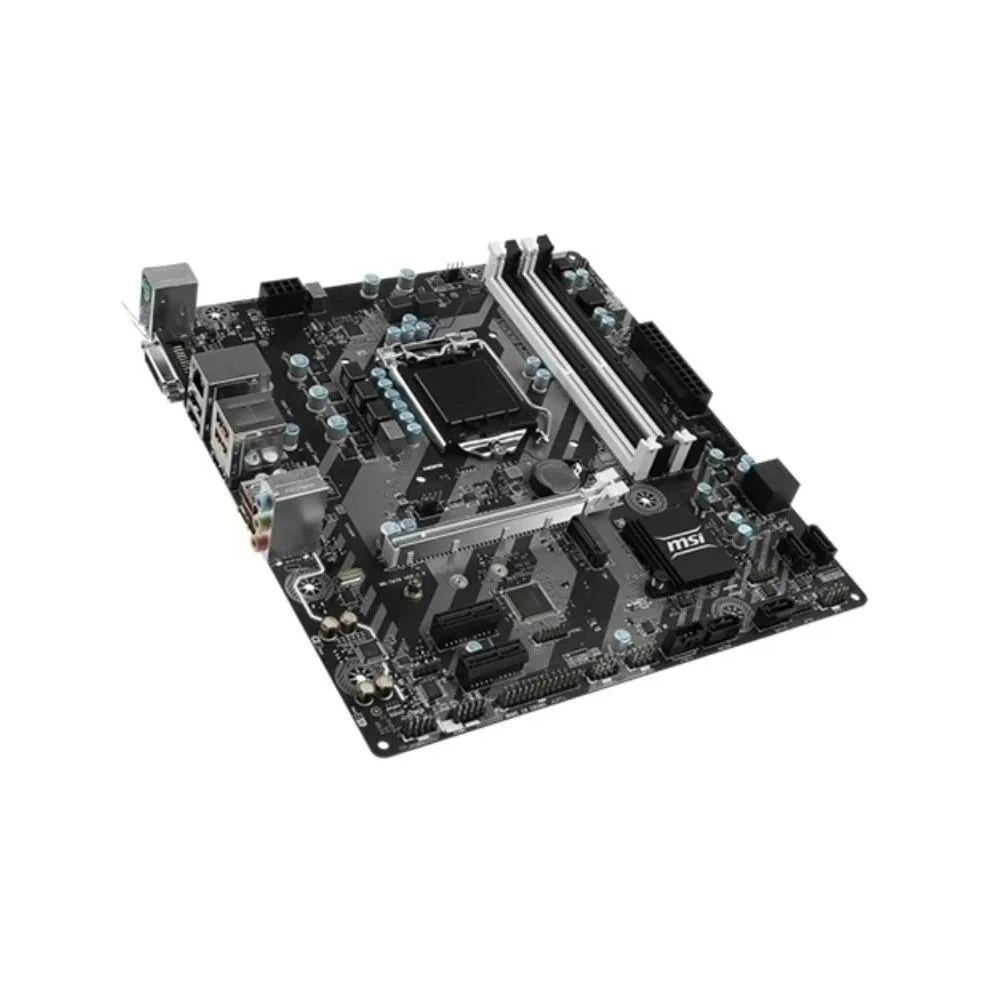

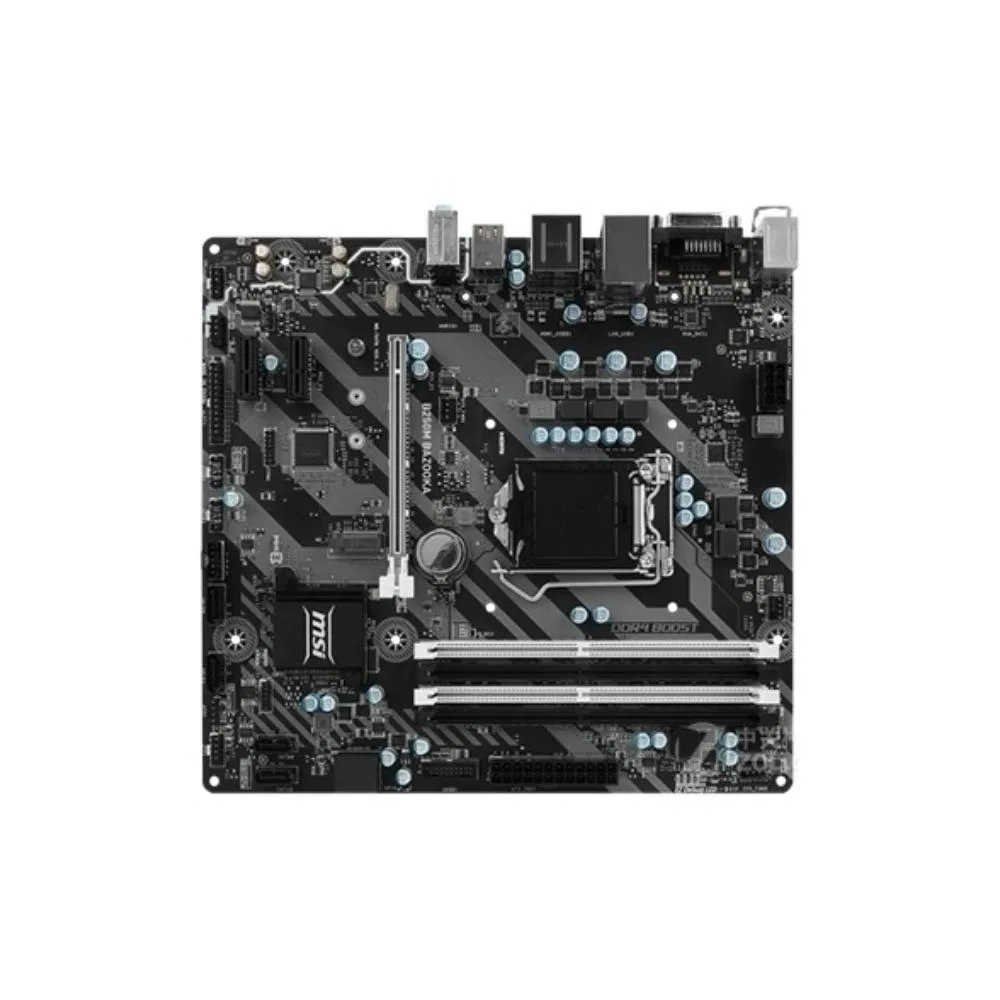

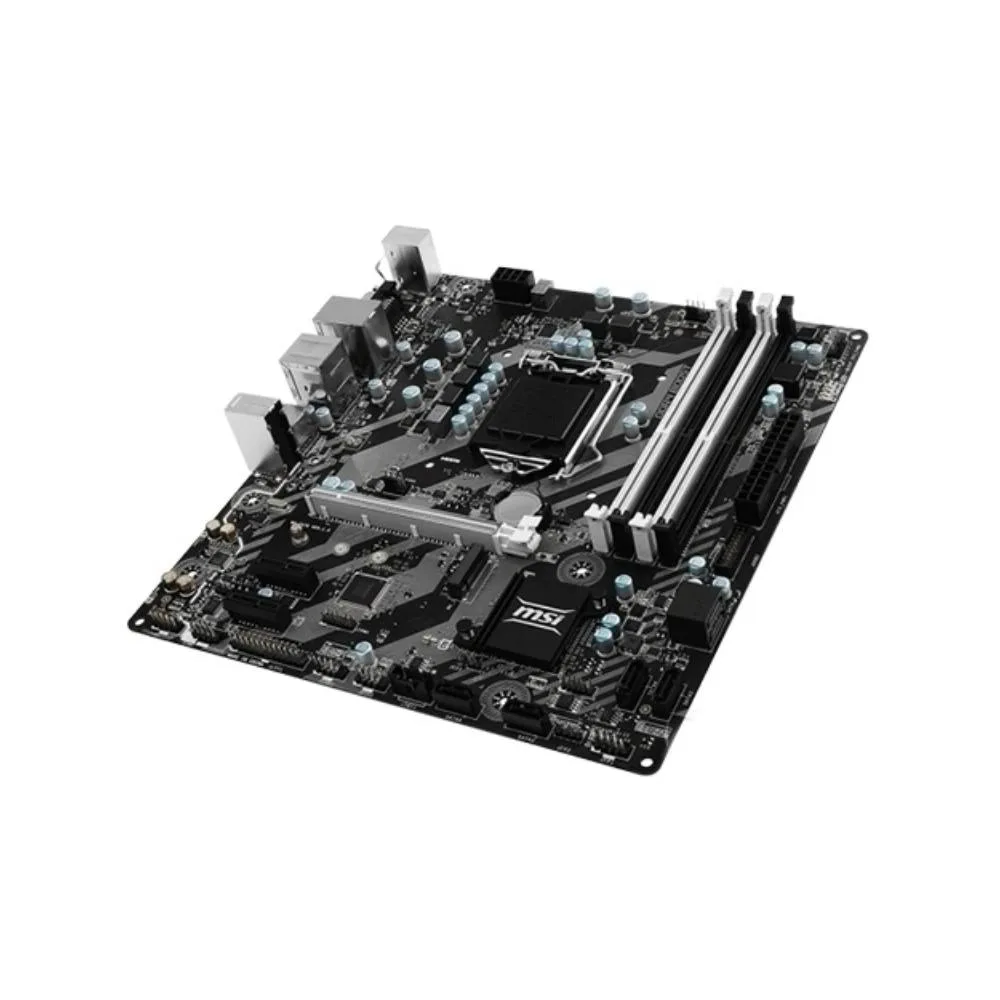

MSI B250M BAZOOKA micro-ATX motherboard, black PCB with silver heatsinks and grey slots

MSI

MSI B250M BAZOOKA B250 LGA 1151 DDR4 64GB Micro ATX Motherboard

SKU CH-0BMY-HNECR

Supports 6th and 7th generation Intel Core i3, i5, i7, Pentium and Celeron processors with LGA 1151 socket, DDR4 memory up to 64GB, six SATA III ports, one M.2 interface.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 7th/6th generation Intel Core i3/i5/i7 processors w
  • ChipsetIntel B250
  • Memory StandardSupport DDR4 2400/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x16 slot (supports x16 mode) 2 PCIe 3.0 x1 slots
  • Supports 7th and 6th generation Intel Core i3, i5, i7 processors with LGA 1151 socket
  • Intel B250 chipset provides stable platform for DDR4 2400/2133MHz memory up to 64GB
  • One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for graphics and expansion cards
  • Realtek ALC887 codec delivers 7.1 channel high-quality sound effects
  • Realtek 8111H Gigabit LAN with six USB 3.1 Gen1 and six USB 2.0 ports

LGA 1151 Micro ATX board

This MSI B250M BAZOOKA motherboard uses the Intel B250 chipset and an LGA 1151 socket. It fits Micro ATX cases and supports 7th and 6th generation Intel Core i3, i5, i7, Pentium and Celeron processors. Maximum memory capacity is 64GB across DDR4 2400 or 2133 modules.

Builders on a legacy platform

The board suits anyone keeping a 6th or 7th generation Intel CPU running in a compact chassis. It provides one PCIe 3.0 x16 slot, two PCIe 3.0 x1 slots, six SATA III ports and a single M.2 interface. Builders needing newer sockets, more expansion lanes or integrated Wi-Fi should look at something else.

Straightforward drop-in install

The package includes the motherboard, a CMOS battery, one SATA cable and an I/O back panel. Align the board with Micro ATX standoffs, secure it, attach the CPU cooler and connect front-panel headers. Common issues are forgetting the 8-pin CPU power connector or seating RAM in the wrong slots for dual-channel operation.

Highlights

  • Supports 7th and 6th generation Intel Core i3, i5, i7 processors with LGA 1151 socket
  • Intel B250 chipset provides stable platform for DDR4 2400/2133MHz memory up to 64GB
  • One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for graphics and expansion cards
  • Realtek ALC887 codec delivers 7.1 channel high-quality sound effects
  • Realtek 8111H Gigabit LAN with six USB 3.1 Gen1 and six USB 2.0 ports

Specifications

BrandMSI
SeriesMSI B250M BAZOOKA
ModelMSI B250M BAZOOKA
CPU Socket TypeLGA 1151
CPU TypeSupports 7th/6th generation Intel Core i3/i5/i7 processors with LGA 1151, as well as Intel Pentium and Celeron processors
ChipsetIntel B250
Memory StandardSupport DDR4 2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x16 slot (supports x16 mode)
2 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 decoding chip Codec
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USB- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (3 Type-A & 1 Type-C ports on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)

Questions about this item

Which DDR4 memory speeds does the B250M BAZOOKA officially support?

The board is validated for DDR4 2400 and 2133 MHz modules, up to a total of 64 GB.

Will a 7th-generation Intel Core i5 fit the LGA 1151 socket on this motherboard?

Yes, the LGA 1151 socket accepts 7th- and 6th-generation Core i3, i5 and i7 CPUs plus Pentium and Celeron parts.

How can I confirm the Realtek ALC887 audio is functioning after assembly?

Boot into the OS, open sound settings and verify that 7.1-channel output is listed and plays test tones on all channels.
