MSI
MSI B250M-E B250 LGA 1151 DDR4 32GB Micro ATX motherboard
Micro ATX board for 6th and 7th generation Intel LGA 1151 CPUs with dual-channel DDR4 up to 32GB, one PCIe 3.0 x16 slot, six SATA III ports, 7.1 audio and Gigabit LAN
- CPU Socket TypeLGA 1151
- CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors,
- ChipsetIntel B250
- Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
- Maximum Memory Supported32GB
- PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
- Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
- Dual-channel DDR4 memory up to 32GB at 2400/2133MHz
- One PCIe 3.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
- Realtek ALC887 7.1 channel audio with Gigabit LAN via RTL8111H
- Six USB 3.1 Gen1 and six USB 2.0 ports across rear and onboard headers

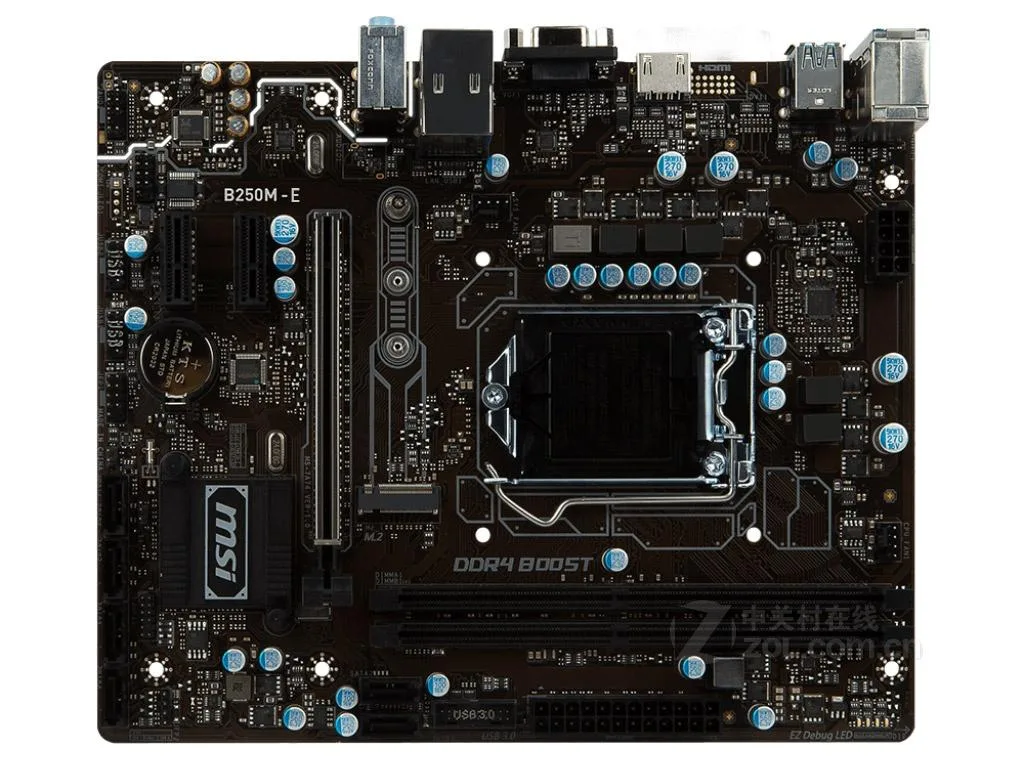

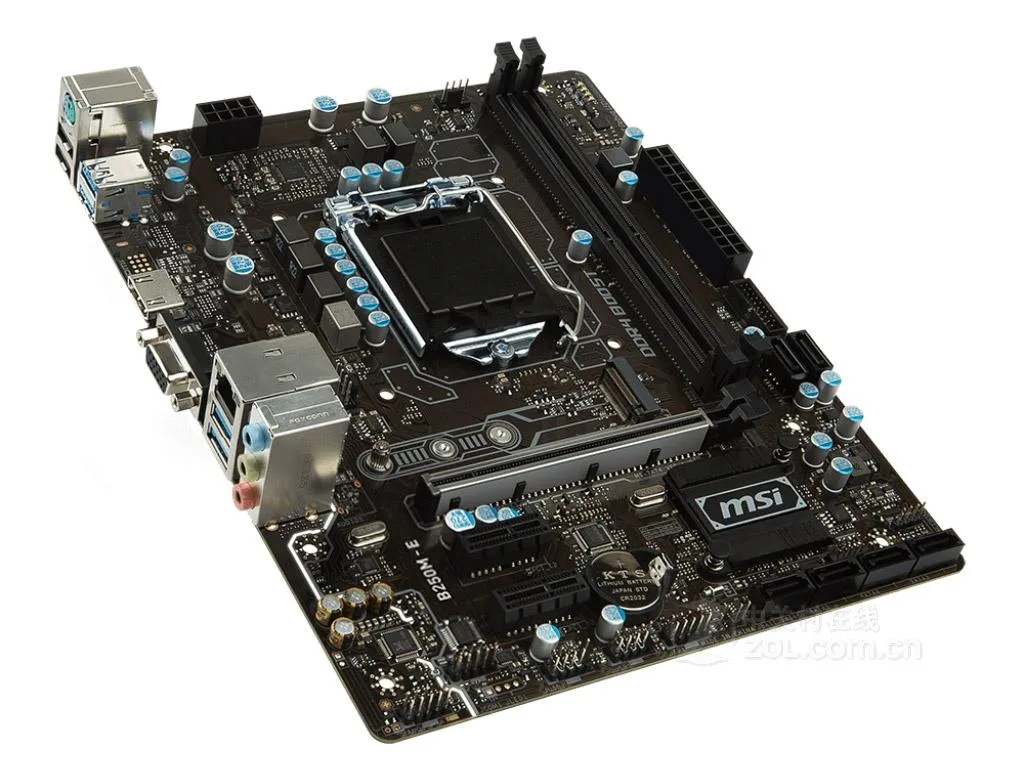

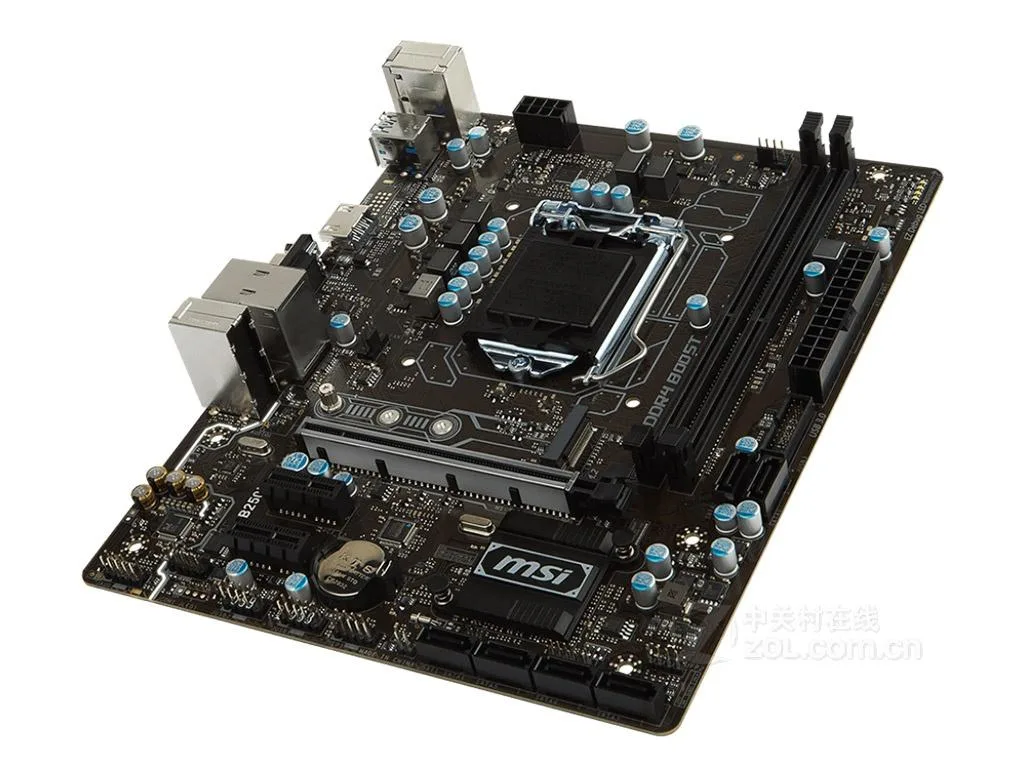

MSI B250M-E LGA 1151 Micro ATX Board
This MSI B250M-E motherboard uses the Intel B250 chipset on a Micro ATX form factor. It fits LGA 1151 processors including 6th and 7th generation Core i3 i5 i7 plus Pentium and Celeron models. Dual-channel DDR4 memory runs at 2133 or 2400 MHz up to 32 GB total capacity.
Suits 6th 7th Gen Intel Builds Not Newer CPUs
Builders upgrading a 6th or 7th generation Intel system will find native socket and chipset support here. The board delivers 7.1 channel audio through the Realtek ALC887 codec and gigabit LAN via the Realtek RTL8111H controller. Users targeting 8th generation or later Intel processors must choose a different socket and chipset platform.
One PCIe 3.0 x16 Slot For Graphics
A single PCIe 3.0 x16 slot provides the primary expansion path for a discrete graphics card. Two additional PCIe 3.0 x1 slots accept add-in cards such as sound or network adapters. Storage connects through one M.2 interface and six SATA III ports while USB 3.1 Gen1 and USB 2.0 headers supply front and rear connectivity.
Highlights
- Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
- Dual-channel DDR4 memory up to 32GB at 2400/2133MHz
- One PCIe 3.0 x16 slot plus two PCIe 3.0 x1 slots for expansion
- Realtek ALC887 7.1 channel audio with Gigabit LAN via RTL8111H
- Six USB 3.1 Gen1 and six USB 2.0 ports across rear and onboard headers
Specifications
| Brand | MSI |
|---|---|
| Series | MSI B250M-E |
| Model | MSI B250M-E |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports 6th/7th generation Intel Core i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151 |
| Chipset | Intel B250 |
| Memory Standard | Supports dual-channel DDR4 2400/2133MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots |
| SATA RAID | 1XM.2 interface, 6xSATA III interface |
| Audio Chipset | Realtek ALC887 decoding chip - 7.1 channel high-quality sound effects |
| LAN Chipset | 1 Realtek RTL8111H Gigabit network interface card |
| Onboard USB | - 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports) - 6 USB 2.0 (High-speed USB) ports (2 ports on the backplane, 4 via onboard USB ports) |
Questions about this item
Will my existing DDR4 2133 MHz memory work with the B250M-E?
The board supports dual-channel DDR4 at 2400 and 2133 MHz, so your current modules will run at their rated speed.
How can I confirm the Realtek ALC887 audio is active after assembly?
Open Windows Sound settings, select the Realtek 7.1 device, and run the speaker test; all channels should play tone.
Does the box include the I/O shield and a SATA cable, or must I buy them separately?
The package contains the motherboard, a CMOS battery, one SATA cable, and the chassis I/O back panel; nothing else is supplied.
