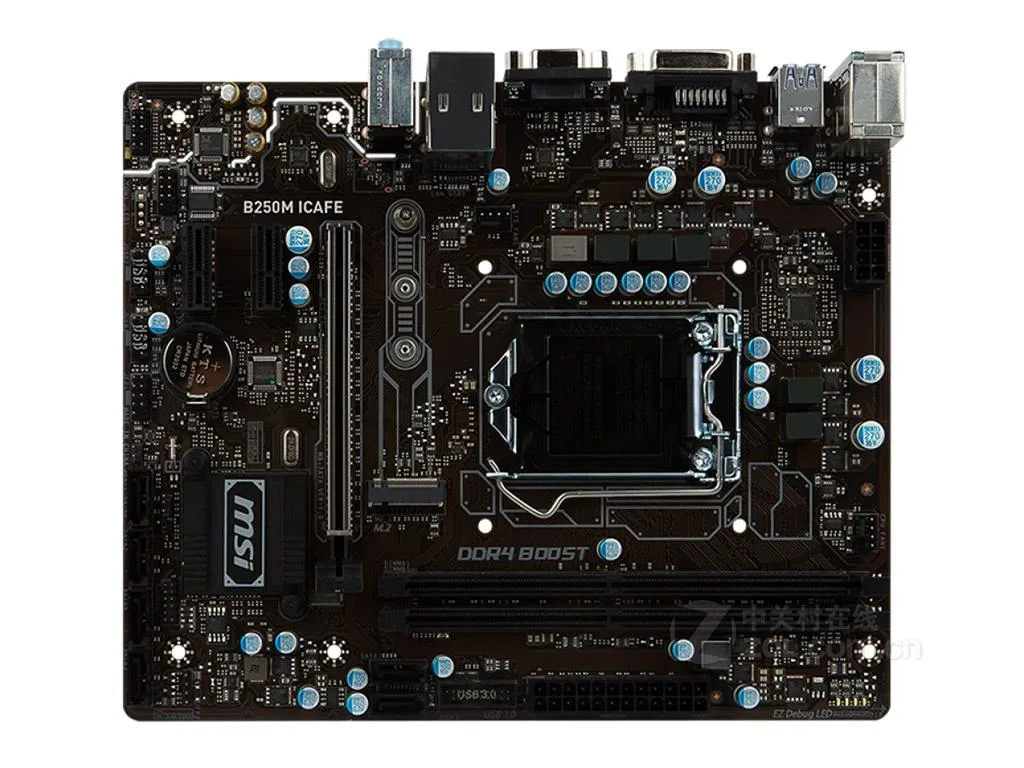

MSI B250M ICAFE Micro ATX motherboard black PCB silver slots back panel ports

MSI

MSI B250M ICAFE Intel motherboard LGA 1151 DDR4 32GB Micro ATX

SKU CH-RVSK-CWHFM

Micro ATX board with Intel B250 chipset, LGA 1151 socket, dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 plus two x1 slots, six SATA III ports, Realtek ALC887 7.1 audio and RTL8111H Gigabit LAN.

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors,
  • ChipsetIntel B250
  • Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
  • Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
  • Dual-channel DDR4 2400/2133MHz memory up to 32GB capacity
  • Realtek ALC887 audio with 7.1 channel high-quality sound effects
  • Realtek RTL8111H Gigabit LAN for wired network connectivity
  • 6 USB 3.1 Gen1 and 6 USB 2.0 ports for peripheral connections

Target platform

This Micro ATX motherboard uses the Intel B250 chipset and an LGA 1151 socket to support 6th and 7th generation Core i3, i5 and i7 processors alongside Pentium and Celeron models. It is built for compact desktop builds that need standard expansion in a smaller footprint. The board accepts dual-channel DDR4 memory at 2400 or 2133MHz up to a total of 32GB.

Bundled extras

The package supplies a CMOS battery, one SATA cable and a chassis I/O back panel so the rear ports are properly shielded. A WiFi antenna is also included when the board has a built-in wireless module. No driver discs, manuals or additional brackets are provided in the box.

Installation notes

The Micro ATX form factor fits most standard cases, but verify standoff alignment before mounting the board. Connect the 24-pin and 4-pin power cables, seat memory in the correct dual-channel slots and attach the supplied I/O shield from inside the case. Missing front-panel header documentation is the most common cause of a non-booting build.

Highlights

  • Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
  • Dual-channel DDR4 2400/2133MHz memory up to 32GB capacity
  • Realtek ALC887 audio with 7.1 channel high-quality sound effects
  • Realtek RTL8111H Gigabit LAN for wired network connectivity
  • 6 USB 3.1 Gen1 and 6 USB 2.0 ports for peripheral connections

Specifications

BrandMSI
SeriesMSI B250M ICAFE
ModelMSI B250M ICAFE
CPU Socket TypeLGA 1151
CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151
ChipsetIntel B250
Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
2 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 x Realtek RTL8111H Gigabit network interface card
Onboard USB6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 ports on the backplane, 4 via onboard USB ports)

Questions about this item

Will the CMOS battery need replacing on the B250M ICAFE?

The board ships with a CMOS battery included; replace it when the system loses time or BIOS settings after power-off.

What caps the DDR4 memory on this board?

Two DDR4 slots support up to 32 GB total at 2400 or 2133 MHz dual-channel.

How hot or loud does the B250M ICAFE run under all-day load?

Passive chipset cooling and the Realtek RTL8111H LAN keep noise low; power draw follows the installed CPU and peripherals.
