MSI

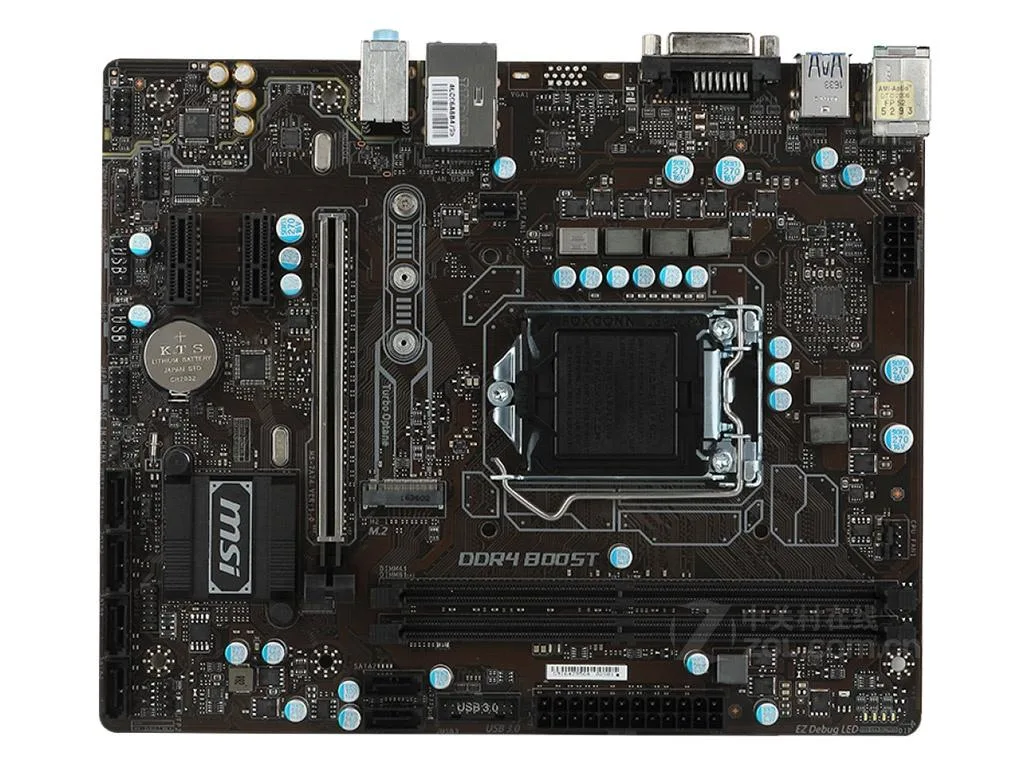

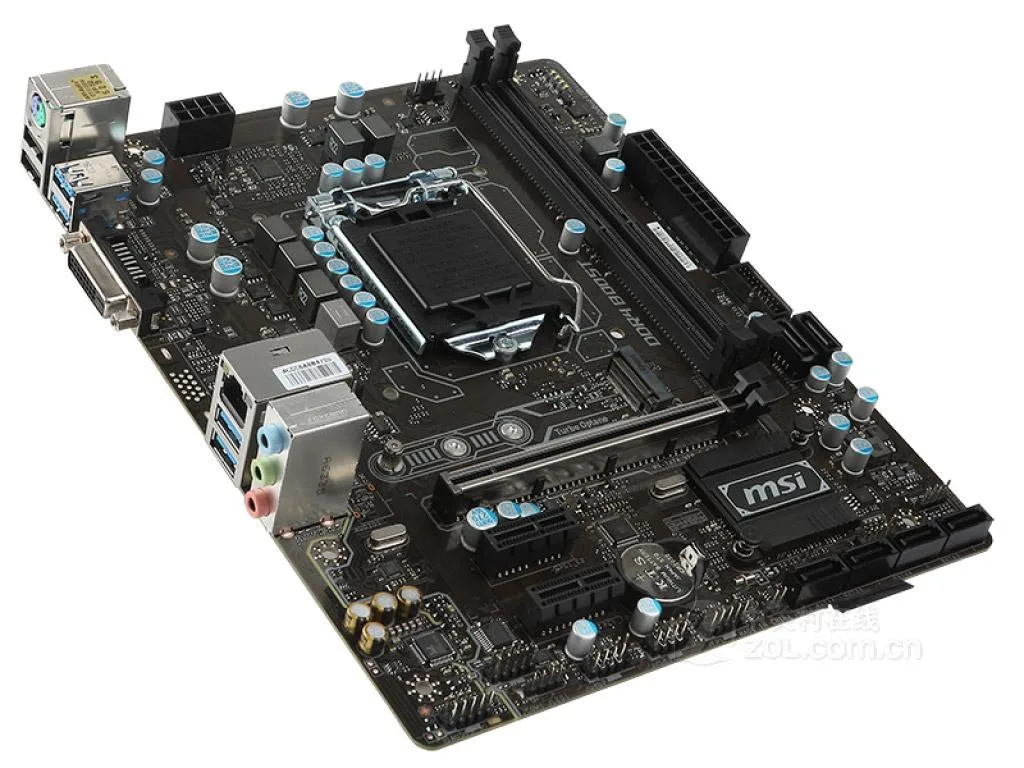

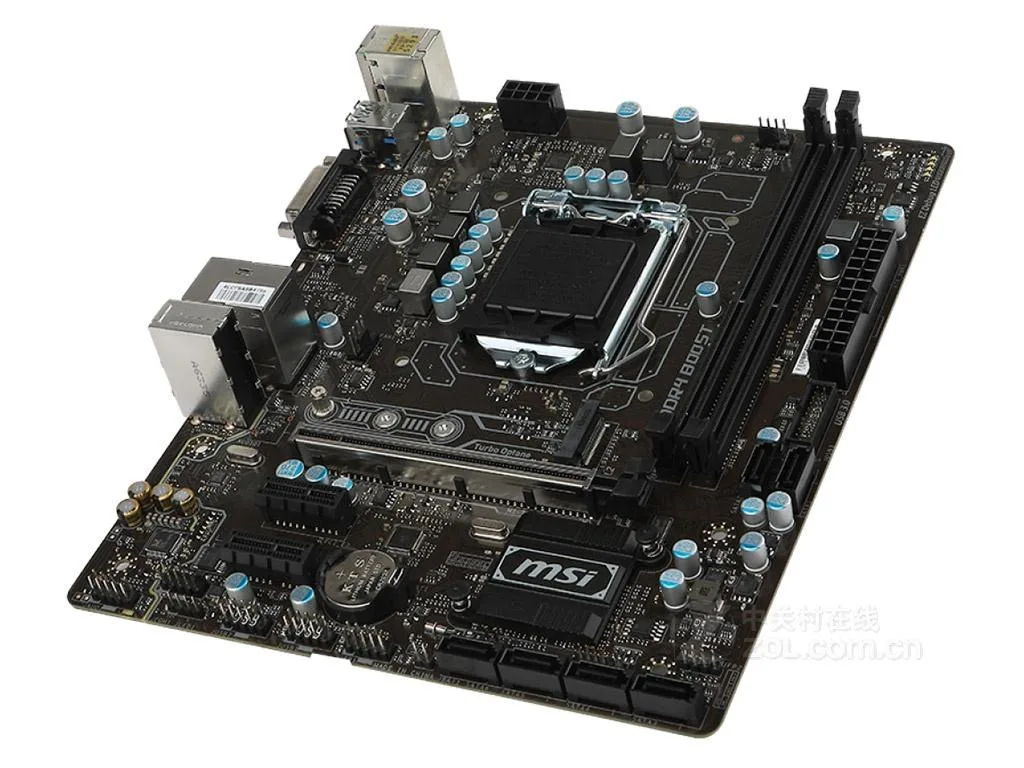

MSI B250M NANO LGA 1151 Intel B250 Micro ATX motherboard
Micro-ATX board for LGA 1151 CPUs with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, six SATA ports, USB 3.1 Gen1 and Gigabit LAN
- CPU Socket TypeLGA 1151
- CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors,
- ChipsetIntel B250
- Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
- Maximum Memory Supported32GB
- PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
- Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
- Dual-channel DDR4 memory up to 32GB at 2400/2133MHz
- One PCIe 3.0 x16 plus two PCIe 3.0 x1 expansion slots
- Six SATA III ports and one M.2 interface for storage flexibility
- Realtek ALC887 7.1-channel audio and RTL8111H Gigabit LAN built in
Compact B250 platform for 6th
The Micro ATX board uses the Intel B250 chipset and an LGA 1151 socket to support Core i3, i5, i7, Pentium and Celeron processors from those two generations. It targets builders who need a small-form-factor foundation for office work, home servers or budget gaming rigs.
Dual-channel DDR4 up to 32 GB
Two memory slots accept DDR4 2400 or 2133 modules for a 32 GB ceiling, enough for multitasking and light content creation but tight for heavy virtualization. A single PCIe 3.0 x16 slot handles a graphics card while two x1 slots add capture cards or extra I/O.
Realtek audio, Gigabit LAN and generous USB count
The ALC887 codec delivers 7.1-channel output and the RTL8111H controller provides wired 1 GbE networking. Six USB 3.1 Gen1 ports and six USB 2.0 ports are split between rear panel and internal headers, reducing the need for extra hubs. A single SATA cable, CMOS battery and I/O shield ship in the box.
Highlights
- Supports 6th/7th gen Intel Core i3/i5/i7 and Pentium/Celeron LGA 1151 CPUs
- Dual-channel DDR4 memory up to 32GB at 2400/2133MHz
- One PCIe 3.0 x16 plus two PCIe 3.0 x1 expansion slots
- Six SATA III ports and one M.2 interface for storage flexibility
- Realtek ALC887 7.1-channel audio and RTL8111H Gigabit LAN built in
Specifications
| Brand | MSI |
|---|---|
| Series | MSI B250M NANO |
| Model | MSI B250M NANO |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports 6th/7th generation Intel Core i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151 |
| Chipset | Intel B250 |
| Memory Standard | Supports dual-channel DDR4 2400/2133MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots |
| SATA RAID | 1XM.2 interface, 6xSATA III interface |
| Audio Chipset | Realtek ALC887 decoding chip - 7.1 channel high-quality sound effects |
| LAN Chipset | 1 x Realtek RTL8111H Gigabit network interface card |
| Onboard USB | - 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports) - 6 USB 2.0 (High-speed USB) ports (2 ports on the backplane, 4 via onboard USB ports) |
Questions about this item
Will the LGA 1151 socket accept the 6th generation Intel Core i5 I already own?
Yes, the LGA 1151 socket supports 6th and 7th generation Intel Core i3, i5 and i7 processors as well as Pentium and Celeron models with the same pin layout.
How can I confirm the Realtek ALC887 audio is delivering 7.1 channel output?
Open the Realtek Audio Console in Windows, select 7.1 speaker configuration and run the speaker test; each of the eight channels should play a distinct tone.
Which cables and brackets come in the box so I know what to buy separately?
The package includes the motherboard, a CMOS battery, one SATA cable and the chassis I/O back panel; CPU cooler, additional SATA cables, M.2 screw and memory modules are not included.
