Green micro ATX motherboard with black LGA 1151 socket and silver heatsinks

MSI

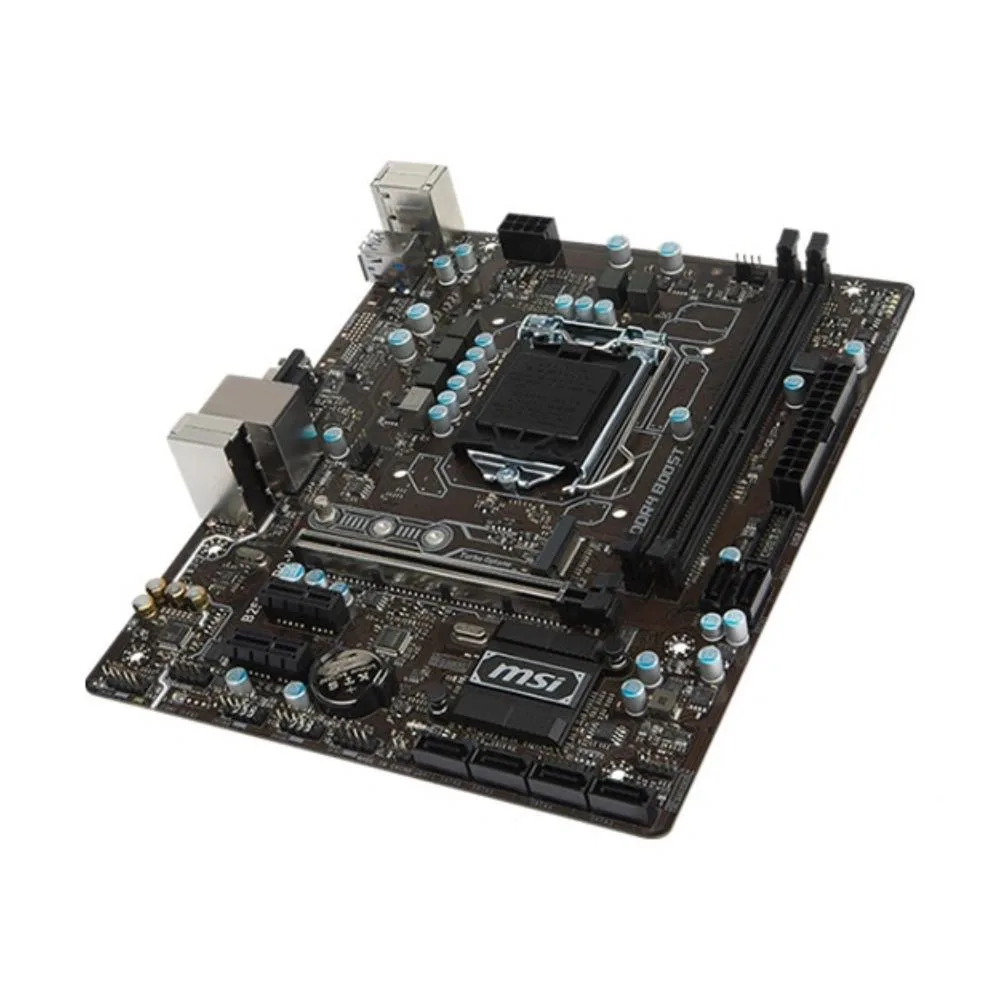

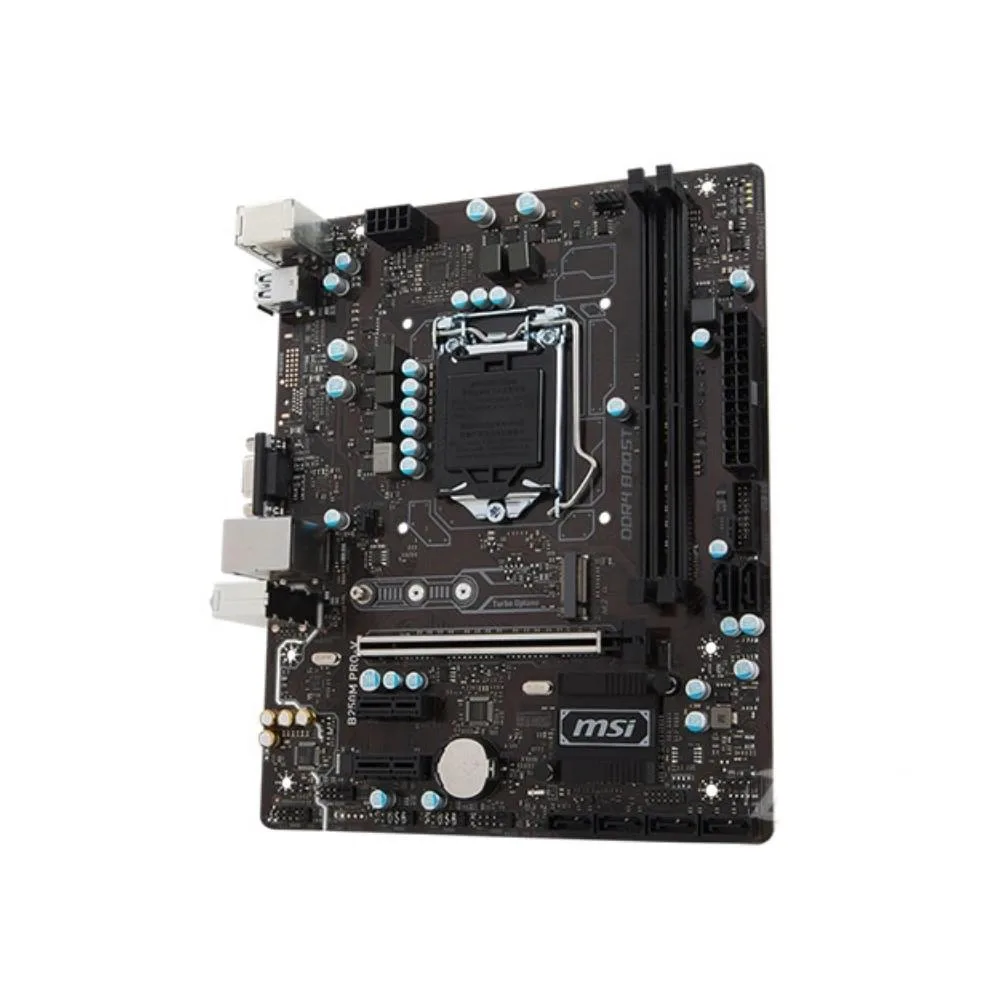

MSI B250M PRO-V B250 LGA 1151 DDR4 32GB Micro ATX Motherboard

SKU CH-Z0YE-56GPJ

Micro ATX board for LGA 1151 CPUs with dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 slot, six SATA III ports and 7.1-channel Realtek ALC887 audio

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors,
  • ChipsetIntel B250
  • Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots1 PCIe 3.0 x16 slot 2 PCIe 3.0 x1 slots
  • Supports 6th/7th gen Intel Core, Pentium and Celeron CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 2400 MHz with 32 GB maximum capacity
  • One PCIe 3.0 x16 plus two PCIe 3.0 x1 slots for expansion cards
  • Realtek ALC887 codec delivers 7.1 channel audio
  • Realtek RTL8111H provides Gigabit LAN and six USB 3.1 Gen1 ports

Socket and chipset

This Micro ATX motherboard uses the Intel B250 chipset and an LGA 1151 socket. It accepts 6th and 7th generation Intel Core i3, i5 and i7 processors plus compatible Pentium and Celeron CPUs. Dual-channel DDR4 memory is supported up to 32 GB at 2400 or 2133 MHz.

Expansion and connections

One PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots provide room for a graphics card and add-in boards. Storage connects through six SATA III ports and one M.2 interface. The rear panel offers four USB 3.1 Gen1 ports and two USB 2.0 ports, while internal headers add two more USB 3.1 Gen1 and four USB 2.0 connections. Gigabit LAN and 7.1 channel audio from a Realtek ALC887 codec complete the I/O.

Build fit

The board suits a compact office or home system that needs legacy LGA 1151 processor support and plenty of SATA drives. Builders wanting newer CPU generations, more than 32 GB of RAM, or multiple full-length PCIe cards should look at a different platform.

Highlights

  • Supports 6th/7th gen Intel Core, Pentium and Celeron CPUs on LGA 1151 socket
  • Dual-channel DDR4 up to 2400 MHz with 32 GB maximum capacity
  • One PCIe 3.0 x16 plus two PCIe 3.0 x1 slots for expansion cards
  • Realtek ALC887 codec delivers 7.1 channel audio
  • Realtek RTL8111H provides Gigabit LAN and six USB 3.1 Gen1 ports

Specifications

BrandMSI
SeriesMSI B250M PRO-V
ModelMSI B250M PRO-V
CPU Socket TypeLGA 1151
CPU TypeSupports 6th/7th generation Intel Core i3/i5/i7 processors, as well as Intel Pentium and Celeron processors with pin LGA1151
ChipsetIntel B250
Memory StandardSupports dual-channel DDR4 2400/2133MHz memory
Maximum Memory Supported32GB
PCI Slots1 PCIe 3.0 x16 slot
2 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 6xSATA III interface
Audio ChipsetRealtek ALC887 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 x Realtek RTL8111H Gigabit network interface card
Onboard USB- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 via onboard USB ports)
- 6 USB 2.0 (High-speed USB) ports (2 ports on the backplane, 4 via onboard USB ports)

Questions about this item

Does the box include a processor, memory modules, or a graphics card, or are they separate purchases?

The package contains the motherboard, a CMOS battery, one SATA cable, and the rear I/O shield. CPU, DDR4 memory, and graphics card are not included.

Should I choose DDR4 2400 or 2133 modules to reach the 32 GB limit on this B250 board?

Both speeds are supported in dual-channel mode; 2400 MHz modules will run at their rated speed, while 2133 MHz modules work without adjustment.

What does the single PCIe 3.0 x16 slot mean for a discrete GPU in a typical build?

It provides a full-bandwidth connection for one graphics card; additional expansion cards must use the two PCIe 3.0 x1 slots.
