Green rectangular Micro ATX board with silver AM4 socket, black DDR4 slots and grey PCIe slots

MSI

MSI B350M PRO-VDH AMD motherboard Socket AM4 DDR4 64GB Micro ATX

SKU CH-M5BQ-HW91H

Micro-ATX AM4 board with AMD B350 chipset, dual-channel DDR4 up to 64 GB, one PCIe 3.0 x16 slot, four SATA III ports, Realtek 7.1 audio and Gigabit LAN

  • CPU Socket TypeSocket AM4
  • CPU TypeAMD RYZEN series processors with AM4 pin support, as well as
  • ChipsetAMD B350
  • Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC)
  • Maximum Memory Supported64GB
  • PCI Slots1 PCIe 3.0 x16 slot - RYZEN series processors support x16 mo
  • Supports RYZEN and 7th-gen Athlon on Socket AM4
  • Dual-channel DDR4 up to 3200 MHz with 64 GB max capacity
  • Micro ATX form factor at 23.6 × 20.0 cm
  • 1-channel audio via Realtek ALC892
  • Gigabit LAN with Realtek 8111H controller

Socket AM4 Micro-ATX Board

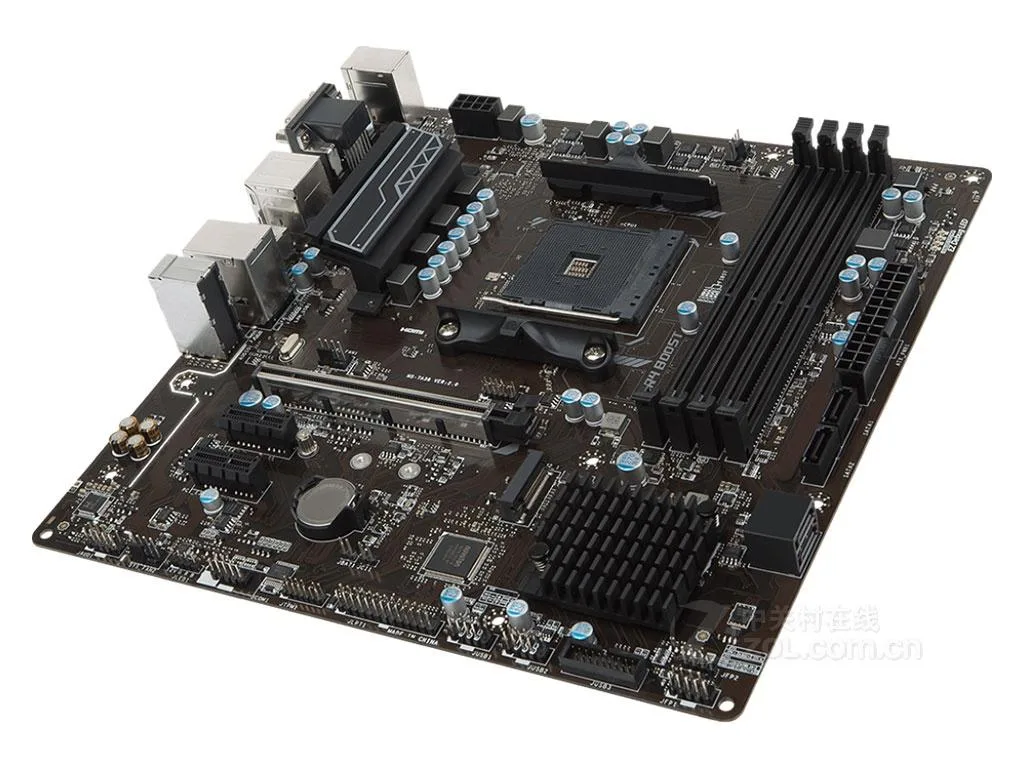

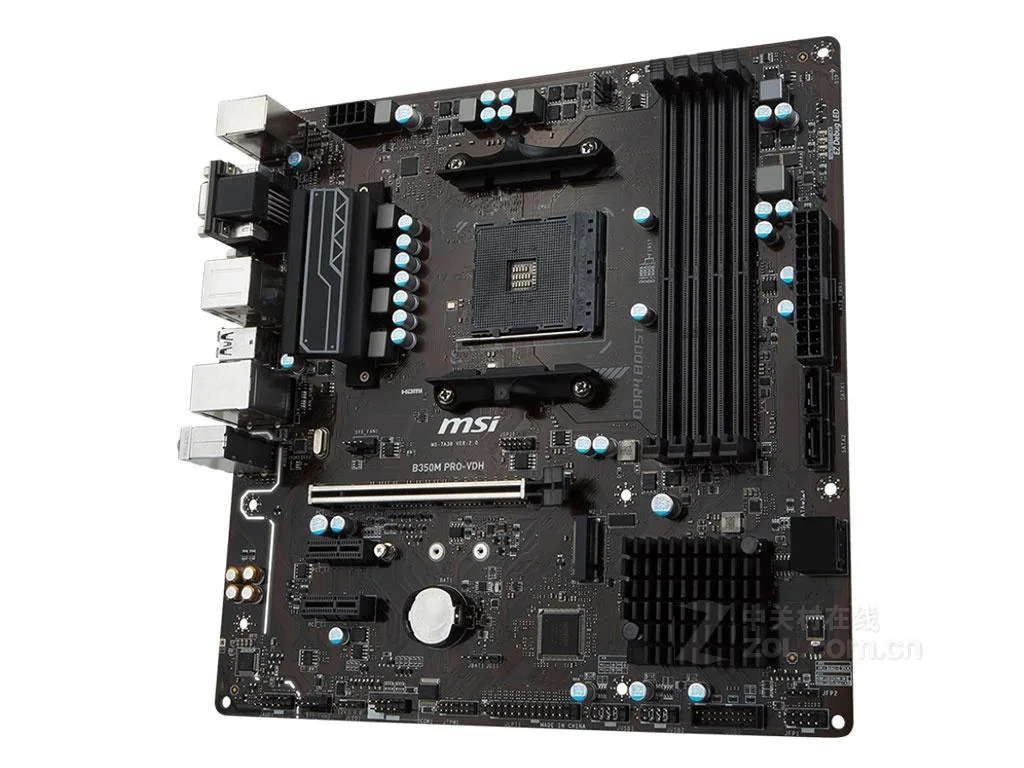

The MSI B350M PRO-VDH is a Micro-ATX motherboard built on the AMD B350 chipset for Socket AM4 processors. It supports AMD Ryzen series CPUs and 7th generation A-series or Athlon chips. The board measures 23.6 by 20.0 centimetres and fits compact chassis designs.

Entry Ryzen Builds Only

This board suits buyers assembling a basic system with a Ryzen processor or older AM4 APU where four SATA drives and Gigabit LAN are sufficient. It does not suit builds needing PCIe 4.0 bandwidth, more than two memory slots, or modern USB 3.2 Gen 2 ports.

Dual-Channel DDR4 To 3200 MHz OC

Two DDR4 slots accept up to 64 GB running at 1866, 2133, 2400, 2667, 2933 or 3200 MHz when overclocked. This memory ceiling decides whether the platform can meet the capacity and speed targets of the intended workload.

Highlights

  • Supports RYZEN and 7th-gen Athlon on Socket AM4
  • Dual-channel DDR4 up to 3200 MHz with 64 GB max capacity
  • Micro ATX form factor at 23.6 × 20.0 cm
  • 1-channel audio via Realtek ALC892
  • Gigabit LAN with Realtek 8111H controller

Specifications

BrandMSI
SeriesMSI B350M PRO-VDH
ModelMSI B350M PRO-VDH
CPU Socket TypeSocket AM4
CPU TypeAMD RYZEN series processors with AM4 pin support, as well as 7th generation A series/Athlon processors
ChipsetAMD B350
Memory StandardSupport dual-channel DDR4 1866/2133/2400/2667 (OC)/2933 (OC)/3200 (OC) + MHz memory
Maximum Memory Supported64GB
PCI Slots1 PCIe 3.0 x16 slot
- RYZEN series processors support x16 mode
7th generation A-series/Athlon processors support x8 mode
- 2 PCIe 2.0 x1 slots
SATA RAID4XSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
- 7.1 channel high-quality sound effects
LAN Chipset1 Realtek 8111H Gigabit network interface card
Onboard USB- 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the backplane, 2 ports provided via onboard USB ports)
- 8 USB 2.0 (High-speed USB) interfaces (4 interfaces located on the backplane, 4 interfaces provided through the onboard USB interface)

Questions about this item

Will my existing Ryzen CPU drop straight into the Socket AM4 on this board?

The board uses Socket AM4 and supports Ryzen series processors with AM4 pin support as well as 7th generation A-series and Athlon processors, so a compatible Ryzen CPU will fit without an adapter.

How can I confirm the Realtek ALC892 audio is active after I build the system?

In Windows Sound settings choose the Realtek High Definition Audio device, play a test tone, and check that all 7.1 channels respond; the driver will show ALC892 in its properties.

The listing says no original packaging — what exactly ships in the box?

You receive the micro-ATX motherboard, the metal CMOS battery already installed, three SATA III cables, and the rear I/O shield; no other accessories are included.
