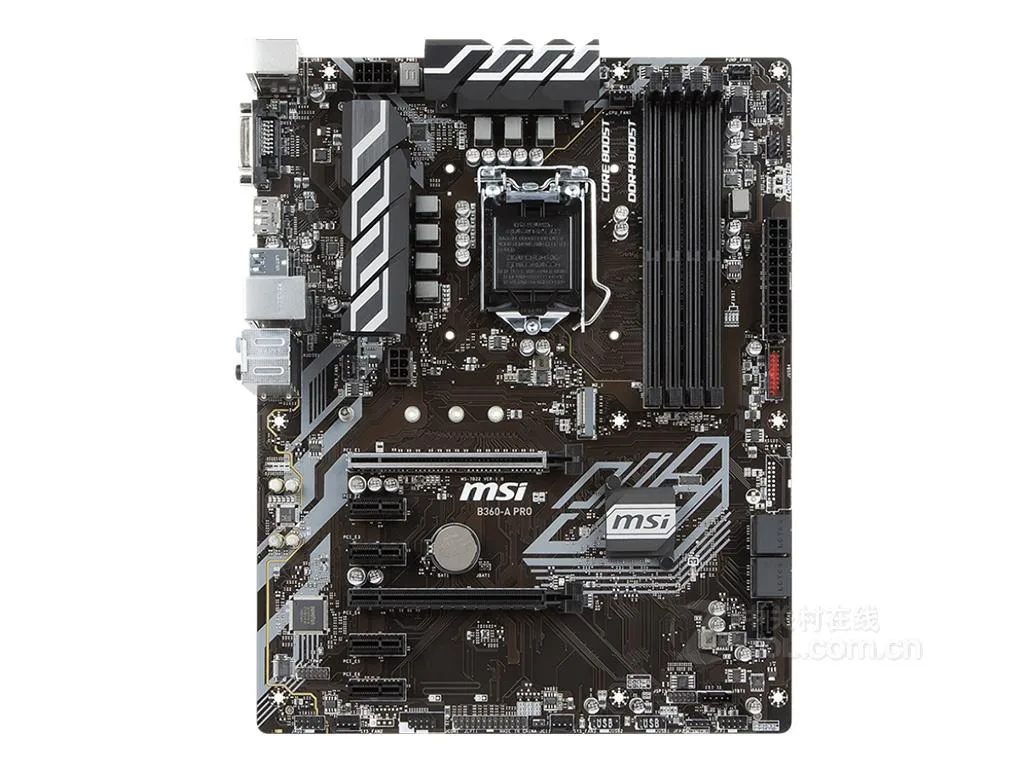

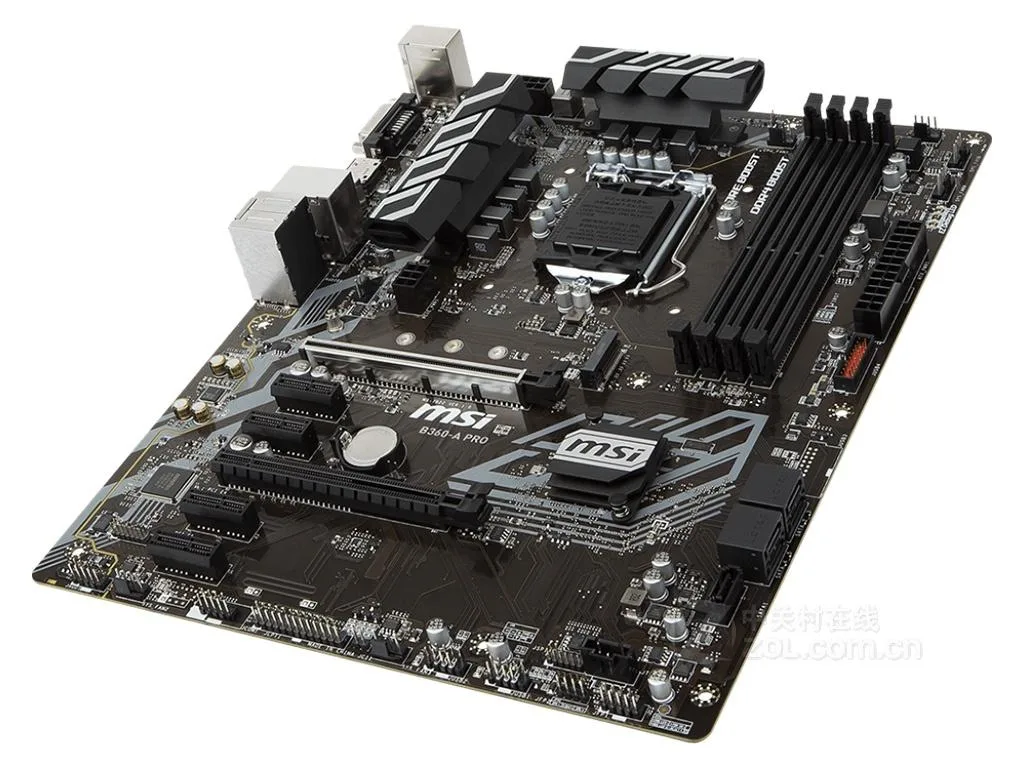

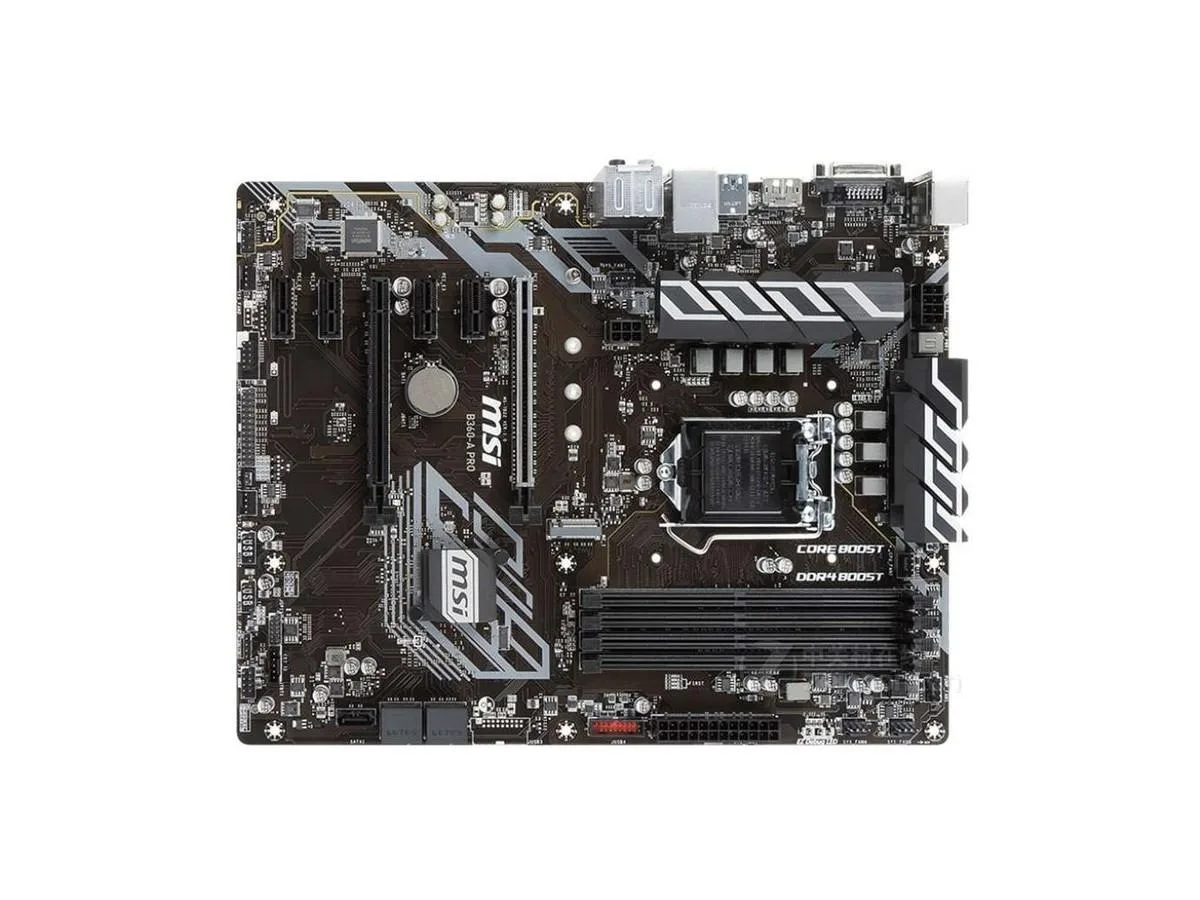

Rectangular ATX motherboard, black PCB, silver heatsinks, LGA 1151 socket, four DDR4 slots, multiple PCIe slots, rear I/O panel visible

MSI

MSI B360-A PRO Intel B360 LGA 1151 DDR4 ATX Motherboard

SKU CH-2NBA-APVDE

Supports 8th-generation Intel Core, Pentium Gold and Celeron processors in an LGA 1151 socket with dual-channel DDR4 memory up to 64 GB

  • CPU Socket TypeLGA 1151
  • CPU Type8th generation Intel Core processors with LGA1151 support, P
  • ChipsetIntel B360
  • Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 s
  • Supports 8th gen Intel Core CPUs with LGA 1151 socket
  • Dual-channel DDR4 up to 2666 MHz with 64 GB maximum capacity
  • Two PCIe 3.0 x16 slots plus four x1 slots for expansion
  • Realtek ALC892 codec delivers 7.1 channel audio
  • Intel I219-V Gigabit LAN for wired networking

MSI B360-A PRO Intel B360 Motherboard

This ATX motherboard uses the Intel B360 chipset and an LGA 1151 socket. It accepts 8th generation Intel Core processors along with Pentium Gold and Celeron CPUs. Dual-channel DDR4 memory is supported up to 64GB at speeds of 2666, 2400 and 2133MHz.

Who this suits and who it does not

Builders planning a mainstream 8th generation Intel system with up to 64GB of DDR4 will find the board a direct fit. It provides two PCIe 3.0 x16 slots running in x16 or x4 modes plus four x1 slots for expansion cards. Users needing newer CPU generations or memory speeds above 2666MHz should consider a different platform.

Sustained-load behaviour

The Realtek ALC892 codec delivers 7.1 channel audio while the Intel I219-V controller handles gigabit networking without extra latency. Rear I/O includes two USB 3.1 Gen2 ports at 10Gbps — one Type-A and one Type-C — alongside two USB 3.1 Gen1 ports. Four additional USB 3.1 Gen1 and six USB 2.0 headers are available internally for front-panel connectivity. Five SATA III ports and one M.2 interface provide storage options for long-running workloads.

Highlights

  • Supports 8th gen Intel Core CPUs with LGA 1151 socket
  • Dual-channel DDR4 up to 2666 MHz with 64 GB maximum capacity
  • Two PCIe 3.0 x16 slots plus four x1 slots for expansion
  • Realtek ALC892 codec delivers 7.1 channel audio
  • Intel I219-V Gigabit LAN for wired networking

Specifications

BrandMSI
SeriesMSI B360-A PRO
ModelMSI B360-A PRO
CPU Socket TypeLGA 1151
CPU Type8th generation Intel Core processors with LGA1151 support, Pentium Gold and Celeron processors
ChipsetIntel B360
Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
4 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 5xSATA III interface
Audio ChipsetRealtek ALC892 decoding chip
7.1 channel high-quality sound effects
LAN Chipset1 x Intel I219-V Gigabit network interface card
Onboard USBIntel B360 chipset
2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the backplane)
4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 on the backplane, 2 via onboard USB ports)
6 USB 2.0 (High-speed USB) ports (2 on the backplane, 4 via onboard USB ports)

Questions about this item

Which 8th generation Intel Core processor socket must I already have for this LGA 1151 board to work?

You need an LGA 1151 socket 8th generation Intel Core, Pentium Gold or Celeron processor; the board will not accept other sockets.

Will my existing DDR4 2133 MHz memory run alongside the board's 2666 MHz capability?

Yes, the board supports dual-channel DDR4 at 2666, 2400 and 2133 MHz, so 2133 MHz modules will operate at their rated speed.

How can I confirm the Realtek ALC892 audio is delivering 7.1 channel output after setup?

Open the Realtek audio console in Windows, select 7.1 speaker configuration and run the speaker test to hear each channel individually.
