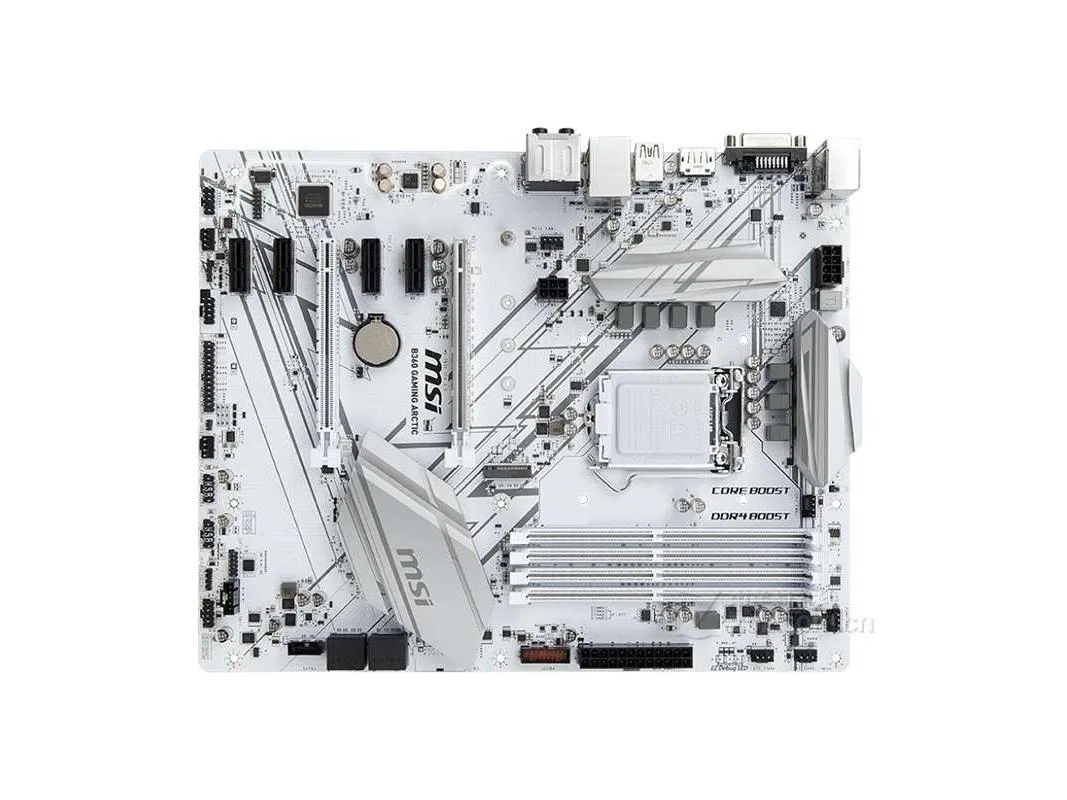

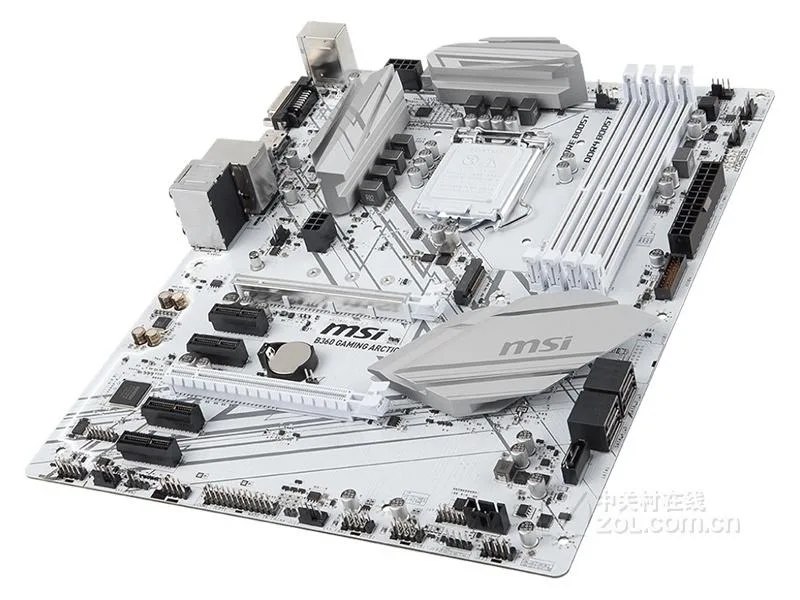

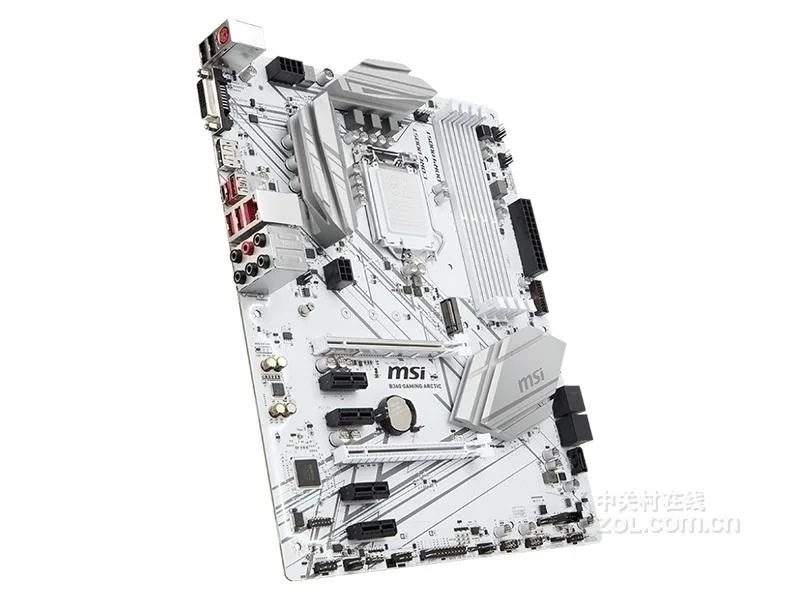

MSI B360 GAMING ARCTIC Intel motherboard
An Intel B360 chipset motherboard for LGA 1151 CPUs with dual-channel DDR4 up to 64GB, two PCIe 3.0 x16 slots, five SATA III ports, 7.1 audio and Gigabit LAN
- CPU Socket TypeLGA 1151
- CPU TypeSupports 8th generation Intel Core processors with LGA1151,
- ChipsetIntel B360
- Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
- Maximum Memory Supported64GB
- PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 s
- Supports 8th generation Intel Core processors on LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB at 2666 MHz
- Two PCIe 3.0 x16 slots for multi-GPU configurations
- Intel I219-V Gigabit LAN for wired networking
- Dual Realtek ALC892 codecs deliver 7.1 channel audio
Socket LGA 1151 ATX motherboard
The MSI B360 GAMING ARCTIC is an ATX motherboard built around the Intel B360 chipset and the LGA 1151 socket. It accepts 8th generation Intel Core, Pentium Gold and Celeron processors for mainstream desktop builds. The board provides four DDR4 slots supporting dual-channel memory up to 64 GB.
Memory capacity and speed
Four DDR4 DIMM slots run at 2666, 2400 or 2133 MHz in dual-channel mode. The platform maximum is 64 GB, which decides whether this board suits your workload. Populate all four slots to reach that limit with commonly available modules.
Sustained operation characteristics
The Intel I219-V Gigabit LAN and dual Realtek ALC892 audio codecs are powered from the chipset VRM, so they remain stable during long sessions. Rear I/O includes two USB 3.1 Gen2 ports at 10 Gbps, four USB 3.1 Gen1 ports and six USB 2.0 ports for consistent peripheral bandwidth.
Highlights
- Supports 8th generation Intel Core processors on LGA 1151 socket
- Dual-channel DDR4 memory up to 64 GB at 2666 MHz
- Two PCIe 3.0 x16 slots for multi-GPU configurations
- Intel I219-V Gigabit LAN for wired networking
- Dual Realtek ALC892 codecs deliver 7.1 channel audio
Specifications
| Brand | MSI |
|---|---|
| Series | MSI B360 GAMING ARCTIC |
| Model | MSI B360 GAMING ARCTIC |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports 8th generation Intel Core processors with LGA1151, Pentium Gold and Celeron processors |
| Chipset | Intel B360 |
| Memory Standard | Supports dual-channel DDR4 2666/2400/2133MHz memory |
| Maximum Memory Supported | 64GB |
| PCI Slots | 2 PCIe 3.0 x16 slots (supports x16/x4 modes) 4 PCIe 3.0 x1 slots |
| SATA RAID | 1XM.2 interface, 5xSATA III interface |
| Audio Chipset | Dual Realtek ALC892 Decoding Chip 7.1 channel high-quality sound effects |
| LAN Chipset | 1 x Intel I219-V Gigabit network interface card |
| Onboard USB | Intel B360 chipset 2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port and 1 Type-C port on the backplane) 4 USB 3.1 Gen1 (SuperSpeed USB) ports (2 on the backplane, 2 via onboard USB ports) 6 USB 2.0 (High-speed USB) ports (2 on the back panel, 4 via onboard USB ports) |
Questions about this item
What does the 64GB maximum memory mean for a working build?
You can install up to 64GB of DDR4 across the dual-channel slots, running at 2666, 2400 or 2133MHz depending on the modules you choose.
How does the Intel B360 chipset limit the PCIe 3.0 lanes in practice?
The board provides two PCIe 3.0 x16 slots that operate in x16 or x4 modes plus four PCIe 3.0 x1 slots, all fed through the B360 chipset.
What physical space and mounting does the ATX board need in a case?
The ATX form factor measures 23.6 by 20.0cm and uses standard ATX screw holes, so it fits any case that supports ATX motherboards.
