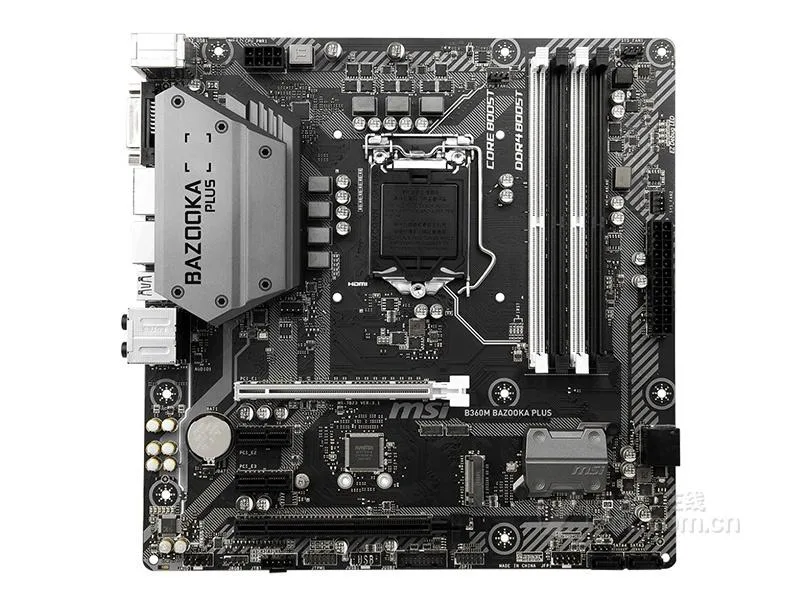

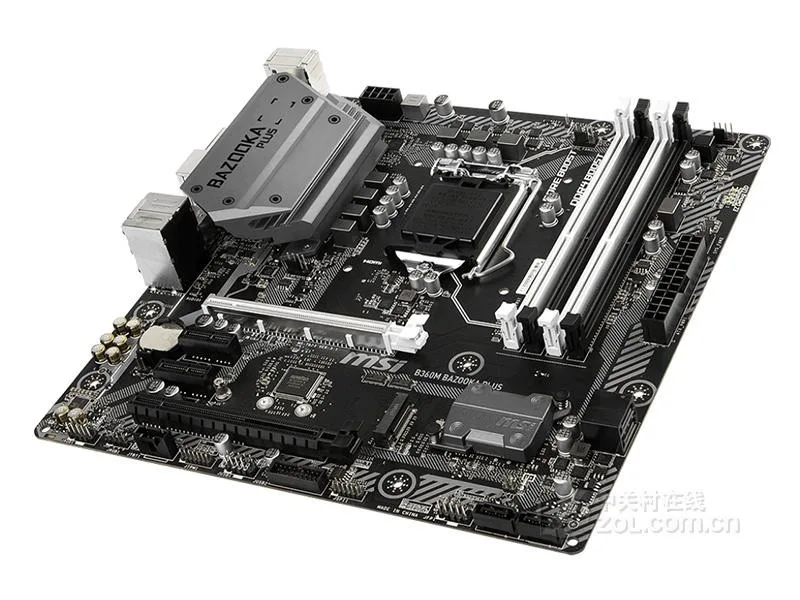

Dark green Micro ATX board, silver heatsinks, black slots and ports, grey CPU socket, labelled Bazooka Plus

MSI

MSI B360M Bazooka Plus Intel motherboard LGA 1151 DDR4 64GB Micro ATX

SKU CH-8SD1-T29YN

Supports 8th generation Intel Core processors with up to 64GB DDR4 memory and 7.1 channel audio

  • CPU Socket TypeLGA 1151
  • CPU TypeSupports 8th generation Intel Core processors with LGA1151,
  • ChipsetIntel B360
  • Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
  • Maximum Memory Supported64GB
  • PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes) 2 PCIe 3.0 x1 s
  • Supports 8th generation Intel Core and Pentium Gold CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB at 2666 MHz
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Intel I219-V Gigabit LAN for wired networking
  • Dual Realtek ALC892 audio with 7.1 channel output

LGA 1151 Micro ATX Platform

The MSI B360M Bazooka Plus is a micro ATX motherboard built around the Intel B360 chipset and the LGA 1151 socket. It accepts 8th generation Intel Core, Pentium Gold and Celeron processors for compact system builds.

64 GB Dual-Channel DDR4 Headroom

Four memory slots support dual-channel DDR4 at 2666, 2400 and 2133 MHz up to a total of 64 GB. That capacity handles multitasking and mainstream workloads; heavier memory-dependent tasks will reach the ceiling.

Steel-Reinforced Slots and Rear I/O Mix

The board uses a 23.6 x 20.0 cm PCB with steel-armoured PCIe 3.0 x16 slots for heavier graphics cards. Rear I/O supplies two USB 3.1 Gen2 ports (one Type-C, one Type-A), additional USB 3.1 Gen1 and USB 2.0 headers, Intel I219-V Gigabit LAN and 7.1-channel audio from dual Realtek ALC892 codecs.

Highlights

  • Supports 8th generation Intel Core and Pentium Gold CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 64GB at 2666 MHz
  • Two PCIe 3.0 x16 slots for multi-GPU configurations
  • Intel I219-V Gigabit LAN for wired networking
  • Dual Realtek ALC892 audio with 7.1 channel output

Specifications

BrandMSI
SeriesMSI B360M BAZOOKA PLUS
ModelMSI B360M BAZOOKA PLUS
CPU Socket TypeLGA 1151
CPU TypeSupports 8th generation Intel Core processors with LGA1151, Pentium Gold and Celeron processors
ChipsetIntel B360
Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
Maximum Memory Supported64GB
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
2 PCIe 3.0 x1 slots
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetDual Realtek ALC892 Decoder Chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1 x Intel I219-V Gigabit network interface card
Onboard USBIntel B360 chipset
2 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C port and 1 Type-A port on the backplane)
2 USB 3.1 Gen1 (SuperSpeed USB) ports are provided via the onboard USB port
6 USB 2.0 (High-speed USB) ports (4 Type-A ports on the backplane, 2 ports provided via onboard USB ports)

Questions about this item

Will my existing DDR4 2400 MHz modules run at their rated speed on this board?

The board supports dual-channel DDR4 at 2666, 2400 and 2133 MHz, so 2400 MHz modules will operate at their rated speed.

How can I confirm the Realtek ALC892 audio is functioning after assembly?

Open Sound settings, select the Realtek 7.1 device, run the speaker test for each channel and verify S/PDIF output appears as an option.

Which cables and brackets are included, and what must I source separately?

The package contains the motherboard, one SATA cable and the rear I/O shield; CPU cooler brackets, additional SATA cables, M.2 screws and front-panel USB headers are not included.
