Green rectangular Micro ATX motherboard with black heatsinks and silver PCIe slots

MSI

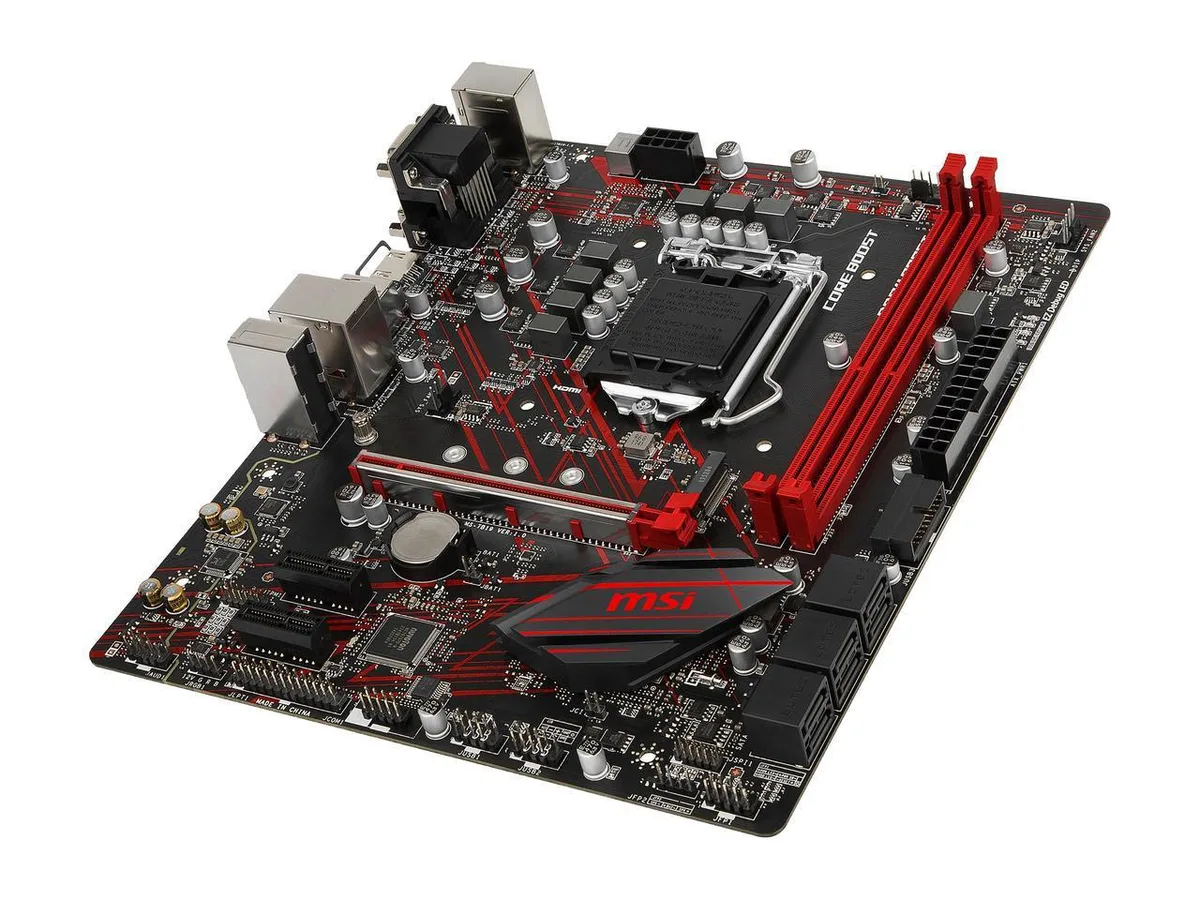

MSI B360M GAMING PLUS Intel motherboard

SKU CH-CGMV-AZT6Y

Micro-ATX board for 8th and 9th Gen Intel CPUs with dual-channel DDR4, one M.2 slot and Intel gigabit LAN

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron pro
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x VGA port,
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2666/ 2400/ 2133* * Please refer to www.msi.com for mor
  • Supports 9th and 8th generation Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Turbo M.2 slot delivers PCIe 3.0 x4 speeds for fast storage
  • Intel I219-V Gigabit LAN provides reliable wired networking
  • Realtek ALC887 codec enables 7.1 channel high-definition audio

Socket and generation fit

This board uses the LGA 1151 socket on the Intel B360 chipset and accepts 8th and 9th Generation Intel Core, Pentium Gold and Celeron processors. It is not backward compatible with earlier LGA 1151 CPUs, so the processor choice is limited to those two generations.

Micro-ATX layout and common install issues

The Micro-ATX form factor fits standard mounting points, but only two DDR4 DIMM slots are provided, capping memory at 32 GB in dual-channel mode. The single M.2 Key M slot shares bandwidth with the first SATA port, so populating it with a SATA M.2 drive disables that SATA connector.

B360 chipset and interface limits

The B360 chipset links the single PCIe 3.0 x16 slot and two PCIe x1 slots directly to the CPU, while the M.2 slot runs at PCIe 3.0 x4 or SATA 6 Gb/s. Six SATA 6 Gb/s ports are available unless the M.2 slot uses a SATA device, which reduces the count to five.

Highlights

  • Supports 9th and 8th generation Intel Core processors with LGA 1151 socket
  • Dual-channel DDR4 memory up to 32 GB at 2666 MHz
  • Turbo M.2 slot delivers PCIe 3.0 x4 speeds for fast storage
  • Intel I219-V Gigabit LAN provides reliable wired networking
  • Realtek ALC887 codec enables 7.1 channel high-definition audio

Specifications

BrandMSI
SeriesPERFORMANCE GAMING
ModelB360M GAMING PLUS
CPU Socket TypeLGA 1151 (300 Series)
CPU TypeSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket * Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic: 1 x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI port 1.4, supports a maximum resolution of 4096x2160@30Hz * No Display support when using the Processor model with suffix "F"
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2666/ 2400/ 2133* * Please refer to www.msi.com for more information on compatible memory
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x12 x PCI Express x1
Serial ATA (SATA)6 x SATA 6Gb/s ports* * The SATA1 connector will be unavailable when an M.2 SATA SSD module has been installed in the M.2_1 slot.
M.21 x M.2 slots (Key M) Support up to PCIe 3.0 x4 and SATA 6Gb/s Supports 2242/2260/2280/22110 storage devices
Intel Optane ReadyIntel Optane Memory Ready* * Before using Intel Optane memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
Audio ChipsetRealtek ALC887
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps

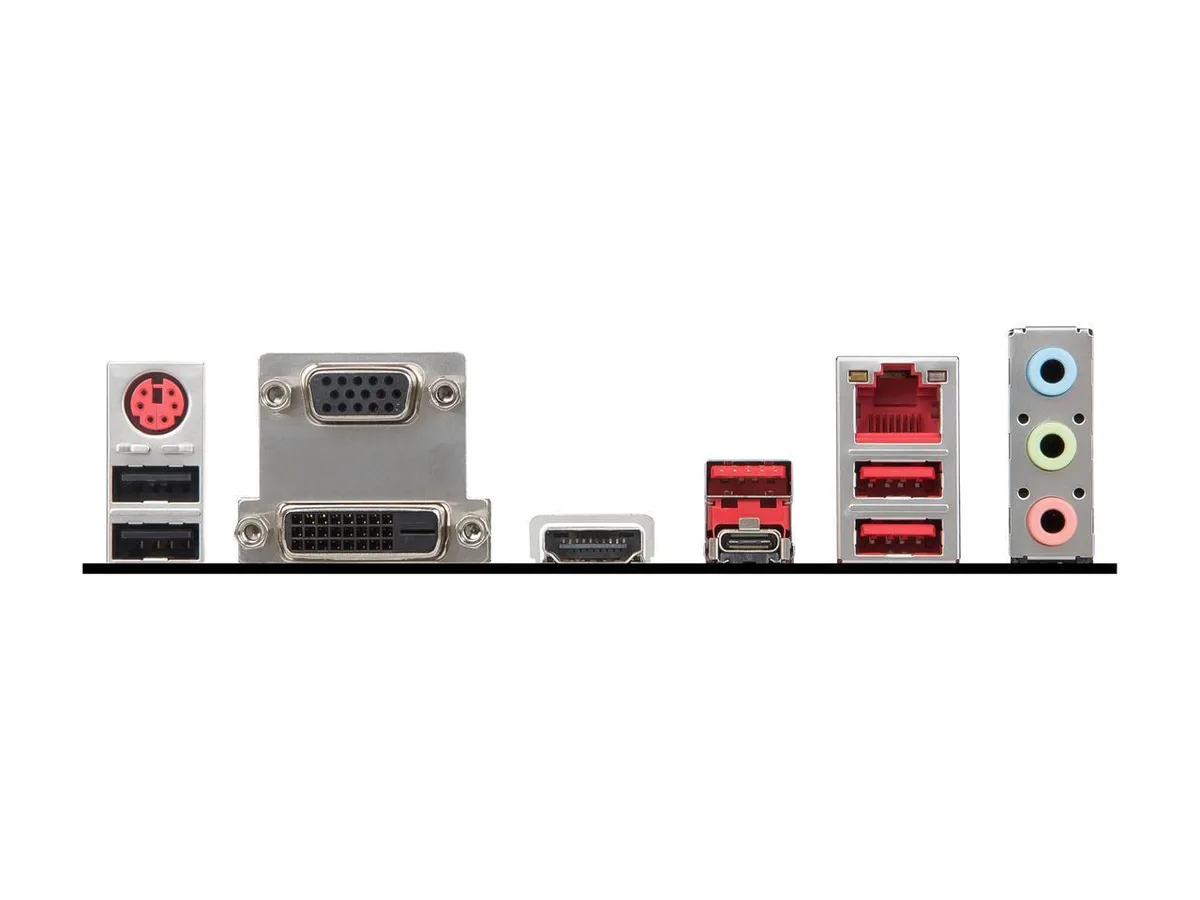

PS/21 x PS/2 keyboard/mouse port
Video Ports1 x VGA 1 x DVI-D
HDMI1 x HDMI
RJ451 x RJ45
USB 3.13 x USB 3.1 Gen1 (SuperSpeed USB) ports (Type-A)
USB 1.1/2.02 x USB 2.0 (High-speed USB) ports (Type-A)
USB Type-C1 x USB 3.1 Gen1 (SuperSpeed USB) port (Type-C)
Audio Ports3 Ports
Onboard USB1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors1 x 4-pin CPU fan connector 2 x 4-pin system fan connectors 1 x Front panel audio connector 1 x RGB LED connector 1 x Parallel port connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 8.1"
Power Pin1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
FeaturesSupports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket. Supports DDR4 Memory, up to 2666MHz. MYSTIC LIGHT and Sync: Personalize your PC with 16.8 million colors / 10 effects controlled in one click with the Mystic Light APP or a mobile device. Lightning Fast Game experience: TURBO M.2, Intel Optane Memory Ready. Core Boost: With premium layout and optimized power design to support more cores and provide better performance. AUDIO BOOST with NAHIMIC: Reward your ears with studio grade sound quality for the most immersive gaming experience. DDR4 Boost: A

Questions about this item

Will this board accept a 7th Generation Intel Core i5?

No, the LGA 1151 (300 Series) socket only supports 8th and 9th Generation Intel Core, Pentium Gold and Celeron processors.

Can I run two memory sticks in dual-channel mode?

Yes, the board has two 288-pin DDR4 slots and supports dual-channel operation up to 32 GB total.

If I install a SATA M.2 drive in the M.2_1 slot, will I lose a SATA port?

Yes, SATA1 becomes unavailable when an M.2 SATA device occupies the M.2_1 slot; the other five SATA 6Gb/s ports remain active.
