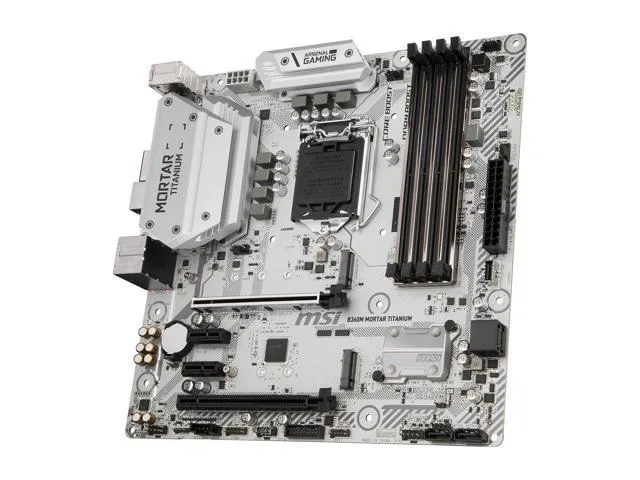

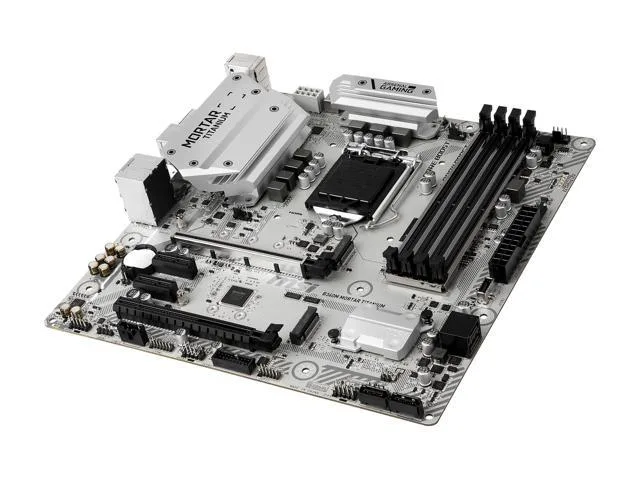

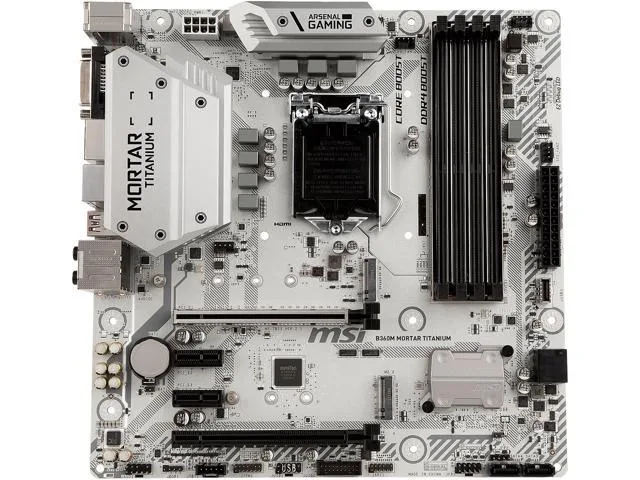

Micro ATX motherboard with titanium-grey finish and reinforced PCIe slot

MSI

MSI B360M MORTAR TITANIUM LGA 1151 Intel Motherboard

SKU CH-3ZMR-RQM2M

Micro ATX board for 8th generation Intel Core processors with four DDR4 slots, dual M.2, four SATA 6Gb/s ports, Intel gigabit LAN and Realtek 8-channel audio

  • CPU Socket TypeLGA 1151 (300 Series)
  • CPU Type8th Generation Intel Core Processors* Not backward compatibl
  • ChipsetIntel B360
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Maximum Memory Supported64GB
  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB capacity
  • Realtek ALC892 8-channel audio for clear sound
  • Intel I219-V Gigabit LAN for wired networking
  • Micro ATX form factor fits compact builds

LGA 1151 300 Series Micro ATX Motherboard

The MSI B360M MORTAR TITANIUM is a Micro ATX board built around the Intel B360 chipset for 8th Generation Intel Core processors. It uses the LGA 1151 socket in its 300 Series revision and is not backward compatible with older LGA 1151 CPUs. Four 288 pin DDR4 slots support up to 64 GB in dual channel mode. Storage includes four SATA 6Gb/s ports and two M.2 sockets.

Builders Matching 8th Gen Core and Micro ATX Cases

This board suits builders pairing an 8th Generation Intel Core CPU with a compact Micro ATX chassis. It provides HDMI and DisplayPort outputs for processors with integrated graphics. Users needing Wi Fi, Bluetooth or rear USB Type C will not find those interfaces here. Anyone planning to reuse a 6th or 7th Generation processor must choose a different motherboard.

Sustained Operation with Standard Cooling

Under continuous load the B360 chipset and voltage regulators run within their rated limits using the 24 pin and 4 pin power connectors. The Realtek ALC892 audio codec and Intel I219 V Gigabit LAN controller maintain stable performance during extended sessions. No additional active cooling is required for the chipset under normal sustained workloads.

Highlights

  • Supports 8th Gen Intel Core CPUs on LGA 1151 socket
  • Dual-channel DDR4 memory up to 64 GB capacity
  • Realtek ALC892 8-channel audio for clear sound
  • Intel I219-V Gigabit LAN for wired networking
  • Micro ATX form factor fits compact builds

Specifications

BrandMSI
ModelB360M MORTAR TITANIUM
CPU Socket TypeLGA 1151 (300 Series)
CPU Type8th Generation Intel Core Processors* Not backward compatible with older generation of LGA 1151 CPUs
ChipsetIntel B360
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Maximum Memory Supported64GB
Channel SupportedDual Channel
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
Audio ChipsetRealtek ALC892
Audio Channels8 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x DisplayPort / 1 x HDMI
Video PortsDVI
HDMI1 x HDMI
DisplayPort1 x DisplayPort
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"

Questions about this item

Which CPU socket must my processor fit for this board to work?

The board uses the LGA 1151 (300 Series) socket and only accepts 8th Generation Intel Core processors; older LGA 1151 CPUs are not supported.

Will my existing DDR4 memory modules run at their rated speeds on this motherboard?

The board provides four 288-pin DDR4 slots running in dual channel with a maximum capacity of 64 GB and supports memory speeds up to 2400 MHz and 2133 MHz.

How can I verify the onboard audio and network controllers are active after assembly?

In Device Manager the audio device should appear as Realtek ALC892 8-channel high-definition audio and the LAN adapter as Intel I219-V Gigabit Ethernet.
