MSI

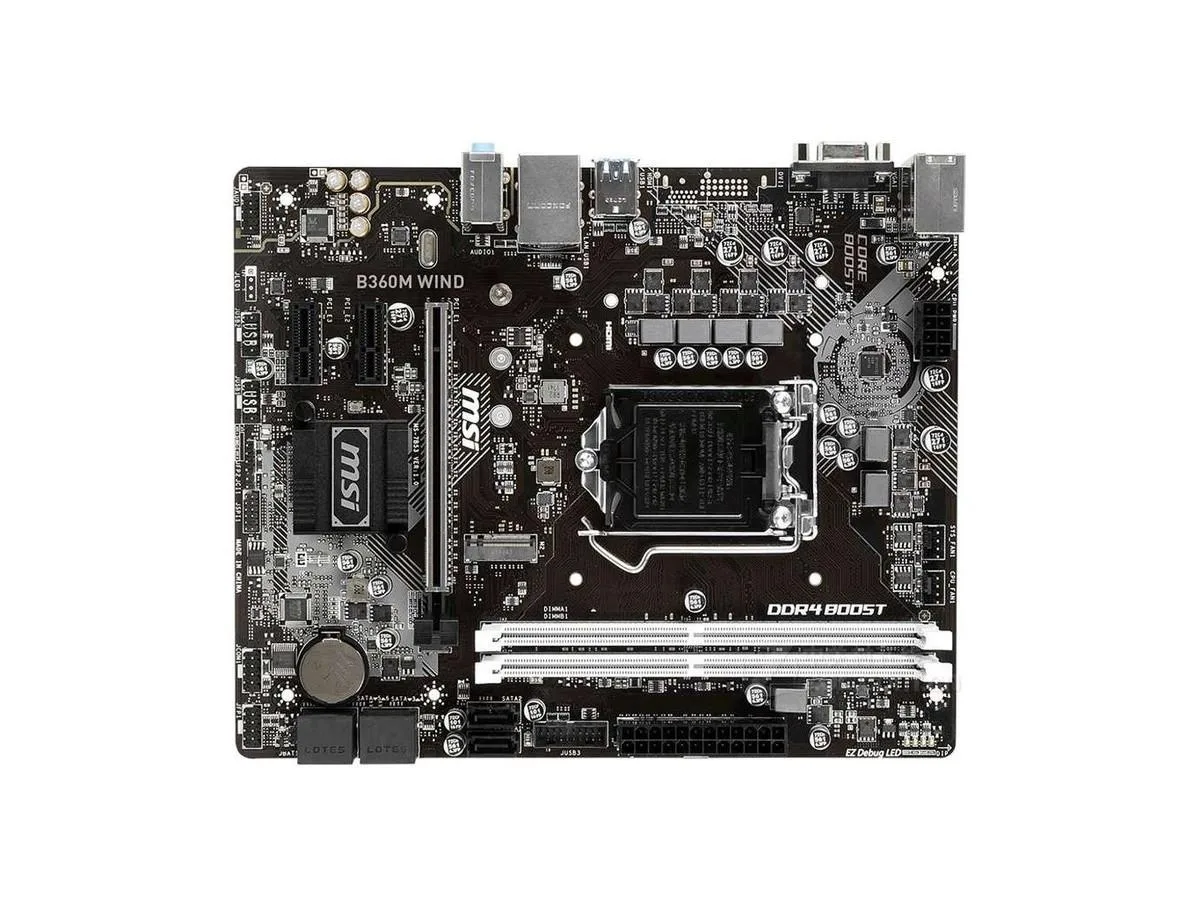

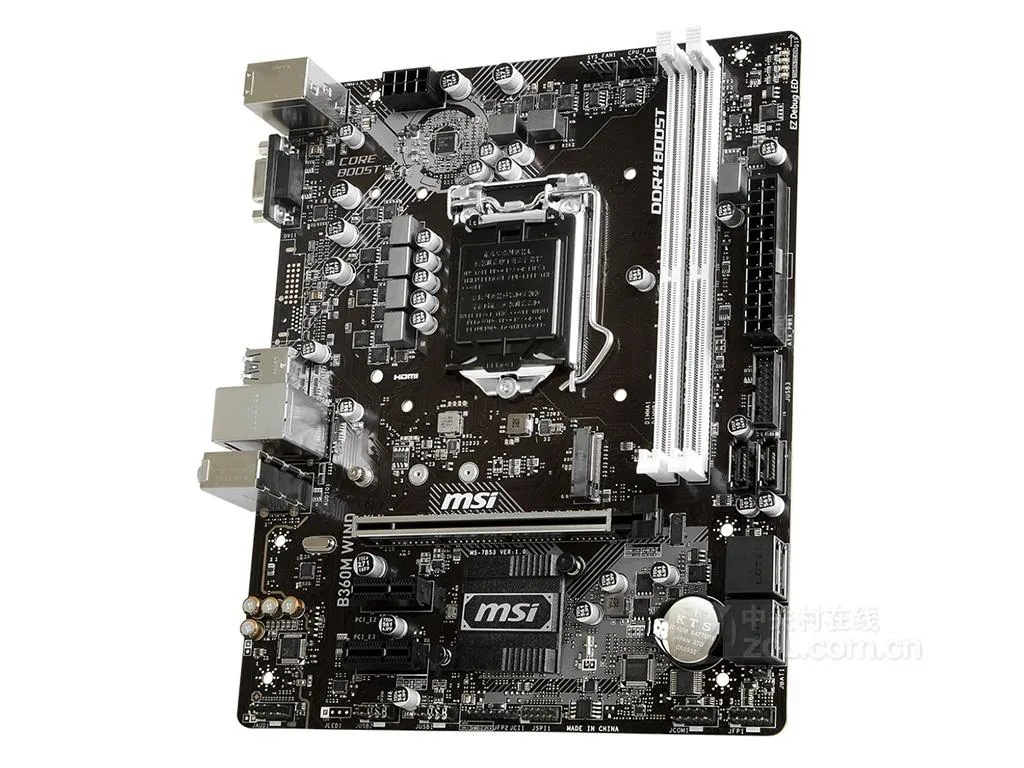

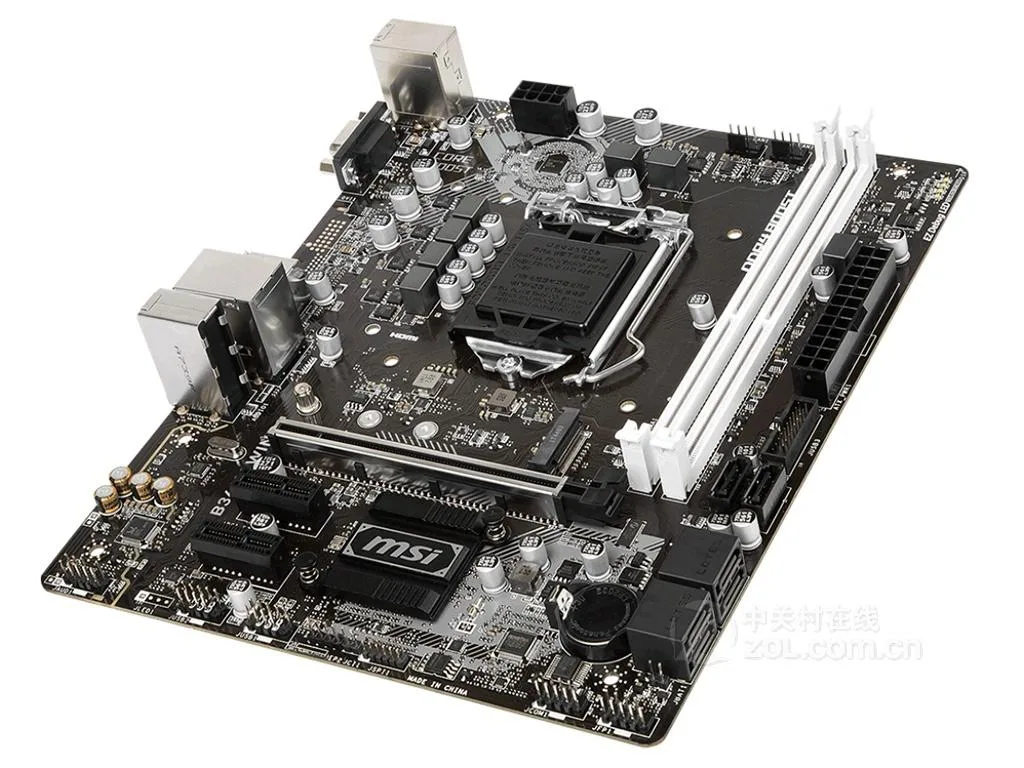

MSI B360M WIND Intel motherboard
Micro-ATX board with LGA 1151 socket, Intel B360 chipset, dual-channel DDR4 up to 32 GB, one PCIe 3.0 x16 and two x1 slots, six SATA III ports, Realtek ALC887 7.1 audio and RTL8111H Gigabit LAN
- CPU Socket TypeLGA 1151
- CPU TypeSupports 8th generation Intel Core processors, as well as In
- ChipsetIntel B360
- Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
- Maximum Memory Supported32GB
- PCI Slots1 x PCIe 3.0 x16 slot 2 x PCIe 3.0 x1 slots
- Supports 8th gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1151 socket
- Dual-channel DDR4 up to 2666 MHz with 32 GB maximum capacity
- Micro-ATX board measuring 23.6 x 20.0 cm for compact builds
- Realtek ALC887 codec delivers 7.1 channel high-fidelity audio
- RTL8111H Gigabit LAN plus six USB 3.1 Gen1 and six USB 2.0 ports
LGA 1151 Micro ATX Motherboard
The MSI B360M WIND is a Micro ATX board for Intel LGA 1151 processors. It supports 8th generation Core CPUs together with Pentium Gold and Celeron models. Dual-channel DDR4 memory up to 32 GB can be installed. The board fits compact builds that need a standard Intel platform.
Intel B360 Chipset Limits
The B360 chipset provides one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots for expansion cards. Storage connects through a single M.2 interface and six SATA III ports. Networking uses an RTL8111H Gigabit LAN controller. Audio is handled by a Realtek ALC887 codec with 7.1 channel output.
Build and Daily Connectivity
The board measures 23.6 by 20.0 cm and uses a Micro ATX mounting pattern. Rear I/O supplies four USB 3.1 Gen1 Type-A ports and two USB 2.0 ports. Internal headers add two more USB 3.1 Gen1 ports and four USB 2.0 ports. The package includes the motherboard, a metal battery, one SATA cable and an I/O shield.
Highlights
- Supports 8th gen Intel Core, Pentium Gold and Celeron CPUs on LGA 1151 socket
- Dual-channel DDR4 up to 2666 MHz with 32 GB maximum capacity
- Micro-ATX board measuring 23.6 x 20.0 cm for compact builds
- Realtek ALC887 codec delivers 7.1 channel high-fidelity audio
- RTL8111H Gigabit LAN plus six USB 3.1 Gen1 and six USB 2.0 ports
Specifications
| Brand | MSI |
|---|---|
| Series | MSI B360M WIND |
| Model | MSI B360M WIND |
| CPU Socket Type | LGA 1151 |
| CPU Type | Supports 8th generation Intel Core processors, as well as Intel Pentium Gold and Celeron processors for Socket LGA1151 |
| Chipset | Intel B360 |
| Memory Standard | Supports dual-channel DDR4 2666/2400/2133MHz memory |
| Maximum Memory Supported | 32GB |
| PCI Slots | 1 x PCIe 3.0 x16 slot 2 x PCIe 3.0 x1 slots |
| SATA RAID | 1XM.2 interface, 6xSATA III interface |
| Audio Chipset | Realtek ALC887 Codec 7.1 channel high fidelity audio |
| LAN Chipset | 1 x RTL8111H Gigabit LAN Controller |
| Onboard USB | Intel B360 chipset 6 USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the backplane, 2 ports via onboard USB) 6 USB 2.0 (High Speed USB) ports (2 on the backplane, 4 via internal USB connectors) |
Questions about this item
Should I pick the 32GB DDR4 limit or look for a 64GB board?
The B360M WIND officially supports up to 32GB of DDR4 across its two slots, so if you need more than 32GB you will need a different motherboard.
What does the 2666MHz DDR4 rating mean once the board is built?
With an 8th generation Intel Core CPU the memory controller tops out at 2666MHz, so DDR4-2666 modules will run at their rated speed without manual tuning.
How many M.2 drives can the single M.2 interface actually run?
The board provides one M.2 slot connected through the B360 chipset, so only one M.2 SATA drive can be used at a time.
