MSI
MSI B365M PRO-VDH Intel motherboard
Micro-ATX board for LGA 1151 CPUs with four DDR4 slots up to 64 GB, one PCIe 3.0 x16, two PCIe x1, six SATA 6Gb/s ports and one M.2 slot
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
- ChipsetIntel B365
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x288pin (DDR4)
- Memory StandardDDR4 2666
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Four DDR4 slots accept up to 64 GB at 2666 MHz
- Intel B365 chipset provides six SATA 6Gb/s ports and one M.2 slot
- Realtek ALC892 codec delivers 7.1 channel audio
- Realtek RTL8111H controller enables 1 Gbps LAN
Socket LGA 1151 (300 Series) foundation

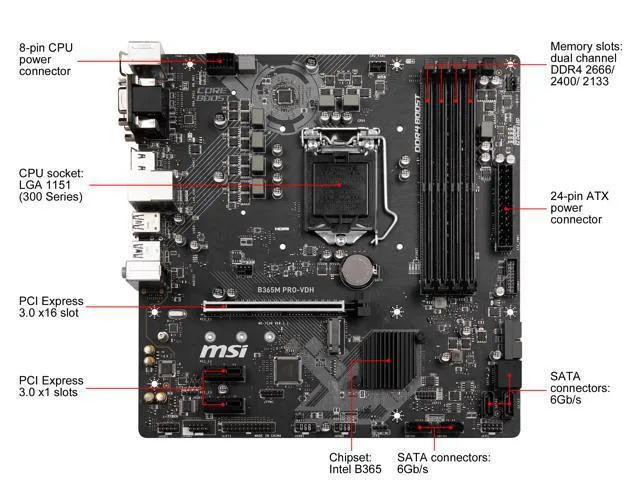

This micro-ATX board uses the Intel B365 chipset to support 8th and 9th generation Core i7, i5, i3, Pentium Gold and Celeron processors in the LGA 1151 socket. Four 288-pin DDR4 slots accept up to 64 GB of memory running at 2666, 2400 or 2133 MT/s in dual-channel mode. A single PCI Express 3.0 x16 slot and two PCI Express x1 slots provide expansion room for graphics and add-in cards.
Sustained throughput on the SATA 6Gb/s interface
Six SATA 6Gb/s ports deliver consistent bandwidth for multiple hard drives or SATA SSDs during long file transfers or backups. The Realtek RTL8111H LAN controller maintains a steady 1 Gbps wired connection without throttling under continuous network load. Realtek ALC892 audio drives 7.1 channels cleanly during extended playback or recording sessions.
Practical limits of the DDR4 2666 memory standard
Memory speed tops out at 2666 MT/s, so faster DDR4 modules will downclock to this ceiling. Total capacity is capped at 64 GB across the four slots, restricting very large working sets. The single M.2 socket shares bandwidth with the chipset, so adding a drive there does not increase the peak throughput available to the six SATA ports.
Highlights
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Four DDR4 slots accept up to 64 GB at 2666 MHz
- Intel B365 chipset provides six SATA 6Gb/s ports and one M.2 slot
- Realtek ALC892 codec delivers 7.1 channel audio
- Realtek RTL8111H controller enables 1 Gbps LAN
Specifications
| Brand | MSI |
|---|---|
| Series | PRO |
| Model | B365M PRO-VDH |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Core i7 / i5 / i3 (8th Gen, LGA1151) |
| Chipset | Intel B365 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666 |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| Serial ATA (SATA) | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 |
| Intel Optane Ready | Yes |
| Audio Chipset | Realtek ALC892 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek RTL8111H |
| Max LAN Speed | 1Gbps |
| Onboard USB | 4 x USB 3.1 + 4 x USB 2.0 |
| Other Connectors | 1 x 4-pin CPU fan connector2 x 4-pin system fan connectors1 x Front panel audio connector1 x Parallel port connector1 x Serial port connector2 x Front panel connectors1 x TPM module connector1 x 4-pin RGB LED connector1 x Chassis Intrusion connector1 x Clear CMOS jumper |
| Form Factor | Micro ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 24 Pin |
| Features | Supports 9th/8th Gen Intel Core / Pentium Gold / Celeron processors for LGA 1151 socket.Supports DDR4 Memory, up to 2666 MHz.Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.Audio Boost: Reward your ears with studio grade sound quality.EZ Debug LED: Easiest way to troubleshoot.X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device. |
Questions about this item
Will my 9th-generation Core i5 fit this socket?
The board uses the LGA 1151 (300 Series) socket, which accepts 9th- and 8th-generation Core i7, i5, i3, Pentium Gold and Celeron processors.
Can I run four DDR4 sticks at 2666 MT/s in dual-channel mode?
Four 288-pin DDR4 slots support up to 64 GB total; the chipset runs DDR4 at 2666, 2400 or 2133 in dual-channel configuration.
Does the single M.2 slot support SATA or only PCIe drives?
The M.2 slot is Intel Optane Ready, so it accepts both PCIe and SATA signalling; a SATA M.2 SSD will work alongside the six SATA 6Gb/s ports.
